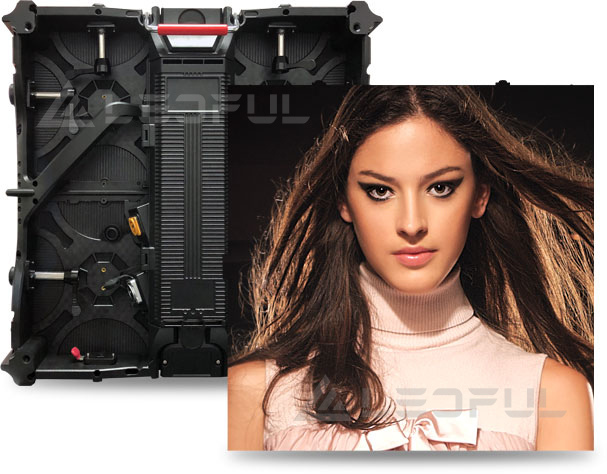

V Series

Indoor & Outdoor LED Display Screen

V Series
VI2.6 | VI2.9 | VI3.9 | VI4.8 | VI5.9
VO3.9 | VO4.8 | VO5.9
  • Front Maintenance
  • Curved Installation
  • Edge-care Design
  • No Light Leakage
  • Light and Thin

Parameter

V Series Outdoor VO 3.9 VO 4.8 VO 5.9
Pixel Pitch(mm) 3.91mm 4.81mm 5.95mm
Pixel Matrix Per Sq.m 65536 43264 28224
Pixel Configuration SMD1921 SMD2727/1921 SMD2727
Brightness (nits) ≥3500 ≥4000 ≥4000
Scan 43108 43113 43107
Cabinet Resolution 128×128 104×104 84×84
Power Con. (Max / Avg) 880/ 280 w/sq.m 800 / 240 w/sq.m 720/ 240 w/sq.m
Cabinet Weight 7.85kg / 17.3Ib  7.7kg / 16.98Ib 7.2kg / 15.87Ib
Refresh Rate (HZ) 3840 3840 1920
Module Dimension 250x250mm / 0.82x0.82feet
Cabinet Dimension 500x500x85mm / 1.64x1.64x0.28feet
Cabinet Material Die-casting Aluminum
Service Access Front / Rear
Grey Scale (bit) 14
Viewing Angle (H/V) 140 / 140
IP Rate IP65
Input Voltage (AC) 110 / 240

V Series Indoor VI 2.6 VI 2.9 VI 3.9 VI 4.8 VI 5.9
Pixel Pitch(mm) 2.604mm 2.976mm 3.91mm 4.81mm 5.95mm
Pixel Matrix Per Sq.m 147456 112896 65536 43264 28224
Pixel Configuration SMD1515 SMD1515 SMD2121 SMD2121 SMD3528
Scan 1/32 43128 43116 43113 43114
Cabinet Resolution 192×192 168×168 128×128 104×104 84×84
Cabinet Weight 8kg / 17.6Ib 8kg / 17.6Ib 7.4kg/16.3Ib 7.3kg/16.09b 7kg/15.43Ib
Power Con. (Max / Avg) 660 / 220w/sq.m 640 / 200w/sq.m 620 / 180w/sq.m 600 / 170w/sq.m 600 / 170w/sq.m
Refresh Rate (HZ) 3840 3840 3840 1920 1920
Cabinet Material Die-casting Aluminum
Module Dimension 250x250mm / 0.82x0.82feet
Cabinet Dimension 500x500x85mm / 1.64x1.64x0.28feet
Service Access Front / Rear
Brightness (nits) 1200
Grey Scale (bit) 16
Viewing Angle (H/V) 140 / 140
IP Rate IP43
Input Voltage (AC) 110 / 240

* Specifications and photos are subject to change without prior notice.

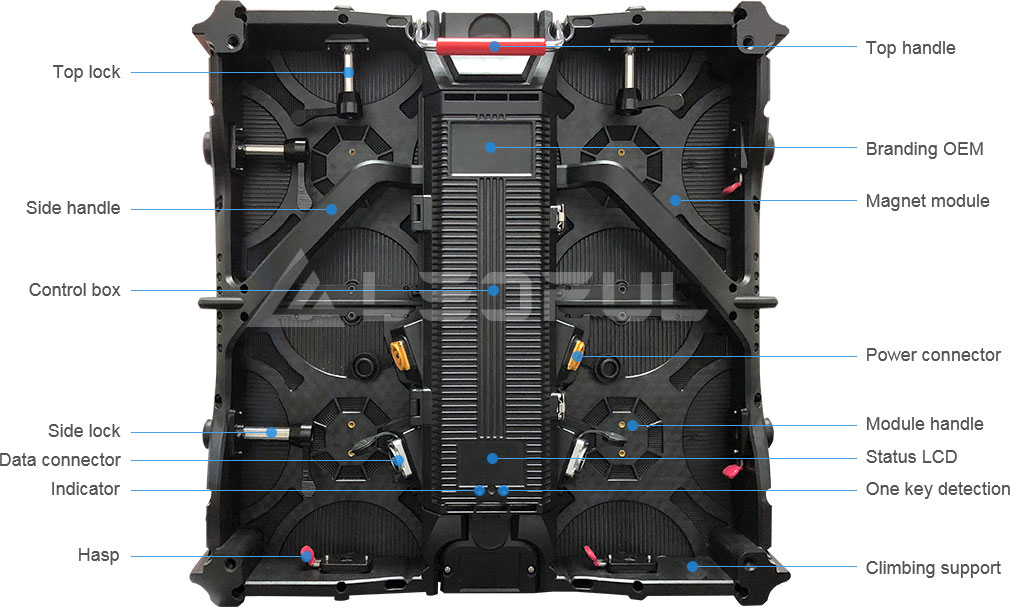

Parameter

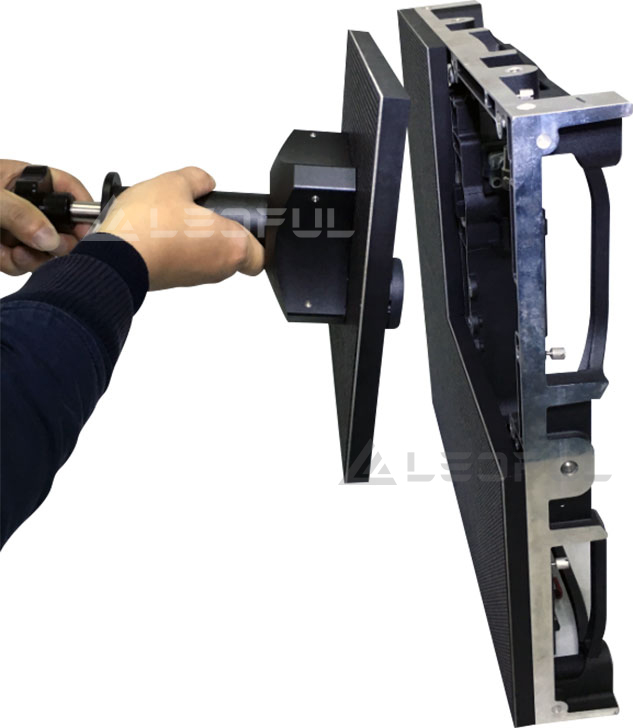

Front Maintenance

The magnet LED modules can be dismantled by tools on front side.
Front Maintenance

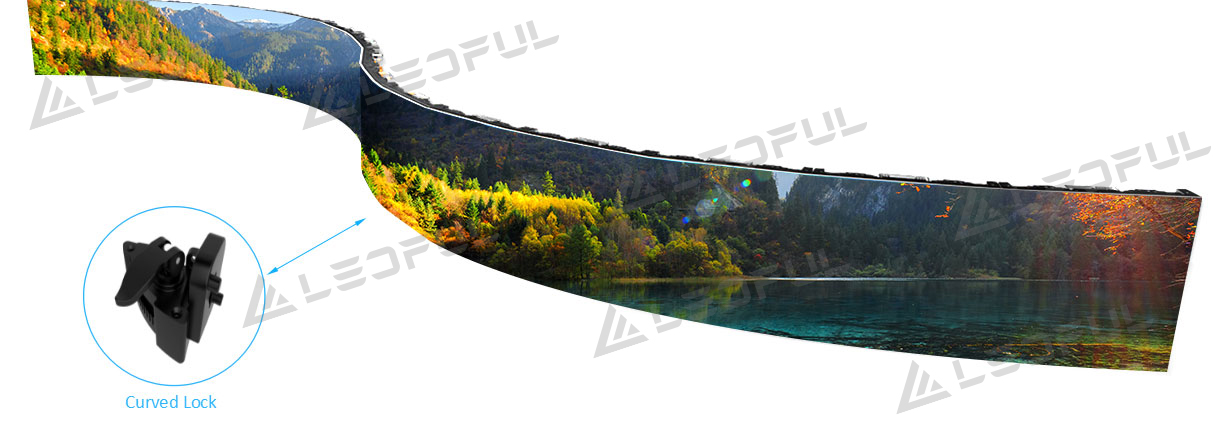

Curved Installation

Curved with every 2.5° between -10°and 10°, which can make convex and concave.
Curved Installation

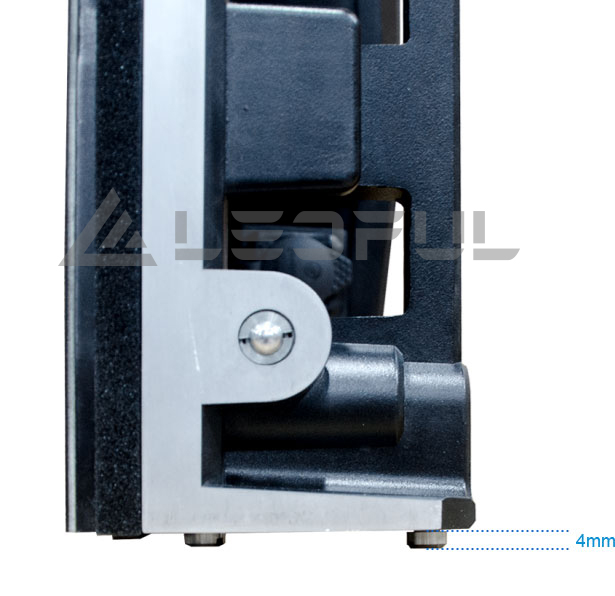

Edge-care Design

4mm stands at the bottom of cabinet, prevent edge pixels damage when put cabinet upright on the ground.
Edge-care Design

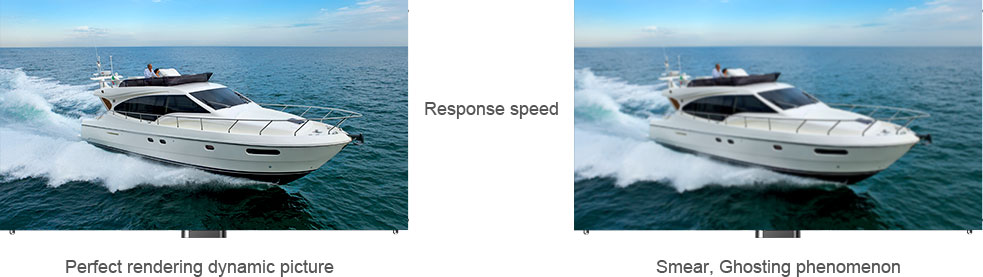

Ultra Fast Response

The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
 it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.
Ultra Fast Response

No light leakage trouble

No light leakage design with specific strips on side of cabinet and behind neighbour module.
No light leakage trouble

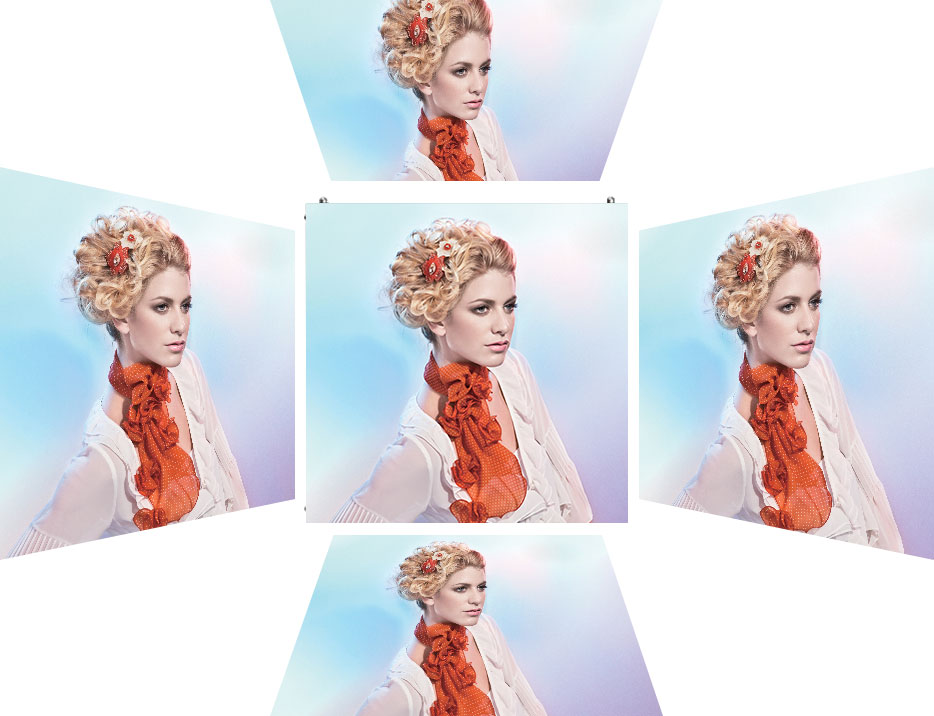

Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Wide Viewing Angle

Faster & Easier Installation

Hanging or stacking, V series with light and thin features makes installation faster and easier.
Faster & Easier Installation

Accessories

  • Power Cable
    Power Cable
  • Data Cable
    Data Cable
  • Main Power Cable
    Main Power Cable
  • Main Data Cable
    Main Data Cable
  • Controller &Processor
    Controller &Processor
  • Front Maintenance Tool
    Front Maintenance Tool
  • Curved Lock
    Curved Lock
  • Hanging Bar
    Hanging Bar
