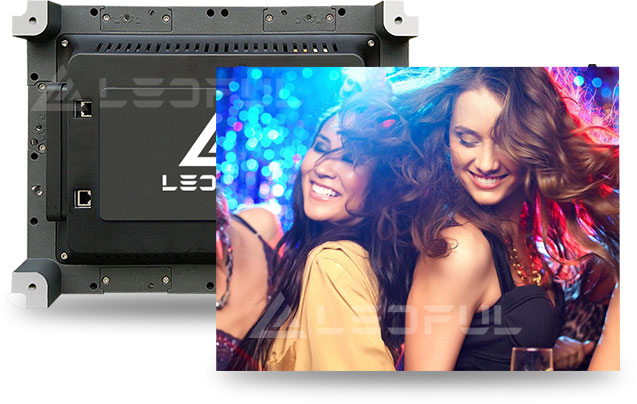

HD Series

HD LED Display

HD Series
HD1.2 | HD1.5 | HD1.6 | HD1.9 | HD2.5
  • Front maintenance
  • Front Installation
  • Cabinet ratio 4:3
  • High Grayscale
  • High Refresh
  • Light and Thin


Value HD1.2 HD1.5 HD1.6 HD1.9 HD2.5
Pixel Pitch(mm) 1.25mm 1.5625mm 1.667mm 1.923mm 2.5mm
Pixel Matrix Per Sq.m 640000 409600 360000 270400 160000
Pixel Configuration SMD1010 SMD1010 SMD1010 SMD1010 SMD2121
Scan 1/30 1/32 1/30 1/26 1/30
Cabinet Resolution 320x240 256x192 240x180 208x156 160x120
Brightness (nits) 800
Module Dimension 200x150mm / 0.66x0.49feet

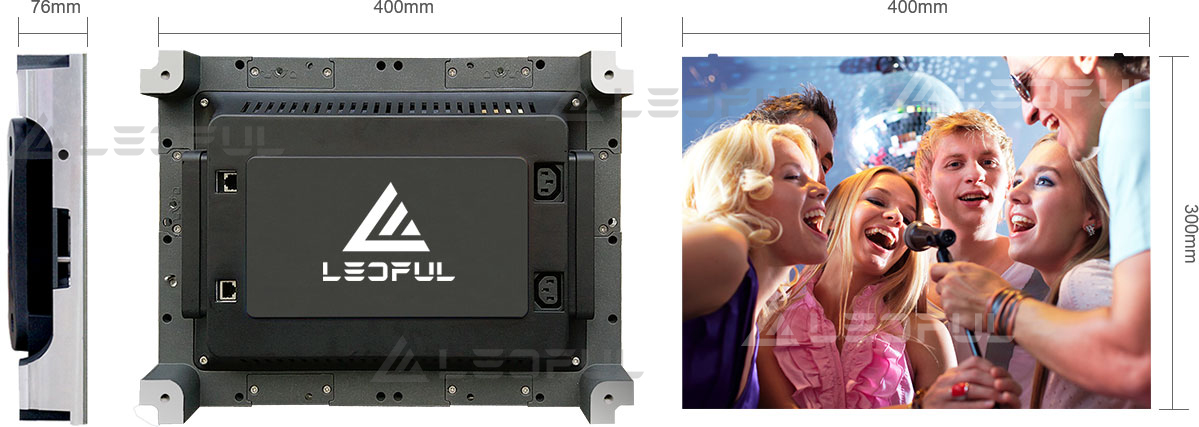

Cabinet Dimension 400x300x75mm / 1.31x0.98x0.25feet
Cabinet Weight 4.6kg /10.1Ib ( Die-casting Aluminum)
Service Access Front
Refresh Rate (HZ) ≥3840
Grey Scale (bit) 16
Viewing Angle (H/V) 160 / 160
Power Con. (Max / Avg) 500/ 200 w/sq.m
IP Rate IP31
Input Voltage (AC) 110 / 240

* Specifications and photos are subject to change without prior notice.

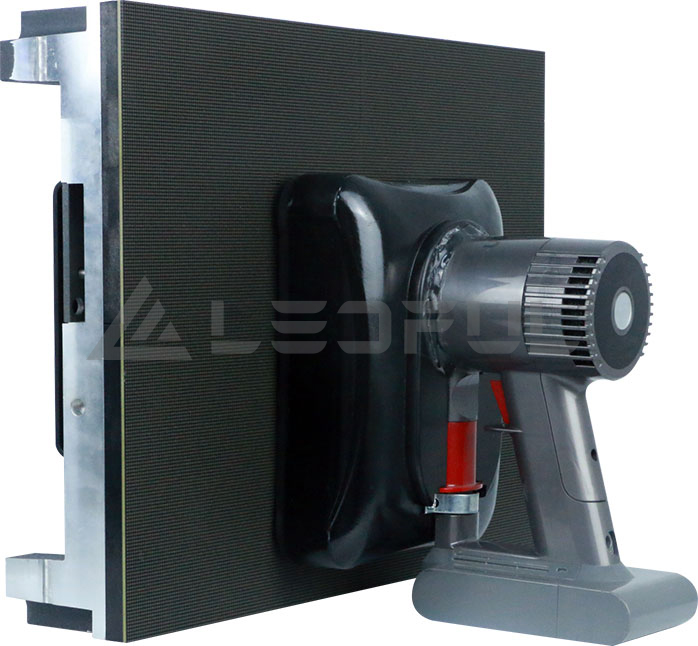

Full Front Maintenance

LED modules, power supply, receiver card, hub card, cables are all front service.
Full Front Maintenance

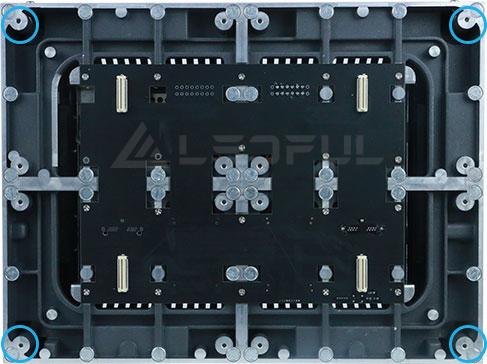

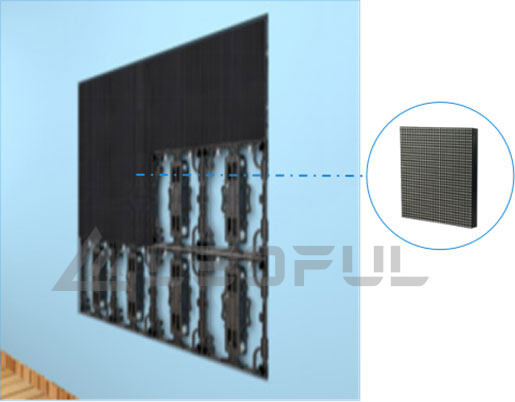

Front Installation

Each corner of cabinet have a screw hole, screw M8 bolts to fix bare cabinet on the wall.
Assembly modules onto the cabinet.
  • Each corner of cabinet has a screw hole,  screw the M8 bolts to fix bare cabinets on the wall.
    Each corner of cabinet has a screw hole, screw the M8 bolts to fix bare cabinets on the wall.
  • Assemble modules onto the cabinet in order.
    Assemble modules onto the cabinet in order.

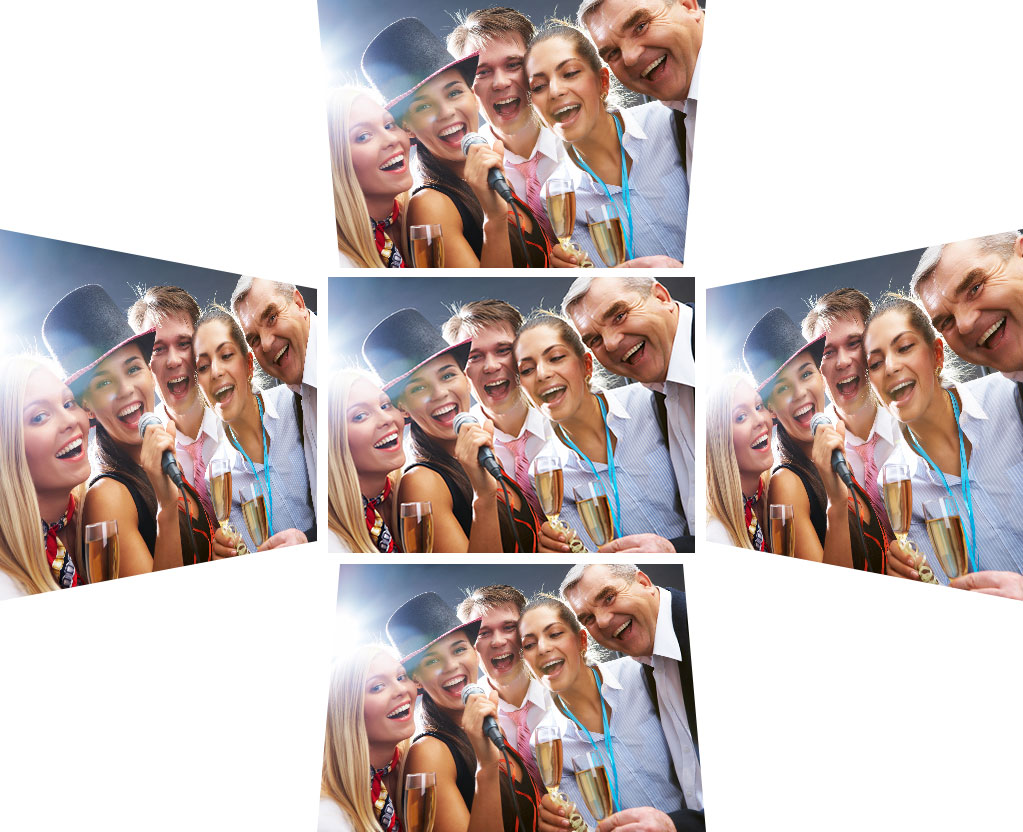

Ultra Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Ultra Wide Viewing Angle

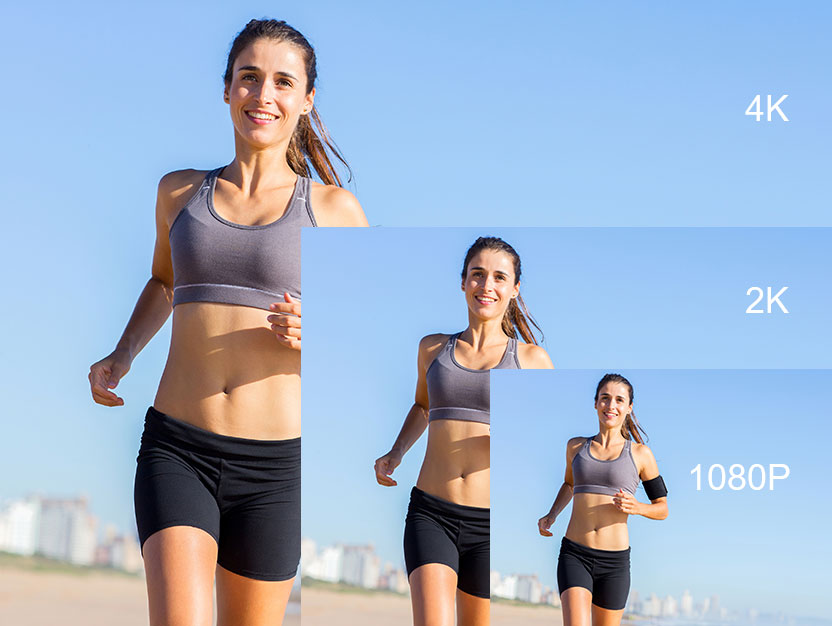

Ultra High Definition

It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.
Ultra High Definition

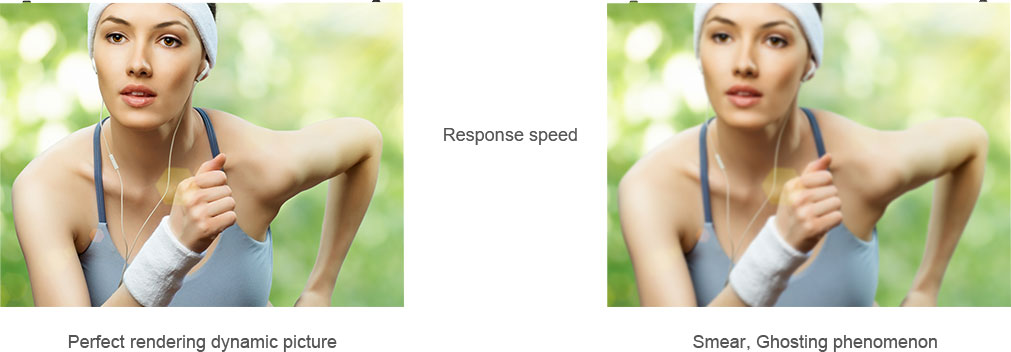

Ultra Fast Response

The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
 it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.
Ultra Fast Response

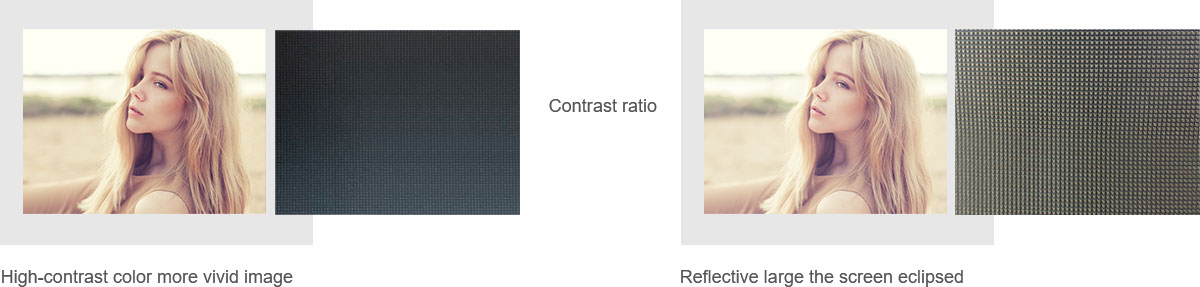

High Contrast Ratio

High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance
when works on the color and has very good contrast.
High Contrast Ratio

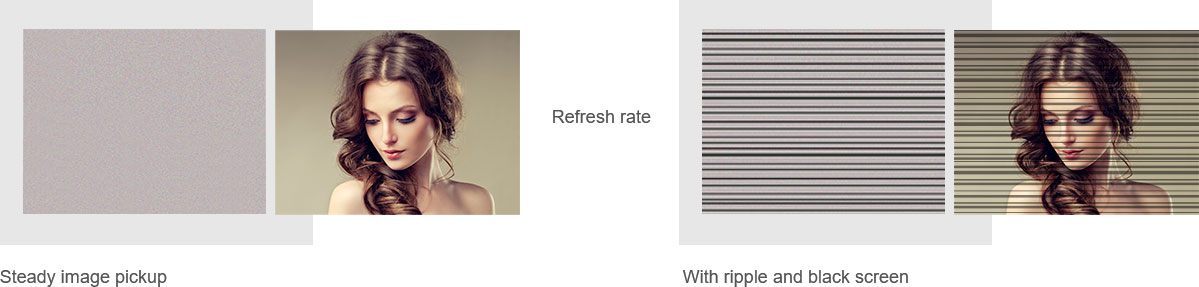

High Refresh Rate

It could be reach 3840HZ.
High Refresh Rate

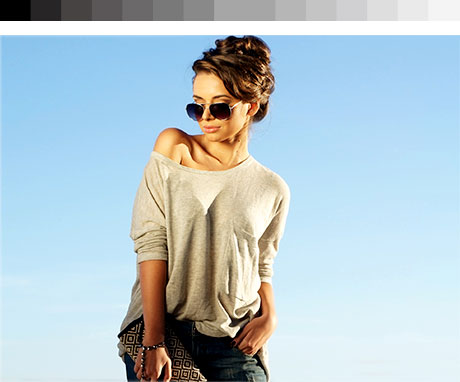

16 bit Grey Scale

It has almost the perfect gray scale and gives true color of the images,
 there will have no data loss and you could see every details clearly.
