U Series

Outdoor Advertising LED Display

U Series
U1.2 | U1.4 | U1.5 | U1.8
  • Front maintenance & Front Installation
  • High Refresh and High Grey Scale

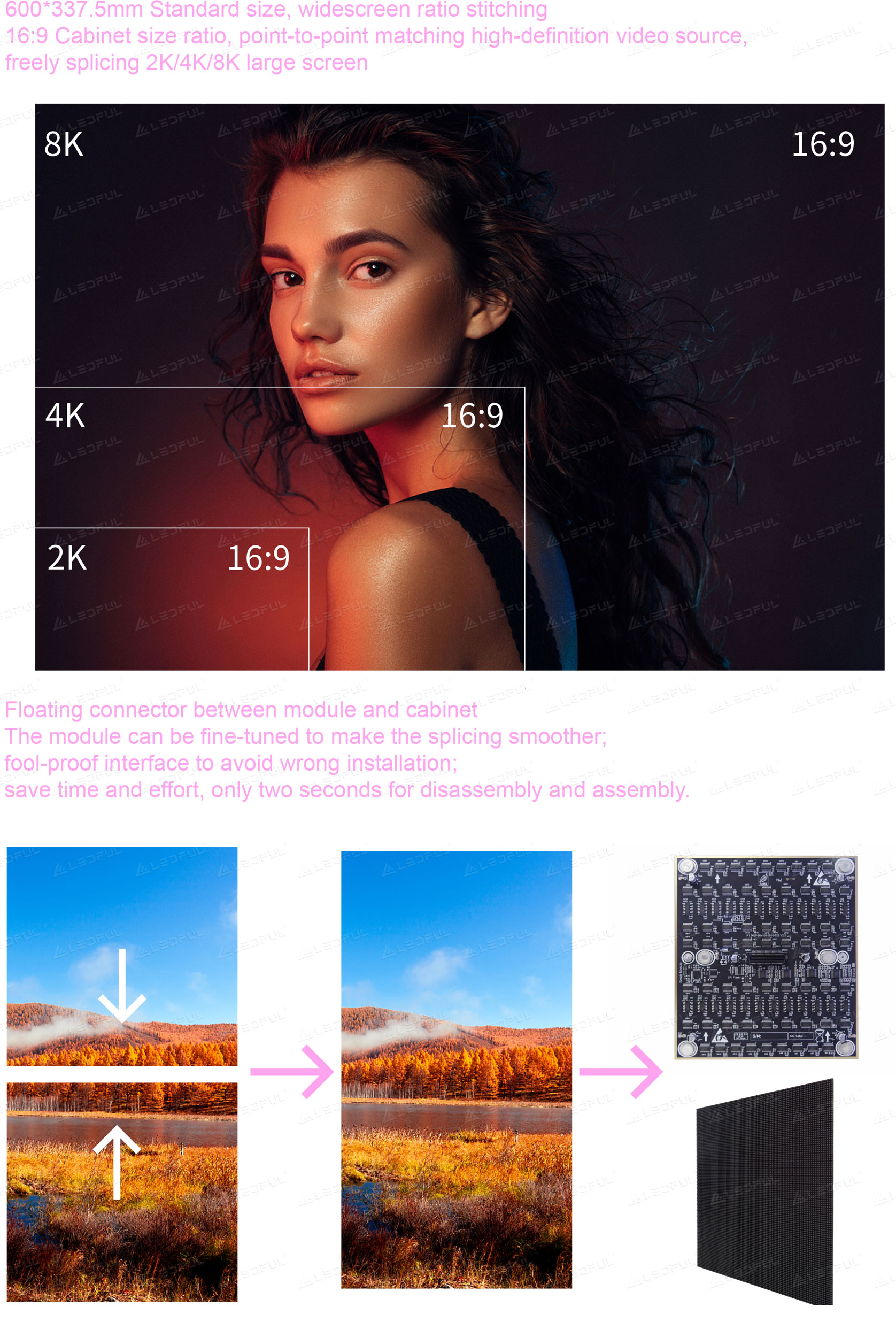

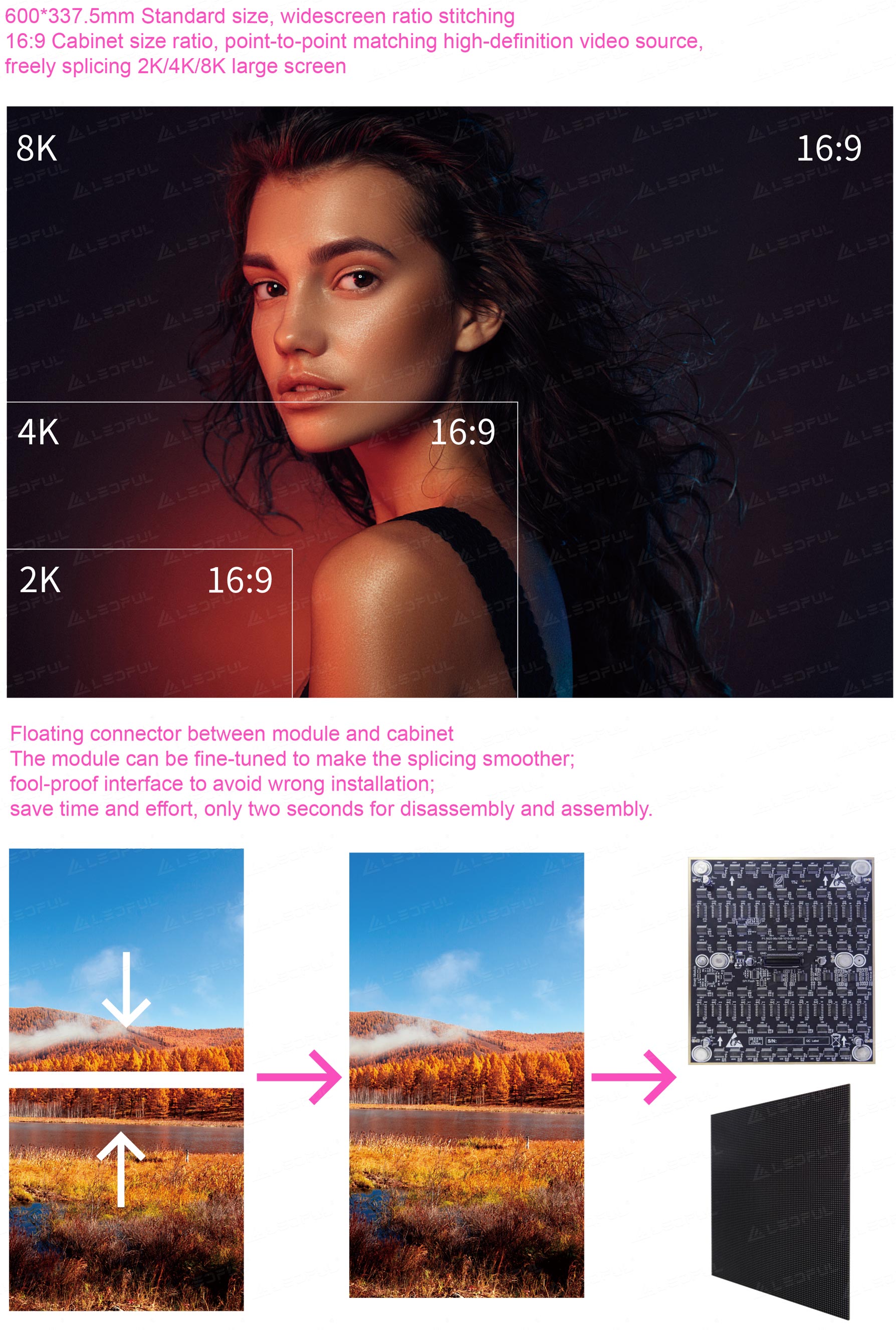

  • Cabinet Dimension Ratio 16:9
  • Dual Backup Power & Data
  • Ultra Light and Ultra Thin
  • Cable Free Connection

Parameter

Value U1.2 U1.4 U1.5 U1.8
Pixel Pitch(mm) 1.25 1.44 1.56 1.875
Pixel Matrix Per Sq.m 640000 480711 409600 284444
Pixel Configuration SMD1010 SMD1010 SMD1010 SMD1010
Brightness (nits) ≥1000 ≥1000 ≥1000 ≥1000
Scan 1/27 1/30 1/27 1/30
Module Dimension 200x168.75mm / 0.66x0.55ft 300x168.75mm / 0.98x0.55ft 200x168.75mm / 0.66x0.55ft 300x168.75mm / 0.98x0.55ft
Cabinet Resolution 480x270 417x234 385x216 320x90

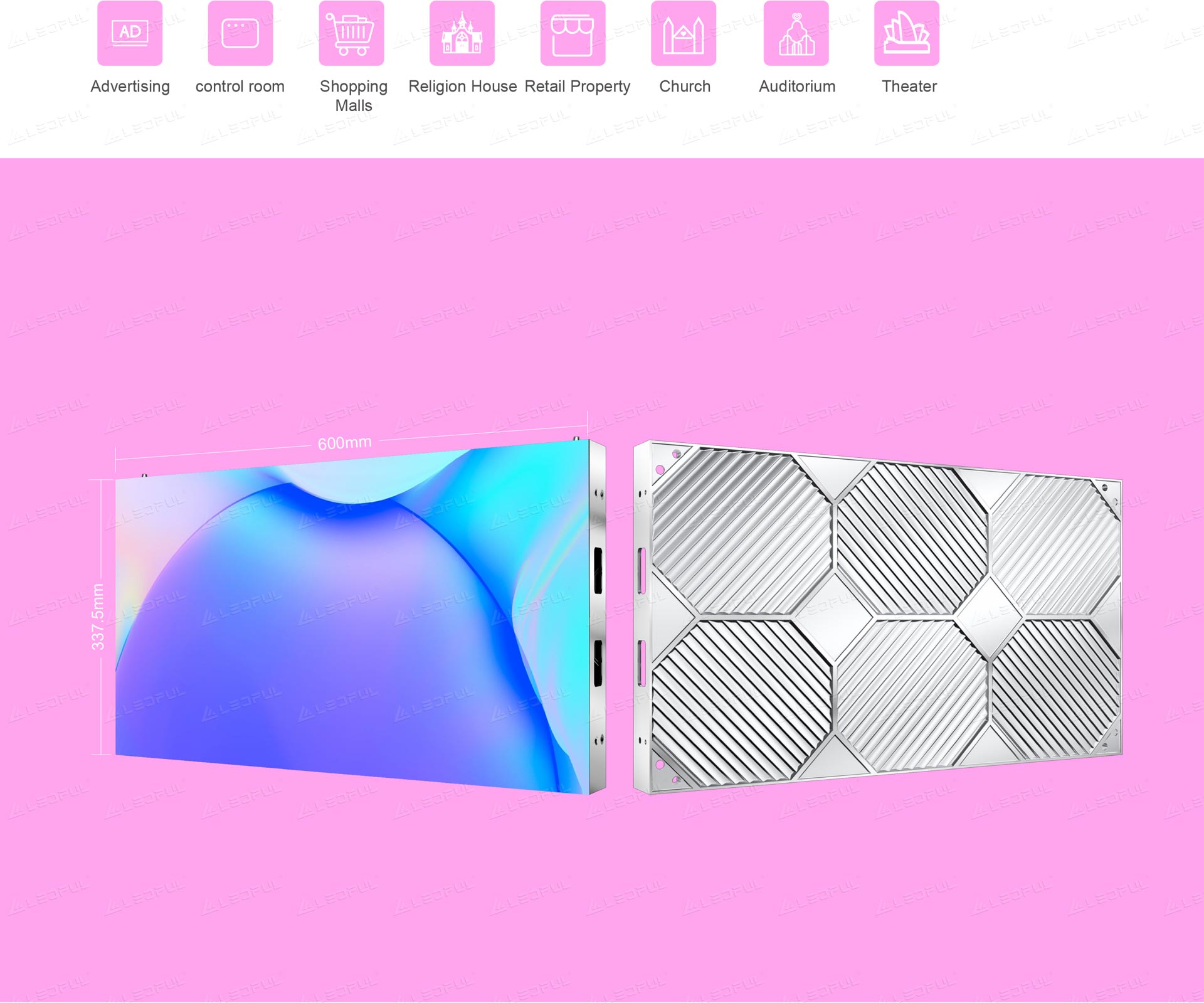

Cabinet Dimension 600x337.5x80mm / 1.97x1.11x0.26ft
Cabinet Weight 7.8kg /17.2Ib ( Die-casting Aluminum)
Service Access Front
Refresh Rate (HZ) ≥3840
Grey Scale (bit) 16
Viewing Angle (H/V) 160 / 160
Power Con. (Max / Avg) 700 / 200 w/sq.m
IP Rate IP41
Input Voltage (AC) 110V / 240V

* Specifications and photos are subject to change without prior notice.
Parameter

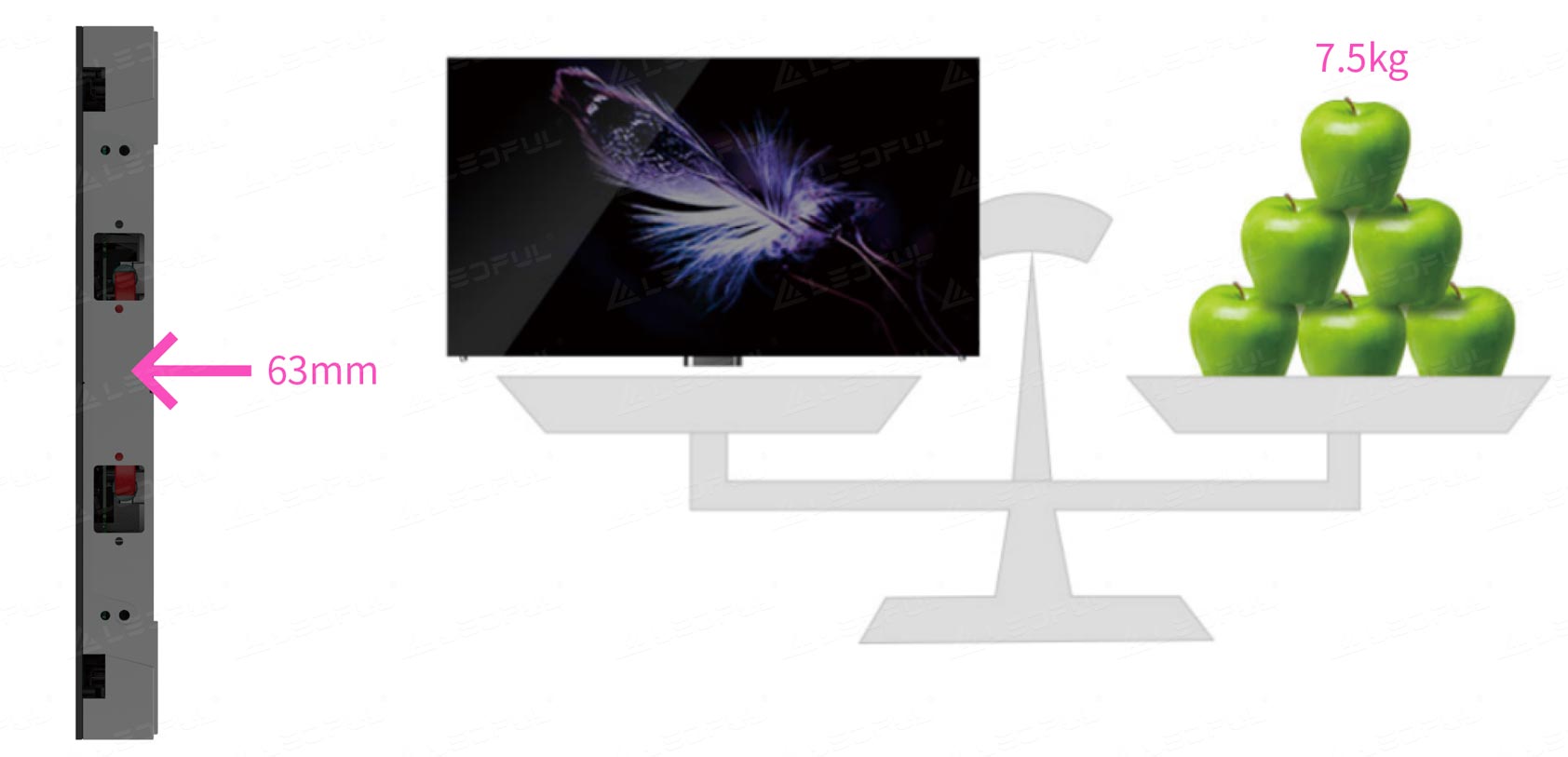

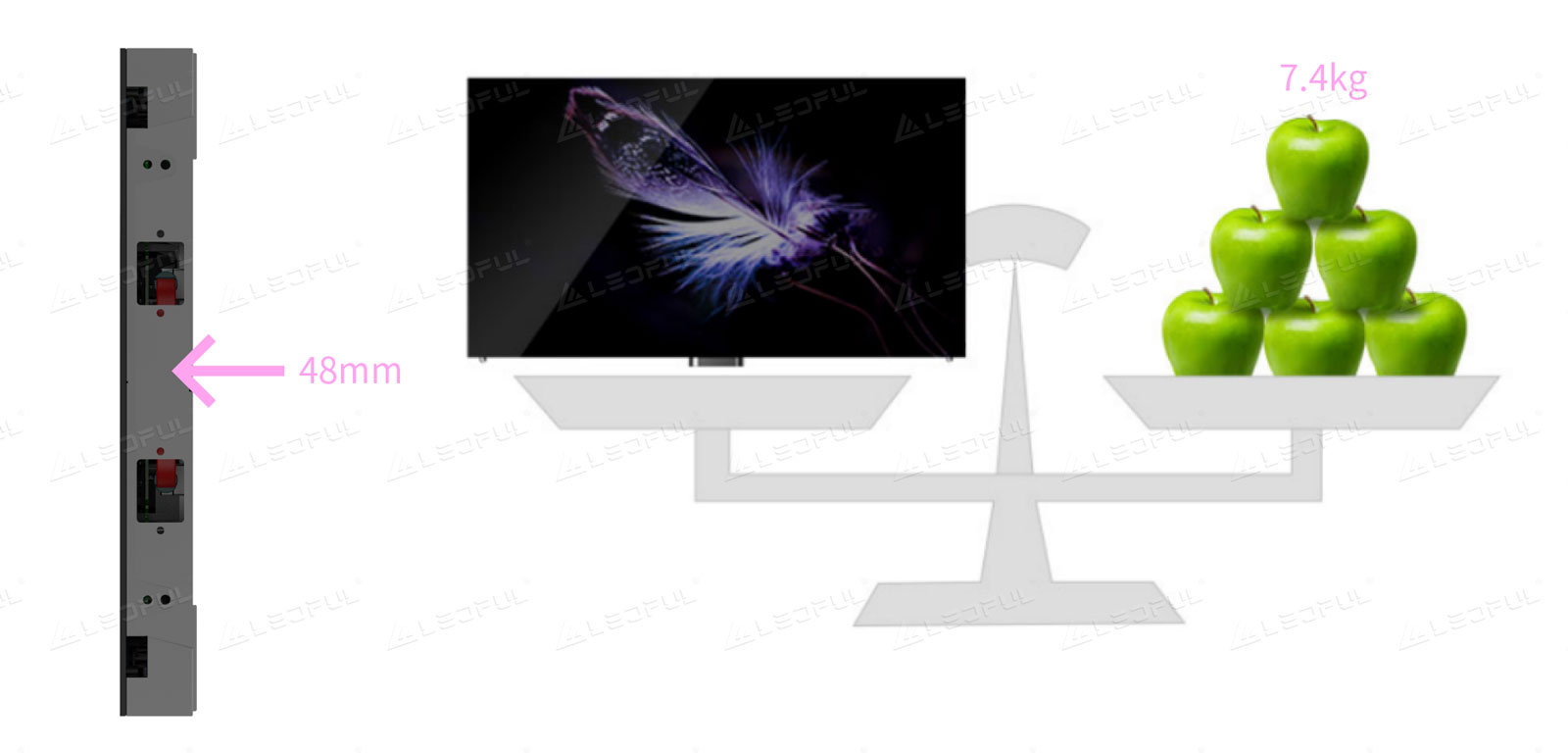

Ultra-light and Ultra-thin

Ultra-light and Ultra-thin

Excellence Appearance

Combing aesthetics and ergonomic design, it has came out with a hard, smooth molding the die-casting aluminum material has provided the excellent quality, it featured the unique cabinet ratio design, every detail has its excellent performance.
Excellence Appearance

Worked every details just for amazing experience

  • Cable free connection make easier front installation
    Cable free connection make easier front installation
  • Alignment hole, Locating pin, Precisely seamless
    Alignment hole, Locating pin, Precisely seamless
  • Anti-skid handle easier for installation and transit
    Anti-skid handle easier for installation and transit
  • Modular die casting aluminum provides perfect flatness
    Modular die casting aluminum provides perfect flatness

Dual Backup Interface |Challenging All Possibilities

Supporting Dual Control system, Dual Power Supply Backup, each unit cabinet control module, automatic detection of the two input signal integrity, when the whole screen signal break, the backup signal from another automatic access, Automatically Switch the picture in an LED Screen when it occurs any problem to make sure a stable and reliable image.
Dual Backup Interface |Challenging All Possibilities

Front Maintenance | Front Installation

The U series LED modules, receiver card, power supply are all front maintenance, cabinet with front installation holes has fully described the strength of its light weight, meet the needs of small space or where the needs of the cabinet thickness, enhanced the vision of the space as well as its visionary effect. It allows for easy maintenance, saving time and labor on site.
Front Maintenance | Front Installation

Ultra Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Ultra Wide Viewing Angle

Ultra High Definition

It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.
Ultra High Definition

Ultra Fast Response

The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.
Ultra Fast Response

High Contrast Ratio

High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance
when works on the color and has very good contrast.
High Contrast Ratio

High Refresh Rate

It could be reach 3840HZ.
High Refresh Rate
16 bit Grey Scale
It has almost the perfect gray scale and gives true color of the images, there will have no data loss and you could see every details clearly.
16 bit Grey Scale

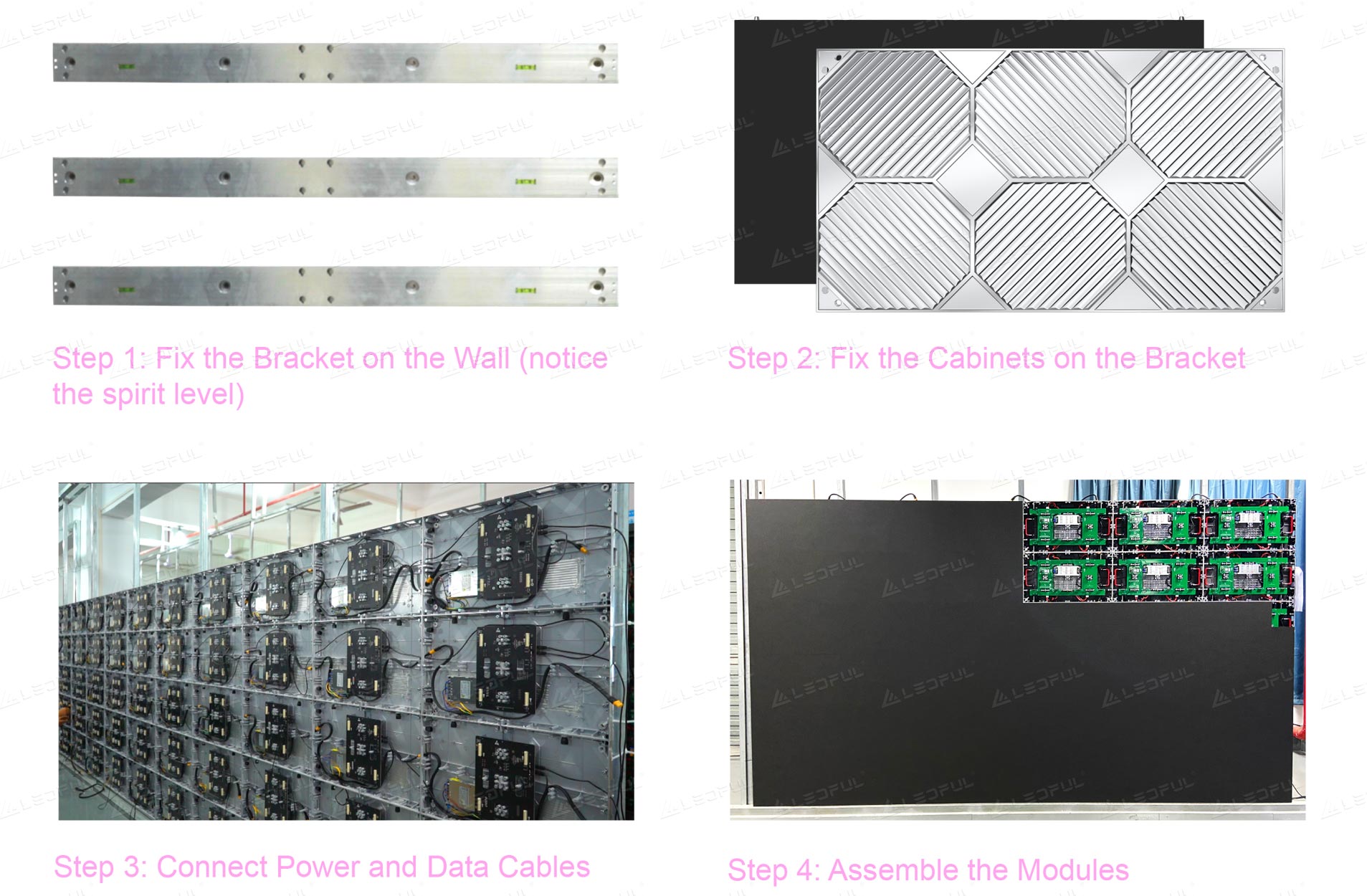

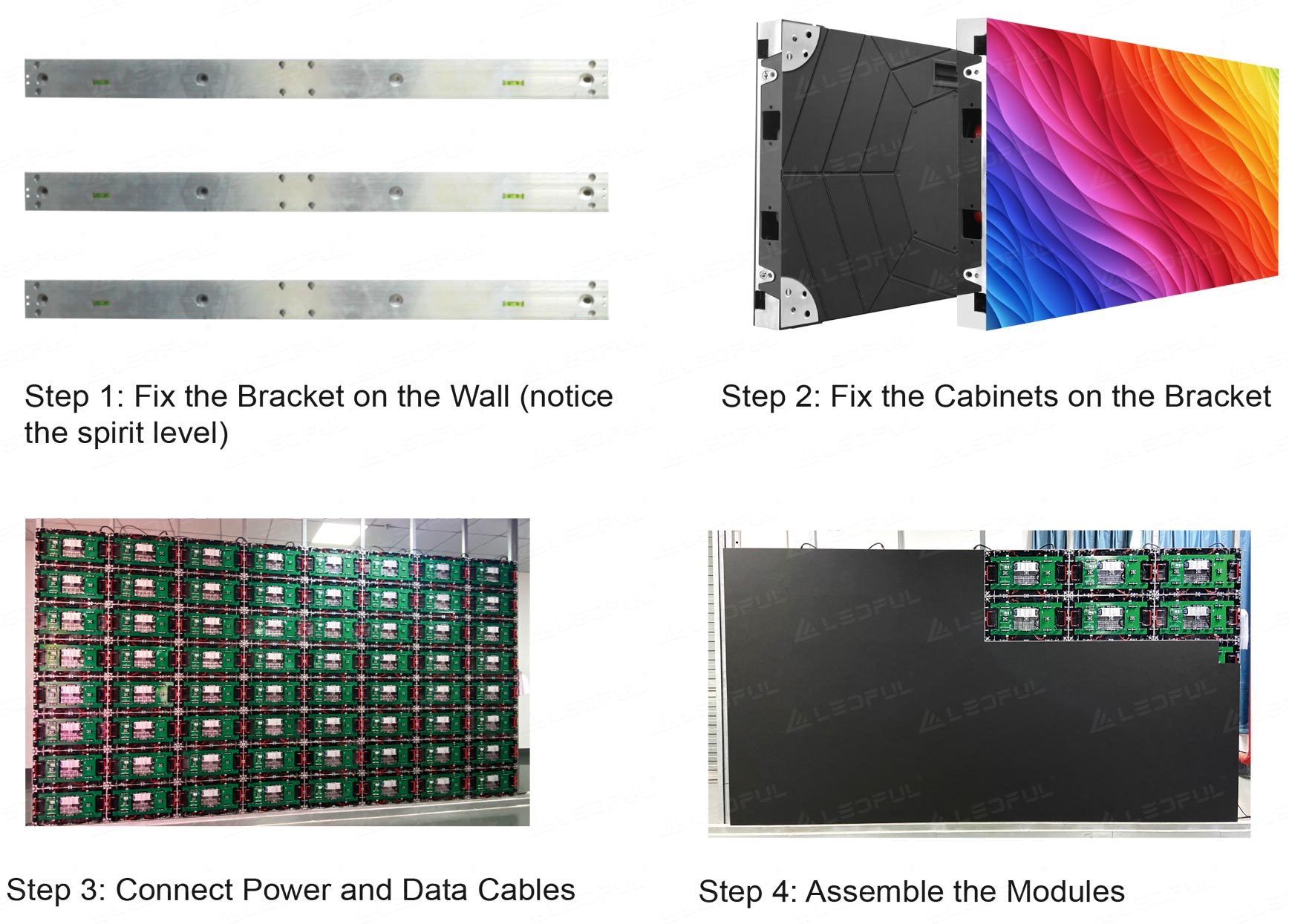

Installation easier and faster

almost the perfect gray scale and gives true color of the images,
Installation easier and faster
