Floor Series


Floor Series

Interactive Floor LED Display

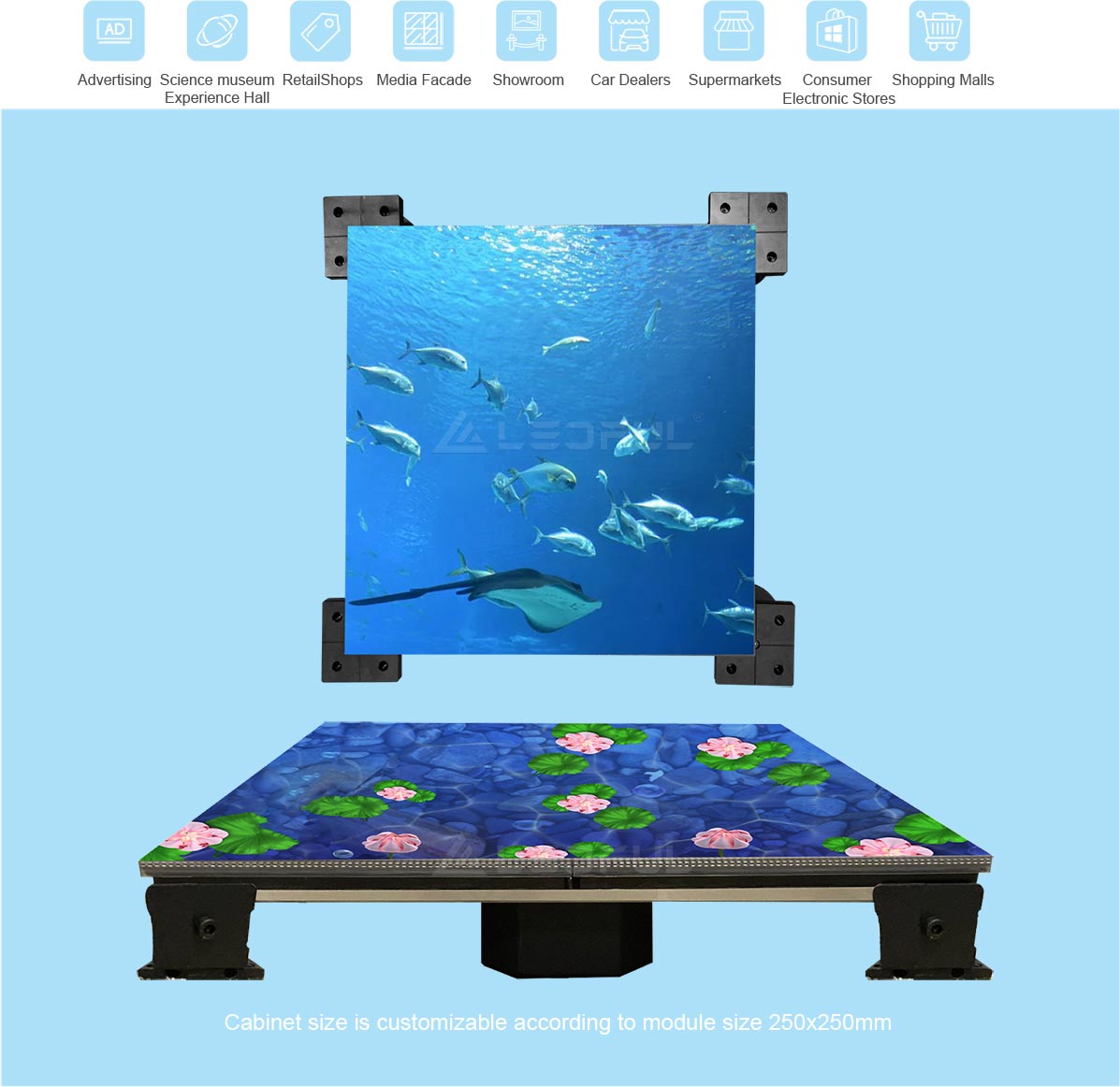

Applications
Applications
Parameter
Model FI2.9 FI 3.9 FI 4.8 FI 5.2 FI 6.2
Pixel Pitch(mm) 2.976 3.91 4.81 5.2 6.25
Pixel Matrix Per Sq.m 112896 65536 43264 36864 16000
Pixel Configuration SMD1921 SMD1921 SMD1921 SMD1921 SMD1921
Brightness (nits) 1500 1500 1500 1500 1500
Scan 1/14 1/16 1/16 1/6 1/10
Module Dimension 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft
Cabinet Dimension 500x1000mm / 1.64x3.28ft 500x1000mm / 1.64x3.28ft 500x1000mm / 1.64x3.28ft 500x1000mm / 1.64x3.28ft 500x1000mm / 1.64x3.28ft
Cabinet Resolution 168x336 128x256 104x208 96x192 80x160
Cabinet Weight 22kg / 48.5Ib
Power Con. (Max / Avg) 1200 / 600 w/sq.m 1200 / 600 w/sq.m 1200 / 600 w/sq.m 1200 / 600 w/sq.m 1200 / 600 w/sq.m
Service Access Front
Refresh Rate (HZ) ≥1920
Grey Scale (bit) 14
Viewing Angle (H/V) 120 / 120
IP Rate IP65
Operation Temperature -20° ~ +50°
Input Voltage (AC) 220V( 50-60Hz)

Model FO 3.9 FO 4.8 FO 5.2 FO 6.2
Pixel Pitch(mm) 3.91 4.81 5.2 6.25
Pixel Matrix Per Sq.m 65536 43264 36864 16000
Pixel Configuration SMD1921 SMD1921 SMD1921 SMD1921
Brightness (nits) 4000 4000 4000 4000
Scan 1/16 1/16 1/6 1/10
Module Dimension 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft
Cabinet Dimension 500x1000mm / 1.64x3.28ft 500x1000mm / 1.64x3.28ft 500x1000mm / 1.64x3.28ft 500x1000mm / 1.64x3.28ft
Cabinet Resolution 128x256 104x208 96x192 80x160
Cabinet Weight 22kg / 48.5Ib
Power Con. (Max / Avg) 1200 / 600 w/sq.m 1200 / 600 w/sq.m 1200 / 600 w/sq.m 1200 / 600 w/sq.m
Service Access Front
Refresh Rate (HZ) ≥1920
Grey Scale (bit) 14
Viewing Angle (H/V) 120 / 120
IP Rate IP67
Operation Temperature -20° ~ 50°
Input Voltage (AC) 220V( 50-60Hz)

* Specifications and photos are subject to change without prior notice.

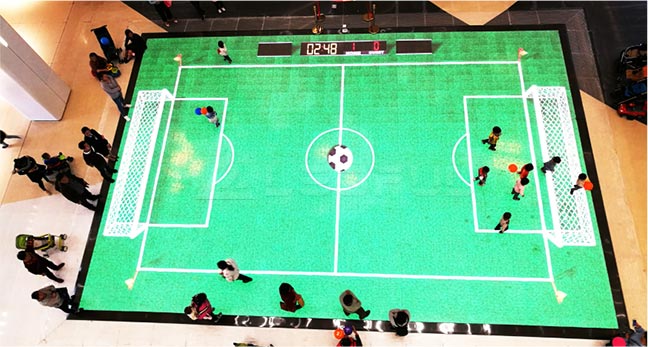

Interactive Floor LED Display
Special driving IC built inside the LED display PCB will work together with interactive control system .It will easily and quickly make you interested and attractive between the players and display.
Interactive Floor LED Display

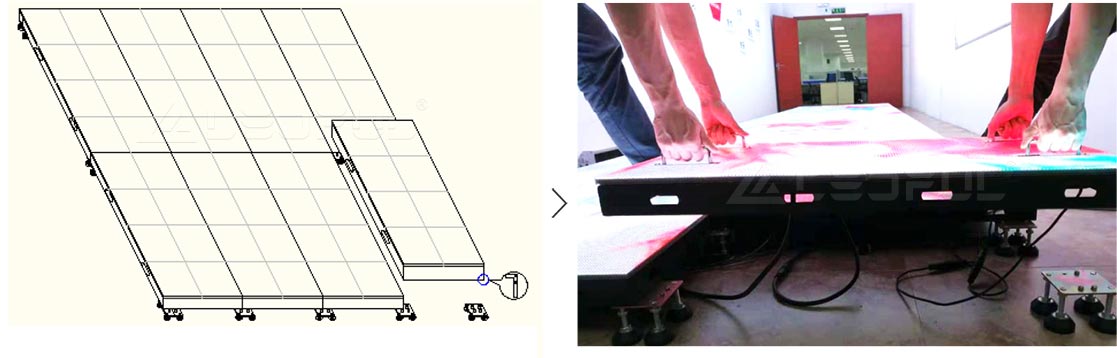

FLOOR LED Display Base Support Installation
FLOOR LED Display Base Support Installation

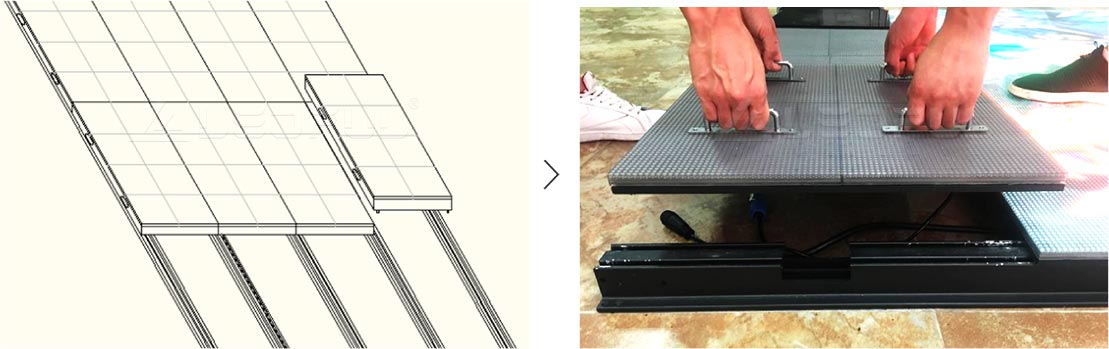

FLOOR LED Display Guide Rail Installation
FLOOR LED Display Guide Rail Installation

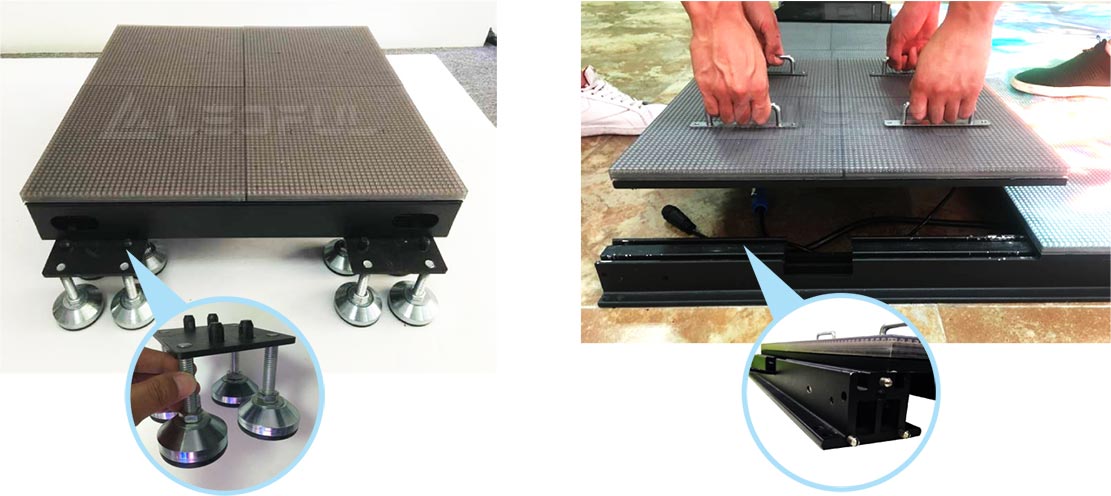

Details Display
Details Display

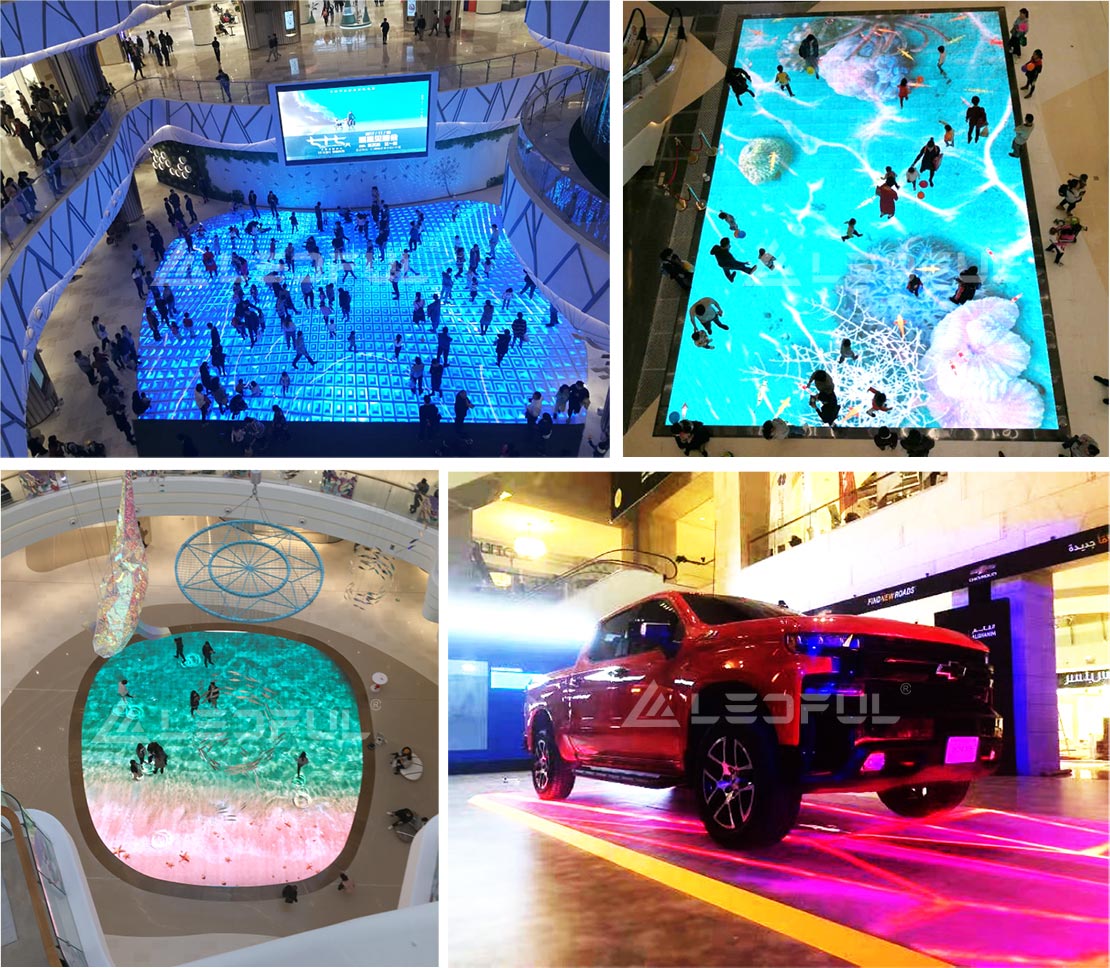

FLOOR Series Classic Cases
FLOOR Series Classic Cases
Features
Features
