FA Series

Front Access & Back Access Outdoor LED Display for Advertising Billboard

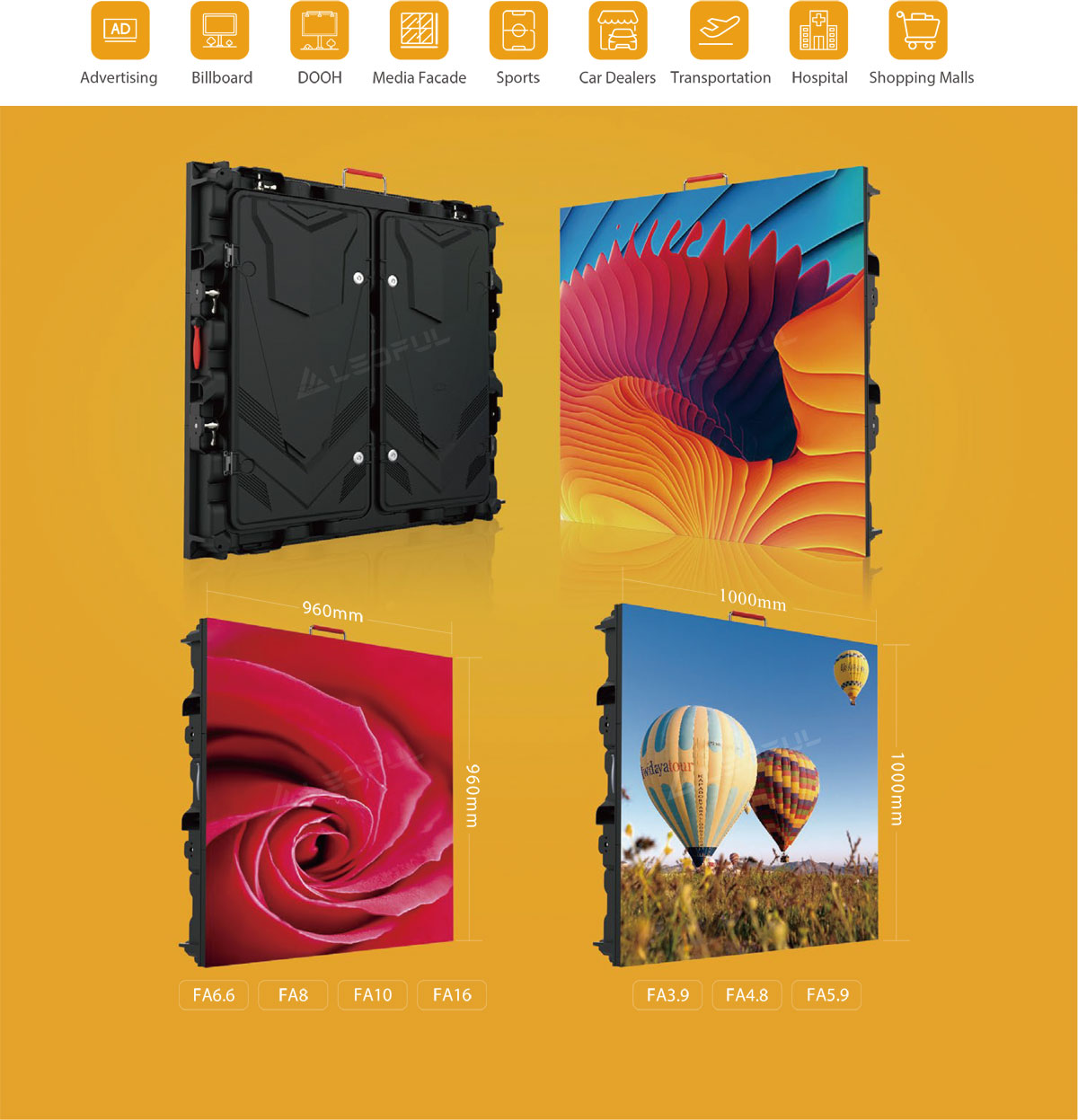

Applications
Applications
Specifications
Model FA3.9 FA4.8 FA5.9 FA6.6 FA8 FA10 FA16
Pixel Pitch(mm) 3.91 4.81 5.95 6.67 8 10 16
Pixel Matrix Per Sq.m 65536 43264 28224 22500 15625 10000 3906
Pixel Configuration SMD1921 SMD1921 SMD2727 SMD2727 SMD2727 SMD2727 DIP
Brightness (nits) 5000 5000 6000 6500 6800 7000 7500
Scan 1/8 1/6 1/6 1/6 1/5 1/2 1/1
Module Dimension 250x250mm
/ 0.82x0.82ft 		250x250mm
/ 0.82x0.82ft 		250x250mm
/ 0.82x0.82ft 		320x320mm
/ 1.05x10.5ft 		320x320mm
/ 1.05x10.5ft 		320x320mm
/ 1.05x10.5ft 		320x320mm
/ 1.05x10.5ft
Cabinet Dimension 1000x1000mm
/ 3.28x3.28ft 		1000x1000mm
/ 3.28x3.28ft 		1000x1000mm
/ 3.28x3.28ft 		960x960mm
/ 3.15x3.15ft 		960x960mm
/ 3.15x3.15ft 		960x960mm
/ 3.15x3.15ft 		960x960mm
/ 3.15x3.15ft
Cabinet Resolution 256x256 208x208 168x168 144x144 120x120 96x96 60x60
Cabinet Material Iron Iron Iron Die casting aluminum Die casting aluminum Die casting aluminum Die casting aluminum
Cabinet Weight 45kg 44kg 43kg 29kg 29kg 29kg 32kg
Power Con. (Max/Avg) 900 / 200 w/sq.m 900 / 200 w/sq.m 900 / 200 w/sq.m 900 / 180 w/sq.m 900 / 180 w/sq.m 900 / 180 w/sq.m 900 / 180 w/sq.m
Service Access Front & Back Front & Back Front & Back Front & Back Front & Back Front & Back Front & Back
Refresh Rate (HZ) 1920 1920 1920 1920 1920 1920 1920
Grey Scale (bit) 14 14 14 14 14 14 14
Viewing Angle (H/V) 140 / 140 140 / 140 140 / 140 140 / 140 140 / 140 140 / 140 140 / 140
IP Rate IP65 IP65 IP65 IP65 IP65 IP65 IP65
Operation Temperature -20° ~ 60° -20° ~ 60° -20° ~ 60° -20° ~ 60° -20° ~ 60° -20° ~ 60° -20° ~ 60°
Input Voltage (AC) 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V
* Specifications and photos are subject to change without prior notice.

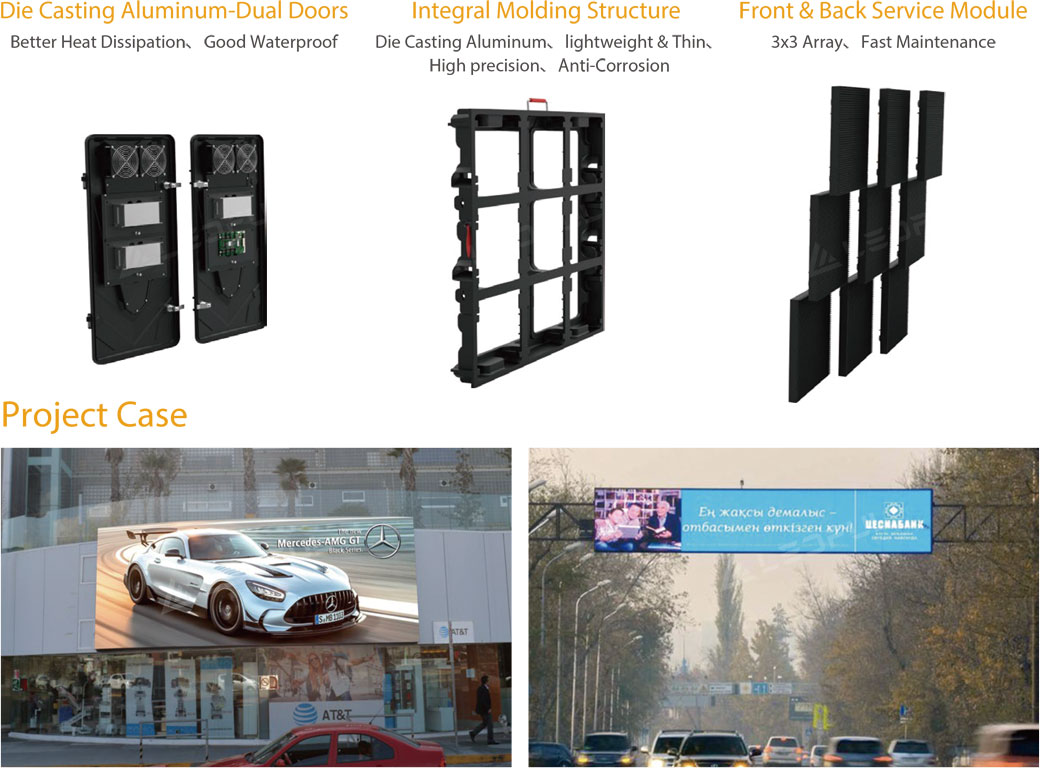

Specifications

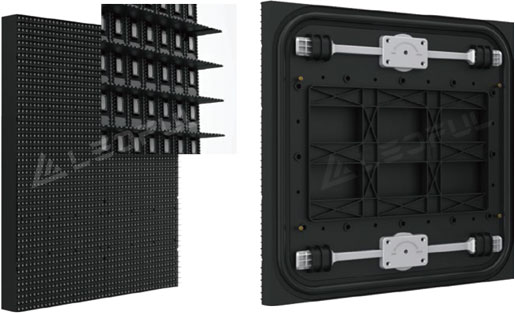

LED Module Fast Lock Front & Back Service
LED Module Fast Lock Front & Back Service

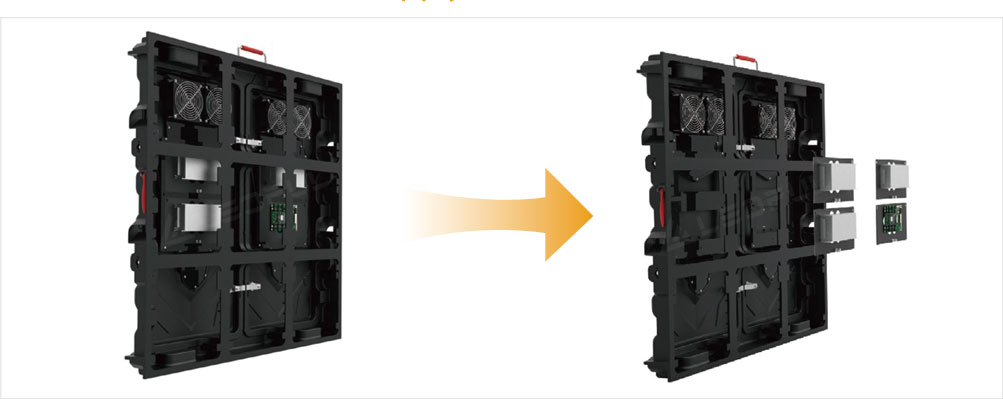

Power Supply Tool-Free Service
Power Supply Tool-Free Service

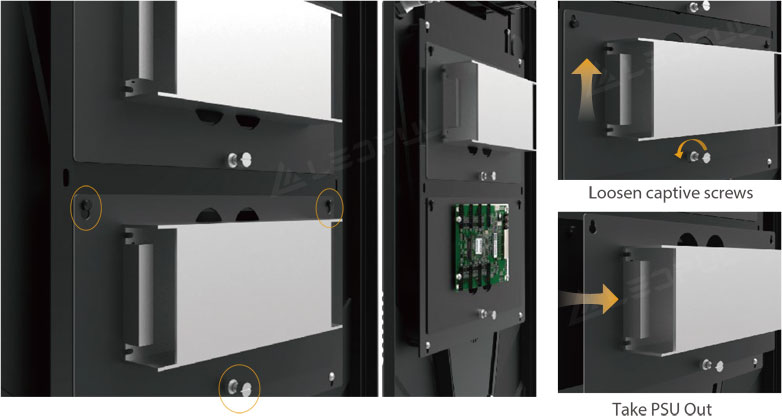

Receiver Card Tool-Free Service
Receiver Card Tool-Free Service

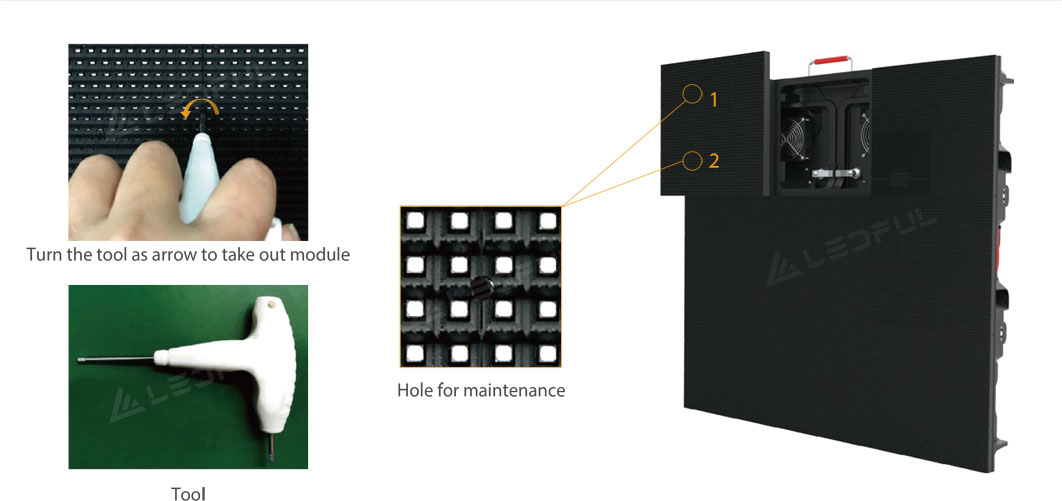

How Fast Lock Work
How Fast Lock Work
Features
Features
