S & K Series

New Rental LED Screen Solution

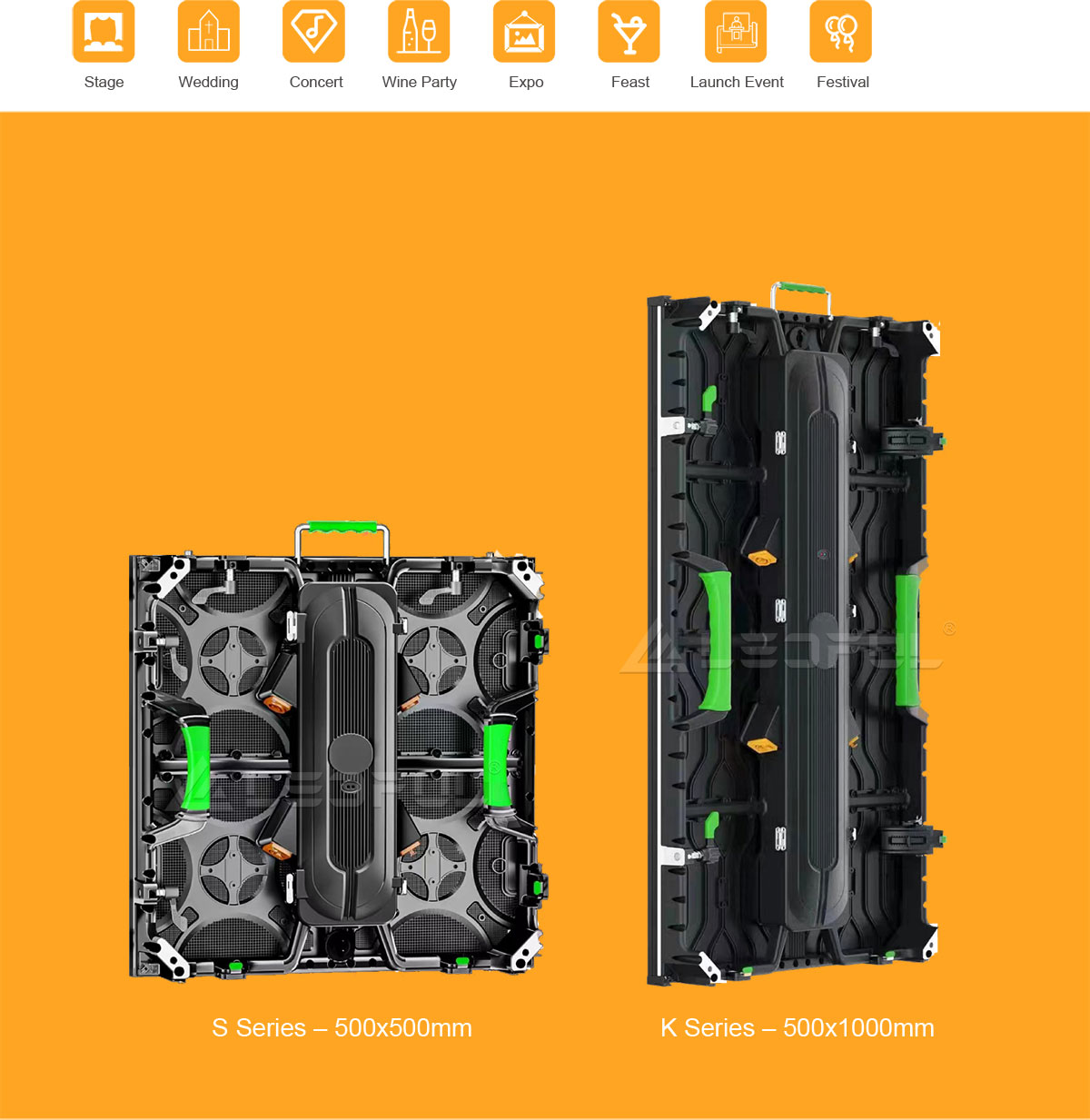

Applications
Applications
Specification
Model SI/KI2.5 SI/KI2.6 SI/KI2.9 SI/KI3.9 SI/KI4.8
Pixel Pitch(mm) 2.5 2.6 2.97 3.91 4.81
Pixel Matrix Per Sq.m 160,000 147,456 112,896 65,536 43,264
Pixel Configuration SMD1515 SMD1515 SMD2121 SMD2121 SMD2121
Brightness (cd/m2) ≥1000 ≥1000 ≥1000 ≥1000 ≥1000
Scan 1/25 1/32 1/28 1/16 1/13
Module Dimension 250×250mm 250×250mm 250×250mm 250×250mm 250×250mm
Cabinet Dimension S -- 500x500mm
K -- 500x1000mm 		S -- 500x500mm
K -- 500x1000mm 		S -- 500x500mm
K -- 500x1000mm 		S -- 500x500mm
K -- 500x1000mm 		S -- 500x500mm
K -- 500x1000mm
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Cabinet Weight S -- 8KG
K -- 14KG 		S -- 8KG
K -- 14KG 		S -- 8KG
K -- 14KG 		S -- 8KG
K -- 14KG 		S -- 8KG
K -- 14KG
Power Con.(W/m2) (Max / Avg) 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W
Service Access Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
Refresh Rate (HZ) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Grey Scale (bit) ≥16 ≥16 ≥16 ≥16 ≥16
Viewing Angle (H/V) 160°/160° 160°/160° 160°/160° 160°/160° 160°/160°
IP Rate IP43 IP43 IP43 IP43 IP43
Input Voltage (AC) 110V / 240V 110V / 240V 110V / 240V 110V / 240V 110V / 240V
* Specifications and photos are subject to change without prior notice.

Model SO/KO2.6 SO/KO2.9 SO/KO3.9 SO/KO4.8
Pixel Pitch(mm) 2.6 2.98 3.91 4.81
Pixel Matrix Per Sq.m 147,456 112,896 65,536 43,264
Pixel Configuration SMD1415 SMD1415 SMD1921 SMD1921
Brightness (cd/m2) 4000 4000 4000 4000
Scan 1/32 1/21 1/16 1/13
Module Dimension 250×250mm 250×250mm 250×250mm 250×250mm
Cabinet Dimension S -- 500x500mm
K -- 500x1000mm 		S -- 500x500mm
K -- 500x1000mm 		S -- 500x500mm
K -- 500x1000mm 		S -- 500x500mm
K -- 500x1000mm
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Cabinet Weight S -- 8KG
K -- 14KG 		S -- 8KG
K -- 14KG 		S -- 8KG
K -- 14KG 		S -- 8KG
K -- 14KG
Power Con.(W/m2) (Max / Avg) 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W
Service Access Front/Rear Front/Rear Front/Rear Front/Rear
Refresh Rate (HZ) ≥3840 ≥3840 ≥3840 ≥3840
Grey Scale (bit) ≥16 ≥16 ≥16 ≥16
Viewing Angle (H/V) 160°/160° 160°/160° 160°/160° 160°/160°
IP Rate IP65 IP65 IP65 IP65
Input Voltage (AC) 110V / 240V 110V / 240V 110V / 240V 110V / 240V
* Specifications and photos are subject to change without prior notice.

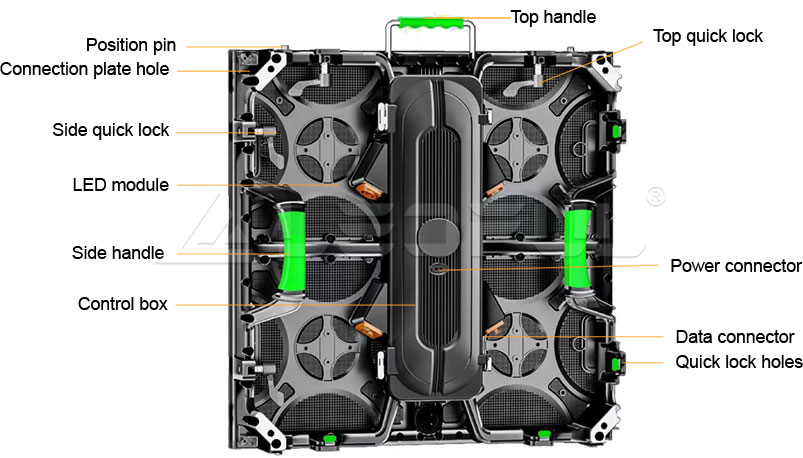

LEDFUL Cover Turned S & K Cabinet Design
LEDFUL Cover Turned S & K Cabinet Design
Front & Back Service
Front & Back Service

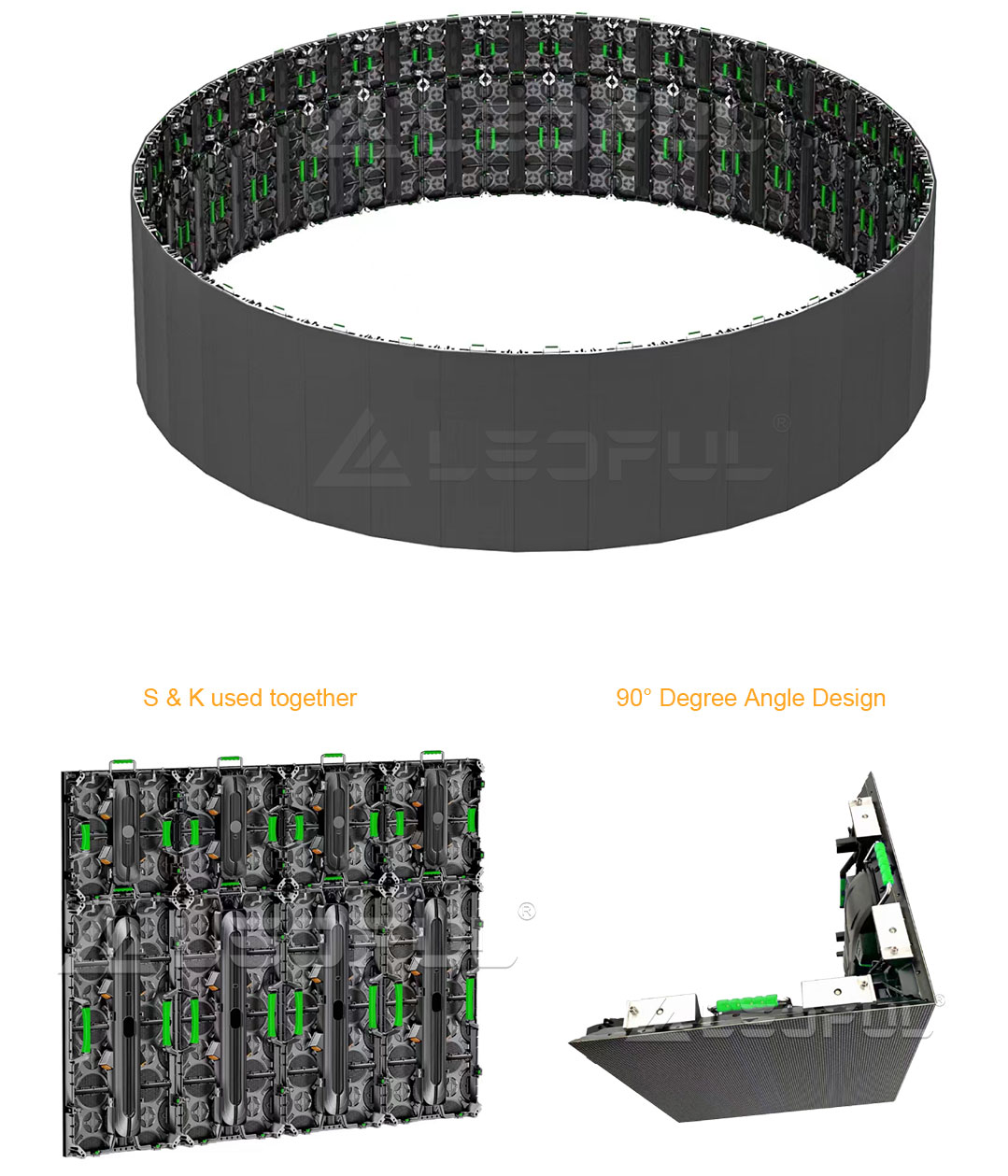

Curved Design
Inner & Outer ± 15 degree design
Curved Design

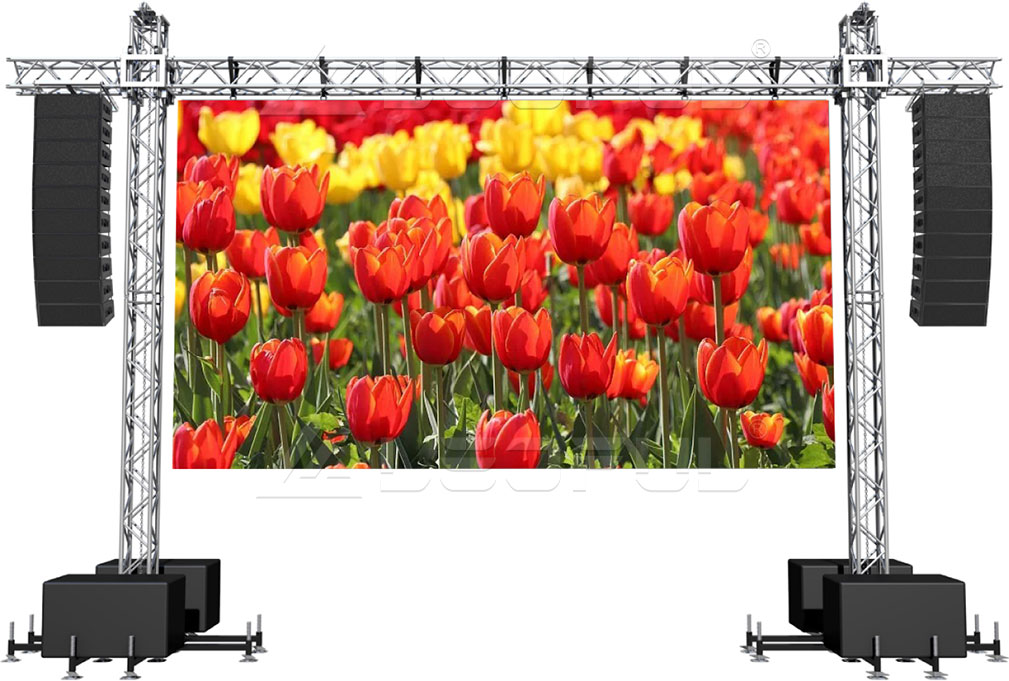

S & K Series Used Together
S & K Series Used Together

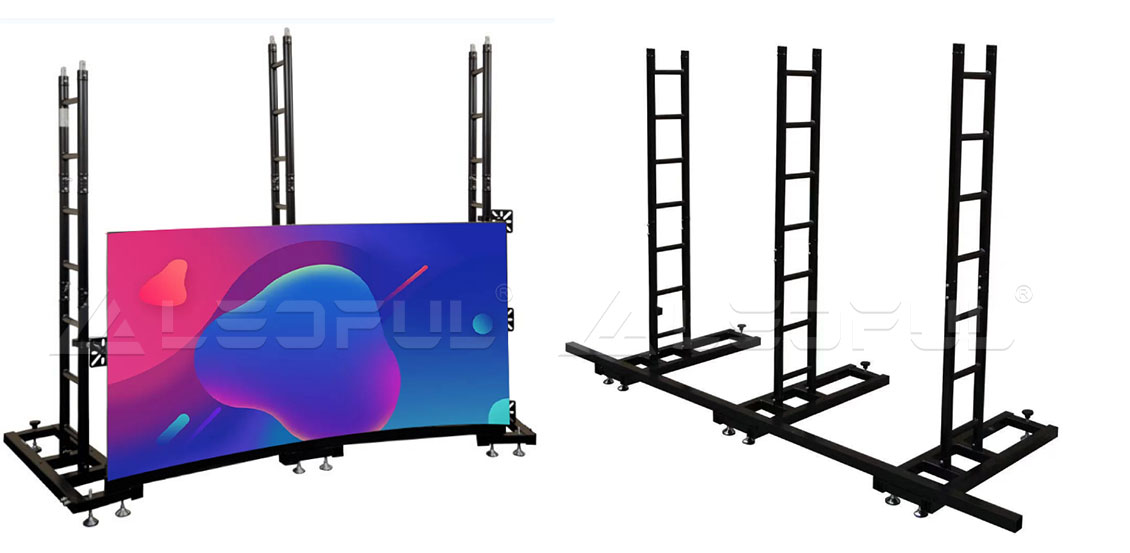

Hanging or Stacking, LEDFUL Support All Installation & Structure Options
Hanging or Stacking, LEDFUL Support All Installation & Structure Options

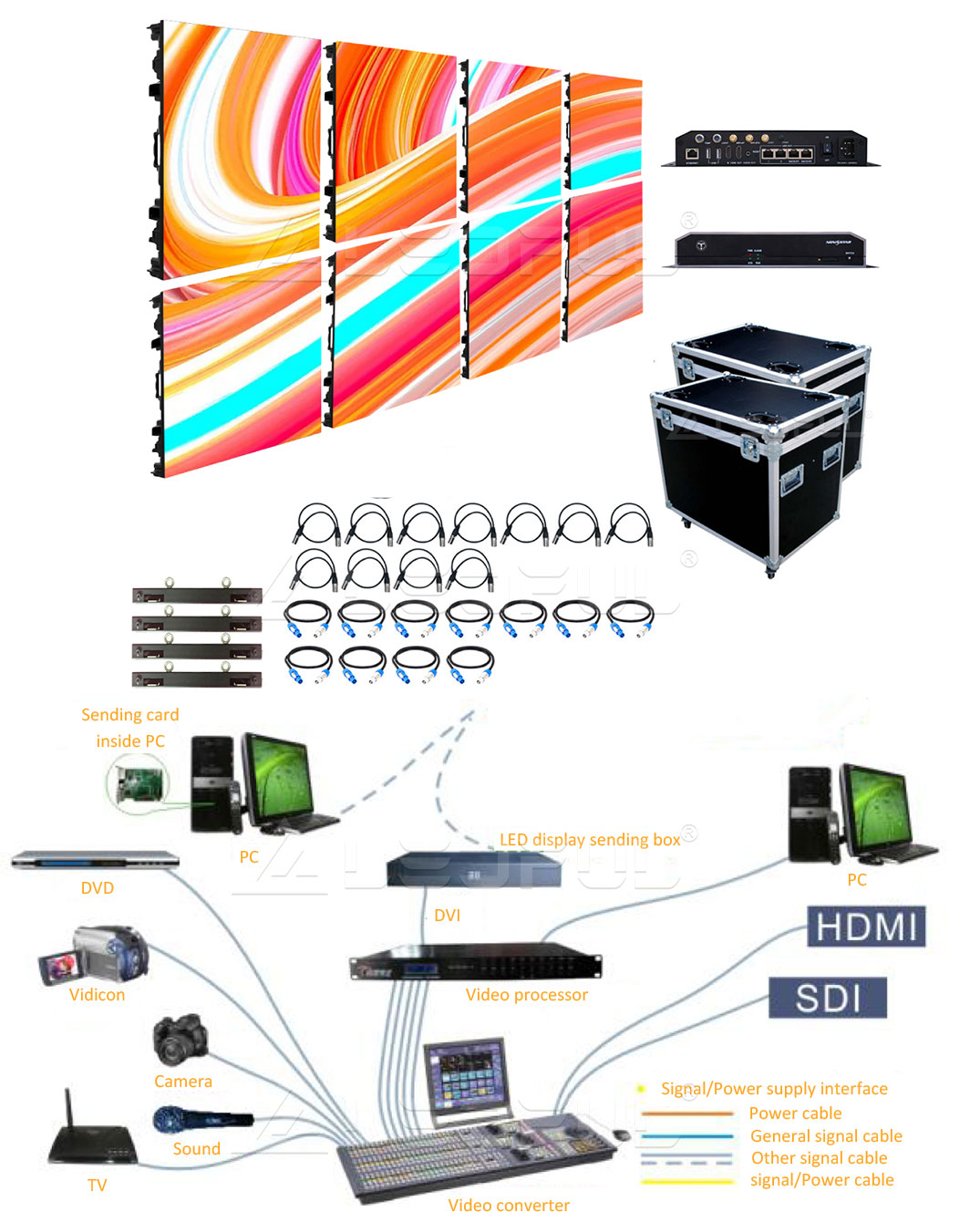

Hardware Connection Diagram
Hardware Connection Diagram

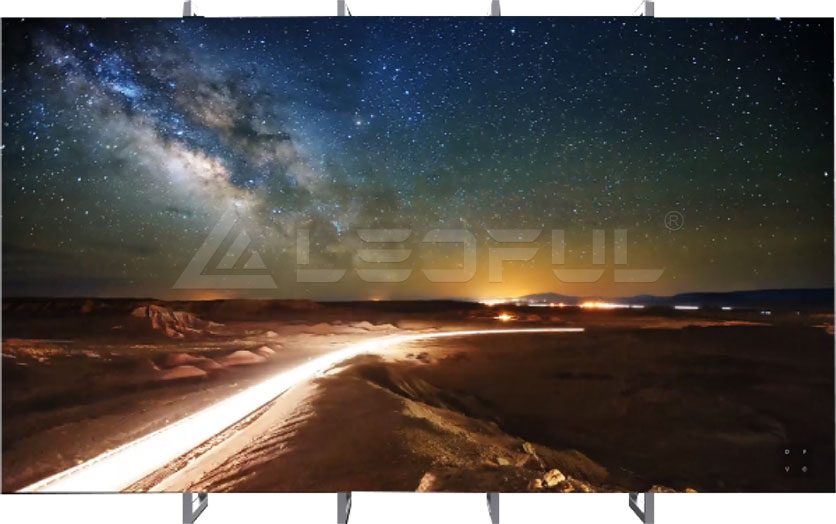

Great Performance – High Refresh 3840Hz, High Grey Scale 16bits, 70 billion colors
Great Performance – High Refresh 3840Hz, High Grey Scale 16bits, 70 billion colors

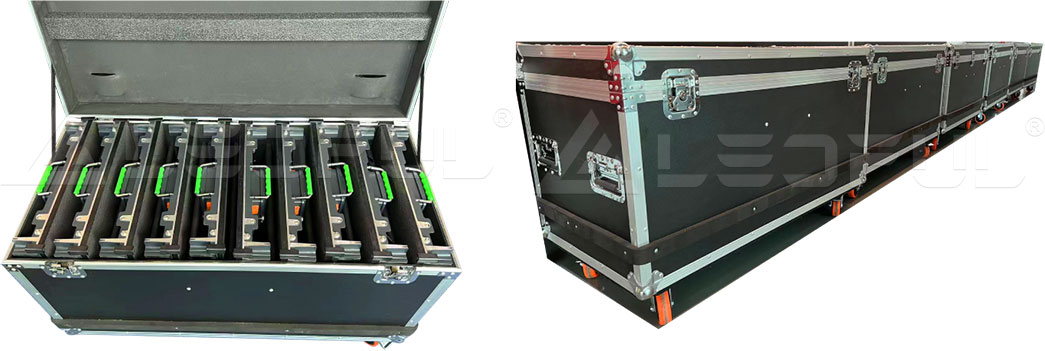

Flight Case Package
Flight Case Package

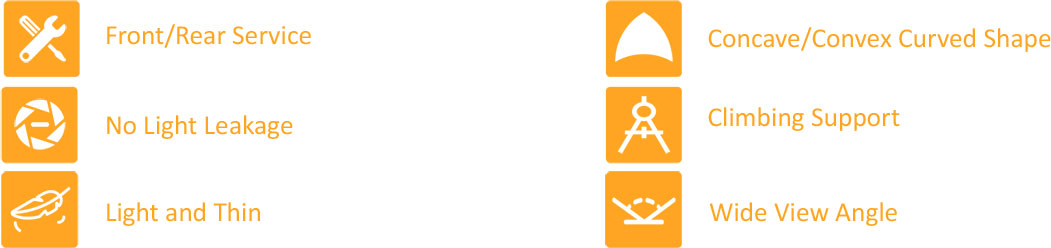

Features
Features

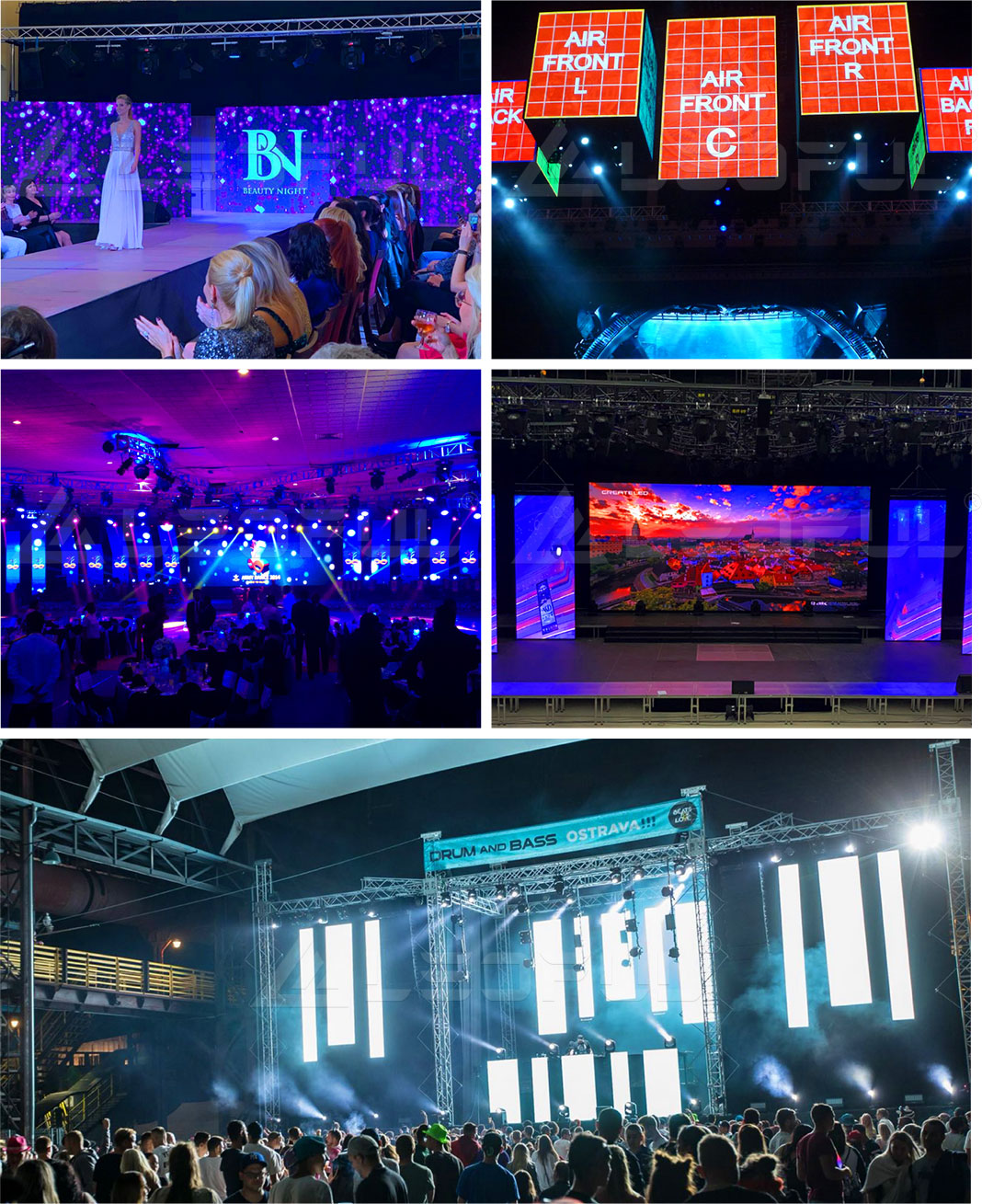

Typical Project Show
Typical Project Show
We Work With
We Work With
