Wall Series

Front Installation & Full Front Maintenance

Wall Series LED Display
Wall2.6 | Wall2.9 | Wall3.9
  • Wall mounted easily
  • Front Installation
  • Full Front Service
  • 90 degrees shaped
  • Black SMD LED
  • Die Casting Aluminum
  • Slim & light (45mm & 5.5kg)
Parameter
Wall Series WALL 2.6 WALL 2.9 WALL 3.9
Pixel Pitch (mm) 2.604 2.976 3.91
Pixel Matrix Per Sq.m 147456 112896 65536
Pixel Configuration SMD2121 SMD2121 SMD2121
Scan 1/32 1/28 1/16
Cabinet Resolution 192×192 168×168 128×128
Power Con. (Max / Avg) 800 / 250 w/sq.m 760 / 230 w/sq.m 740 / 220 w/sq.m
Module Dimension 250x250mm / 0.82x0.82ft
Cabinet Dimension 1000 (750)x500x45mm / 3.28(2.46)x1.64x0.15ft
Cabinet Weight 7 (5.5)kg / 15.4 (12.1)Ib ( Die-casting Aluminum)
Service Access Front
Rotation Angle 90 degress optional
Brightness (nits) 1500
Refresh Rate (HZ) 1920 / 3840
Grey Scale (bit) 16
Viewing Angle (H/V) 140 / 140
IP Rate IP43
Input Voltage (AC) 110 / 240
* Specifications and photos are subject to change without prior notice.

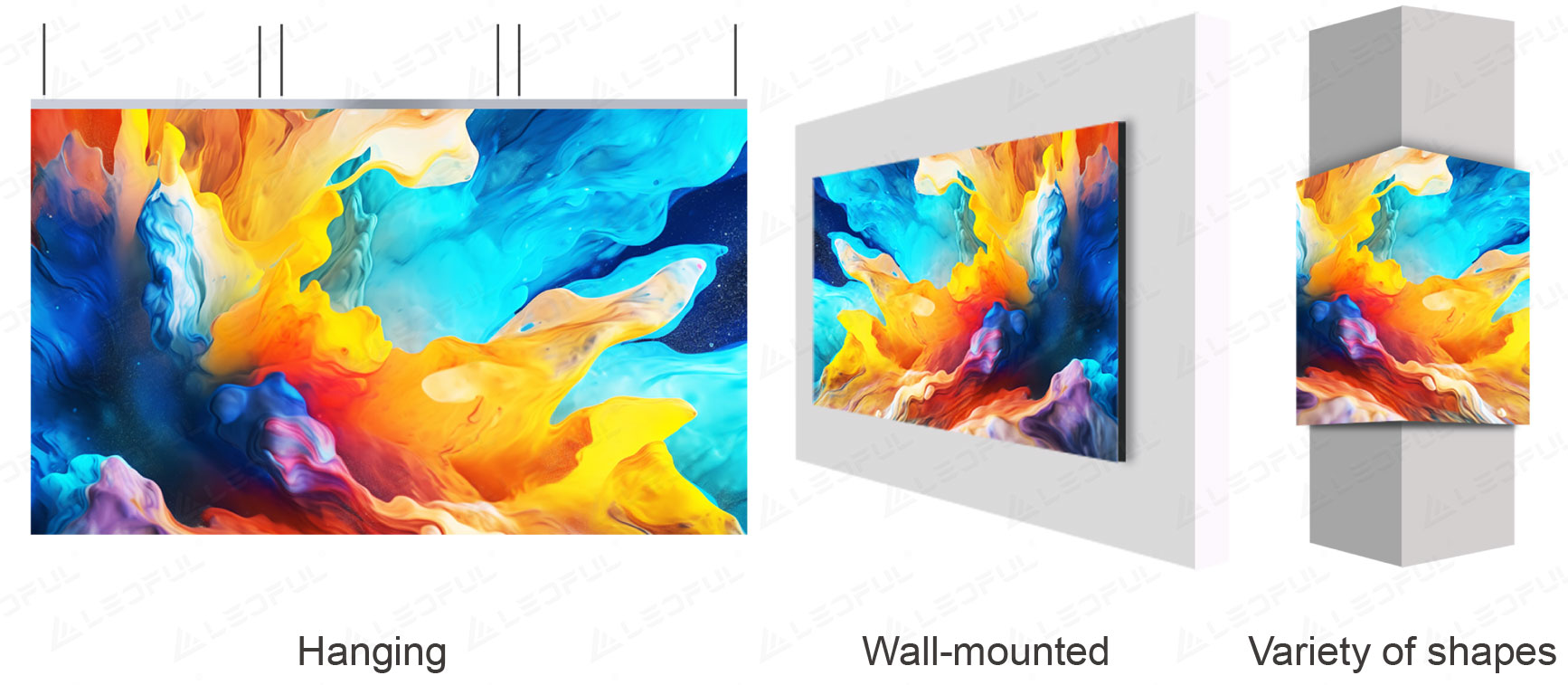

Wall mounted easily with integrated structure
Wall mounted easily with integrated structure
Front installation with cabinet depth 45mm
Front installation with cabinet depth 45mm

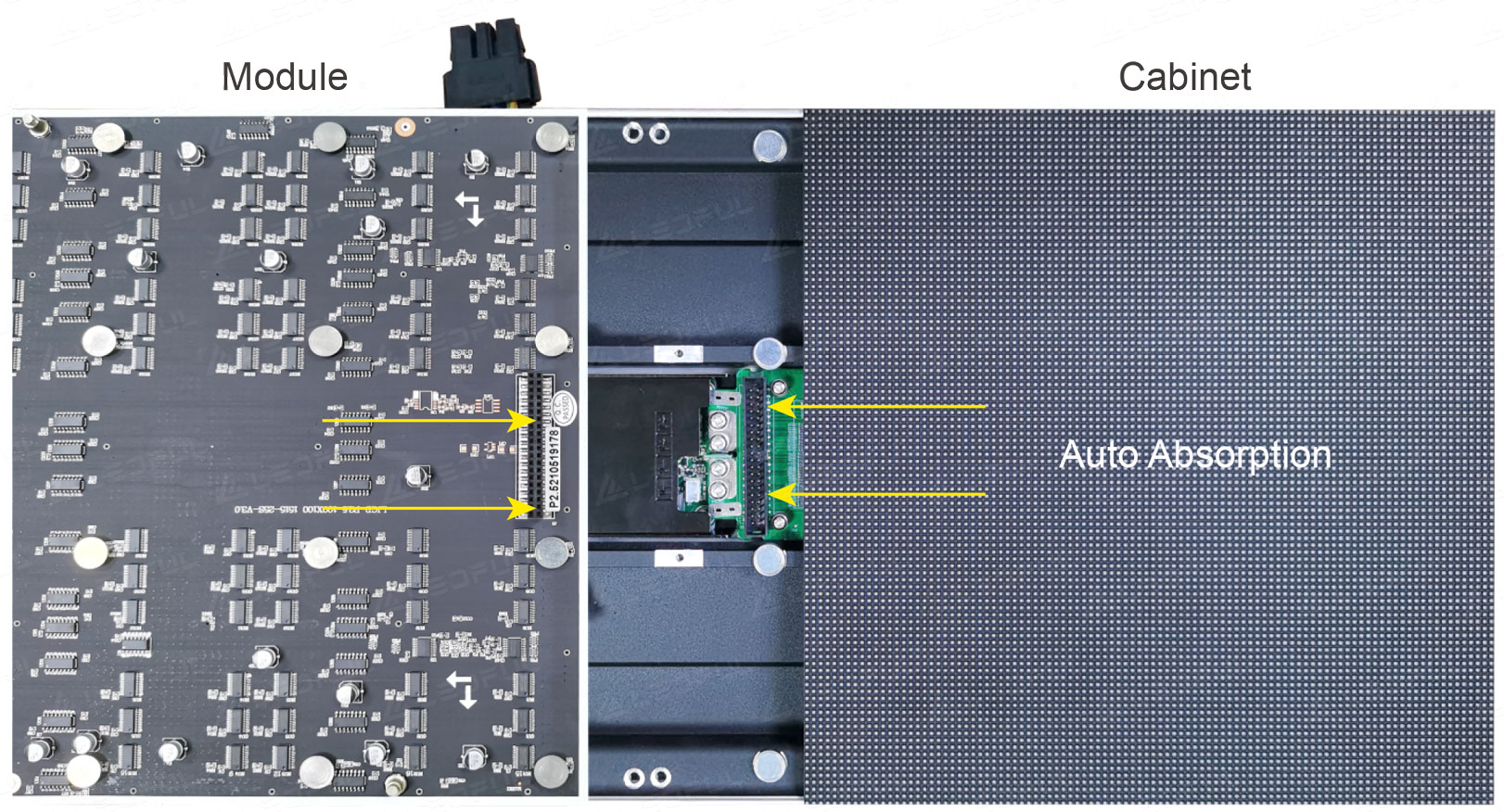

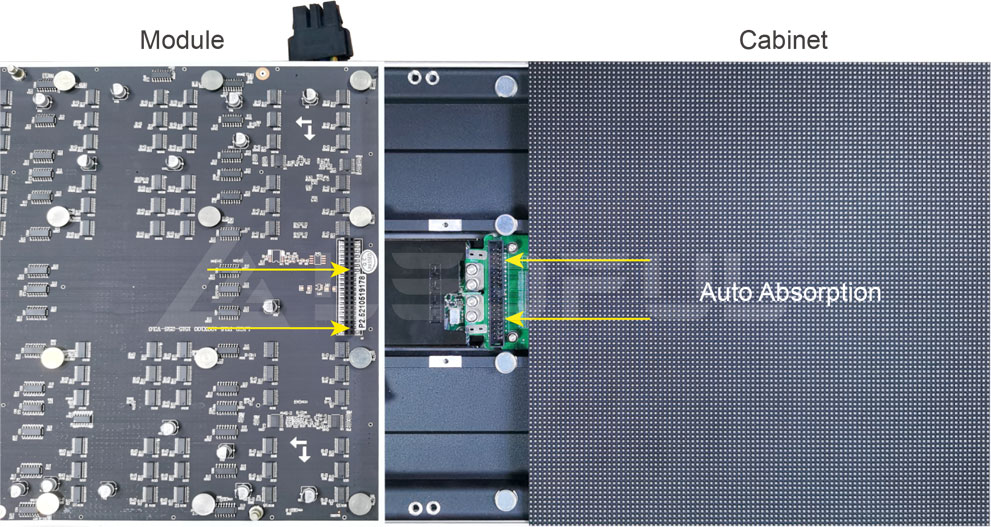

Full Front Service
Not only LED modules front maintenance, but also receiver card, power supply, all materials easily front service
Full Front Service

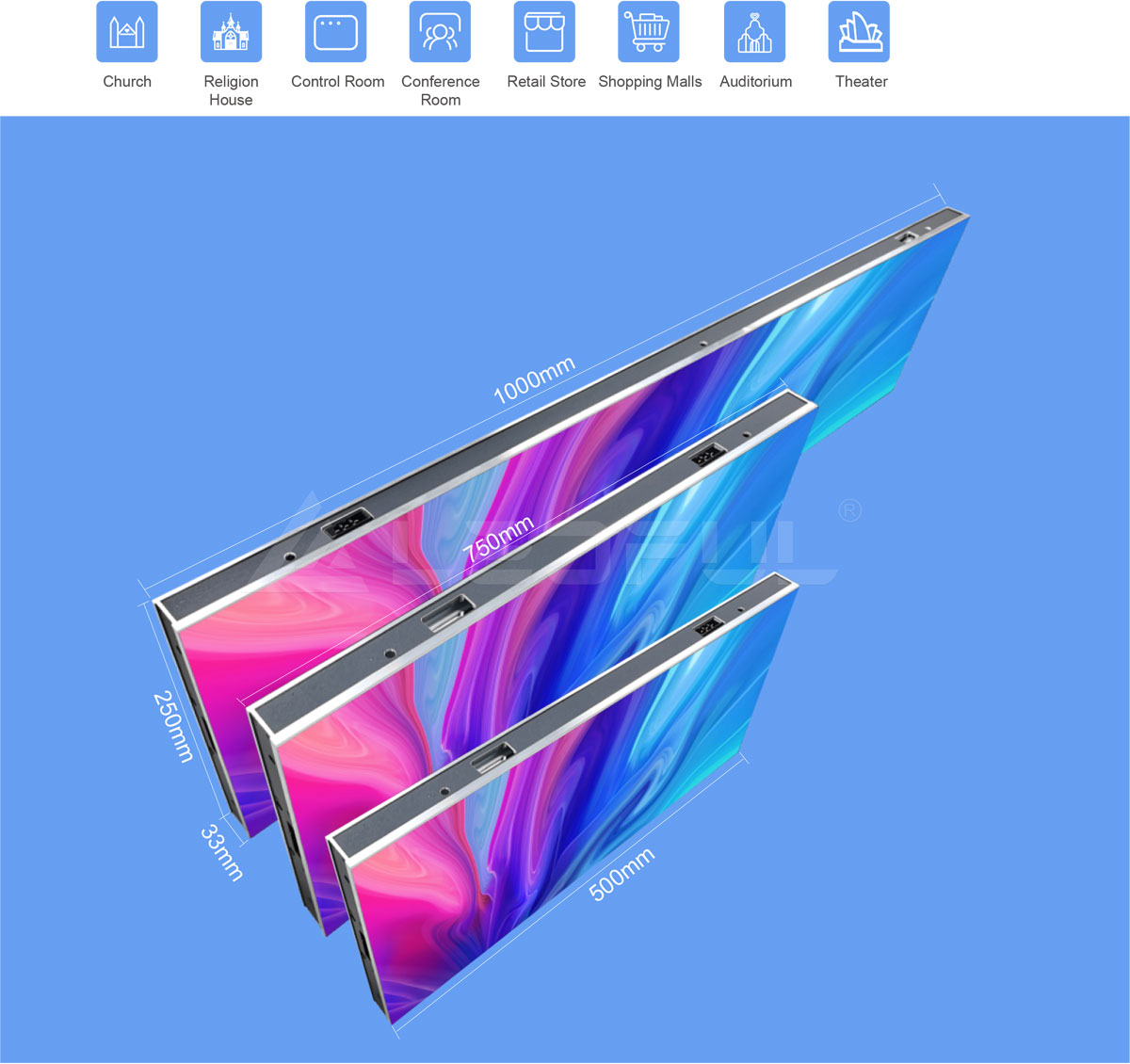

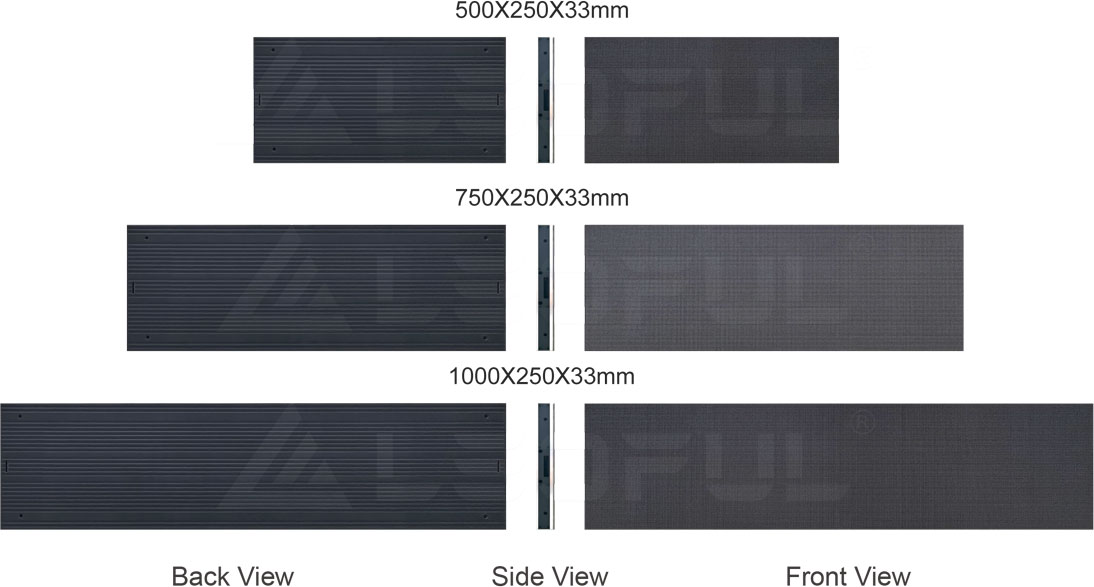

1000x250mm, 750x250mm to make customized screen size easily
1000x250mm, 750x250mm to make customized screen size easily

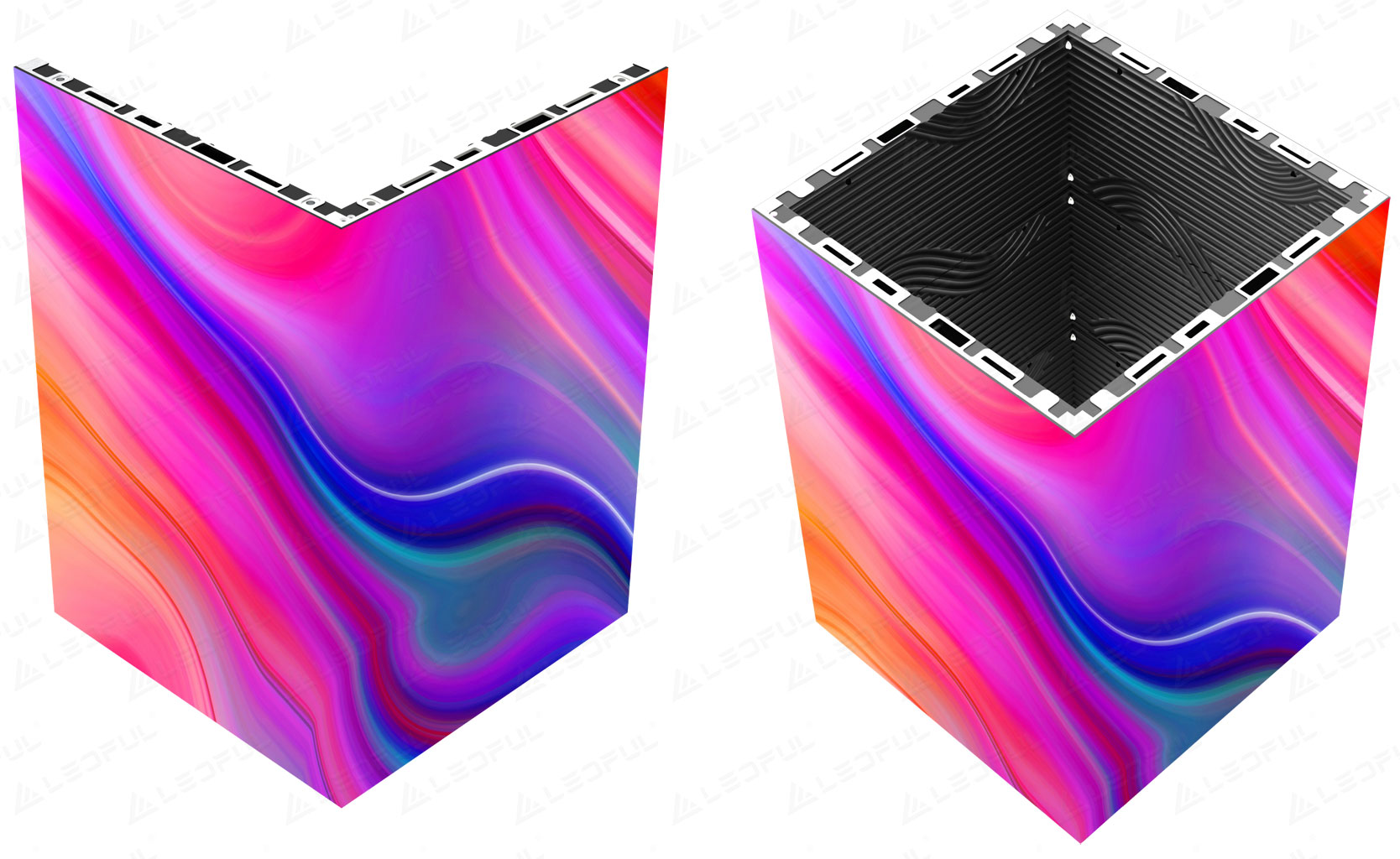

90 degrees shaped
90 degrees shaped
Black SMD LED
LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance.
Black SMD LED
Die Casting Aluminum Cabinet
Better heat dissipation, More precise, Better flatness, More compact.
Die Casting Aluminum Cabinet

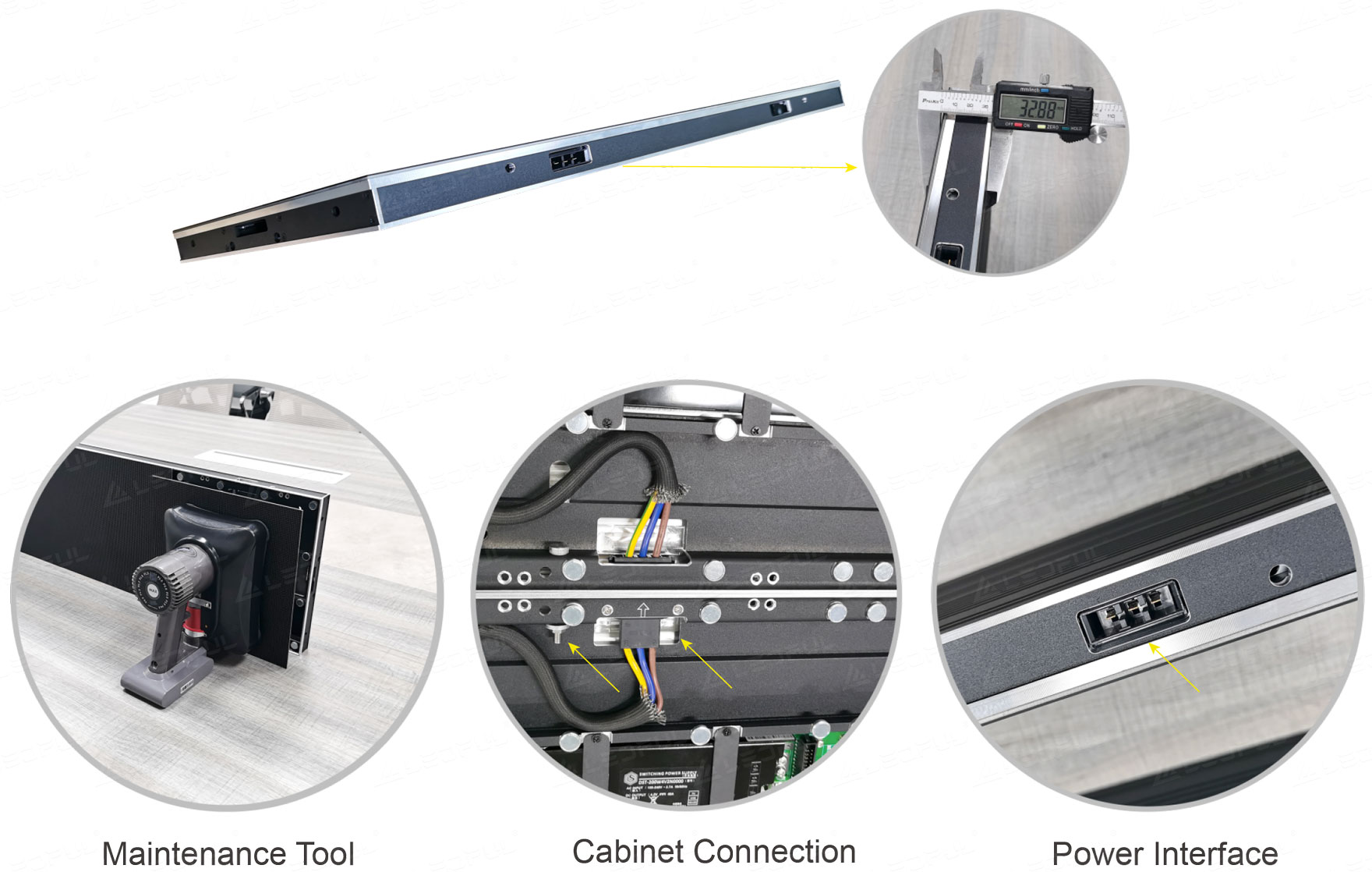

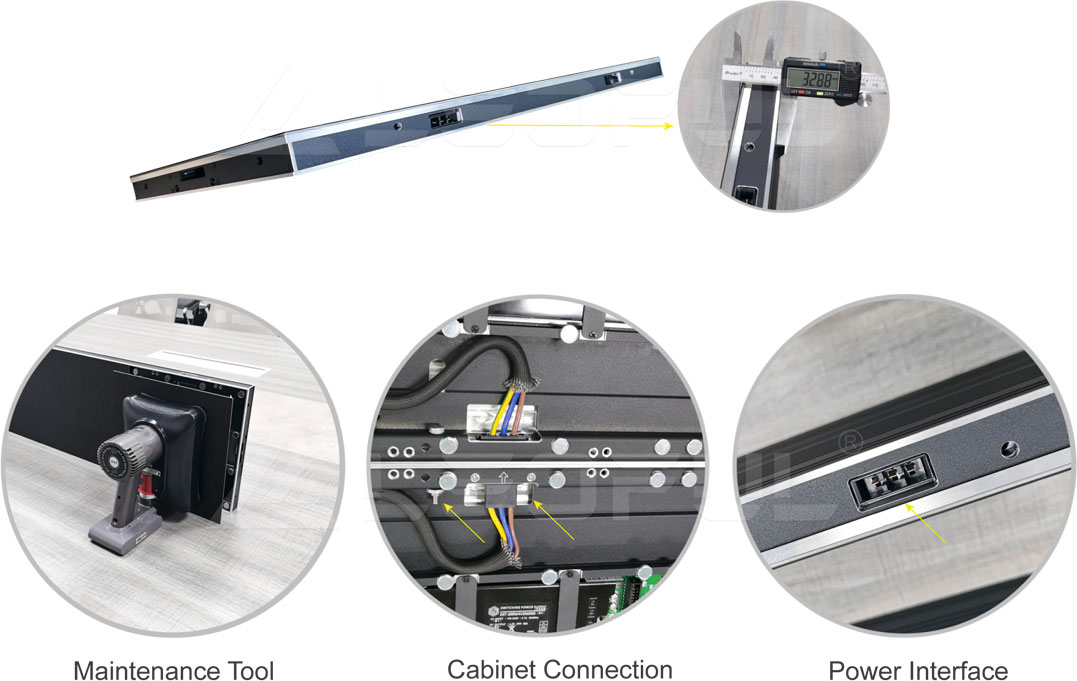

Slim & light (45mm & 5.5kg)
Slim & light (45mm & 5.5kg)
Low brightness with High grayscale
Low brightness with High grayscale to make the LED display in ultimate view performance
Low brightness with High grayscale
Ultra Wide Viewing Angle
Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Ultra Wide Viewing Angle
Ultra High Definition
It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.
Ultra High Definition
Ultra Fast Response
The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
 it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.
Ultra Fast Response
High Contrast Ratio
High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance
when works on the color and has very good contrast.
High Contrast Ratio
High Refresh Rate
It could be reach 3840HZ.
High Refresh Rate
16 bit Grey Scale
It has almost the perfect gray scale and gives true color of the images,
 there will have no data loss and you could see every details clearly.
16 bit Grey Scale
