FM PRO Series

Front Maintenance All in One for Outdoor Commercial

Applications

Specification

Model	P4.16	P5	P6.25	P8.33	P10
SMD type	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Physical density（dots/sqm）	57600	40000	25600	14400	10000
Module resolution	96X72	80X60	64X48	48X36	40X30
Module dimension	400X300	400X300	400X300	400X300	400X300
Module quantity（W×H）	2X3 / 2x4	2X3 / 2x4	2X3 / 2x4	2X3 / 2x4	2X3 / 2x4
Panel resolution（W×H）	192X216 / 192X288	160X180 / 160X240	128X144 / 128X192	96X108 / 96X144	80X90 / 80X120
Panel size（mm）	800x900 / 800X1200	800x900 / 800X1200	800x900 / 800X1200	800x900 / 800X1200	800x900 / 800X1200
Flatness（mm）	≤0.015	≤0.015	≤0.015	≤0.015	≤0.015
Maintenance mode	Front & Rear	Front & Rear	Front & Rear	Front & Rear	Front & Rear
Brightness（nits）	6500	6500	6500	6500	6500
Color temperature（K）	3200-9300 optional	3200-9300 optional	3200-9300 optional	3200-9300 optional	3200-9300 optional
Grey scale	65536	65536	65536	65536	65536
Viewing angle（V/H）	160°/ 160°	160°/ 160°	160°/ 160°	160°/ 160°	160°/ 160°
Contrast ratio	5000:01:00	5000:01:00	5000:01:00	5000:01:00	5000:01:00
Frame-changing frequently	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Drive mode	Constant current1/6 scale	Constant current 1/6 scale	Constant current 1/6 scale	Constant current 1/3 scale	Constant current 1/2 scale
Refresh rate	3840	3840	3840	3840	3840
Max power consumption（W/m2）	600-800	600-800	600-800	600-800	600-800
Avg. power consumption（W/m2）	100-200	100-200	100-200	100-200	100-200
Electric power requirements	AC90-264V 47-63Hz	AC90-264V 47-63Hz	AC90-264V 47-63Hz	AC90-264V 47-63Hz	AC90-264V 47-63Hz

* Specifications and photos are subject to change without prior notice.

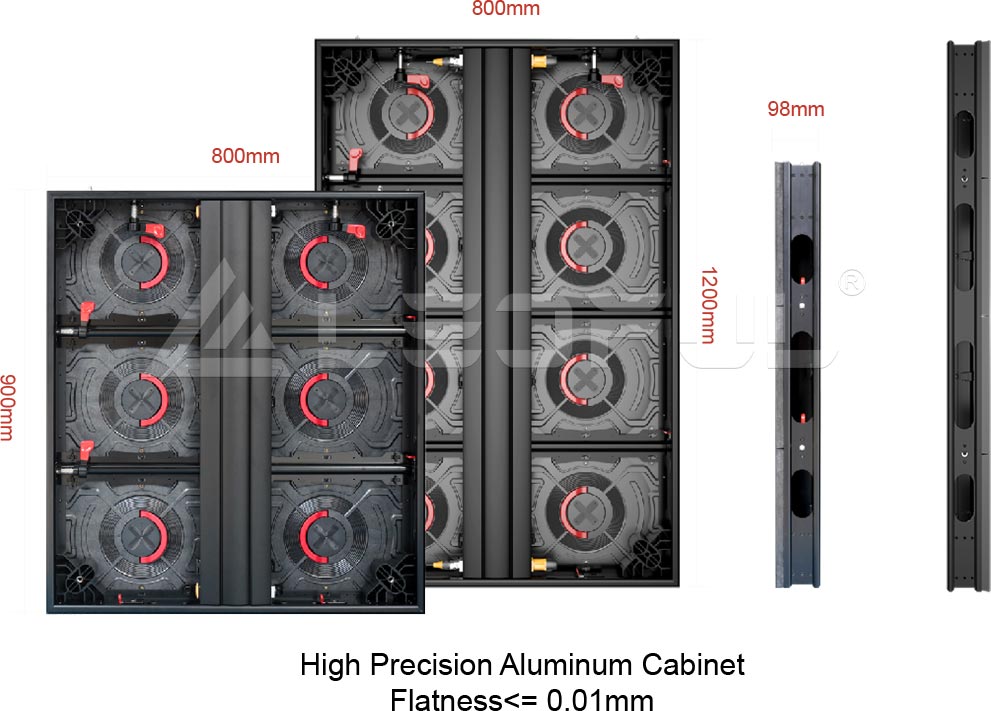

Ultra Thin, Ultra Light, Zero Gap

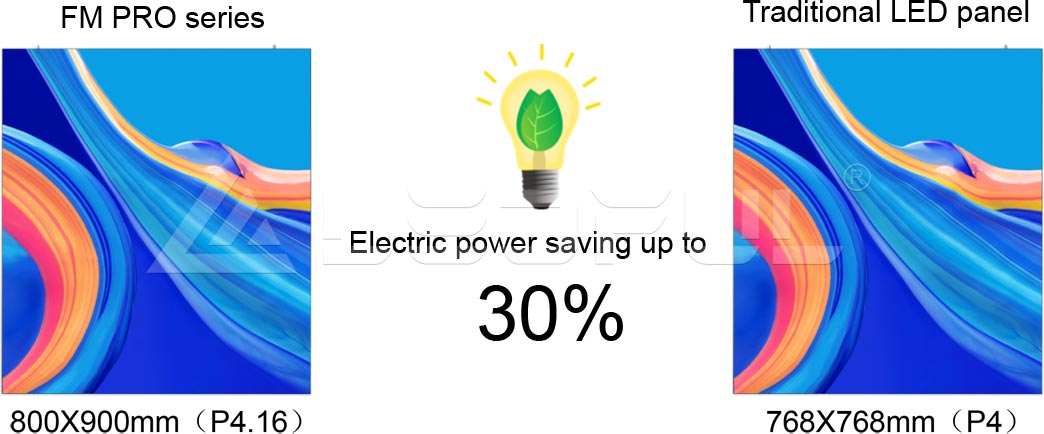

Energy Saving Solution

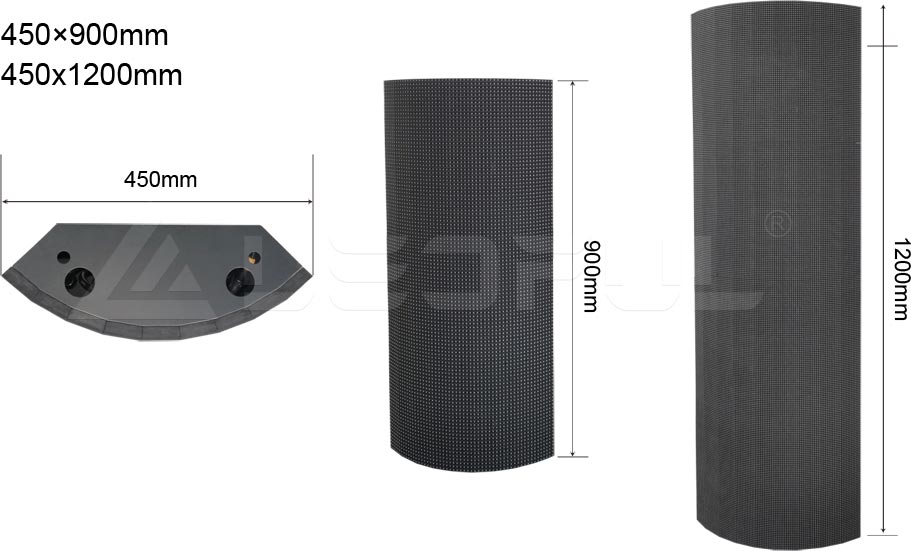

Seamless Corner Cabinet

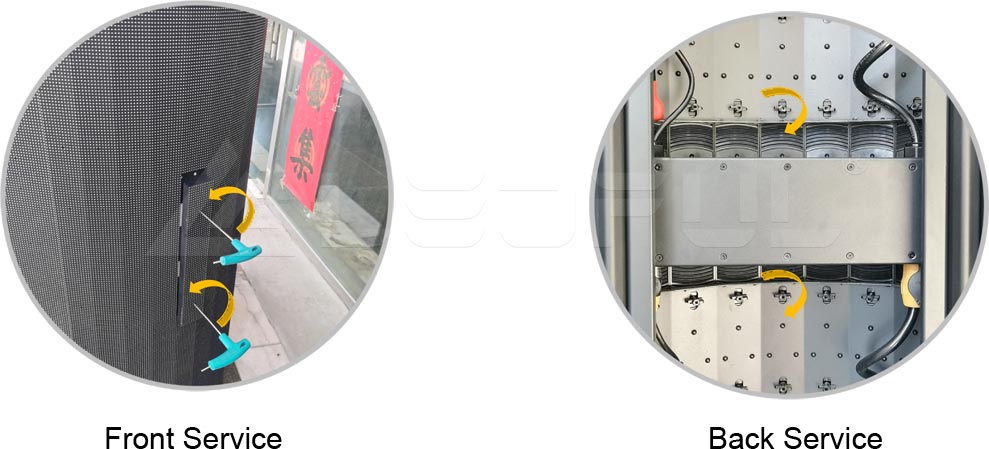

Display Full Front & Back Service

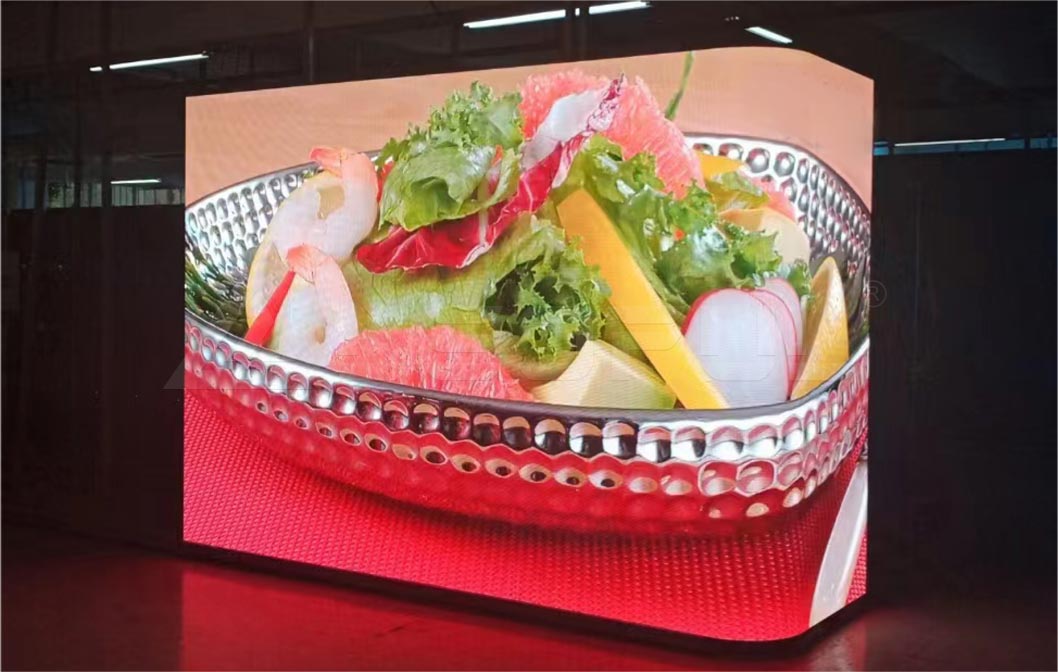

Aging Test

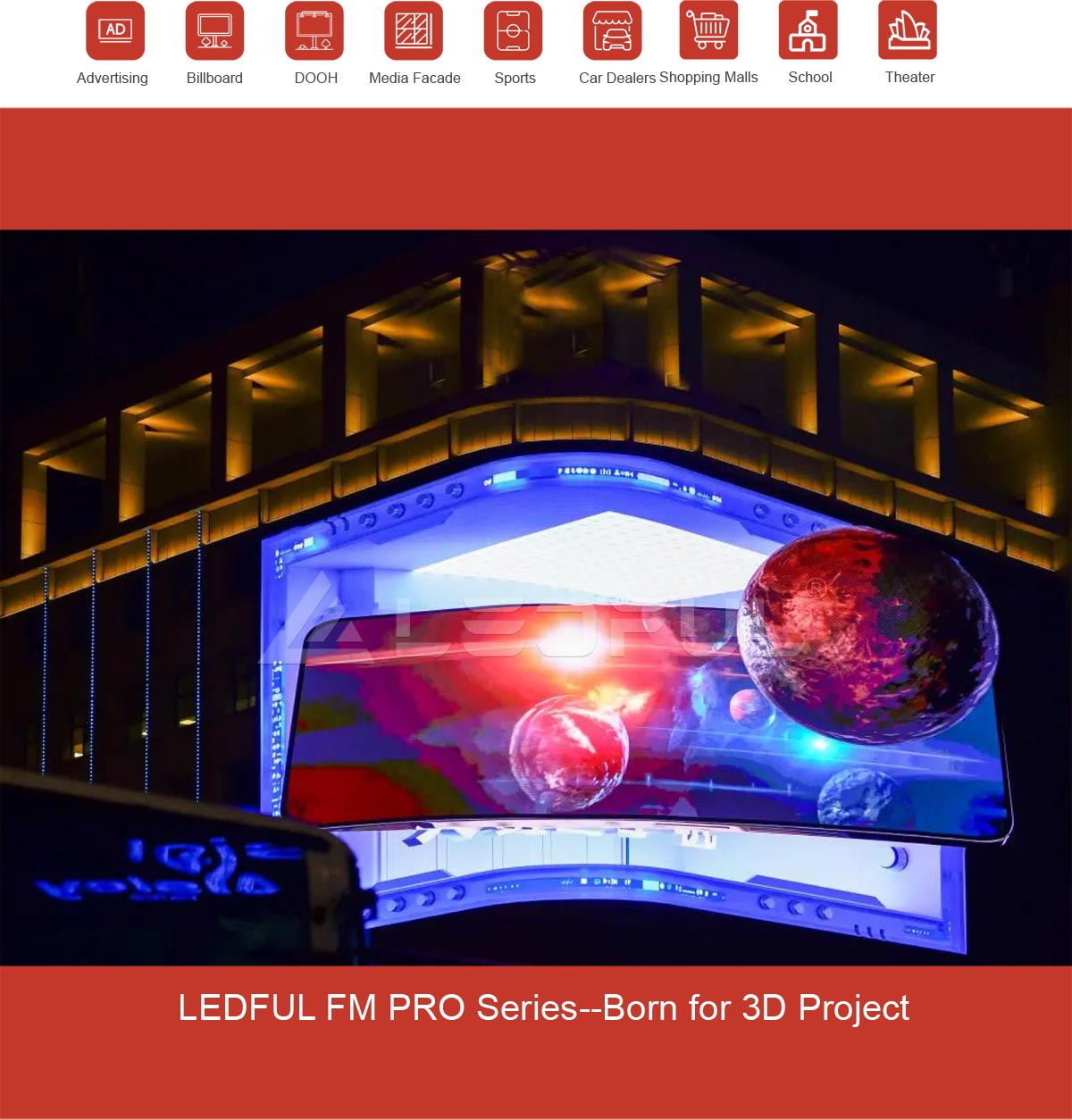

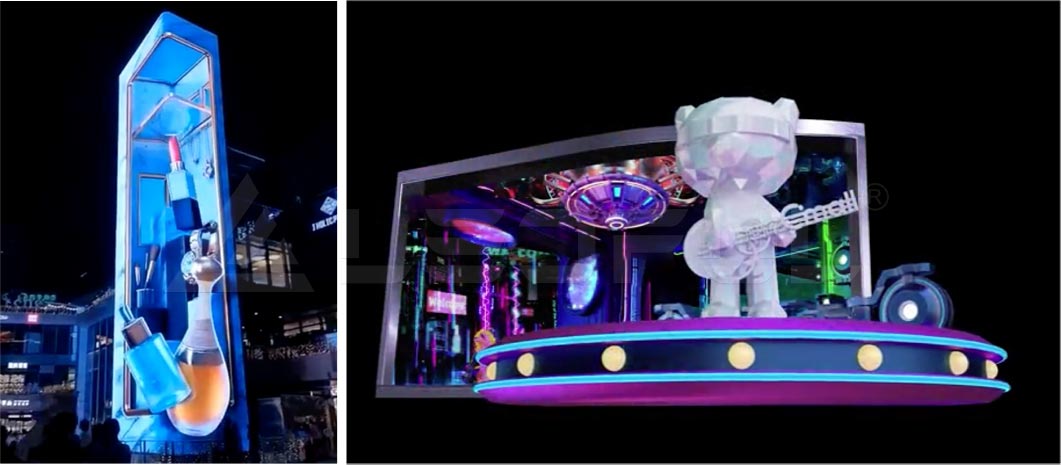

Typical Project

Features
