X Series

3rd Generation Rental LED Display

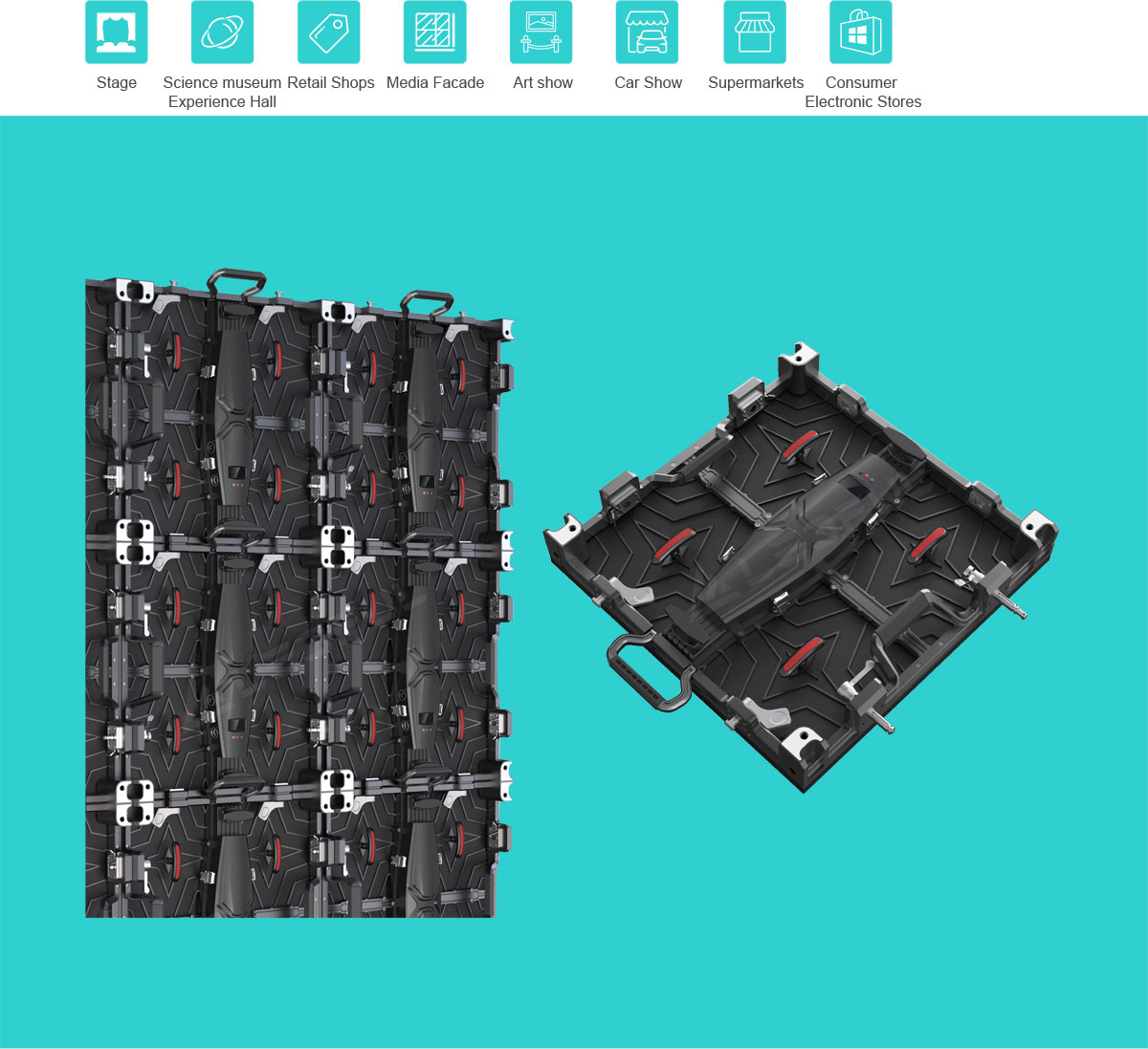

Applications

Specification

Model	XI1.95	XI2.5	XI2.604	XI2.98	XI3.91	XI4.8	XI5.95	XI6.2
Pixel Pitch(mm)	1.95	2.5	2.604	2.98	3.91	4.81	5.95	6.25
Pixel Matrix Per Sq.m	262144	160000	147456	112896	112896	43264	28224	160000
Pixel Configuration	SMD1515	SMD1515	SMD1515	SMD2121	SMD2121	SMD2121	SMD3528	SMD3528
Brightness (cd/㎡)	≥1000	≥1000	≥1000	≥1000	≥1000	≥1000	≥1000	≥1000
Scan	1/32	1/25	1/32	1/28	1/16	1/13	1/7	1/10
Module Dimension	250×250mm / 0.82×0.82ft	250×250mm / 0.82×0.82ft	250×250mm / 0.82×0.82ft	250×250mm / 0.82×0.82ft	250×250mm / 0.82×0.82ft	250×250mm / 0.82×0.82ft	250×250mm / 0.82×0.82ft	250×250mm / 0.82×0.82ft
Cabinet Dimension	500×500×80mm /1.64×1.64×0.26ft	500×500×80mm /1.64×1.64×0.26ft	500×500×80mm /1.64×1.64×0.26ft	500×500×80mm /1.64×1.64×0.26ft	500×500×80mm /1.64×1.64×0.26ft	500×500×80mm /1.64×1.64×0.26ft	500×500×80mm /1.64×1.64×0.26ft	500×500×80mm /1.64×1.64×0.26ft
Cabinet Resolution	256×256	200×200	192×192	168×168	128×128	104×104	84×84	80×80
Cabinet Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Cabinet Weight	8KG	8KG	8KG	8KG	8KG	8KG	8KG	8KG
Power Con.(W/㎡) (Max / Avg)	800W/200-300W	800W/200-300W	800W/200-300W	800W/200-300W	800W/200-300W	800W/200-300W	800W/200-300W	800W/200-300W
Service Access	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear
Refresh Rate (HZ)	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840
Grey Scale (bit)	≥16	≥16	≥16	≥16	≥16	≥16	≥16	≥16
Viewing Angle (H/V)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
IP Rate	IP31	IP31	IP31	IP31	IP31	IP31	IP31	IP31
Input Voltage (AC)	110V / 240V	110V / 240V	110V / 240V	110V / 240V	110V / 240V	110V / 240V	110V / 240V	110V / 240V

Model	XO2.604	XO2.98	XO3.91	XO4.81	XO5.95	XO6.2
Pixel Pitch(mm)	2.604	2.98	3.91	4.81	5.95	6.25
Pixel Matrix Per Sq.m	147456	112896	65536	43264	28224	160000
Pixel Configuration	SMD1415	SMD1415	SMD1921	SMD1921	SMD2727	SMD3528
Brightness (cd/㎡)	≥4500	≥4500	≥5000	≥5000	≥5500	≥5500
Scan	1/32	1/28	1/16	1/13	1/7	1/10
Module Dimension	250×250mm / 0.82×0.82ft	250×250mm / 0.82×0.82ft	250×250mm / 0.82×0.82ft	250×250mm / 0.82×0.82ft	250×250mm / 0.82×0.82ft	250×250mm / 0.82×0.82ft
Cabinet Dimension	500×500×80mm /1.64×1.64×0.26ft	500×500×80mm /1.64×1.64×0.26ft	500×500×80mm /1.64×1.64×0.26ft	500×500×80mm /1.64×1.64×0.26ft	500×500×80mm /1.64×1.64×0.26ft	500×500×80mm /1.64×1.64×0.26ft
Cabinet Resolution	192×192	168×168	128×128	104×104	84×84	80×80
Cabinet Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Cabinet Weight	8.5KG	8.5KG	8.5KG	8.5KG	8.5KG	8.5KG
Power Con.(W/㎡) (Max / Avg)	800W/200-300W	800W/200-300W	800W/200-300W	800W/200-300W	800W/200-300W	800W/200-300W
Service Access	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear
Refresh Rate (HZ)	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840
Grey Scale (bit)	≥16	≥16	≥16	≥16	≥16	≥16
Viewing Angle (H/V)	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°
IP Rate	IP65	IP65	IP65	IP65	IP65	IP65
Input Voltage (AC)	110V / 240V	110V / 240V	110V / 240V	110V / 240V	110V / 240V	110V / 240V

* Specifications and photos are subject to change without prior notice.

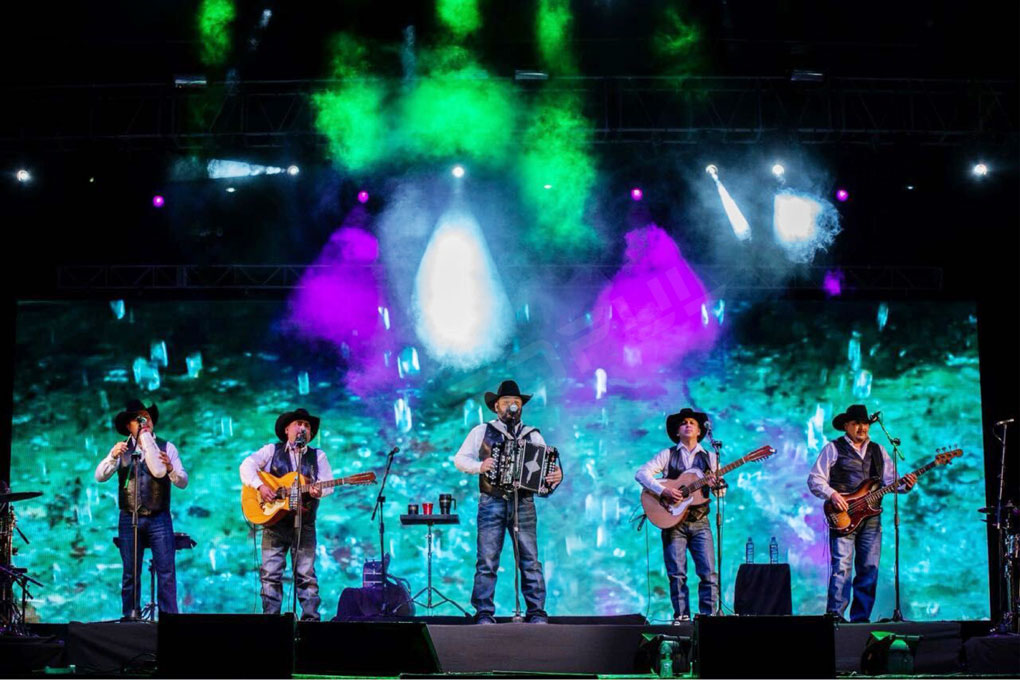

Typical Project

Typical Project

Accessories

Controller &Processor
Front Maintenance Tool
Curved Lock
Hanging Bar

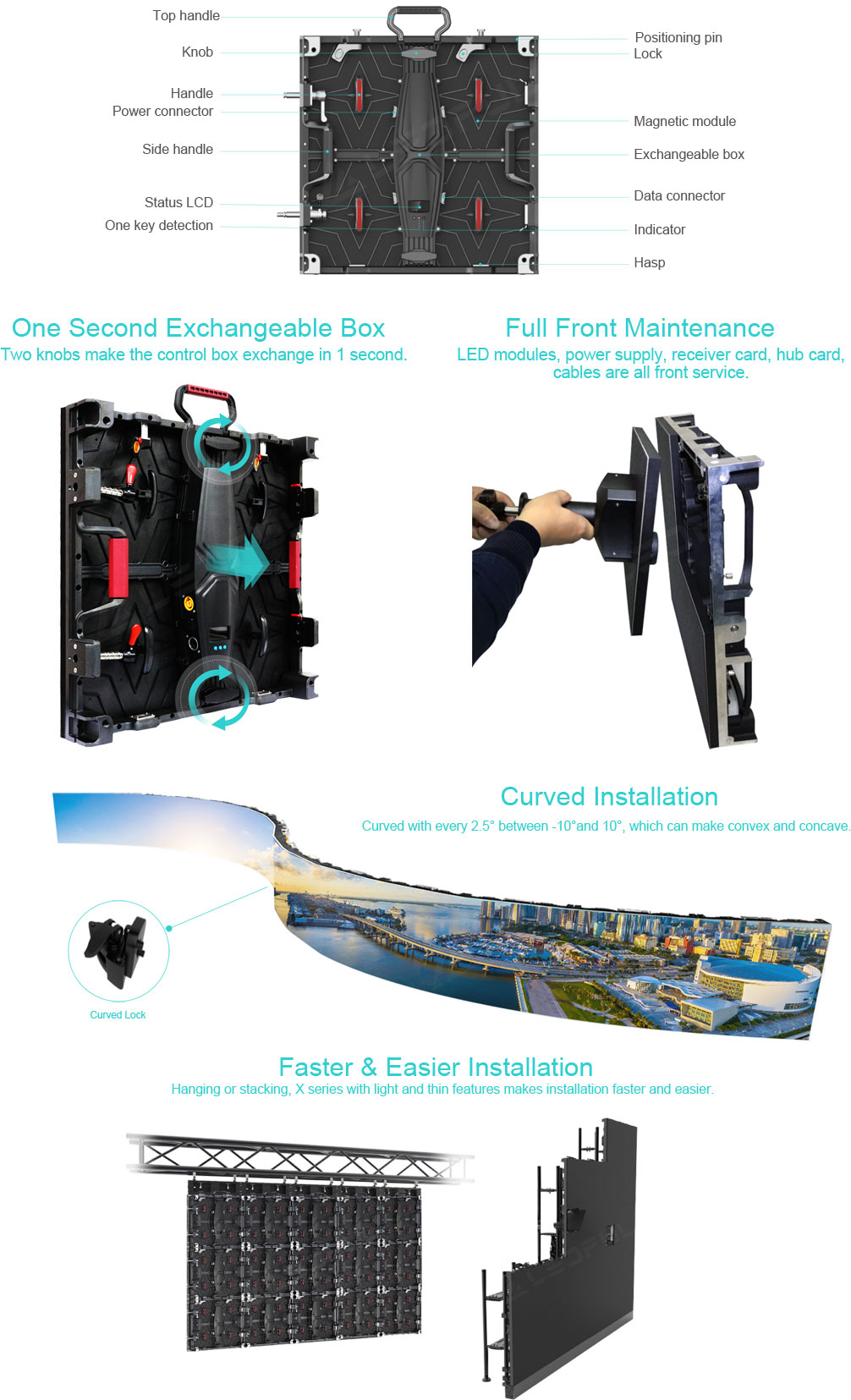

Features
