Flex Series


Flex Series

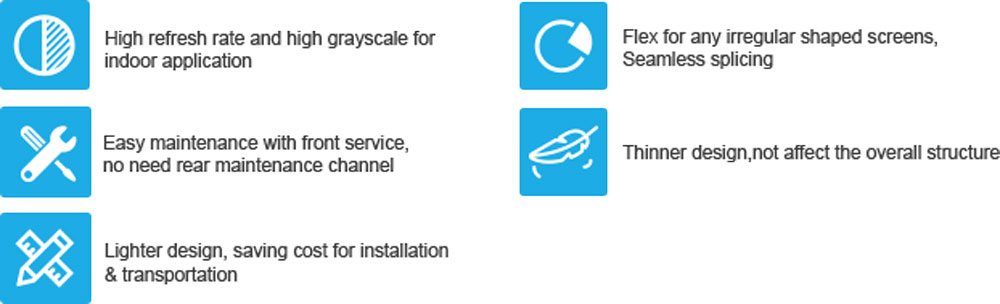

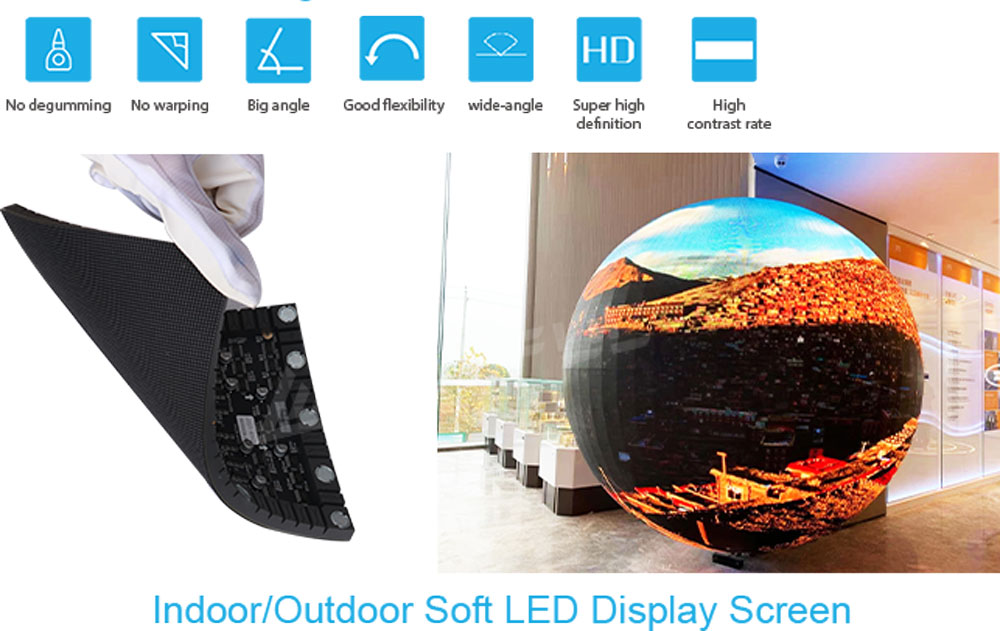

Features & Advantages
Features & Advantages

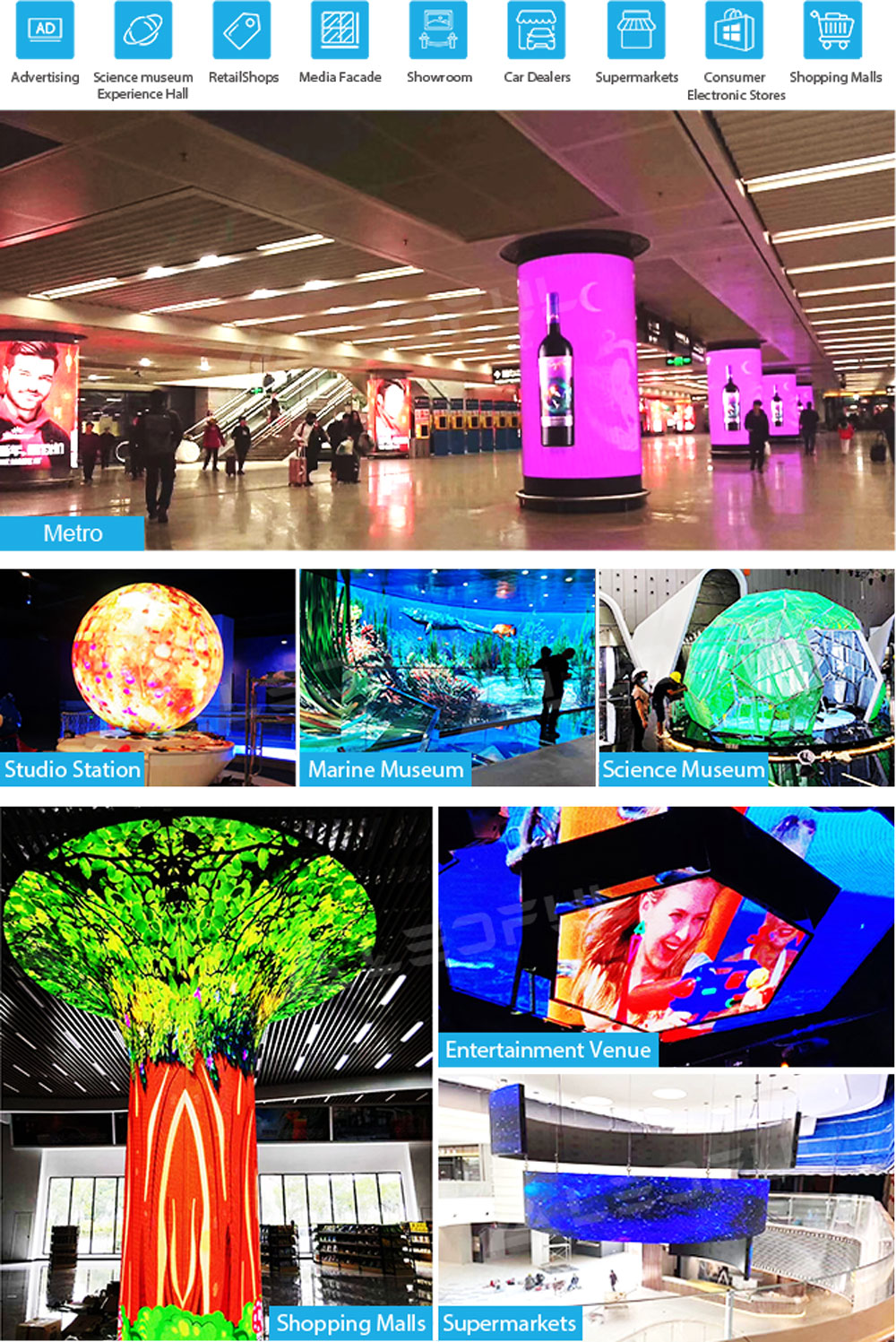

Applications
Applications Applications
Specification
Model FLEX1.25 FLEX1.579 FLEX1.667 FLEX1.875 FLEX2 FLEX2.5 FLEX3 FLEX4
Pixel Pitch(mm) 1.25 1.579 1.667 1.875 2 2.5 3 4
Pixel Matrix Per Sqm. 640000 401111 360000 284444 250000 160000 111111 62500
Pixel Configuration SMD1010 SMD1010 / SMD1212 SMD1010 / SMD1212 SMD1212 / SMD1515 SMD1515 SMD1515 SMD1515 / SMD2121 SMD2121
Brightness (nits) ≥600 ≥650 ≥700 ≥750 ≥750 ≥750 ≥900 ≥850
Scan 1/48 1/38 1/36 1/32 1/30 1/24 1/20 1/15
Module Dimension 240x120mm
/ 0.79x0.39ft
240x120mm
/ 0.79x0.39ft
240x120mm
/ 0.79x0.39ft
240x120mm
/ 0.79x0.39ft
240x120mm
/ 0.79x0.39ft
240x120mm
/ 0.79x0.39ft
240x120mm
/ 0.79x0.39ft
240x120mm
/ 0.79x0.39ft
Module Material Silicon Rubber
Soft Bracket
Silicon Rubber
Soft Bracket
Silicon Rubber
Soft Bracket
Silicon Rubber
Soft Bracket
Silicon Rubber
Soft Bracket
Silicon Rubber
Soft Bracket
Silicon Rubber
Soft Bracket
Silicon Rubber
Soft Bracket
Module Weight 0.215kg 0.203kg 0.195kg 0.216kg 0.205kg 0.175kg 0.175kg 0.17kg
Power Con. (Max / Avg) 1000 / 340 w/sq.m 1000 / 340 w/sq.m 800 / 270 w/sq.m 800 / 270 w/sq.m 800 / 270 w/sq.m 800 / 270 w/sq.m 800 / 270 w/sq.m 800 / 270 w/sq.m
Service Access Front Front Front Front Front Front Front Front
Refresh Rate (HZ) 3840 3840 3840 ≥2880 ≥2880 ≥1920 ≥1920 ≥1920
Grey Scale (bit) 14 14 14 14 14 14 14 14
Viewing Angle (H/V) 140 / 140 140 / 140 140 / 140 140 / 140 140 / 140 140 / 140 140 / 140 140 / 140
IP Rate IP45 IP45 IP45 IP45 IP45 IP45 IP45 IP45
Operation Temperature -10° ~ 50° -10° ~ 50° -10° ~ 50° -10° ~ 50° -10° ~ 50° -10° ~ 50° -10° ~ 50° -10° ~ 50°
Input Voltage (AC) 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V
 * Specifications and photos are subject to change without prior notice.

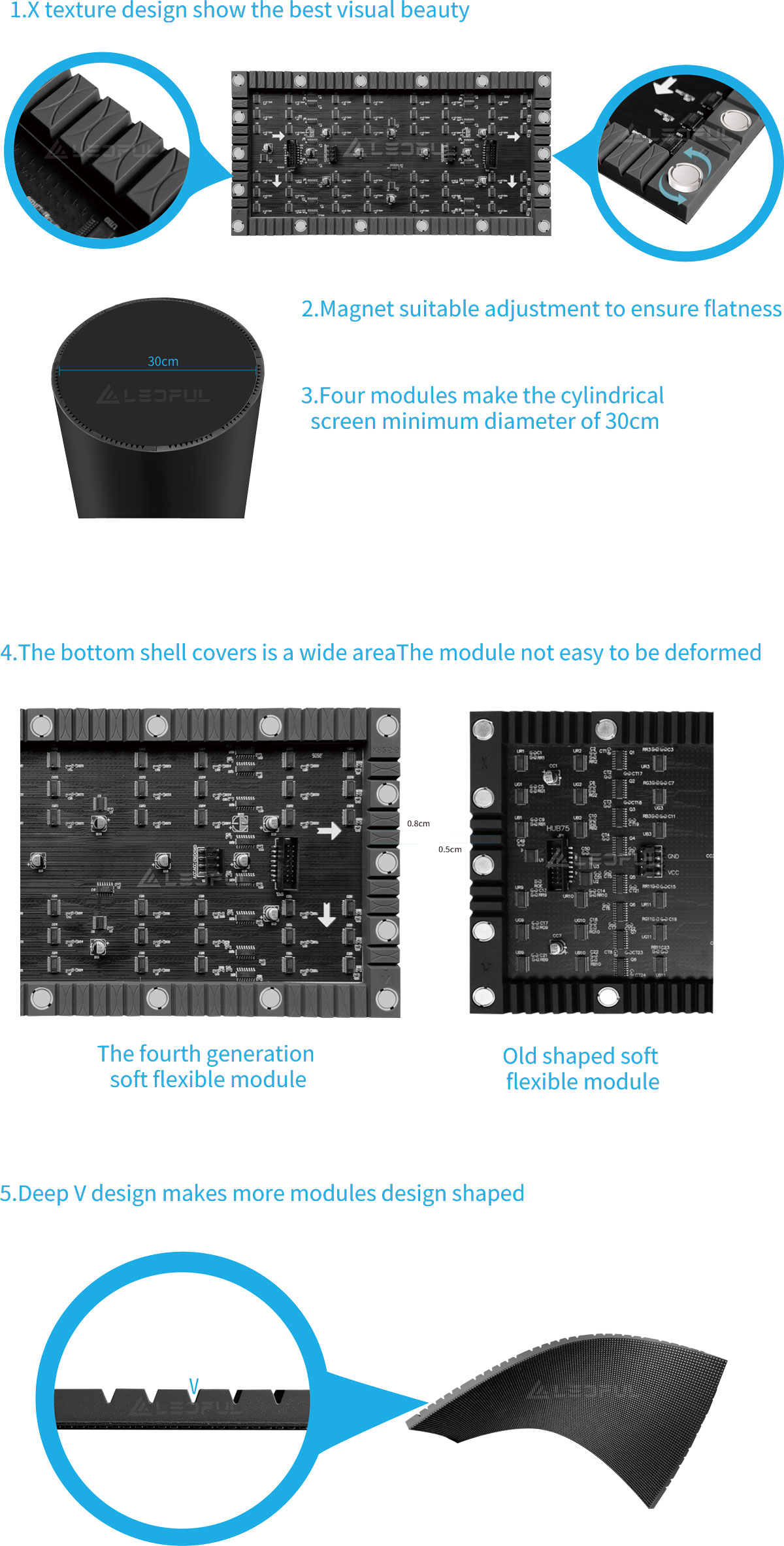

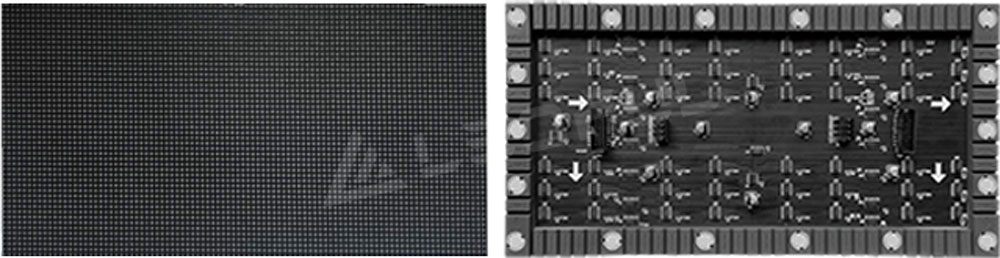

5 Advantages of 4th Generation FLEX series
5 Advantages of 4th Generation FLEX series

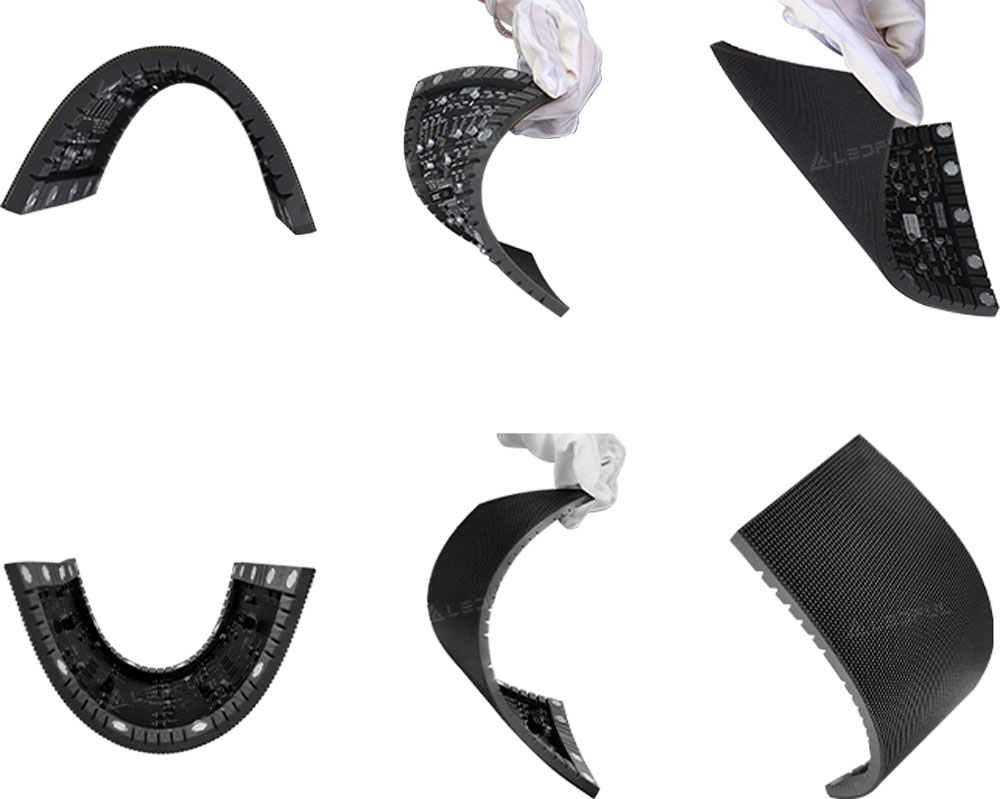

Free flexible design can make various shaped
Free flexible design can make various shaped

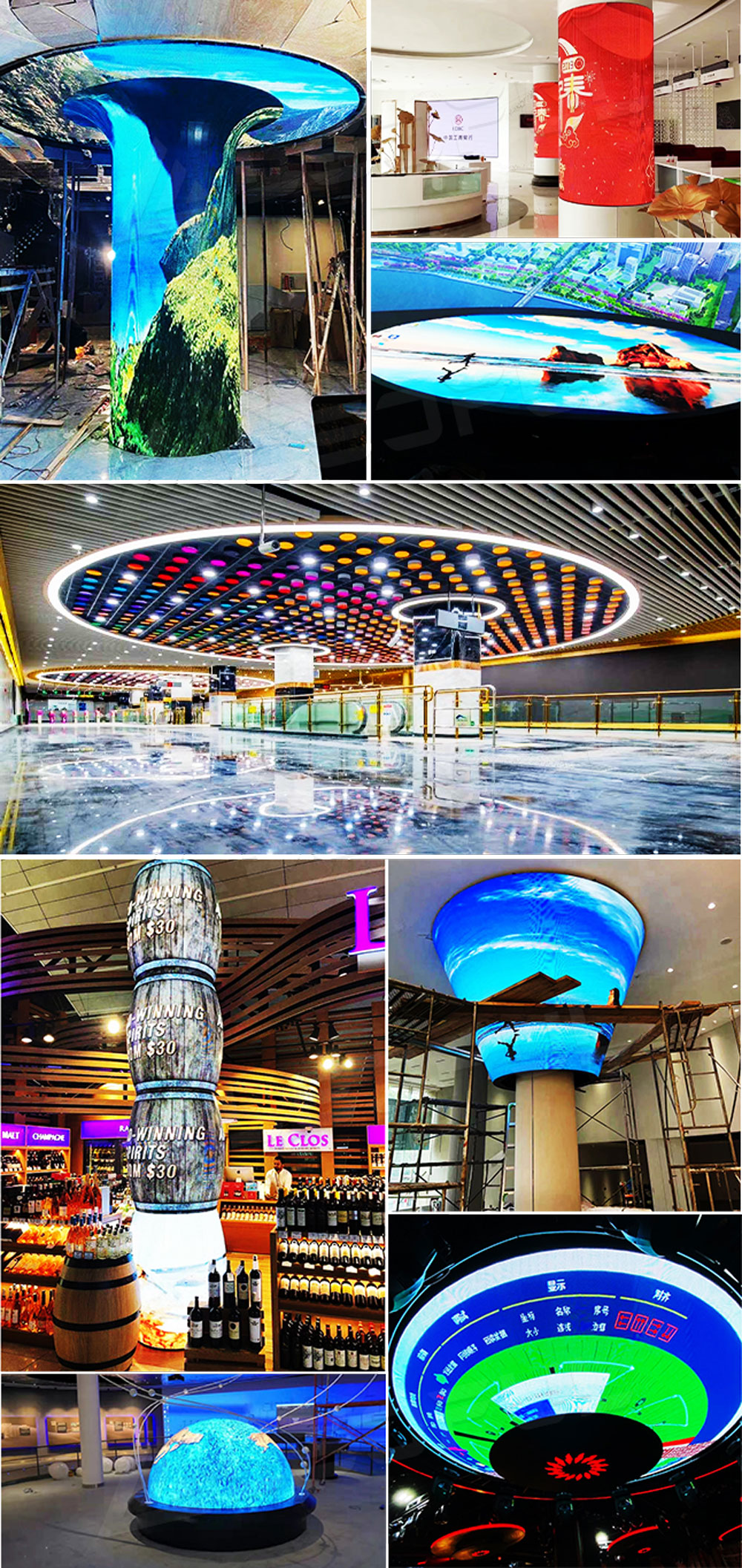

Related & Recommended Projects
