BM Pro Series

Indoor Front Service Cable Free Commercial LED display

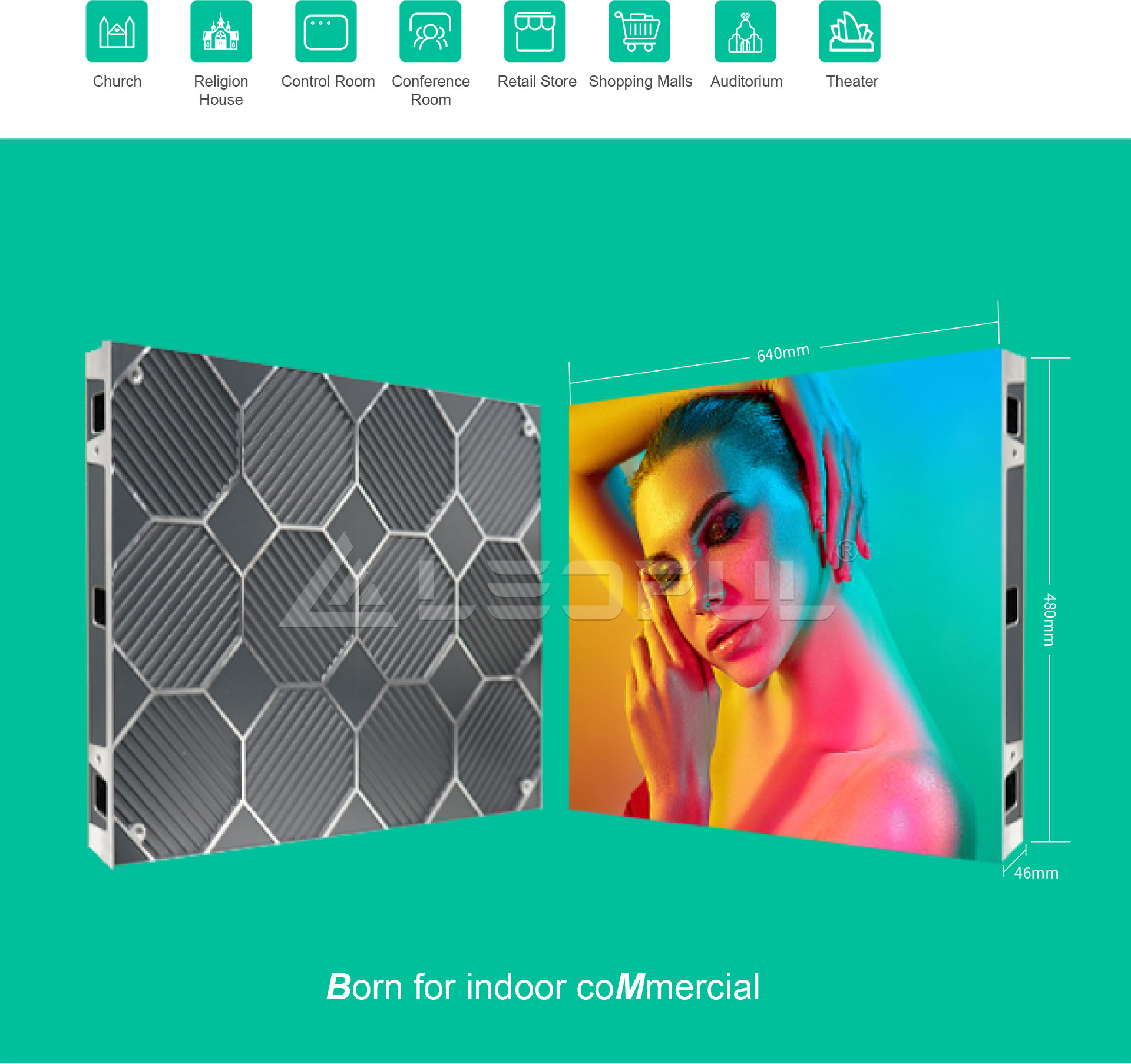

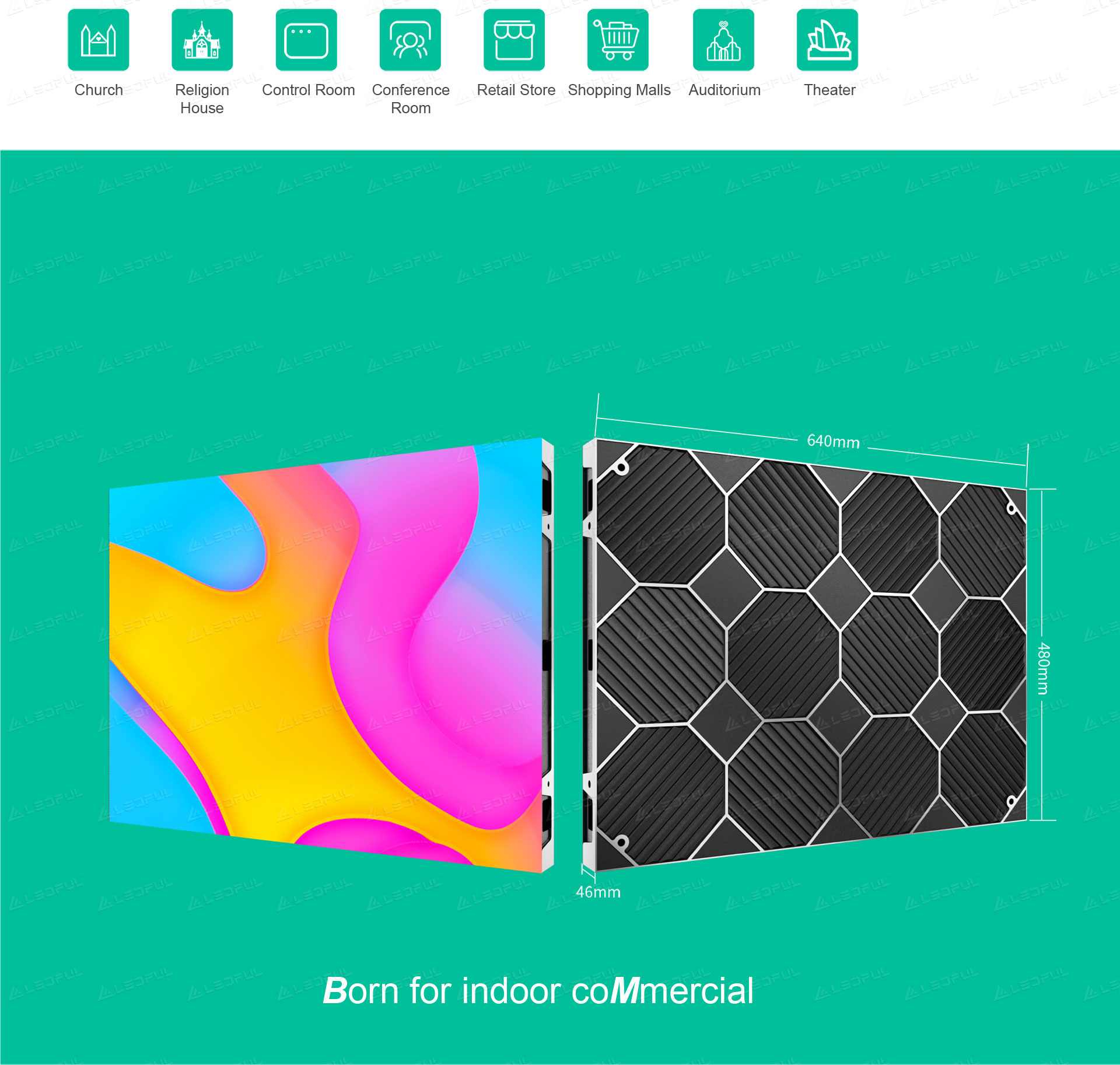

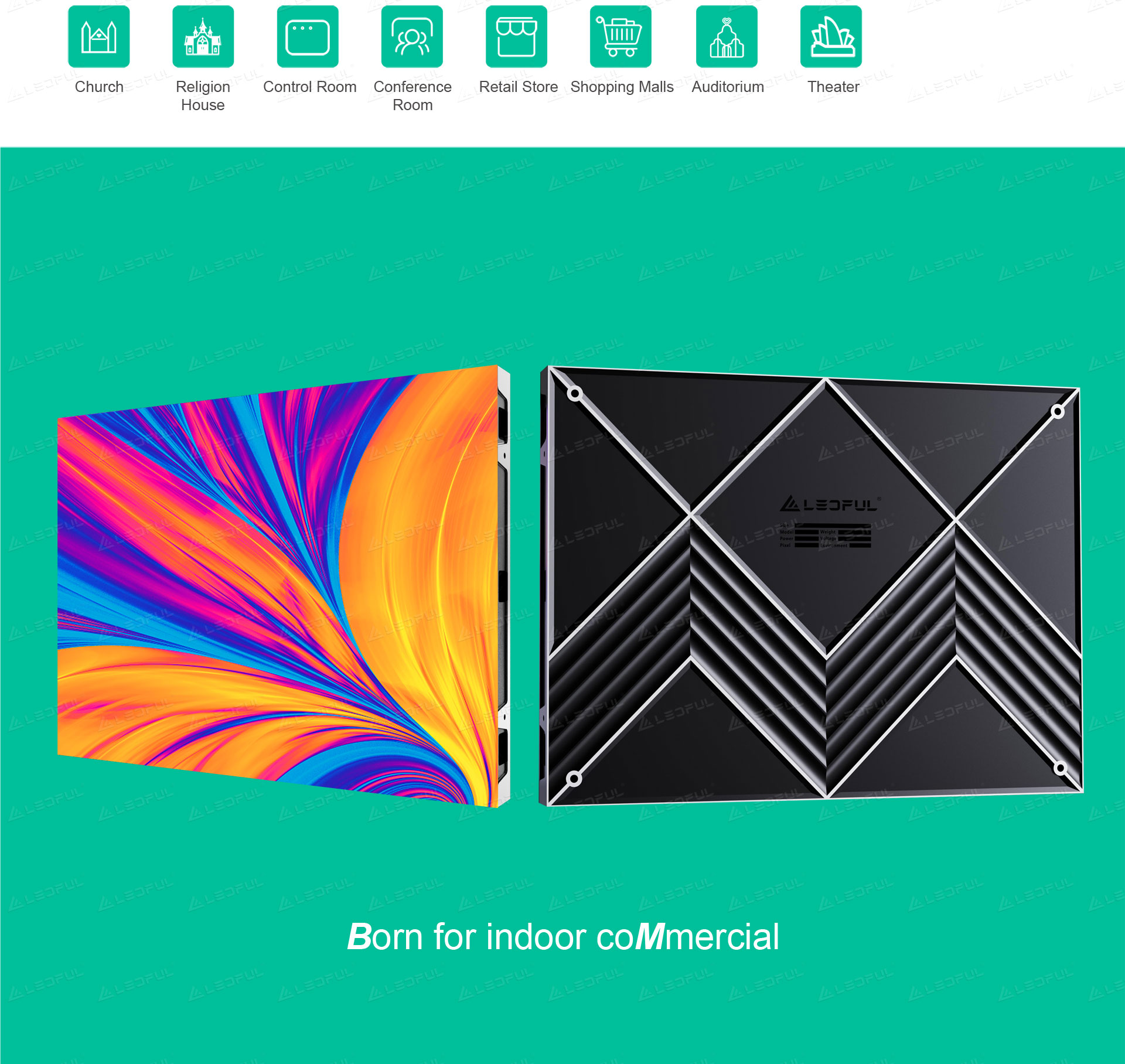

Applications
Applications
Specification
Model BM1.2 BM1.5 BM1.8 BM2.5
Pixel Pitch(mm) 1.25 1.53 1.86 2.5
Pixel Matrix Per Sq.m 640000 422500 288906 160000
Pixel Conguration SMD1010 SMD1212 SMD1515 SMD2121
Brightness (cd/㎡) 500-900 500-900 500-900 500-900
Scan 1/64 1/52 1/43 1/32
Module Dimension 320x160mm/ 1.05x0.53ft 320x160mm / 1.05x0.53ft 320x160mm / 1.05x0.53ft 320x160mm / 1.05x0.53ft
Cabinet Dimension 640x480mm/ 2.10x1.57ft 640x480mm/ 2.10x1.57ft 640x480mm/ 2.10x1.57ft 640x480mm/ 2.10x1.57ft
Cabinet Resolution 512x384 415x312 384x288 256x192
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Cabinet Weight 7KG 7KG 7KG 7KG
Power Con.(W/㎡）（Max / Avg) 600W/200W 600W/200W 600W/200W 600W/200W
Service Access Front Front Front Front
Refresh Rate (HZ) ≥3840 ≥3840 ≥3840 ≥3840
Grey Scale (bit) 14 14 14 14
Viewing Angle (H/V) 160°/160° 140°/140° 160°/160° 160°/160°
IP Rate IP45 IP45 IP45 IP45
Operation Temperature -20℃ ~ +80℃ -20℃ ~ +80℃ -20℃ ~ +80℃ -20℃ ~ +80℃
Input Voltage (AC) 110V / 220V 110V / 220V 110V / 220V 110V / 220V

* Specifications and photos are subject to change without prior notice.

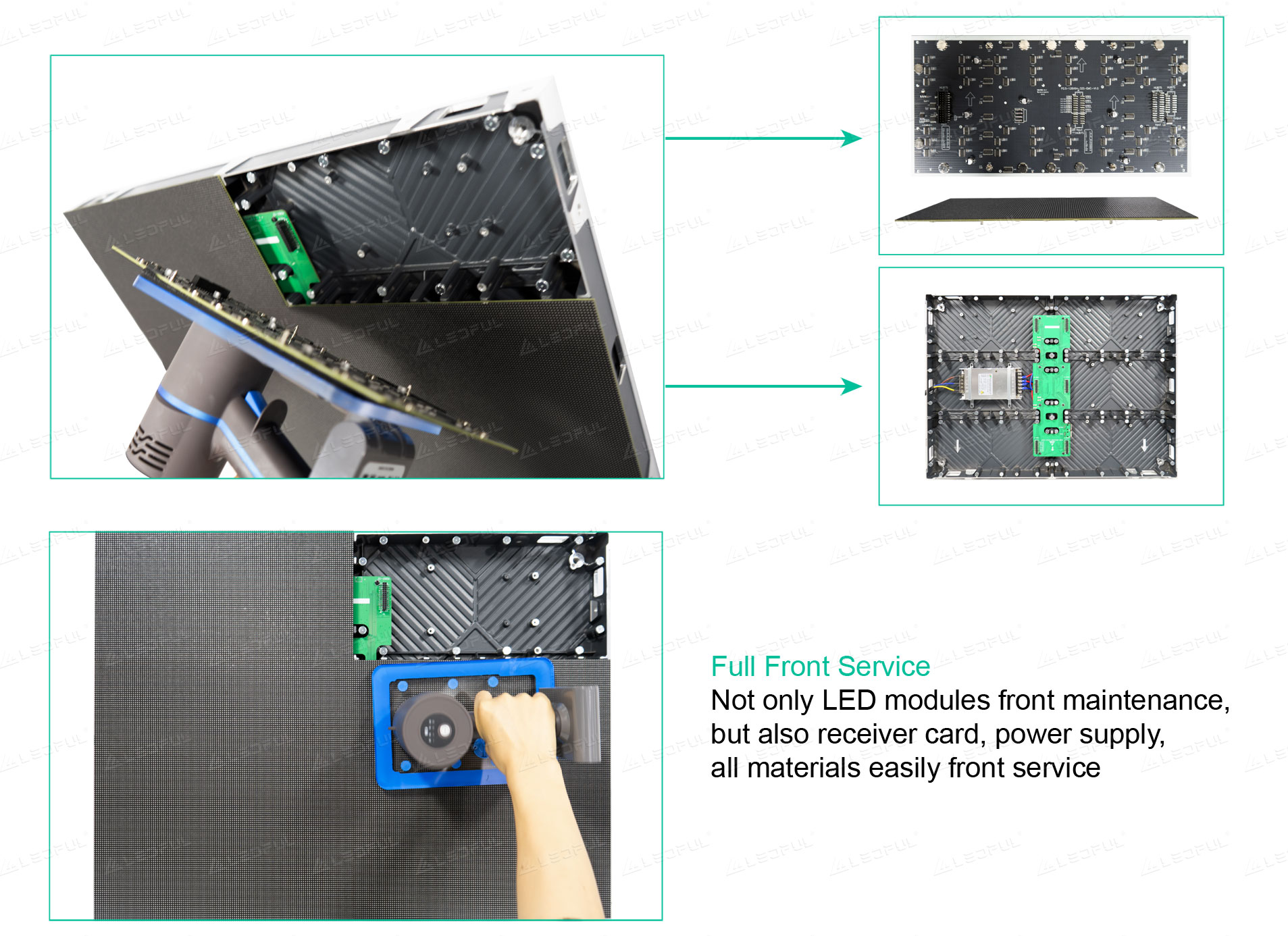

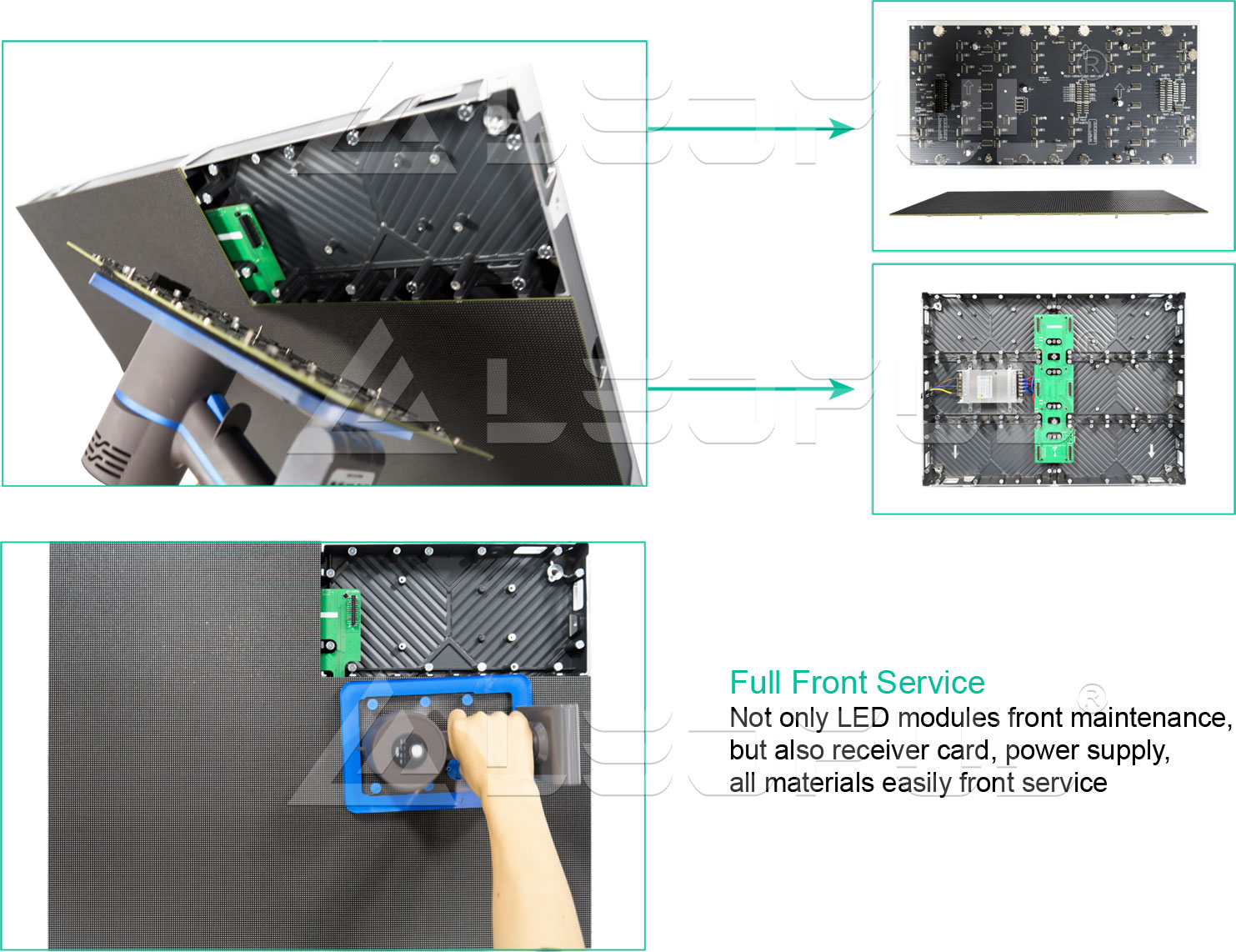

2024 Latest Cable Free Design
save time and effort, only two seconds for disassembly and assembly.
2024 Latest Cable Free Design

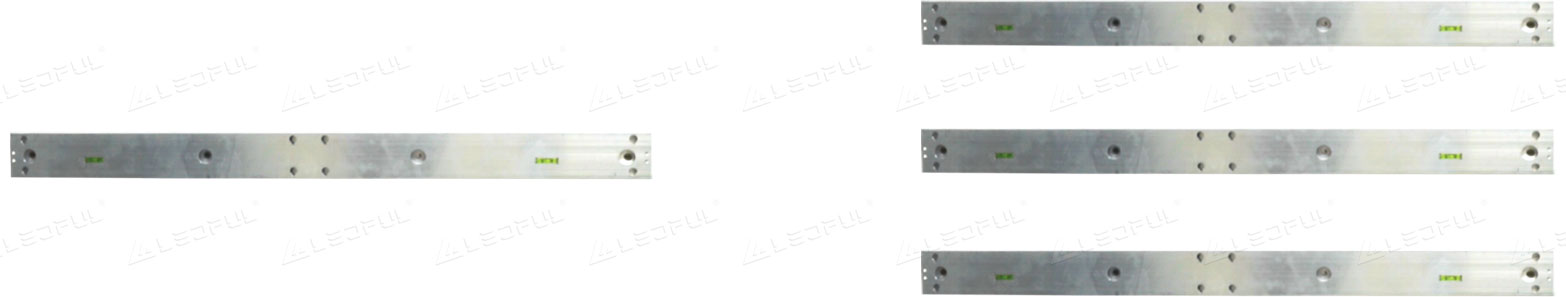

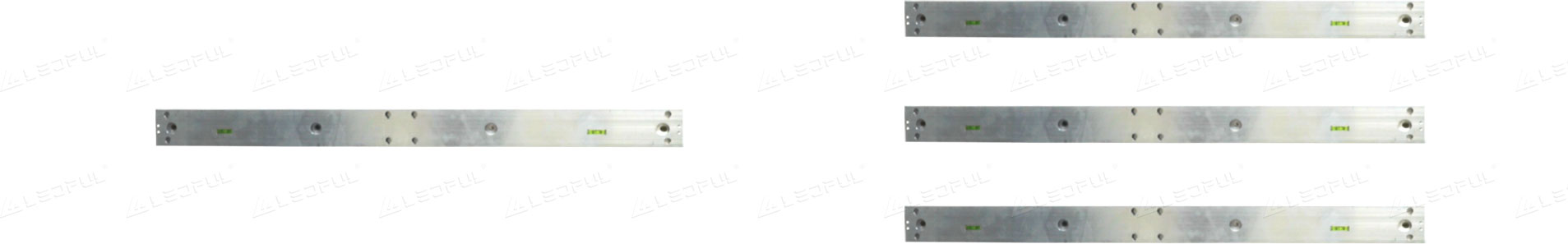

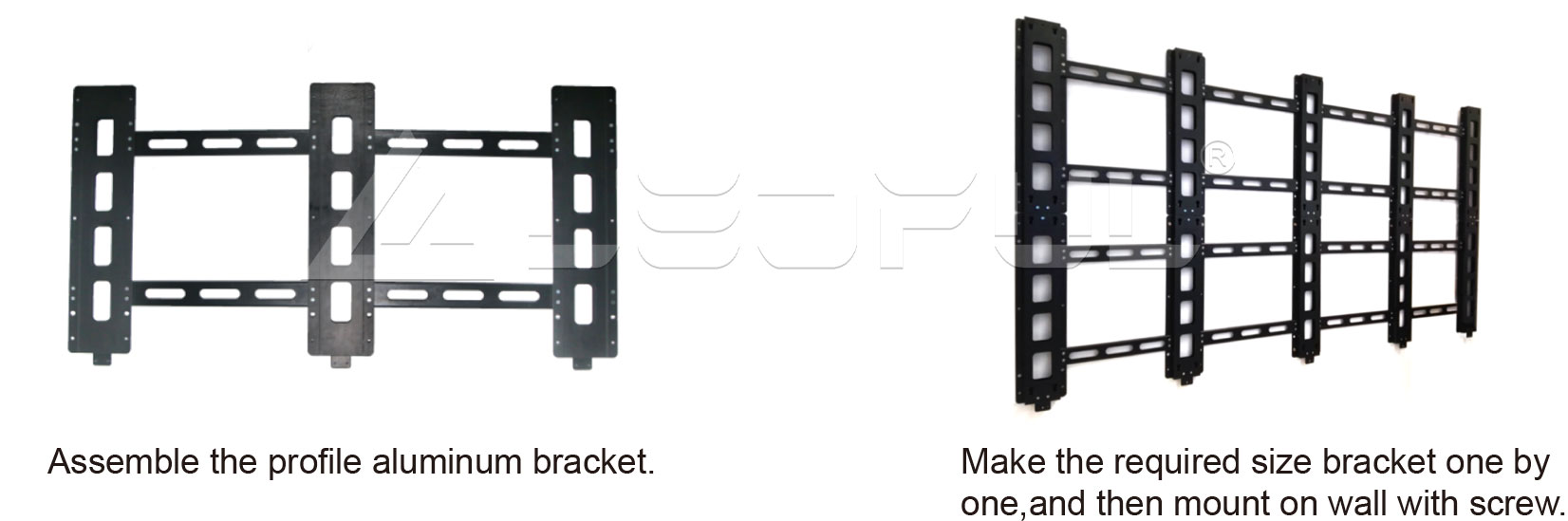

Easy Installation with LEDFUL Customized Bracket
Easy Installation with LEDFUL Customized Bracket

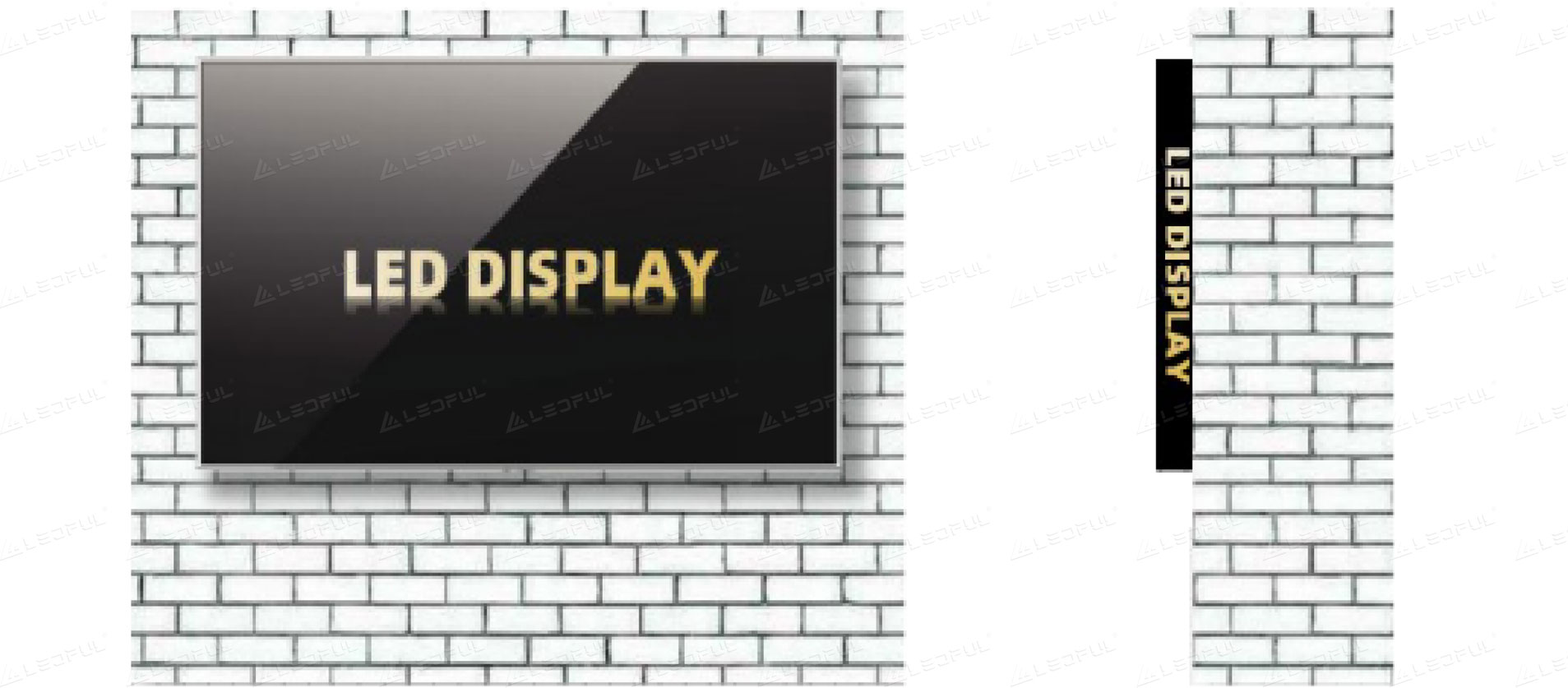

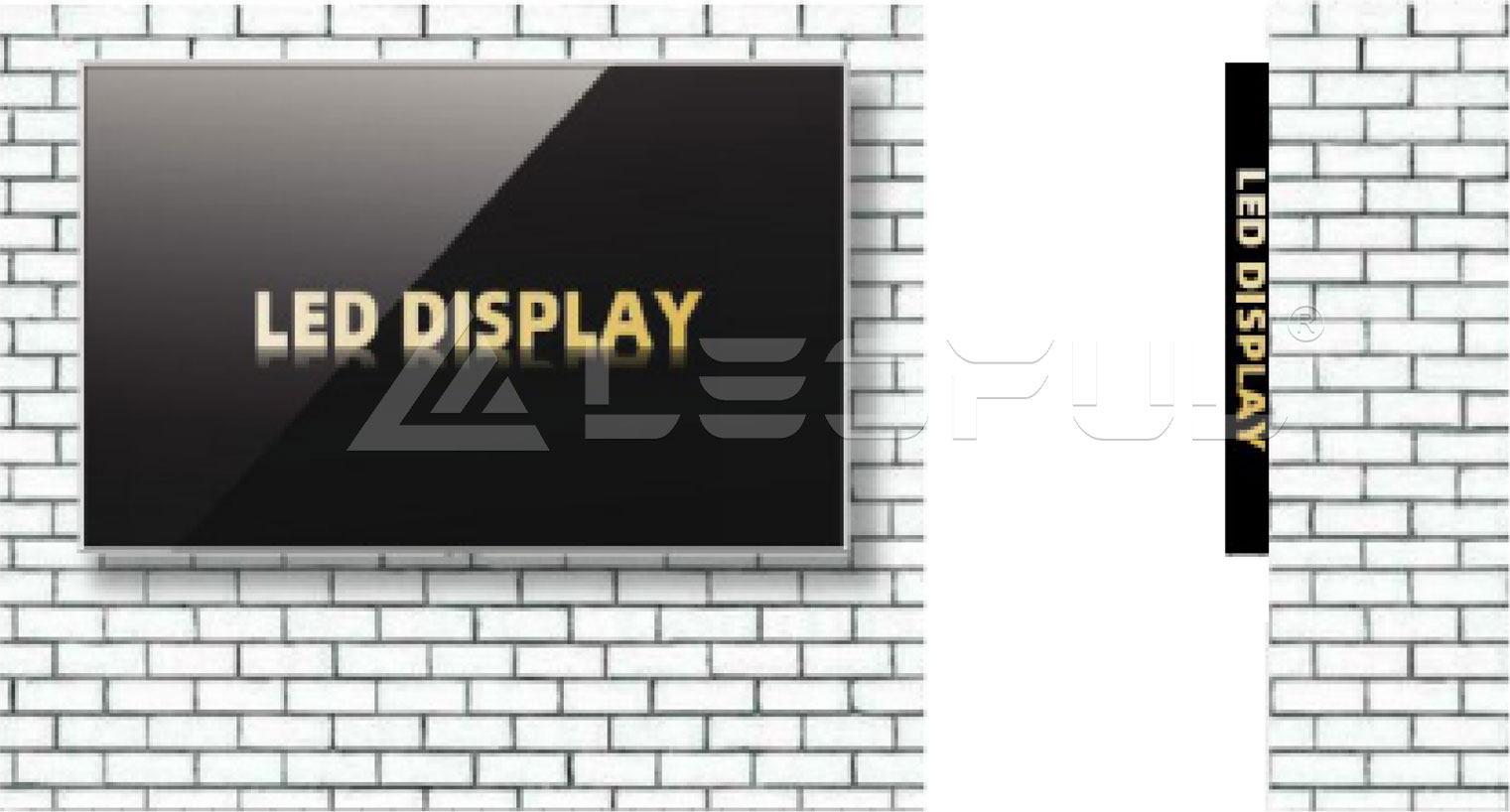

Lighter and Thinner Screen for Wall Mounted
Lighter and Thinner Screen for Wall Mounted
Screen Control System Simple and Easy to Operate
Screen Control System Simple and Easy to Operate

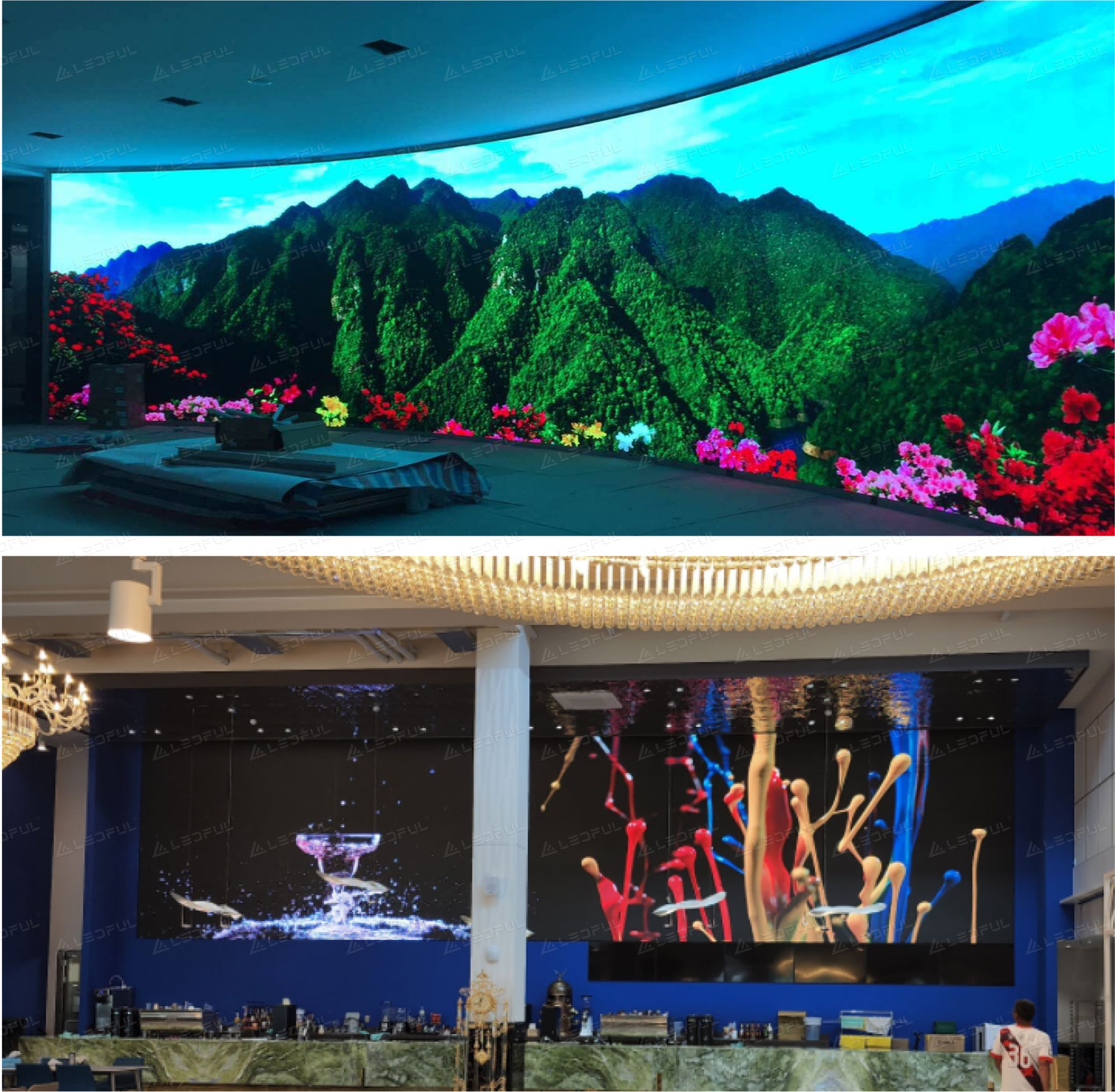

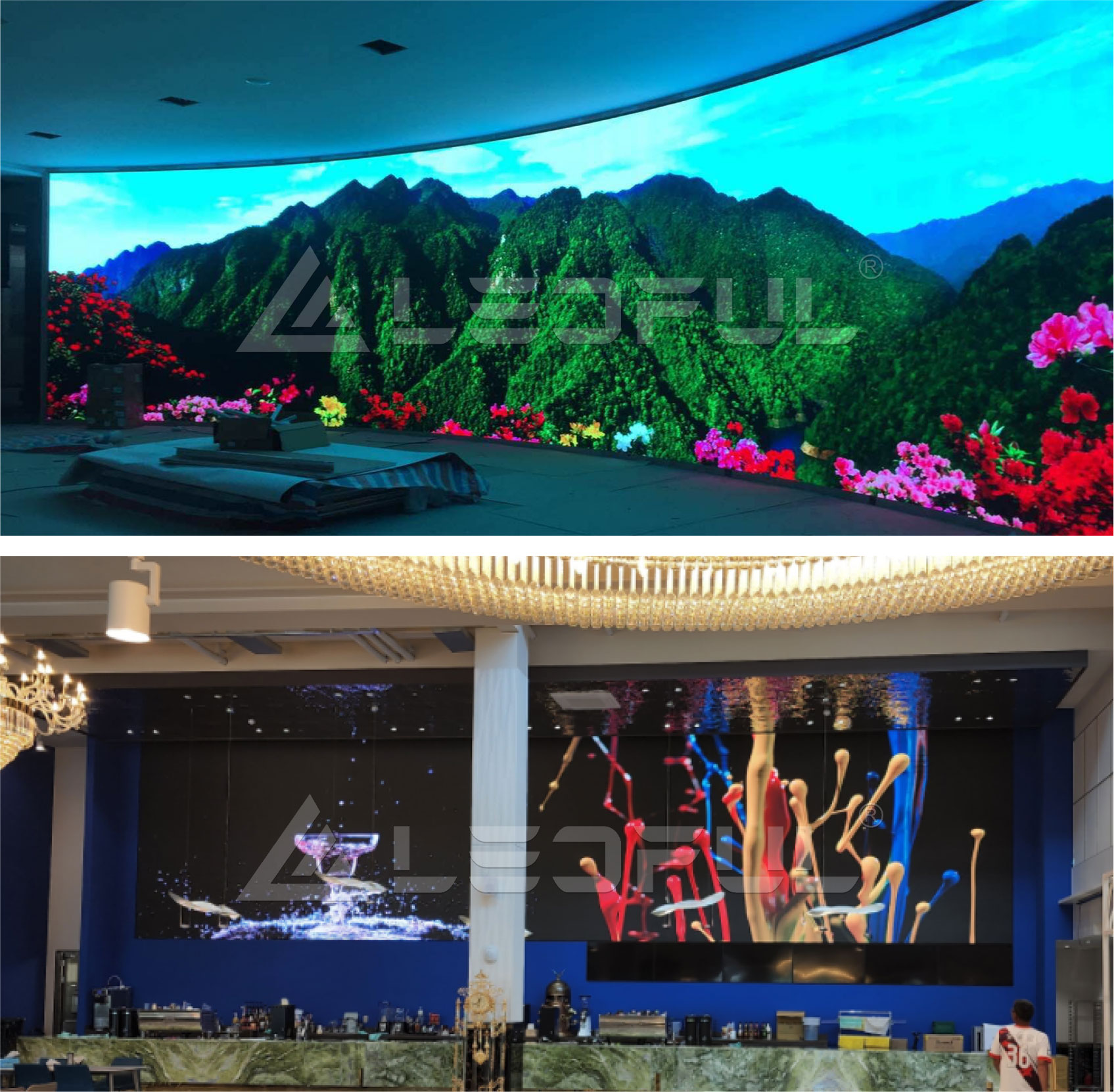

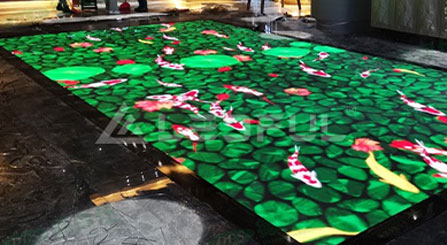

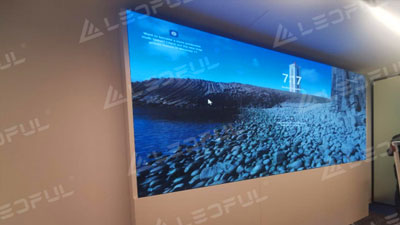

Typical Project
Typical Project
Features
Features
We Work With
We Work With
Related & Recommended LED Display Series
Related & Recommended Projects
*
*
*
*
