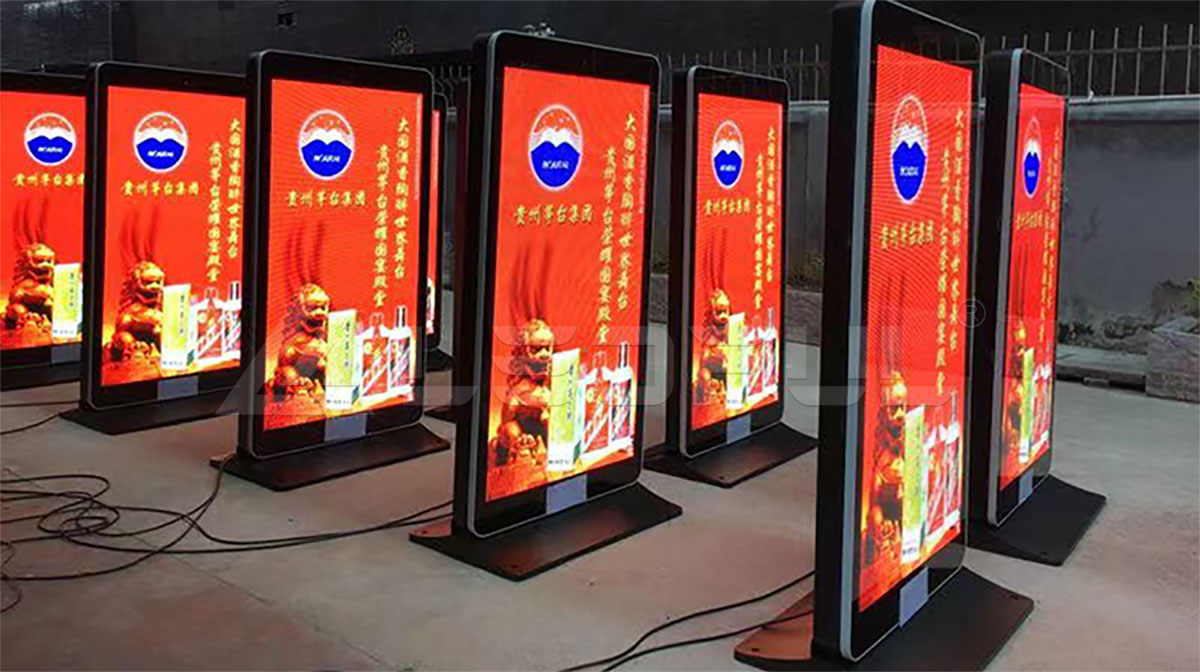

LK Series


LK Series

LED Kiosk · LED Poster · LED Pylon · Advertising Player

Parameter
LK Series
LK Series LK2.5 LK3 LK4 LK5
Pixel Pitch (mm) 2.5 3.076 4 5
Pixel Matrix Per Sq.m 160,000  105,680  62,500  40,000
Pixel Configuration SMD1415 SMD1415 SMD1921 SMD1921
Brightness (nits) 5000 5000 5000 5500
Scan 1/16 1/13 1/8 1/8
Module Dimension 320x160mm 320x160mm 320x160mm 320x160mm
Display Resolution 384*768 / 512*768 312*624 / 416*624 240*480 / 320*480 192*384 / 256*384
Screen Dimension 960x1920mm / 1280x1920mm
Cabinet Weight (kg) 80 / 110
Material Iron
Power Con. (Max / Avg) 2400W / 600W
IP Rate IP65
Service Access Rear
Refresh Rate (HZ) 1920
Grey Scale (bit) 16bits Input
View Angle H. 160° / V. 160°
Input Voltage AC 110V / 220V  50-60HZ
Operation Temperature 20° ~ +60°
Life Span(hours) 100,000

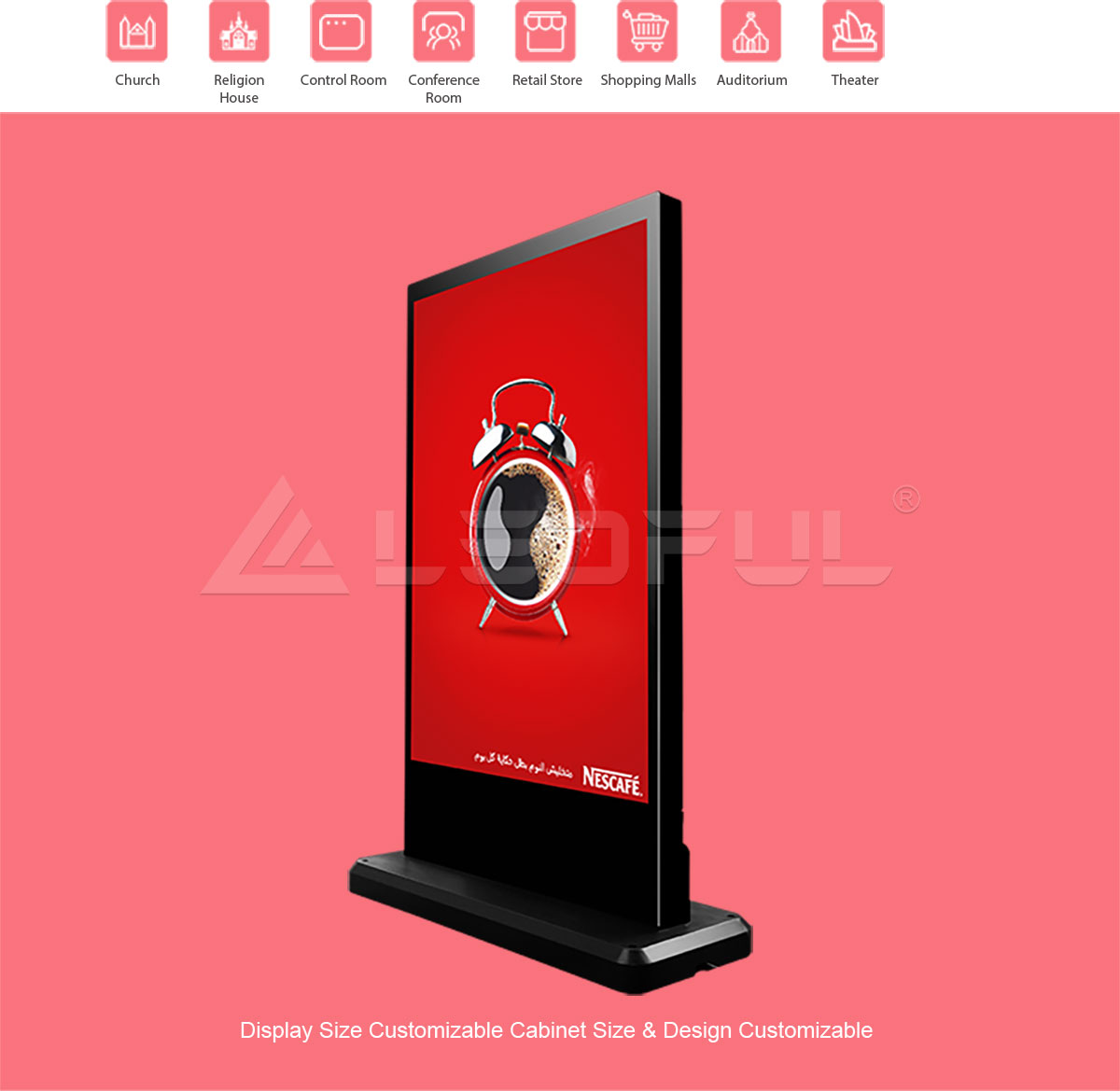

Applications
Applications
Features
Features
Wider & Bigger, Show Better For Advertisements
960mm/1280mm width, 1920mm height,
perfect performance for portrait and posters
Wider & Bigger, Show Better For Advertisements
Plug and Play, Friendly to End User
LEDFUL provides one-stop solution for your project
Plug and Play, Friendly to End User

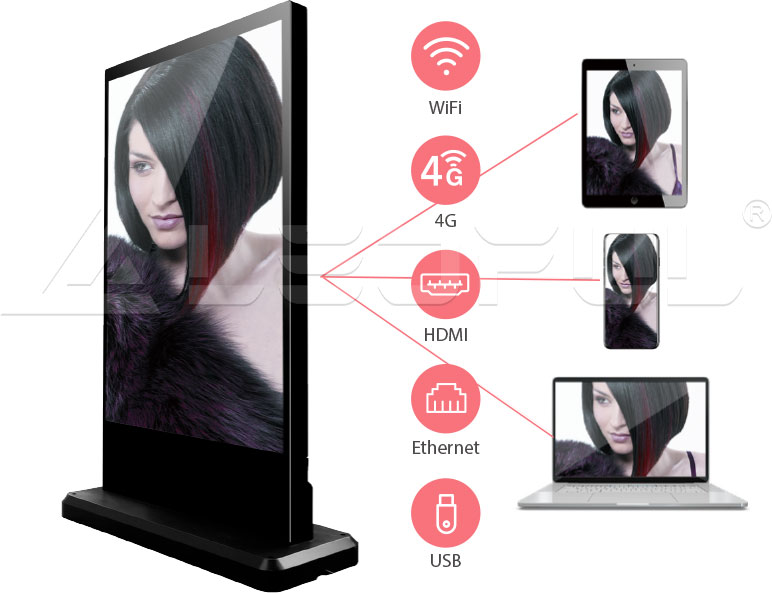

Wifi / App / Cloud Cluster / HDMI/ USB / Various Control Solution
Dozens of control solutions for your choices to meet all your requirements
Wifi / App / Cloud Cluster / HDMI/ USB / Various Control Solution

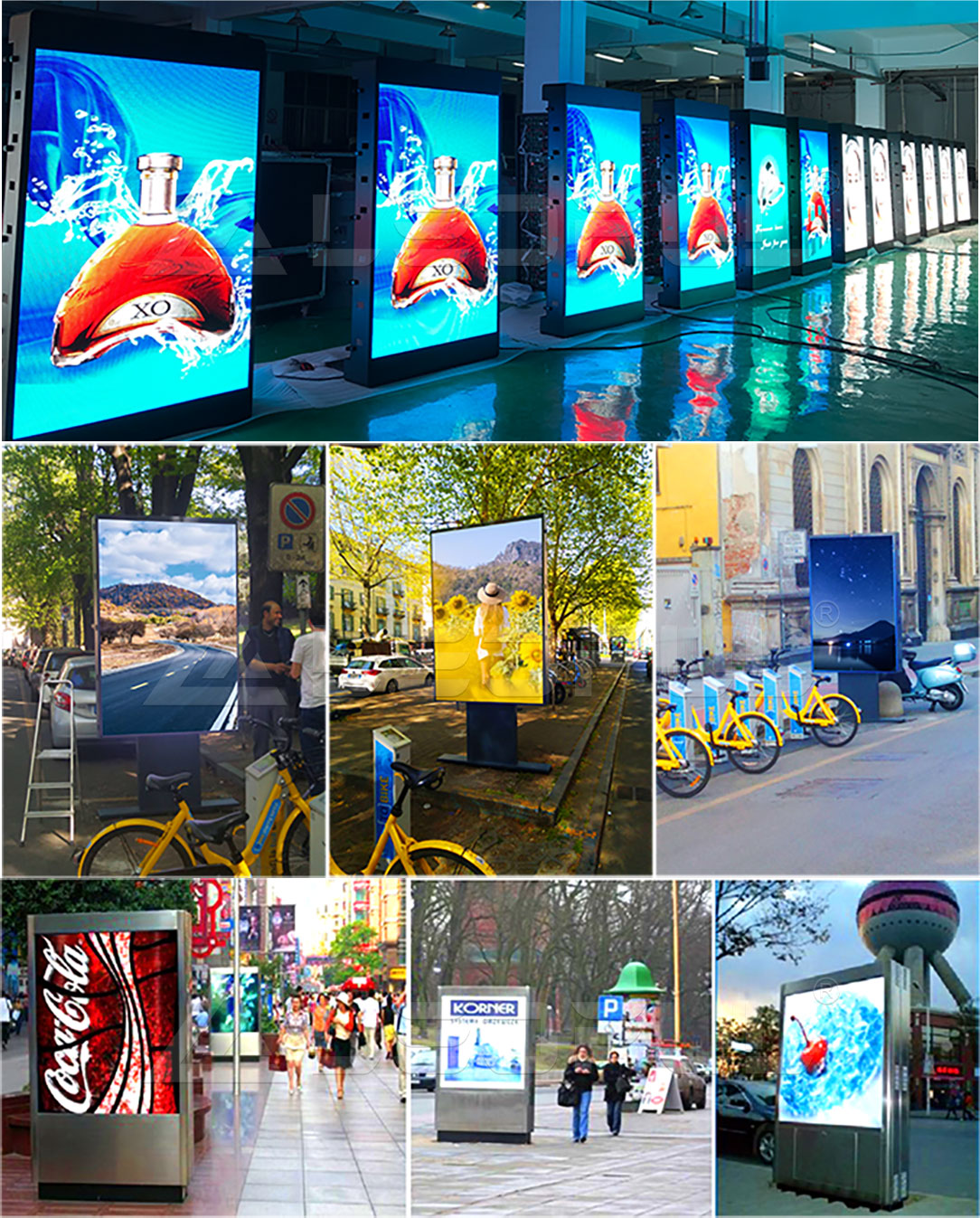

Typical Project
Typical Project
We Work With
We Work With
