PM PLUS Series

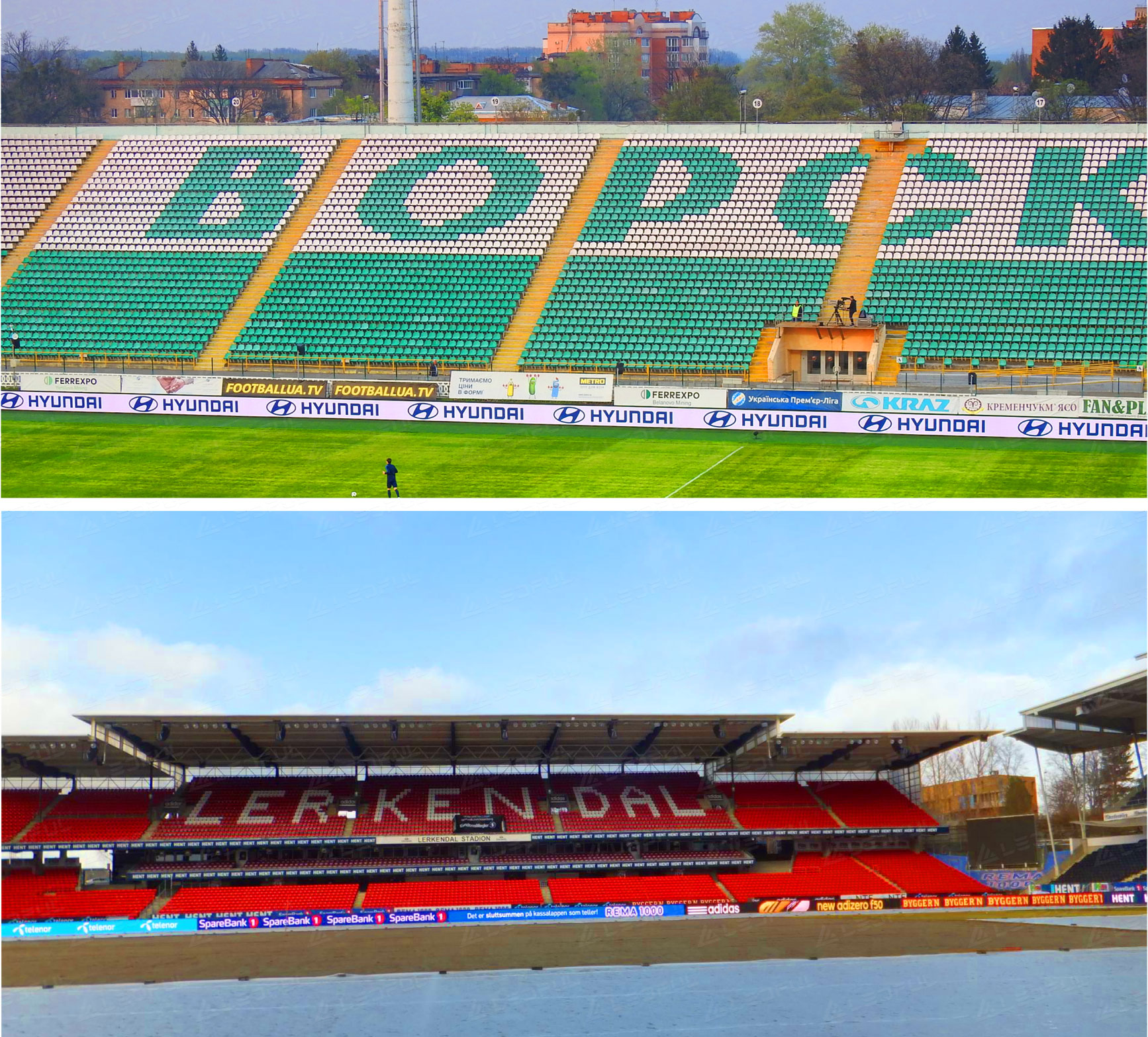

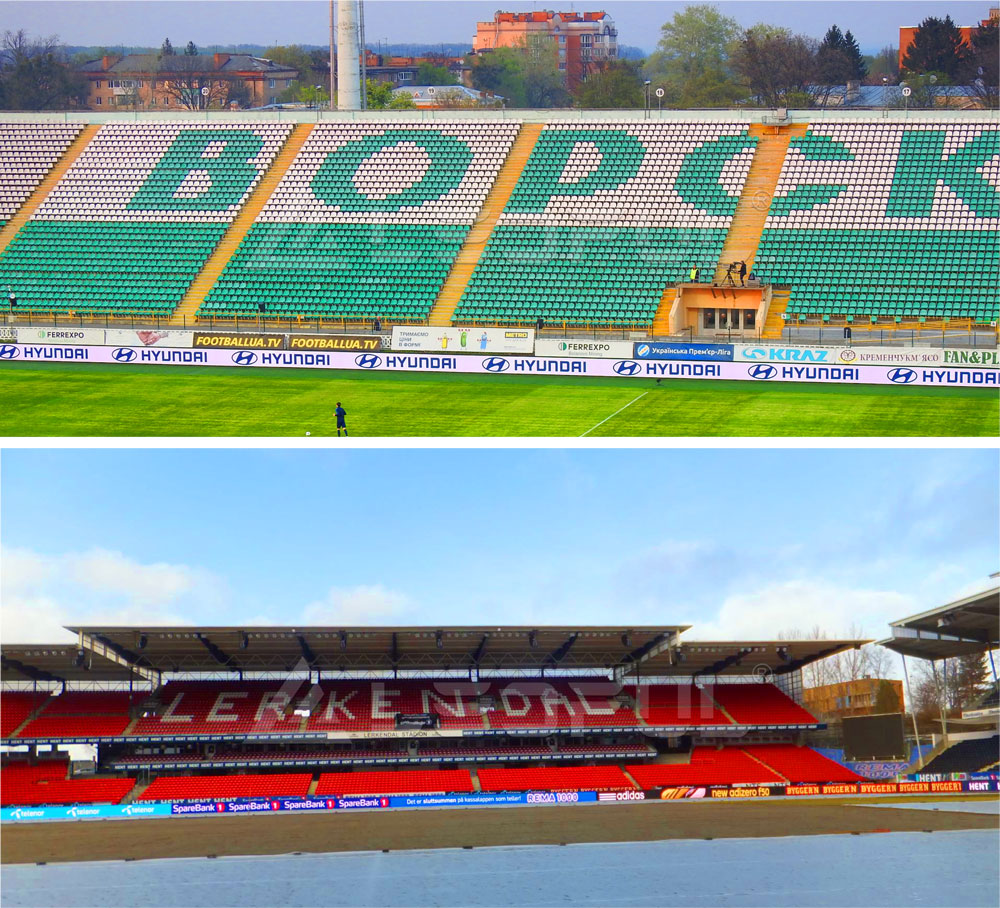

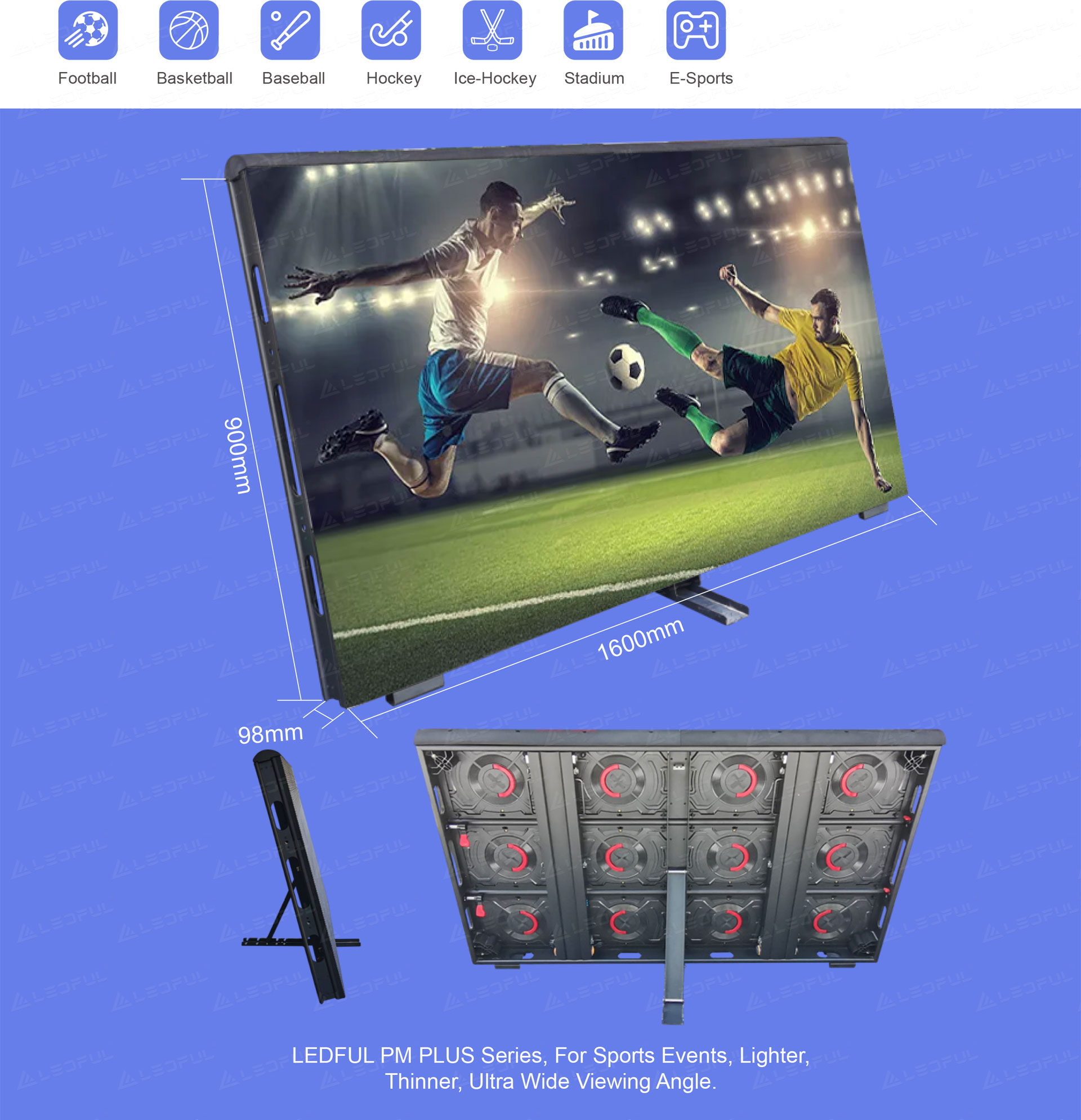

Stadium Sports Perimeter

Applications

Specification

Model	PM4.1	PM5	PM6.2	PM8.3	PM10
Pixel pitch(mm)	4.16	5	6.25	8.33	10
SMD type	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Physical density（dots/sqm）	57600	40000	25600	14400	10000
Module resolution	96x72	80x60	64x48	48x36	40x30
Module dimention(mm)	400x300	400x300	400x300	400x300	400x300
Module quantity(W*H)	4x3	4x3	4x3	4x3	4x3
Panel resolution	384x216	320x180	256x144	192x108	160x90
Panel size(mm)	1600x900x98mm / 5.25x2.95x0.32ft	1600x900x98mm / 5.25x2.95x0.32ft	1600x900x98mm / 5.25x2.95x0.32ft	1600x900x98mm / 5.25x2.95x0.32ft	1600x900x98mm / 5.25x2.95x0.32ft
Flatness(mm)	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1
Maintenance mode	front & rear	front & rear	front & rear	front & rear	front & rear
Brightness(nits)	6500	6500	6500	6500	6500
Color temperature (K)	3200-9300 optional	3200-9300 optional	3200-9300 optional	3200-9300 optional	3200-9300 optional
Grey scale	65536	65536	65536	65536	65536
Viewing angle (V/H)	160°/ 160°	160°/ 160°	160°/ 160°	160°/ 160°	160°/ 160°
Contrast ratio	5000:1	5000:1	5000:1	5000:1	5000:01:00
Frame-changing frequency	50/60	50/60	50/60	50/60	50/60
Drive mode	Constant current1/6 scale	Constant current1/6 scale	Constant current1/6 scale	Constant current 1/3 scale	Constant current 1/3 scale
Refresh rate(hz)	3840	3840	3840	3840	3840
Max power consumption（W/m2）	600-800	600-800	600-800	600-800	600-800
Avg. power consumption（W/m2）	100-200	100-200	100-200	100-200	100-200
Electric power requirements	AC90-264V 47-63Hz	AC90-264V 47-63Hz	AC90-264V 47-63Hz	AC90-264V 47-63Hz	AC90-264V 47-63Hz
