Water Drop-shaped Series - 2015-2023 LEDFUL

Model	P1.56	P1.86	P2	P2.5	P3	P4
Pixel Pitch(mm)	1.56	1.86	2	2.5	3	4
Pixel Matrix Per Sq.m	406210	288906	250000	160000	105625	62500
Pixel Configuration	SMD1515	SMD1515	SMD1515	SMD1515	SMD1515	SMD2121
Brightness (nits)	800	800	900	900	900	900
Scan	1/43	1/43	1/40	1/32	1/26	1/20
Module Dimension	320x160mm / 1.05x1.05ft	320x160mm / 1.05x1.05ft	320x160mm / 1.05x1.05ft	320x160mm / 1.05x1.05ft	320x160mm / 1.05x1.05ft	320x160mm / 1.05x1.05ft
Module Material	Silicon Rubber Soft Bracket	Silicon Rubber Soft Bracket	Silicon Rubber Soft Bracket	Silicon Rubber Soft Bracket	Silicon Rubber Soft Bracket	Silicon Rubber Soft Bracket
Module Weight	0.215kg	0.203kg	0.195kg	0.216kg	0.205kg	0.175kg
Power Con. (Max / Avg)	1000 / 340 w/sq.m	1000 / 340 w/sq.m	800 / 270 w/sq.m	800 / 270 w/sq.m	800 / 270 w/sq.m	800 / 270 w/sq.m
Service Access	Front	Front	Front	Front	Front	Front
Refresh Rate (HZ)	3840	3840	3840	≥2880	≥2880	≥1920
Grey Scale (bit)	14	14	14	14	14	14
Viewing Angle (H/V)	140 / 140	140 / 140	140 / 140	140 / 140	140 / 140	140 / 140
IP Rate	IP45	IP45	IP45	IP45	IP45	IP45
Operation Temperature	-10° ~ 50°	-10° ~ 50°	-10° ~ 50°	-10° ~ 50°	-10° ~ 50°	-10° ~ 50°
Input Voltage (AC)	100V or 240V	100V or 240V	100V or 240V	100V or 240V	100V or 240V	100V or 240V

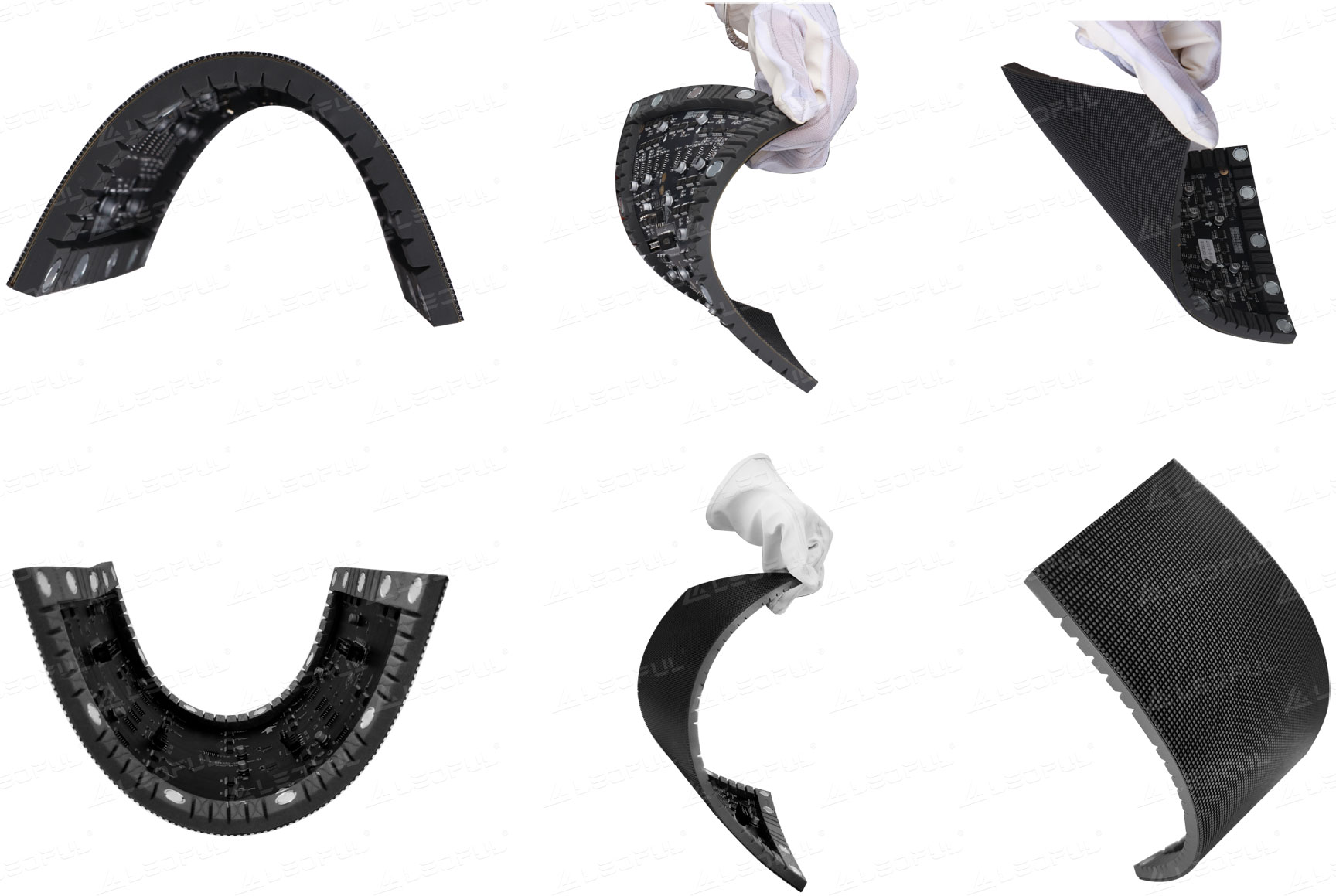

Flexible and Creative LED Display
