Bevel Series

Bevel for 90°~180° Shaped Screen

Application
Application
Specification
Model IBevel2.5 IBevel3 IBevel4 OBevel2.5 OBevel3 OBevel4 OBevel5 OBevel6 OBevel8 OBevel10
Pixel Pitch(mm) 2.5 3 4 2.5 3 4 5 6 8 10
Pixel Matrix Per Sq.m 160,000 111,111 62,500 160000 111111 62500 40000 27777 15625 10000
Pixel Configuration SMD1515/ SMD2121 SMD2121 SMD2121 SMD1415 SMD1415 SMD1921 SMD1921 SMD3535 SMD3535 SMD3535
Brightness (nits) 900 900 1200 5000 1800 5000 5500 5500 5500 6500 6500
Scan 1/32 1/32 1/16 1/16 1/16 1/10 / 1/8 1/8 1/8 1/3 1/2
Module Dimension 320x160 192x192 320x160
/ 256x128
160x160mm 192x192mm 320x160mm
/256x128mm
320x160mm 192x192mm 320x160mm 320x160mm
Cabinet Dimension 960x960mm (Cabinet size can be changed according to module size)
Cabinet Weight 32KG 32KG 32KG 46kg / 101lb (Iron) 46kg / 101lb (Iron) 44kg / 97lb (Iron) 44kg / 97lb (Iron) 42kg / 93lb (Iron) 41kg / 90lb (Iron) 41kg / 90lb (Iron)
Power Con. (Max / Avg) 710/ 230W/㎡ 690/ 210W/㎡ 500/ 180W/㎡ 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m
IP Rate IP65
Service Access Rear
Refresh Rate (HZ) >1920
Grey Scale (bit) 16bit
Viewing Angle (H/V) 140/140
Input Voltage (AC) 110V/240V
* Specifications and photos are subject to change without prior notice.

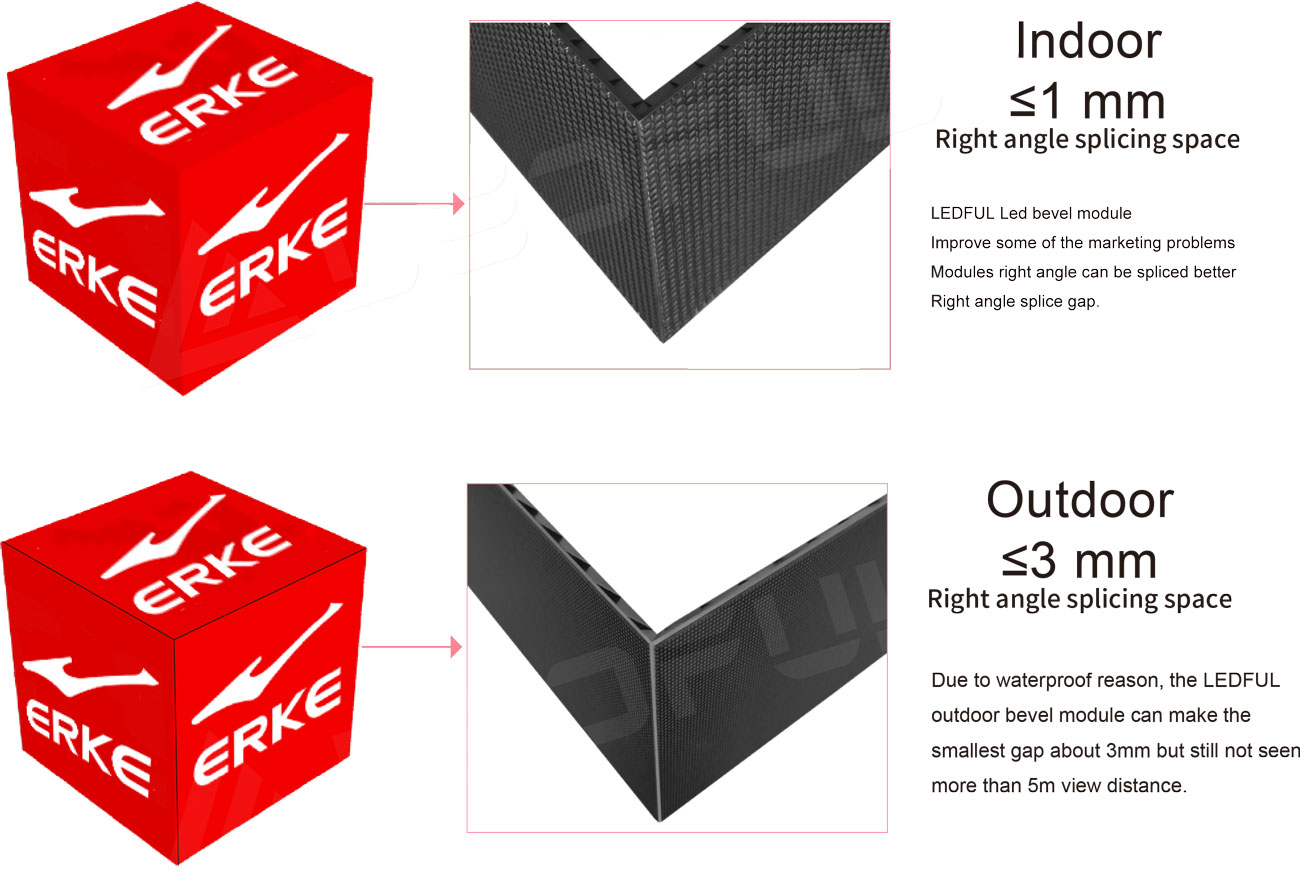

LEDFUL led bevel module
Micro gap splicing Display without problem
LEDFUL led bevel module<br/>Micro gap splicing Display without problem

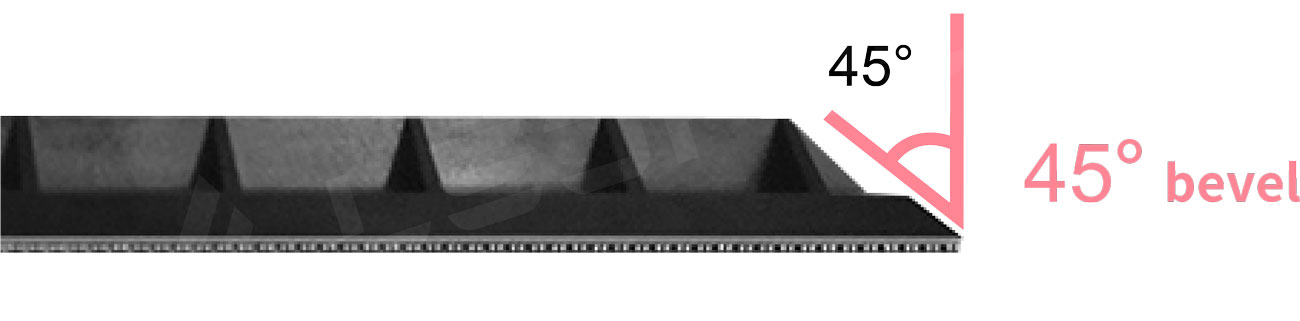

Multi angle splicing of the same type module
Multi angle splicing of the same type module

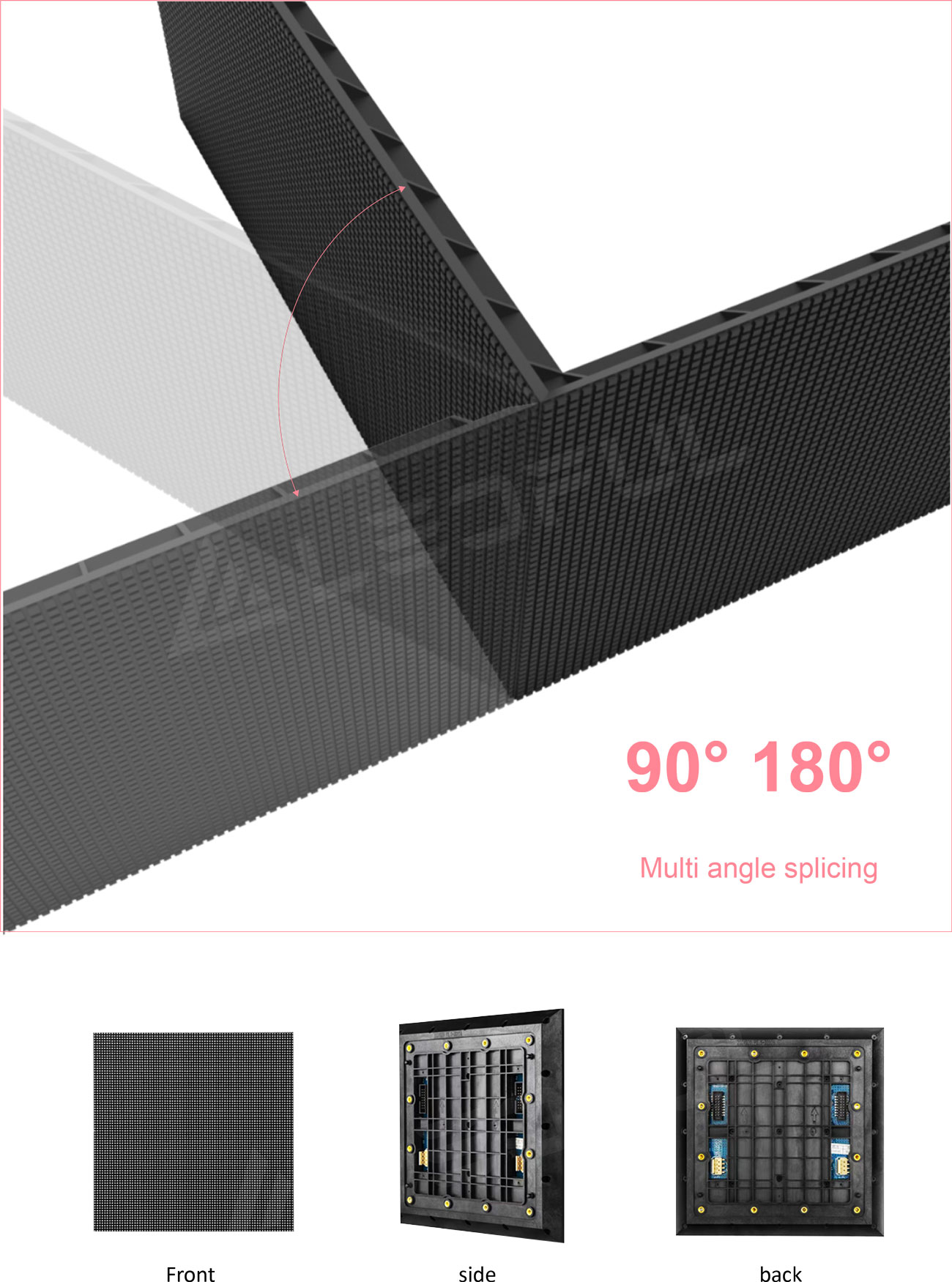

LEDFUL led bevel module
Multi angle splicing
LEDFUL led bevel module<br/>Multi angle splicing

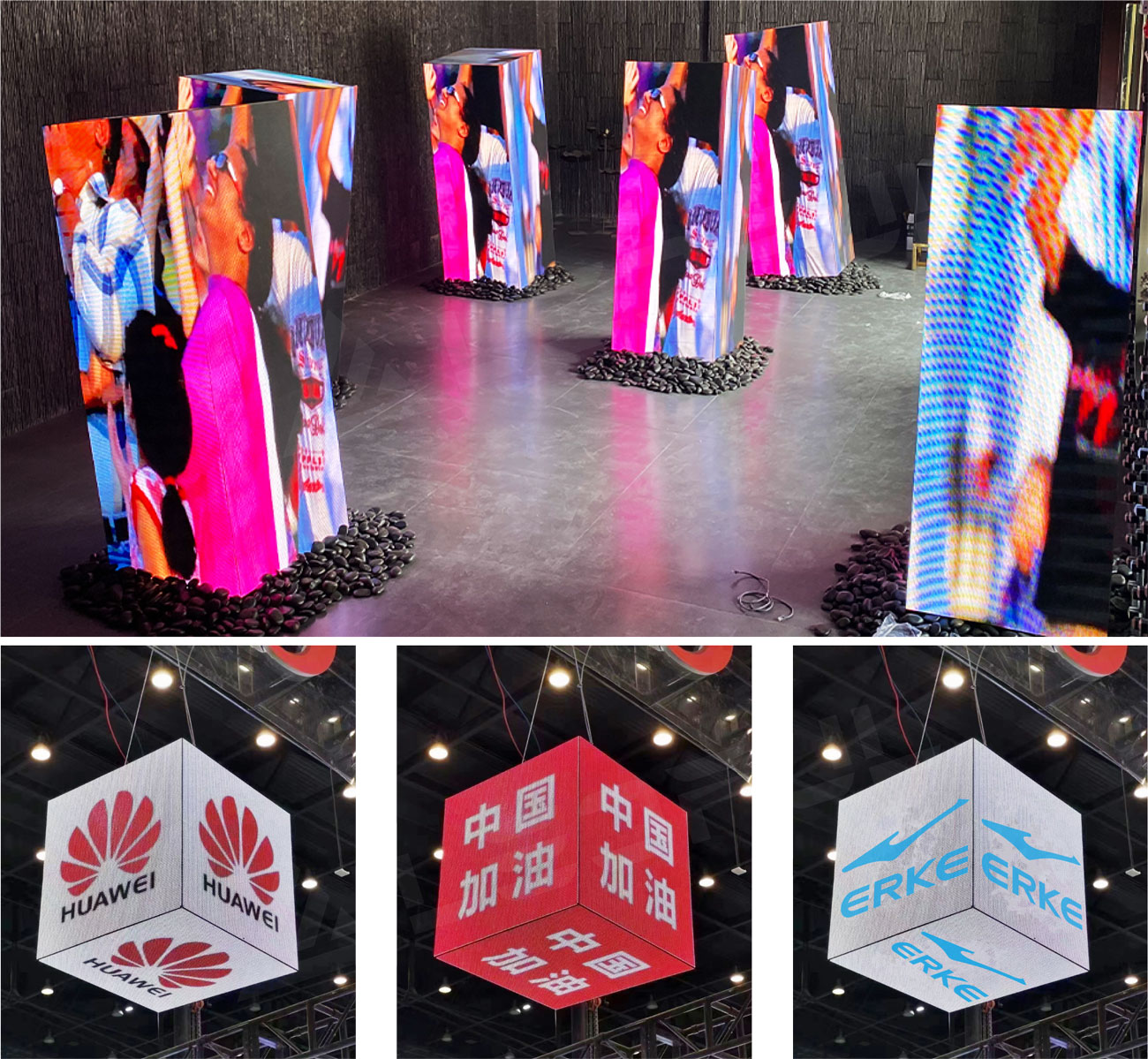

Widely used Diversified shape
Widely used  Diversified shape
