FS Series

Outdoor Front Service Fixed LED Display

Parameter

Model	FS5.33	FS6	FS8	FS10
Pixel Pitch(mm)	5.33	6.67	8	10
Pixel Matrix Per Sq.m	35200	22477	15625	10000
Pixel Configuration	SMD1921	SMD2727	SMD2727	SMD2727
Brightness (nits)	5500	6000	5500	6500
Scan	44567	44567	44566	44563
Module Dimension	320x320mm / 1.05x1.05ft	320x320mm / 1.05x1.05ft	320x320mm / 1.05x1.05ft	320x320mm / 1.05x1.05ft
Cabinet Dimension	960x960mm / 3.15x3.15ft	960x960mm / 3.15x3.15ft	960x960mm / 3.15x3.15ft	960x960mm / 3.15x3.15ft
Cabinet Resolution	180x180	144x144	120x120	96x96
Cabinet Material	Iron	Iron	Iron	Iron
Cabinet Weight	32kg	32kg	32kg	32kg
Power Con. (Max / Avg)	561 / 196w/sq.m	690 / 230 w/sq.m	690 / 230w/sq.m	690 / 230 w/sq.m
Service Access	Front & Back	Front & Back	Front & Back	Front & Back
Refresh Rate (HZ)	≥1920	≥1920	≥1920	≥1920
Grey Scale (bit)	16	16	16	16
Viewing Angle (H/V)	140 / 140	140 / 140	140 / 140	140 / 140
IP Rate	IP67	IP67	IP67	IP67
Operation Temperature	-20° ~ 60°	-20° ~ 60°	-20° ~ 60°	-20° ~ 60°
Input Voltage (AC)	100V ~ 240V	100V ~ 240V	100V ~ 240V	100V ~ 240V
* Specifications and photos are subject to change without prior notice.

Features

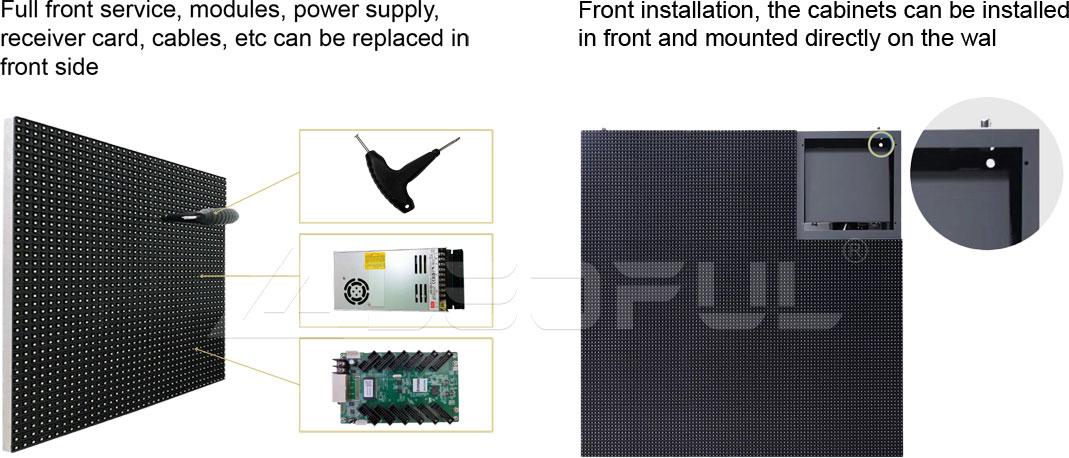

Full Front Service

Full front service, modules, power supply, receiver card, cables, etc can be replaced in front side.

Front Installation

Front installation, the cabinets can be installed in front and mounted directly on the wall.

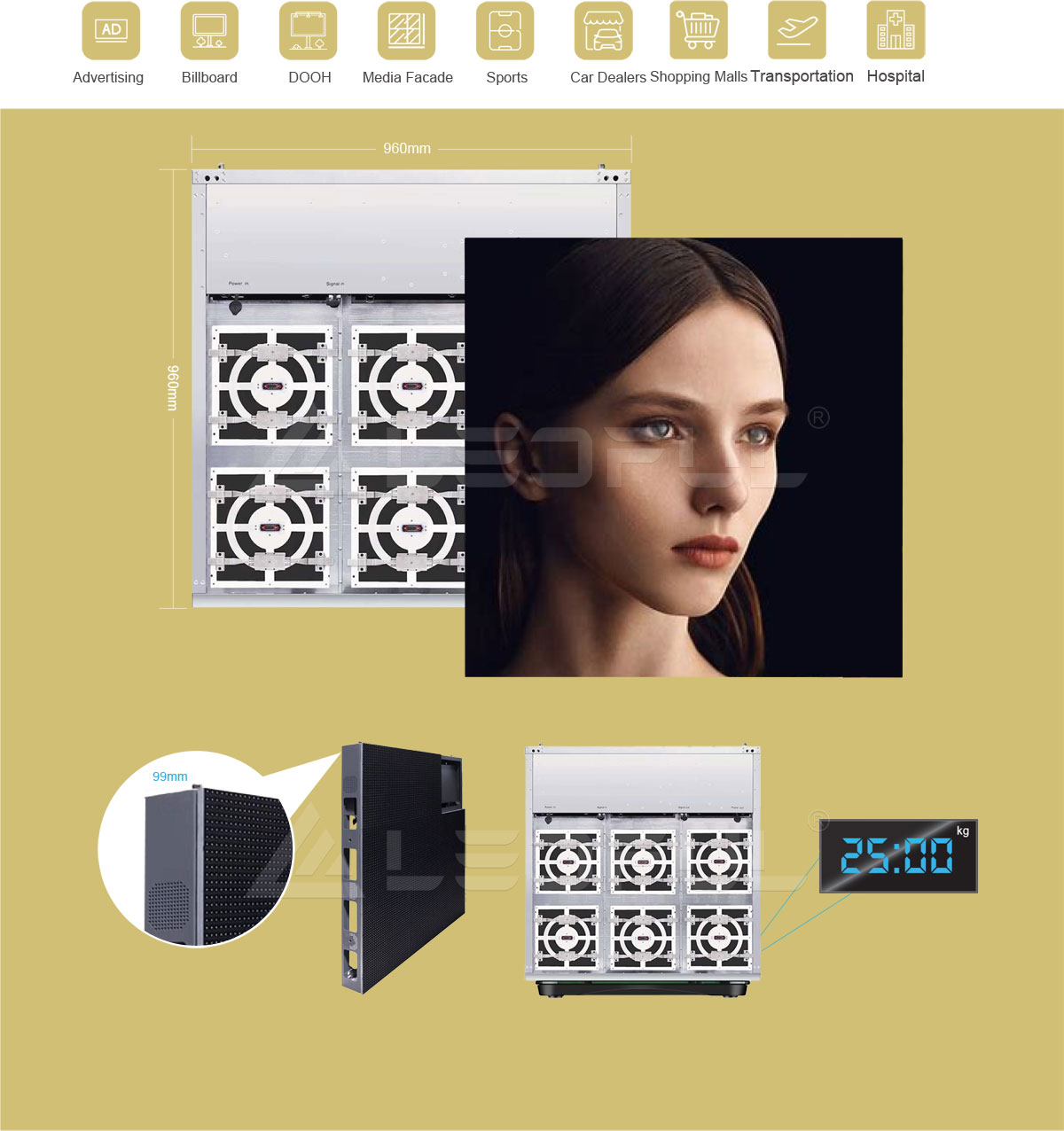

Super Thin

Super thin, it is only 99mm depth including LED modules

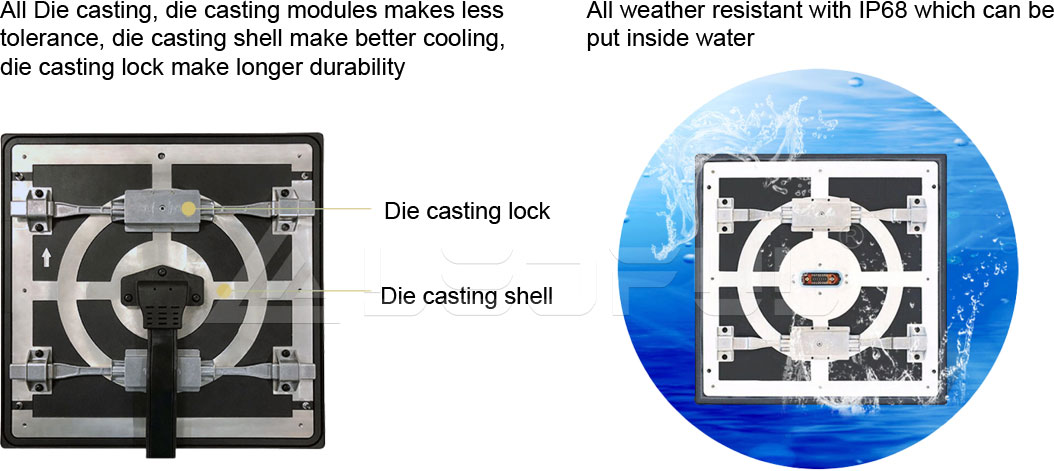

Die Casting Module

All Die casting, die casting modules make less tolerance,
die casting shell make better cooling,
die casting lock make longer durability.

Light Weight

Light weight, it is only 25kg/sqm with aluminum profile cabinet.

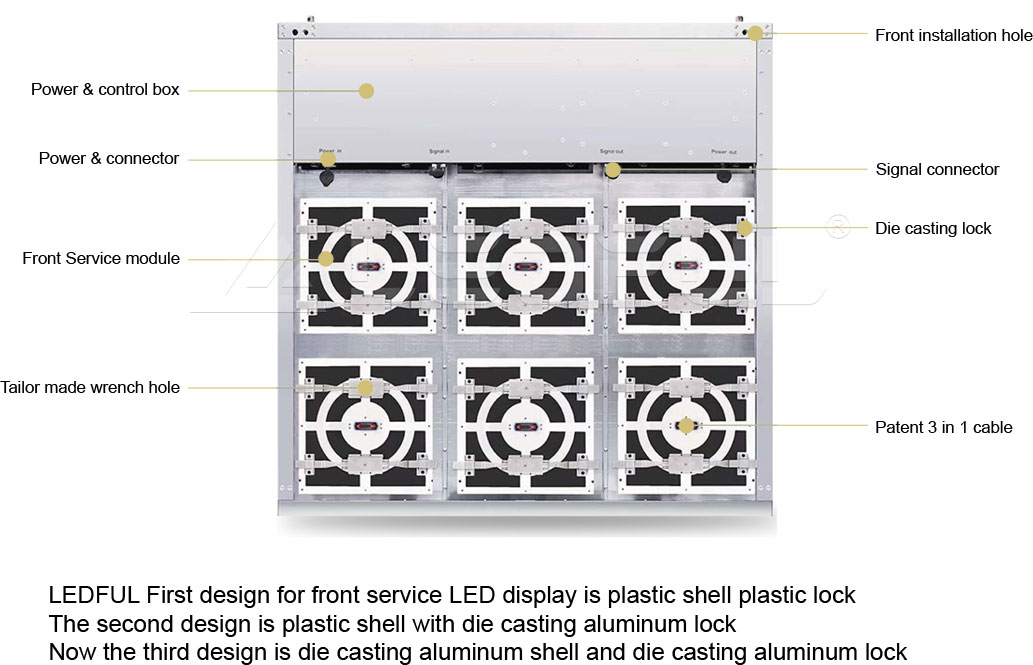

Clean and Clear

Clean and Clear, no cables visible on open backside

Easy & Quick Installation & Maintenance

Easy and Quick, customized, smart and quick front maintenance tool.
One side is for lock, the other side is for pulling, easy and fast front service
All Weather Resistant with IP67

All weather resistant with IP68 which can be put inside water.

How to control LED display?

By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management.
Many screens together? No problem, your laptop can manage all of them whenever and wherever.

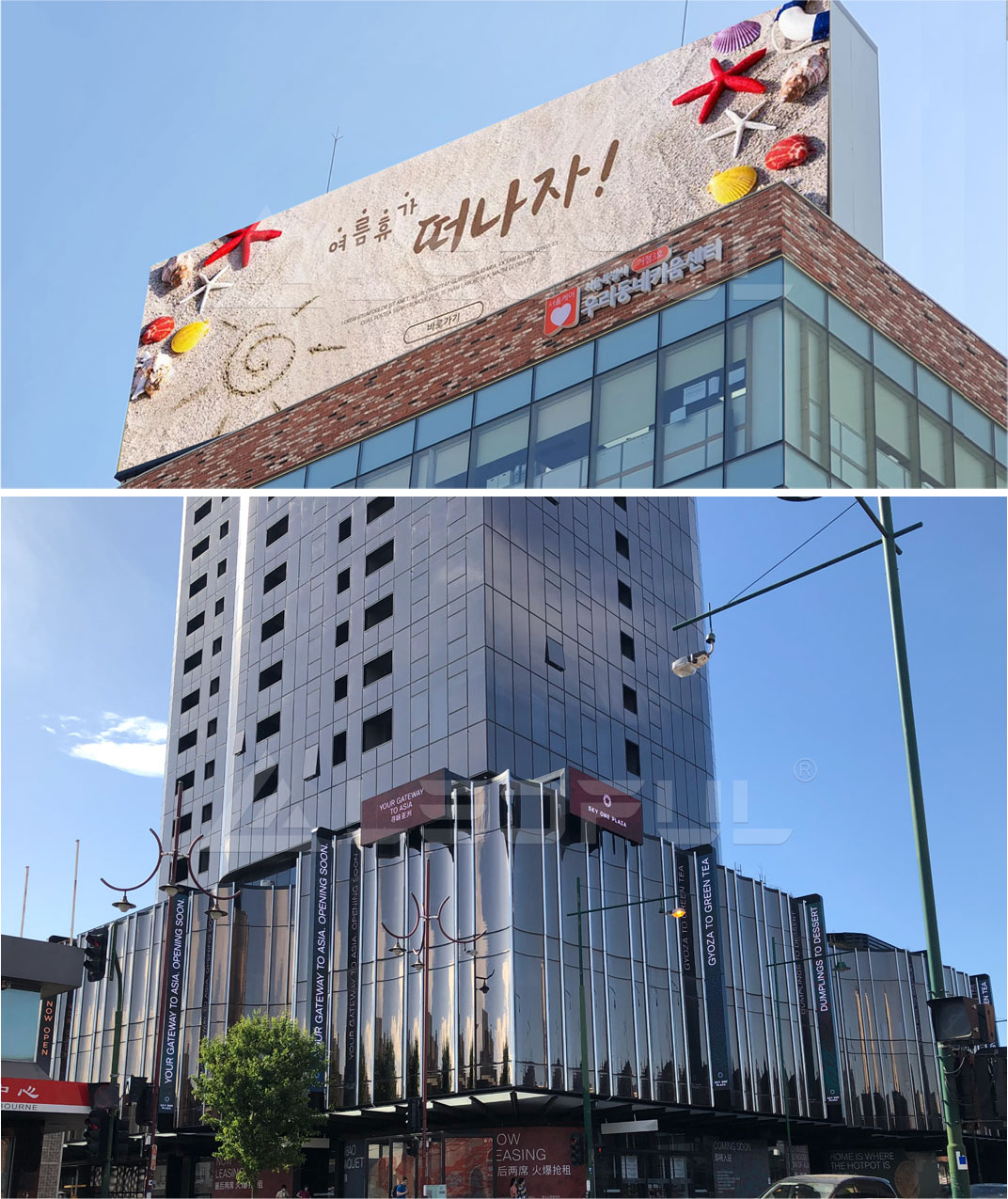

Typical Project
