T Series

Rental LED Display

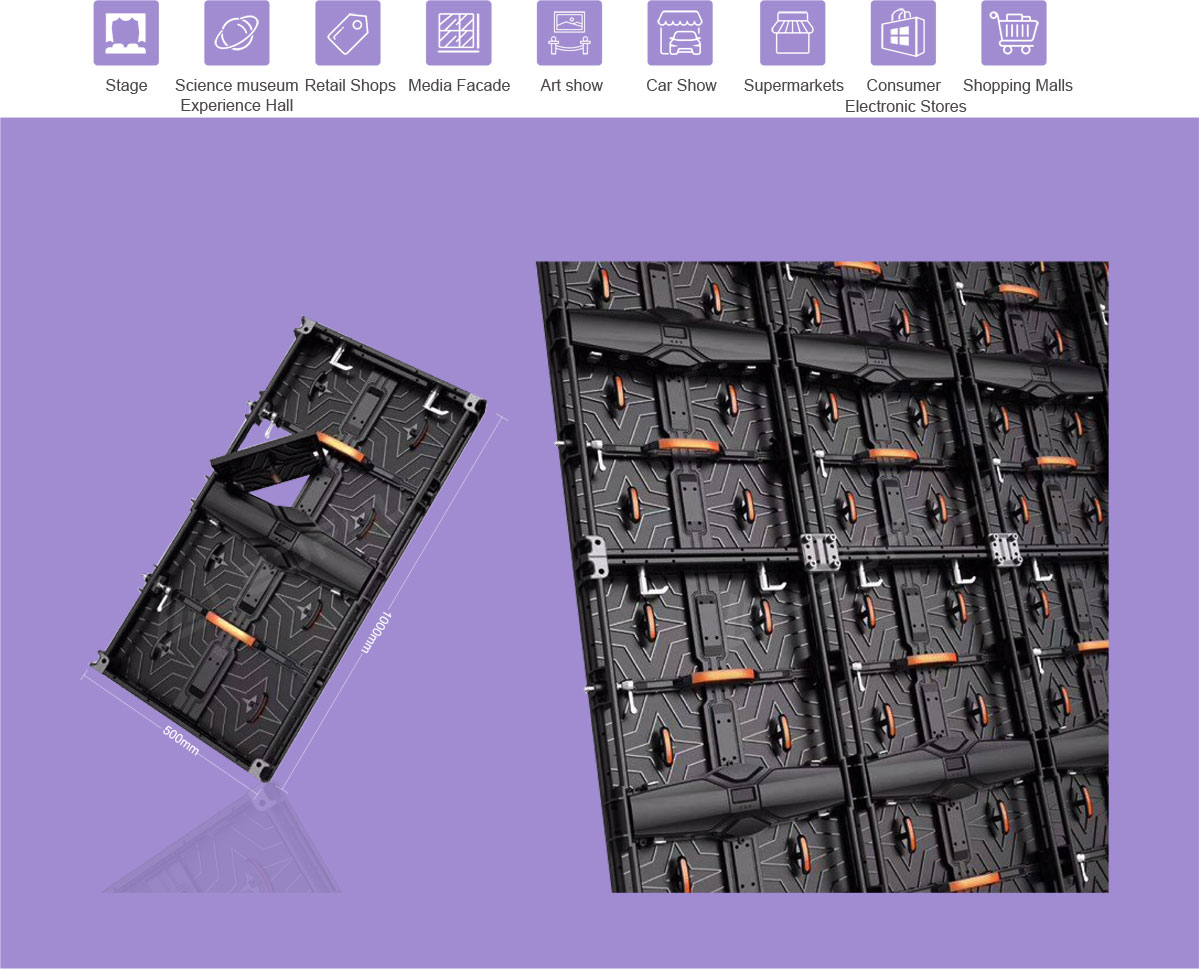

Applications
Applications
Specification
Model TI1.95 TI2.5 TI2.604 TI2.98 TI3.91 TI4.8 TI5.95 TI6.2
Pixel Pitch(mm) 1.95 2.5 2.604 2.98 3.91 4.81 5.95 6.25
Pixel Matrix Per Sq.m 262144 160000 147456 112896 112896 43264 28224 25600
Pixel Configuration SMD1515 SMD1515 SMD1515 SMD2121 SMD2121 SMD2121 SMD3528 SMD3528
Brightness (cd/㎡) ≥1000 ≥1000 ≥1000 ≥1000 ≥1000 ≥1000 ≥1000 ≥1000
Scan 1/32 1/25 1/32 1/28 1/16 1/13 1/7 1/10
Module Dimension 250×250mm
/ 0.82×0.82ft
250×250mm
/ 0.82×0.82ft
250×250mm
/ 0.82×0.82ft
250×250mm
/ 0.82×0.82ft
250×250mm
/ 0.82×0.82ft
250×250mm
/ 0.82×0.82ft
250×250mm
/ 0.82×0.82ft
250×250mm
/ 0.82×0.82ft
Cabinet Dimension 500×1000×80mm
/1.64×3.28×0.26ft
500×1000×80mm
/1.64×3.28×0.26ft
500×1000×80mm
/1.64×3.28×0.26ft
500×1000×80mm
/1.64×3.28×0.26ft
500×1000×80mm
/1.64×3.28×0.26ft
500×1000×80mm
/1.64×3.28×0.26ft
500×1000×80mm
/1.64×3.28×0.26ft
500×1000×80mm
/1.64×3.28×0.26ft
Cabinet Resolution 256×512 200×400 192×384 168×336 128×256 104×208 84×168 80×160
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Cabinet Weight 14KG 14KG 14KG 14KG 14KG 14KG 14KG 14KG
Power Con.(W/㎡) (Max / Avg) 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W
Service Access Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
Refresh Rate (HZ) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Grey Scale (bit) ≥16 ≥16 ≥16 ≥16 ≥16 ≥16 ≥16 ≥16
Viewing Angle (H/V) 160°/160° 160°/160° 160°/160° 160°/160° 160°/160° 160°/160° 160°/160° 160°/160°
IP Rate IP31 IP31 IP31 IP31 IP31 IP31 IP31 IP31
Input Voltage (AC) 110V / 240V 110V / 240V 110V / 240V 110V / 240V 110V / 240V 110V / 240V 110V / 240V 110V / 240V

Model TO2.604 TO2.98 TO3.91 TO4.81 TO5.95 TO6.2
Pixel Pitch(mm) 2.604 2.98 3.91 4.81 5.95 6.25
Pixel Matrix Per Sq.m 147456 112896 65536 43264 28224 25600
Pixel Configuration SMD1415 SMD1415 SMD1921 SMD1921 SMD2727 SMD3528
Brightness (cd/㎡) ≥4500 ≥4500 ≥5000 ≥5000 ≥5500 ≥5500
Scan 1/32 1/28 1/16 1/13 1/7 1/10
Module Dimension 250×250mm
/ 0.82×0.82ft
250×250mm
/ 0.82×0.82ft
250×250mm
/ 0.82×0.82ft
250×250mm
/ 0.82×0.82ft
250×250mm
/ 0.82×0.82ft
250×250mm
/ 0.82×0.82ft
Cabinet Dimension 500×1000×80mm
/1.64×3.28×0.26ft
500×1000×80mm
/1.64×3.28×0.26ft
500×1000×80mm
/1.64×3.28×0.26ft
500×1000×80mm
/1.64×3.28×0.26ft
500×1000×80mm
/1.64×3.28×0.26ft
500×1000×80mm
/1.64×3.28×0.26ft
Cabinet Resolution 192×384 168×336 128×256 104×208 84×168 80×160
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Cabinet Weight 14KG 14KG 14KG 14KG 14KG 14KG
Power Con.(W/㎡) (Max / Avg) 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W
Service Access Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
Refresh Rate (HZ) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Grey Scale (bit) ≥16 ≥16 ≥16 ≥16 ≥16 ≥16
Viewing Angle (H/V) 140°/140° 140°/140° 140°/140° 140°/140° 140°/140° 140°/140°
IP Rate IP65 IP65 IP65 IP65 IP65 IP65
Input Voltage (AC) 110V / 240V 110V / 240V 110V / 240V 110V / 240V 110V / 240V 110V / 240V

* Specifications and photos are subject to change without prior notice.
Specification

Accessories

  • Power Cable
    Power Cable
  • Data Cable
    Data Cable
  • Main Power Cable
    Main Power Cable
  • Main Data Cable
    Main Data Cable
  • Controller &Processor
    Controller &Processor
  • Front Maintenance Tool
    Front Maintenance Tool
  • Curved Lock
    Curved Lock
  • Hanging Bar
    Hanging Bar

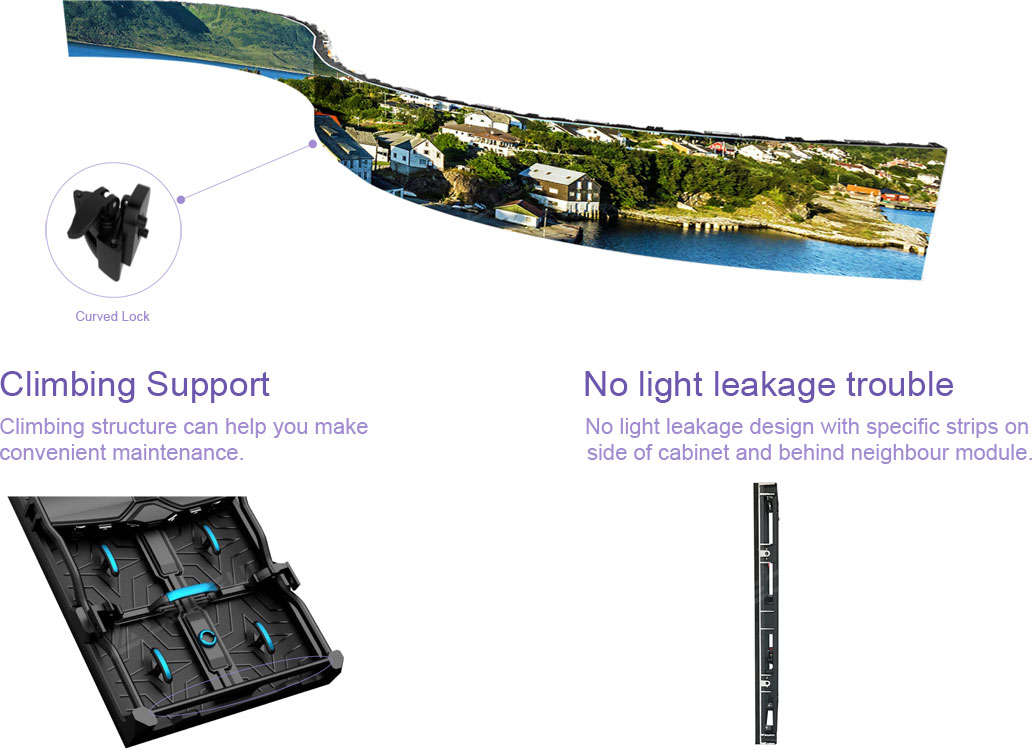

Curved Installation
Curved with every 2.5° between -10°and 10°, which can make convex and concave.
Curved Installation

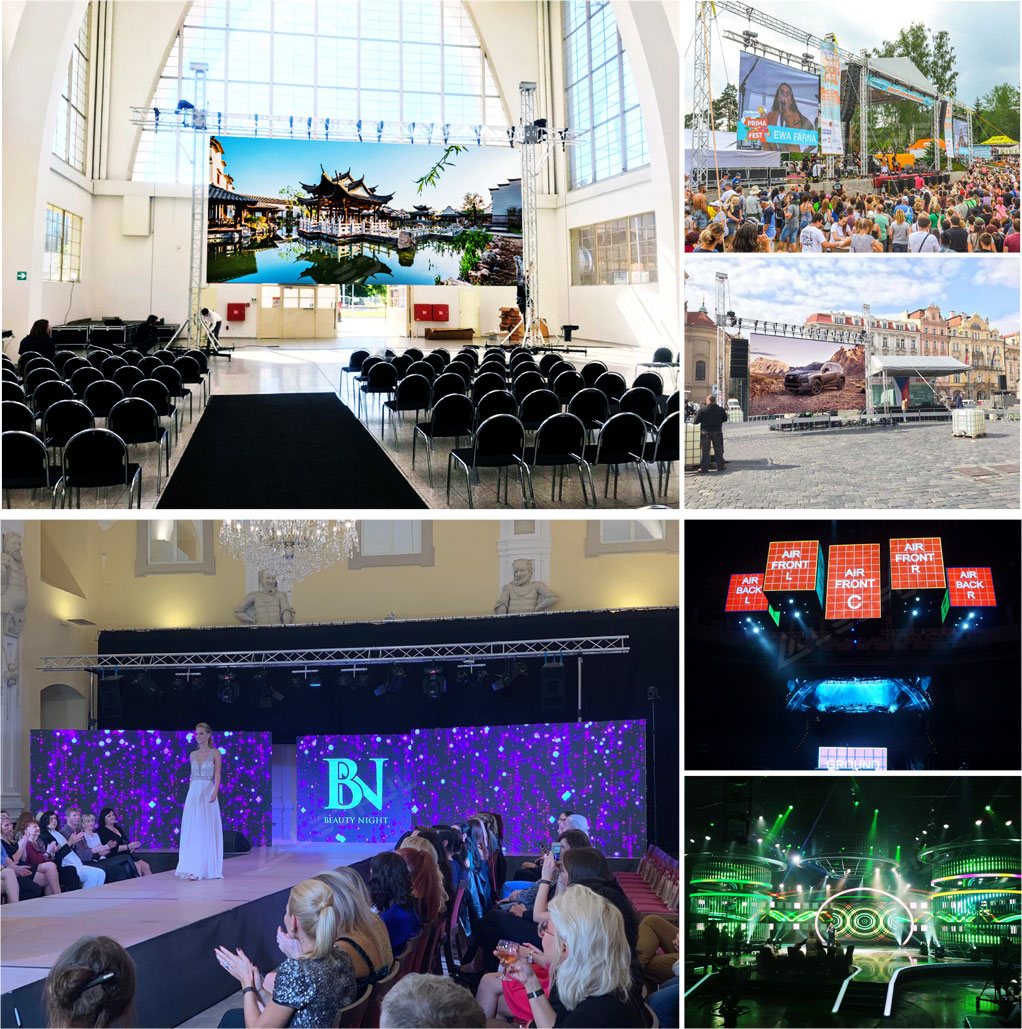

Typical Project
Typical Project

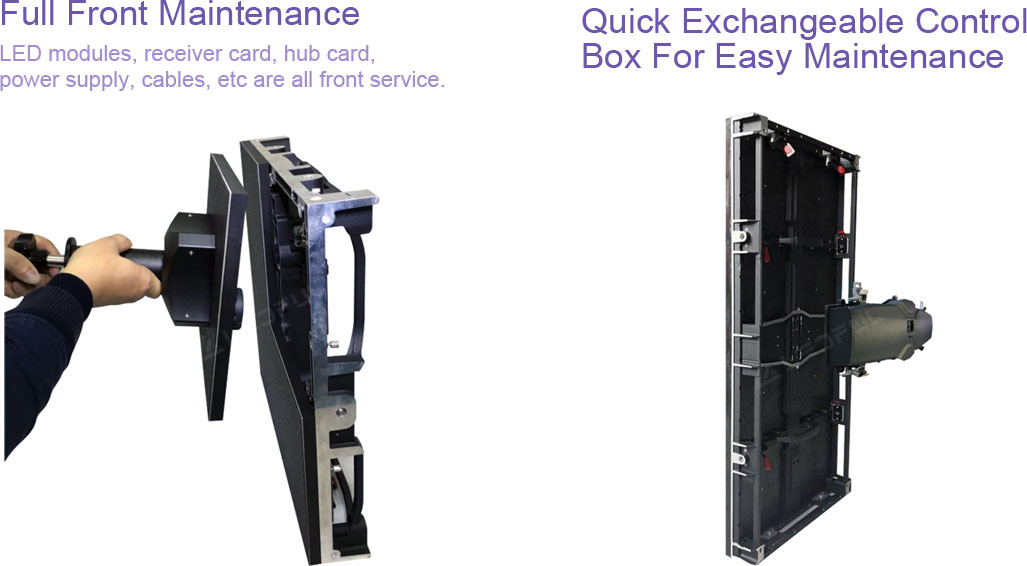

Features
Features
We Work With
We Work With
Related & Recommended LED Display Series
  • X Series
    XT Series
    X -- 500x500x80mm T-- 500x1000x80mm
    More
    X Series XT Series
    X -- 500x500x80mm T-- 500x1000x80mm
    • XI1.95 XI2.5 XI2.604 XI2.98 XI3.91 X4.8 XI5.95 XI6.2 XO2.604 XO2.98 XO3.91 XO481 XO5.95 XO6.2 TI1.95 TI2.5 TI2.604 TI2.98 TI3.91 TI4.8 TI5.95 TI6.2 TO2.604 TO2.98 TO3.91 TO4.81 TO5.95 TO6.2
    More
  • V & H Series
    V & H Series
    V -- 500x500mm H -- 500x1000mm
    More
    V & H Series V & H Series
    V -- 500x500mm H -- 500x1000mm
    • VI/HI2.5 VI/HI2.6 VI/HI2.9 VI/HI3.9 VI/HI4.8
      VO/HO2.6 VO/HO2.9 VO/HO3.9 VO/HO4.8
    More

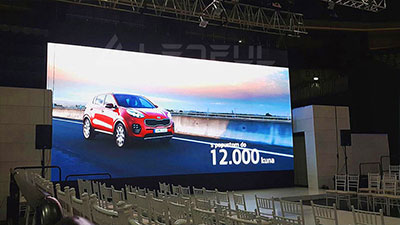

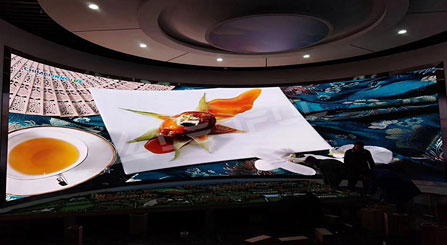

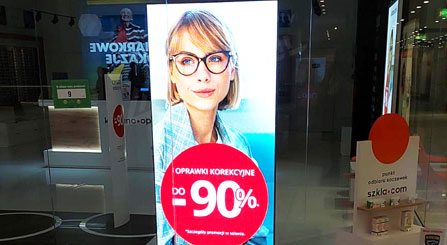

Related & Recommended Projects
