PM Series

Sport Stadium Perimeter LED Display

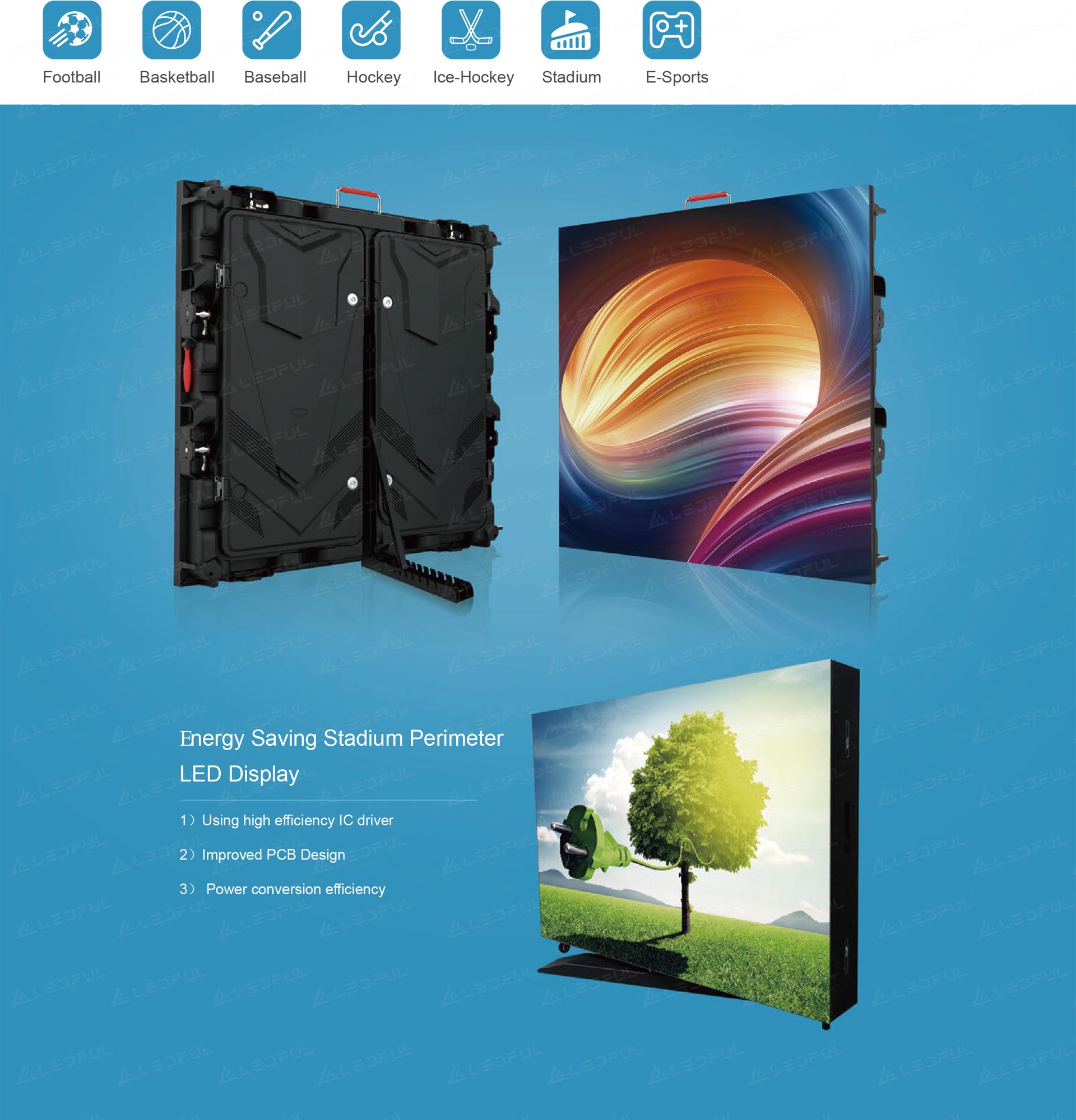

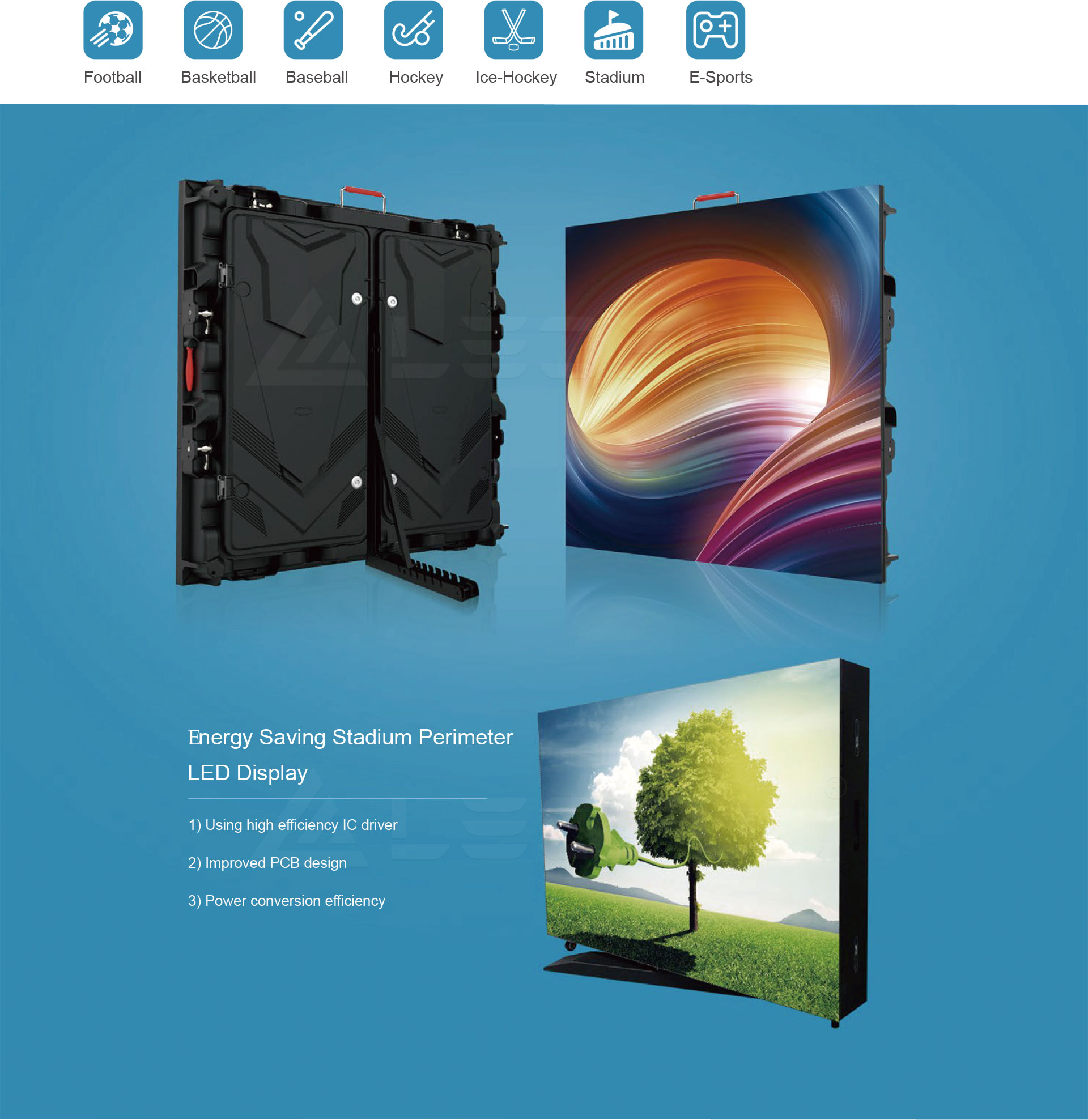

Applications

Specification

Model	IPM5R	IPM10R	OPM6.6R	OPM8R	OPM10R
Pixel Pitch(mm)	5	10	6.67	8	10
Pixel Matrix Per Sq.m	40000	10000	22500	15625	10000
Pixel Configuration	SMD2121	SMD3528	SMD3535	SMD3535	SMD3535
Brightness (nits)	1200	1500	6000	6000	6000
Scan	1/8	1/8	1/2	1/2	1/2
Module Dimension	320x160mm / 1.05x0.52ft	320x160mm / 1.05x0.52ft	320x160mm / 1.05x0.52ft	320x160mm / 1.05x0.52ft	320x160mm / 1.05x0.52ft
Cabinet Dimension	960x960mm / 3.15x3.15ft	960x960mm / 3.15x3.15ft	960x960mm / 3.15x3.15ft	960x960m m / 3.15x3.15ft	960x960mm / 3.15x3.15ft
Cabinet Resolution	192x192	96x96	144x144	120x120	96x96
Cabinet Weight	28kg Die casting aluminum	28kg Die casting aluminum	28kg Die casting aluminum	28kg Die casting aluminum	28kg Die casting aluminum
Power Con. (Max / Avg)	900 / 180 w/sqm	900 / 180 w/sq.m	900 / 180 w/sq.m	900 / 180 w/sq.m	900 / 180w/sq.m
IP Rate	IP43		IP65
Service Access	Front / Rear		Rear

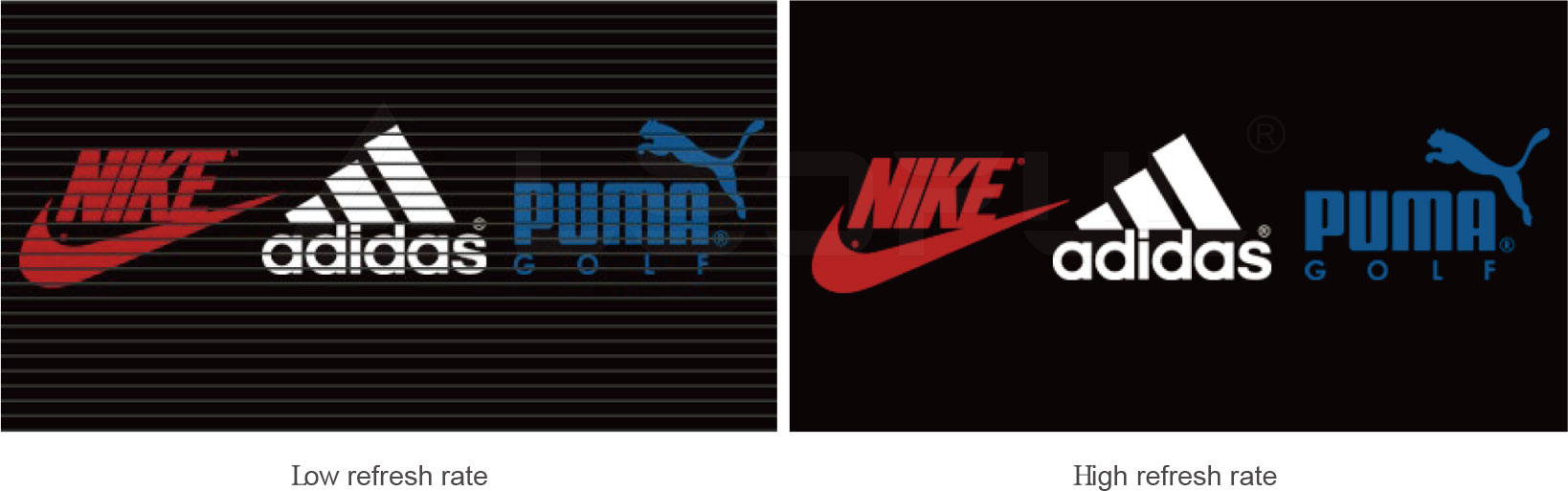

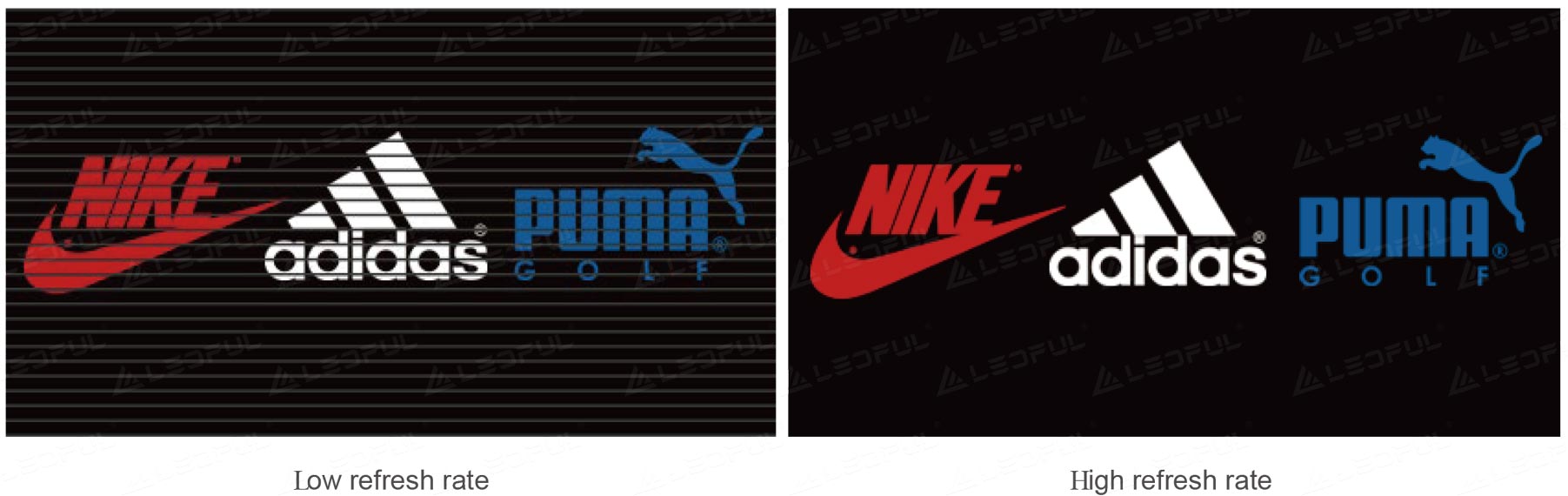

Refresh Rate (HZ)	＞1920		>1920
Grey Scale (bit)	14bit		16bit

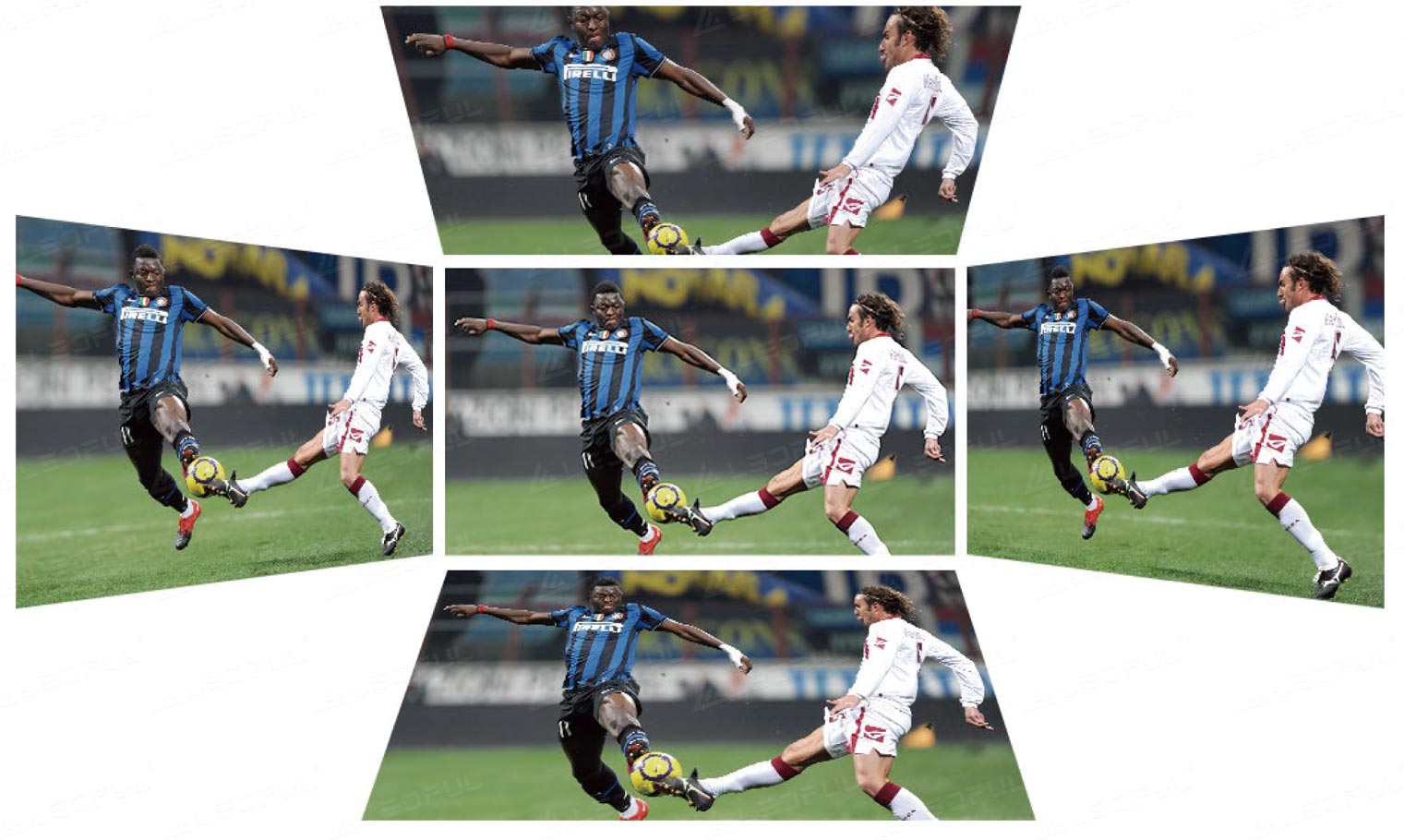

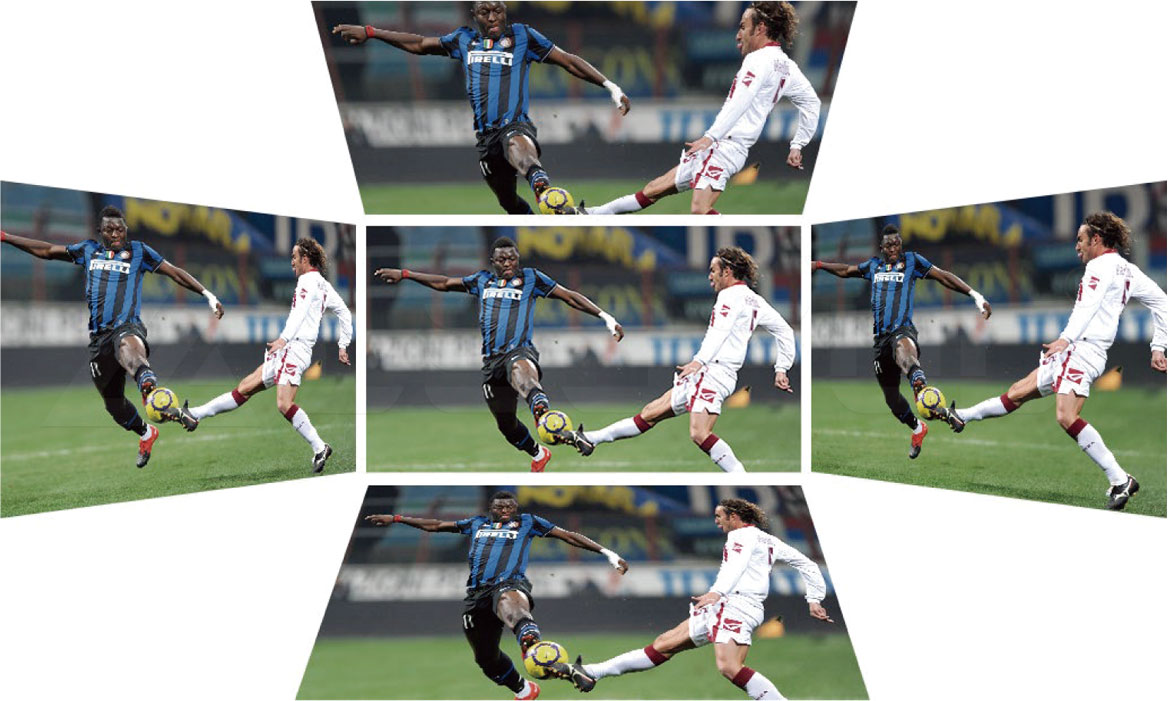

Viewing Angle (H/V)	140/140		140/140
Input Voltage (AC)	110V/220V		110V/240V

* Specifications and photos are subject to change without prior notice.

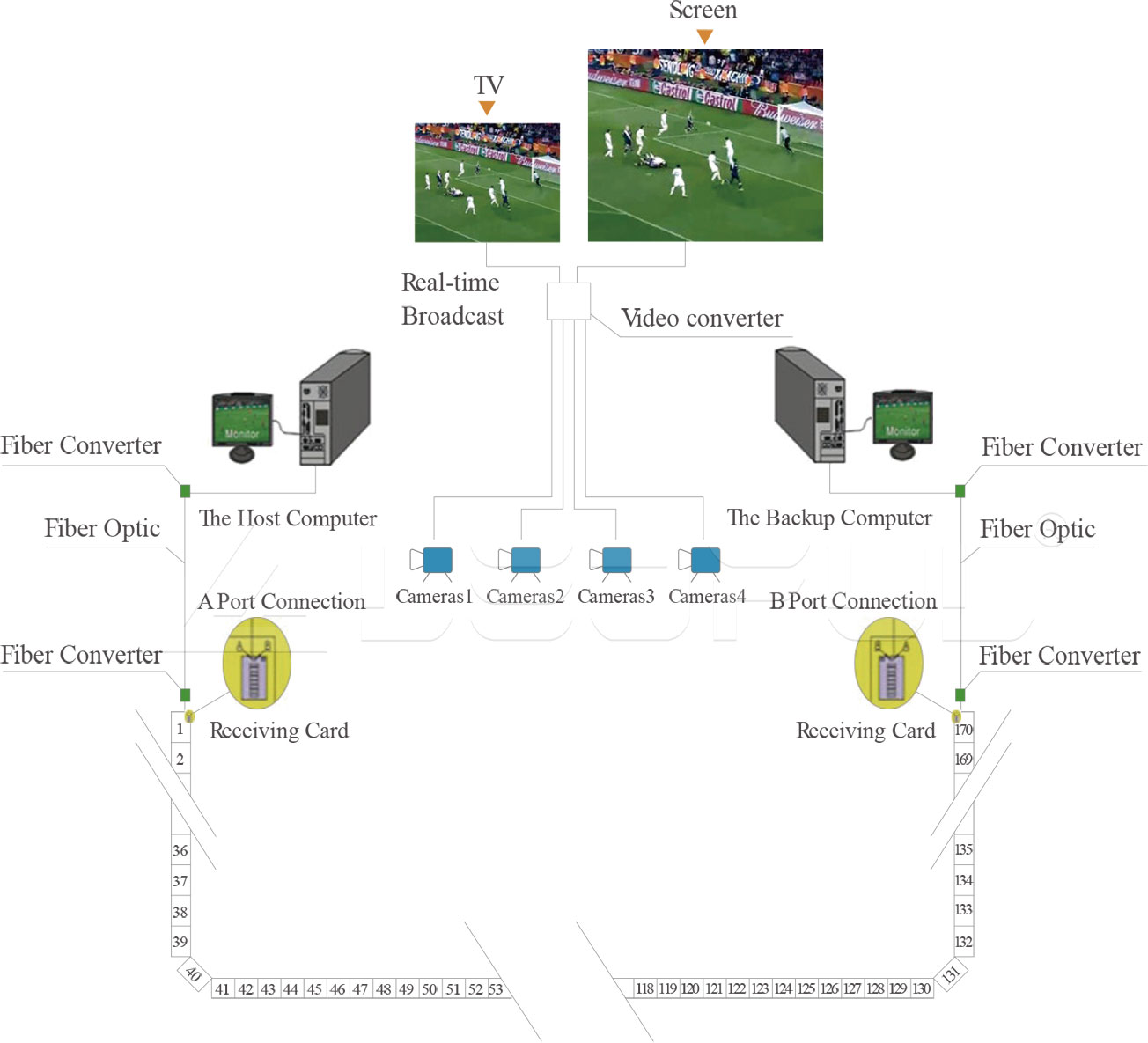

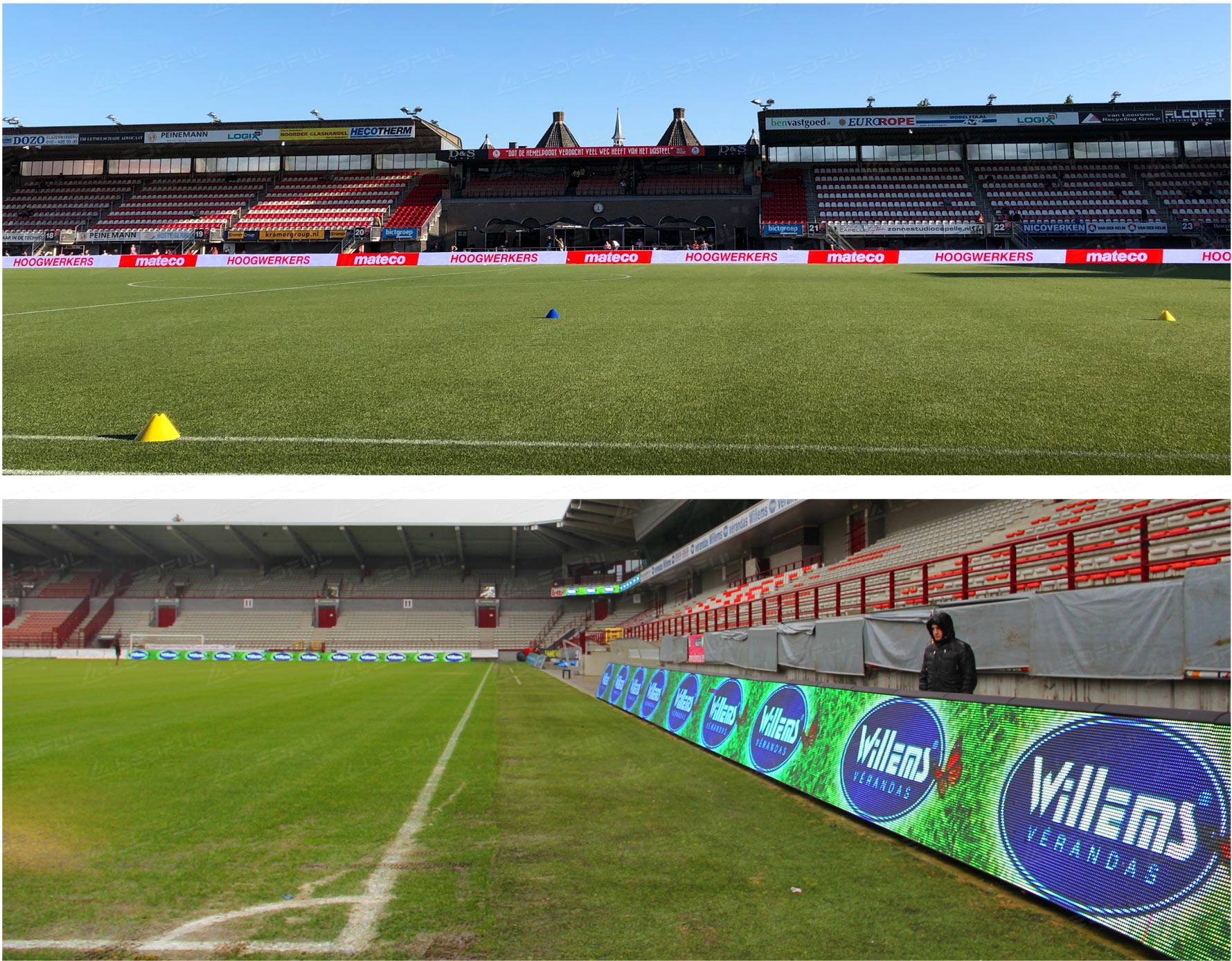

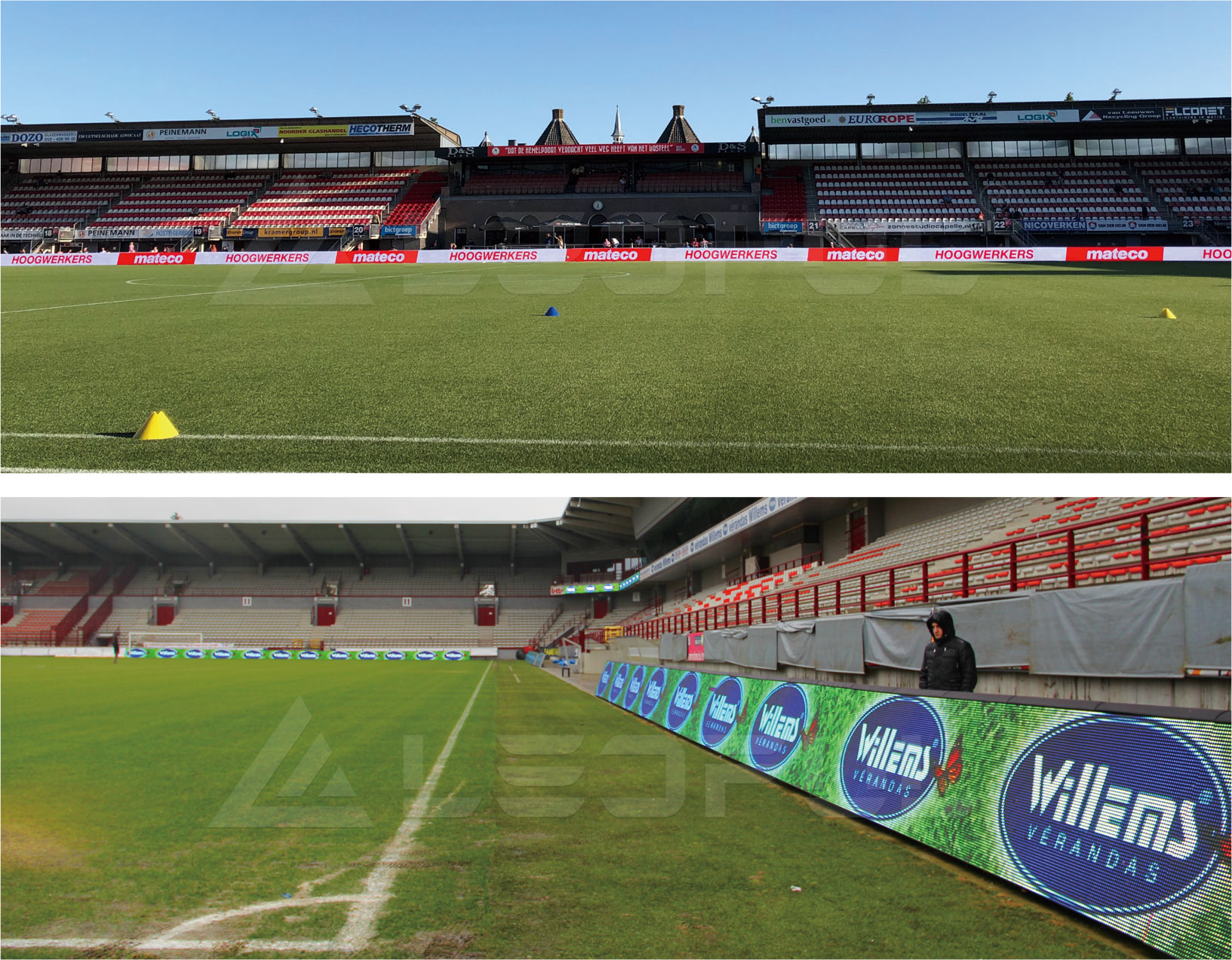

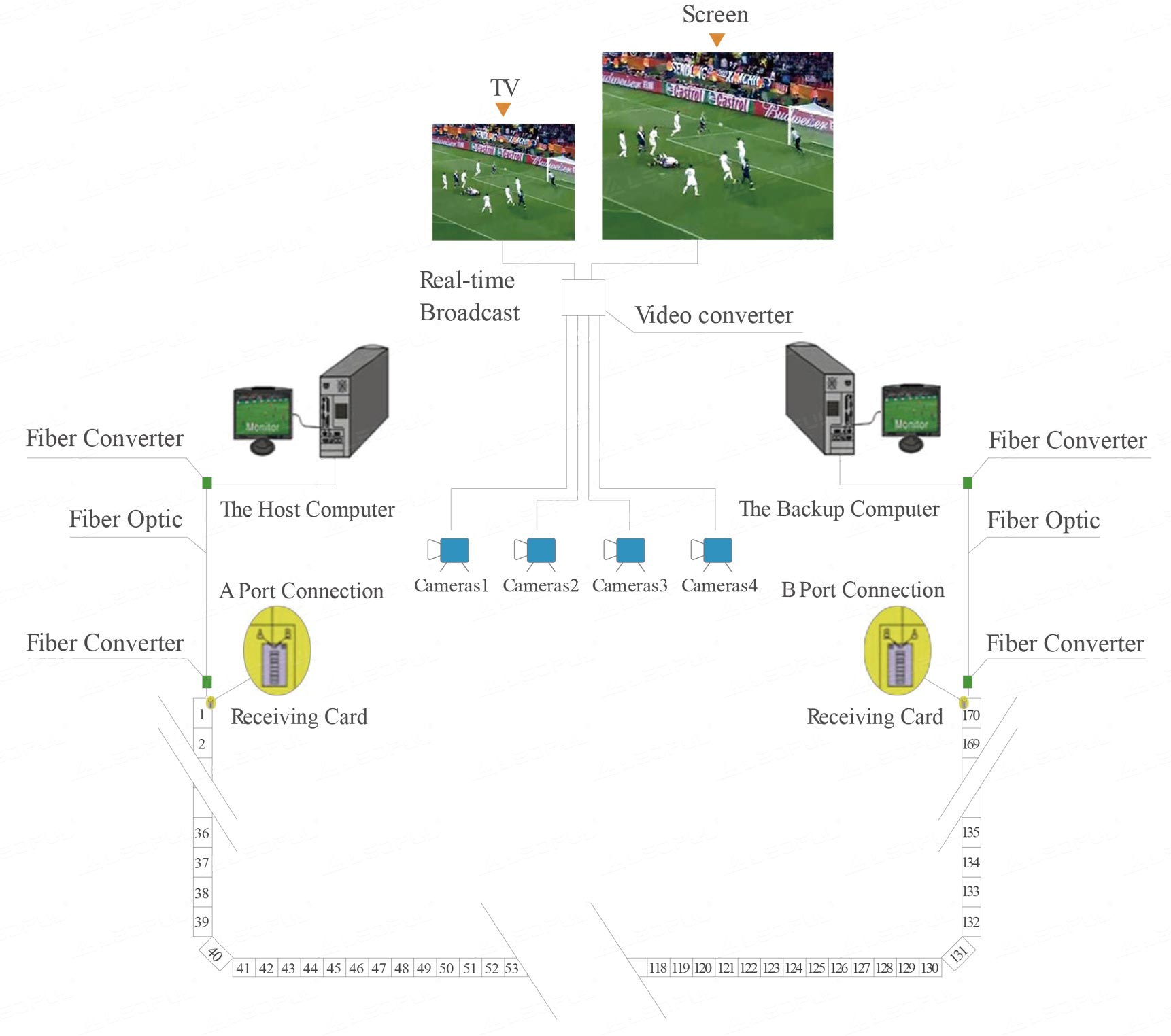

Project Case

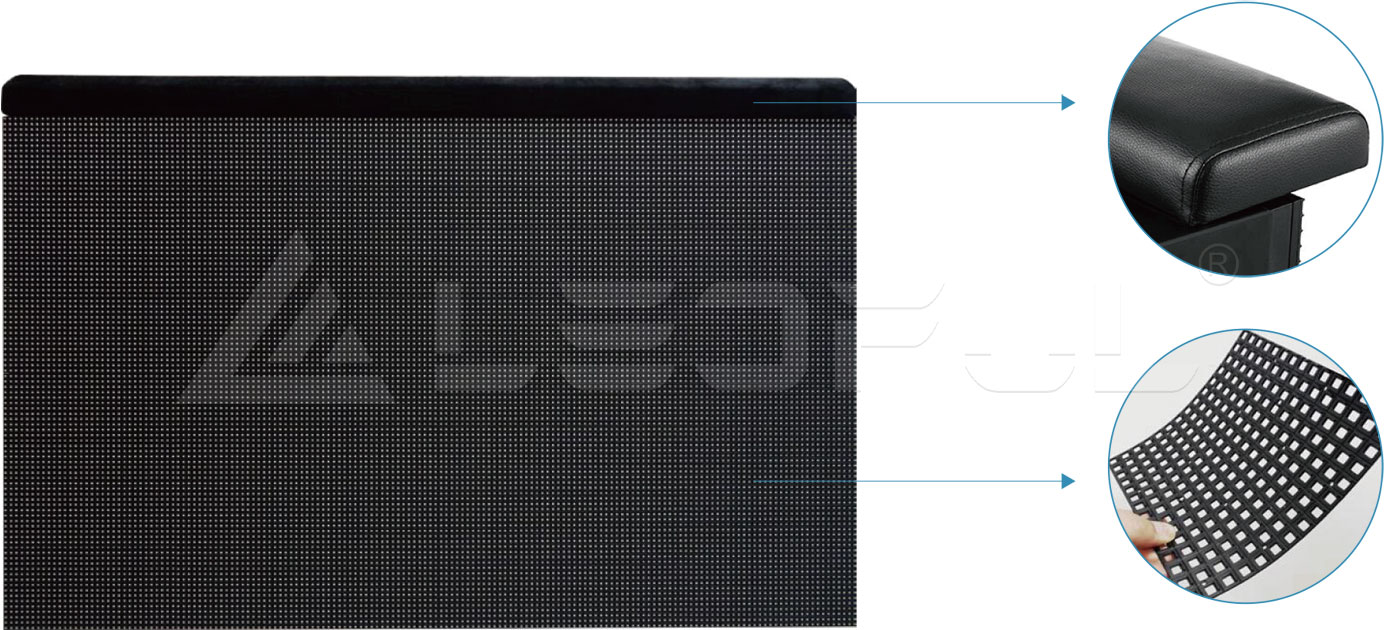

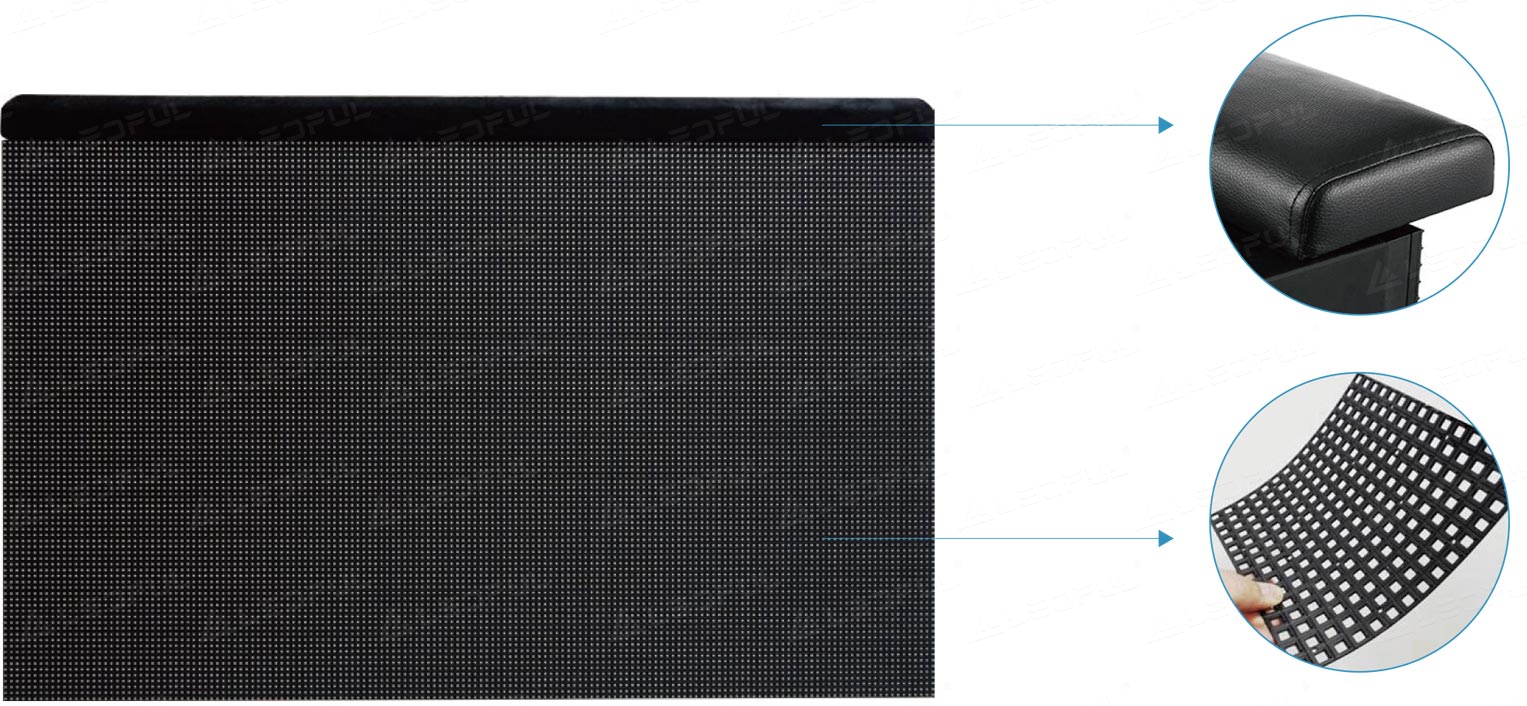

Protective Top Cover and Rubber Module Mask

Protective top cover protect players from injury. Rubber module mask protect LED from ball and players striking,
besides protect players against further injury.
