OF Series

Outdoor Commercial Advertising OOH LED Display

OF Series
OF4 | OF5 | OF6 | OF8 | OF10S | OF10D | OF16S
  • Energy saving to save cost
  • Front maintenance to save space
  • Wifi, 4G, cloud, usb, remote control
  • All weather resistant for stable operation
  • High brightness provide perfect performance

Parameter

Value OF4 OF5 OF6 OF8 OF10S OF16S
Pixel Pitch(mm) 4 5 6 8 10 16
Pixel Matrix Per Sq.m 62500 40000 27777 15625 10000 3906
Pixel Configuration SMD1921 SMD2727 SMD2727 SMD3535 SMD3535 SMD3535
Brightness (nits) 6500 6500 6500 6800 7500 8000
Scan 1/8 1/8 1/4 1/3 1/2 1/1
Module Dimension 192x192mm / 0.63x0.63ft 160x160mm / 0.52x0.52ft 192x192mm / 0.63x0.63ft 320x160mm / 1.05x0.52ft 320x160mm / 1.05x0.52ft 256x256mm / 0.84x0.84ft
Cabinet Dimension 960x960mm / 3.15x3.15ft 960x960mm / 3.15x3.15ft 960x960mm / 3.15x3.15ft 960x960mm / 3.15x3.15ft 960x960mm / 3.15x3.15ft 1024x1024mm /3.36x3.36ft
Cabinet Resolution 192x192 192x192 160x160 120x120 96x96 64x64
Cabinet Weight 44kg / 97Ib ( Iron) 43kg / 95Ib (Iron) 42kg / 93Ib (Iron) 41kg / 90Ib (Iron) 40kg / 88Ib ( Iron) 46kg / 101Ib (Iron)
Power Con. (Max / Avg) 750 / 150 w/sq.m 730 / 130 w/sq.m 700 / 120 w/sq.m 680 / 120 w/sq.m 650 / 110 w/sq.m 750 / 150 w/sq.m
Service Access Front / Rear
Refresh Rate (HZ) ≥1920
Grey Scale (bit) 16
Viewing Angle (H/V) 140 / 140
IP Rate IP65
Input Voltage (AC) 110V / 240V

* Specifications and photos are subject to change without prior notice.
Parameter

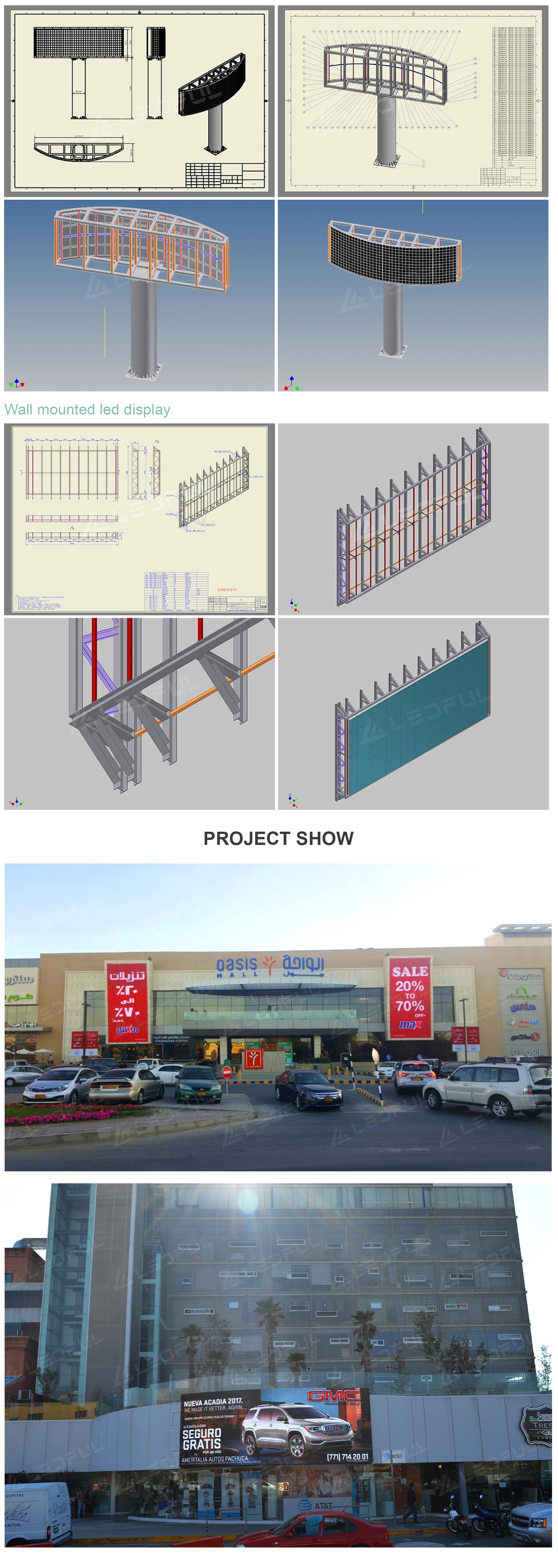

Where is LED display installed?

LEDFUL provide structure frame design drawing and installation suggestions.
Pillar / Pole LED display
Pillar / Pole LED display

Wall mounted LED display
Wall mounted LED display

How to control LED display?

By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.
How to control LED display?

Ultra High / Low Temperature

OF series design for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.
  • High Temperature
    High Temperature
  • Low Temperature
    Low Temperature

SMD Performance and View Angle

Better contrast ratio and viewing performance Wide viewing angle increasing its value by covering more viewing
SMD Performance and View Angle

High Brightness & Auto Brightness

High bright and contrast ratio to make vivid color facing to the Sunlight.
Auto brightness saving energy besides protecting people eyes in night time.
High Brightness & Auto Brightness

Various Shaped LED Display

Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc.
LEDFUL supply more design and more solutions.
Various Shaped LED Display

How can we make Energy Saving LED display 30%?

1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency
How can we make Energy Saving LED display 30%?

OF Series More Features & More Advantages

  • 3 times aging process
  • Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test
  • Long service time and low attenuation by applying dual channels for heat dissipation
  • High protection grade of IP65 achieved by patented mask design with waterproof and dustproof fuction
  • No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation
