FLOOR PLUS Series

Interactive Floor LED Display

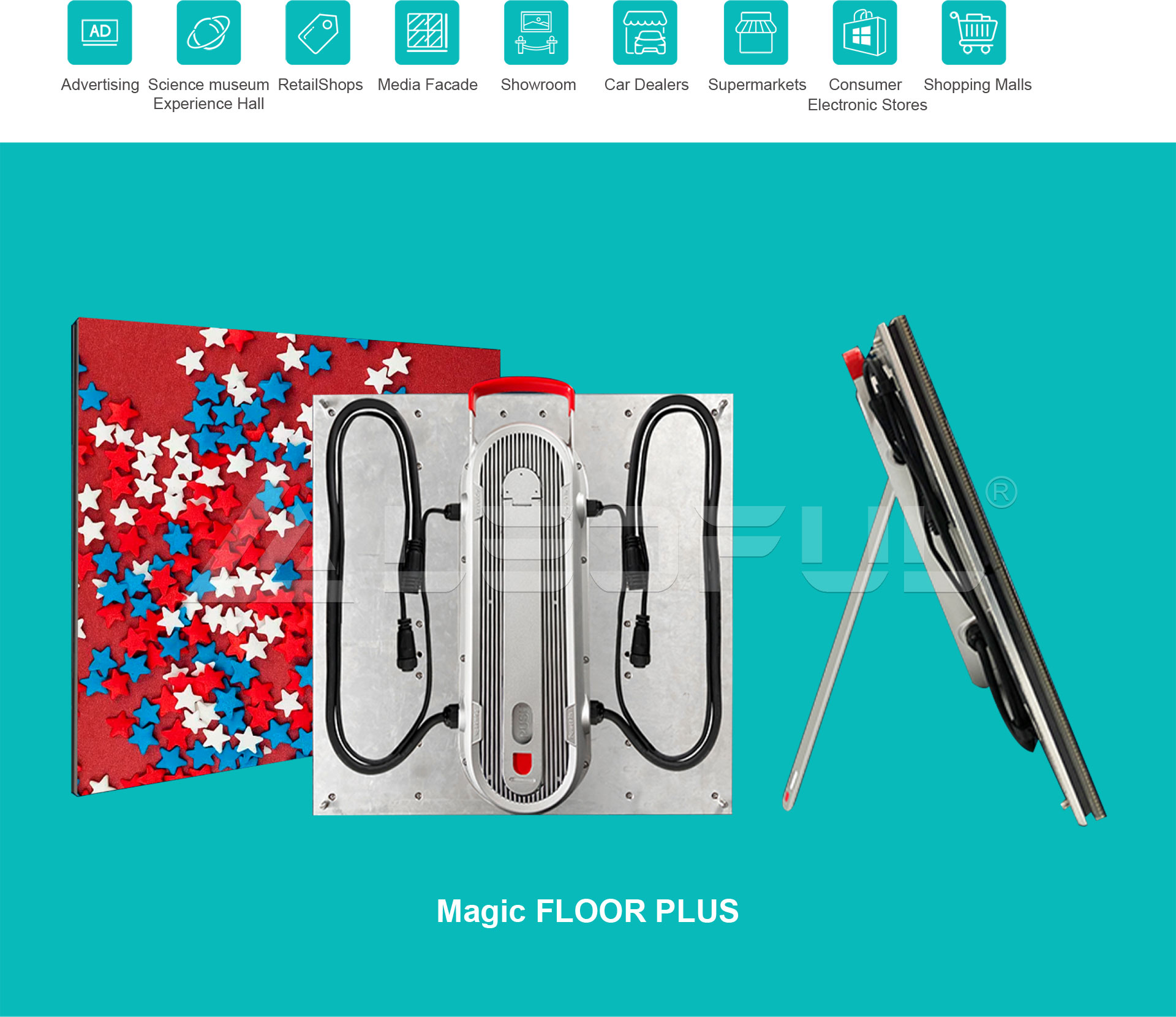

Applications
Applications
Specification
Model FI2.9R FI3.9R FI4.8R FI5.2R FI6.2R
Pixel Pitch(mm) 2.976 3.91 4.81 5.2 6.25
Pixel Matrix Per Sq.m 112896 65536 43264 36864 16000
Pixel Configuration SMD1921 SMD1921 SMD1921 SMD1921 SMD1921
Brightness (nits) 2500 2500 2500 2500 2500
Scan 1/14 1/16 1/16 1/6 1/10
Module Dimension 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft

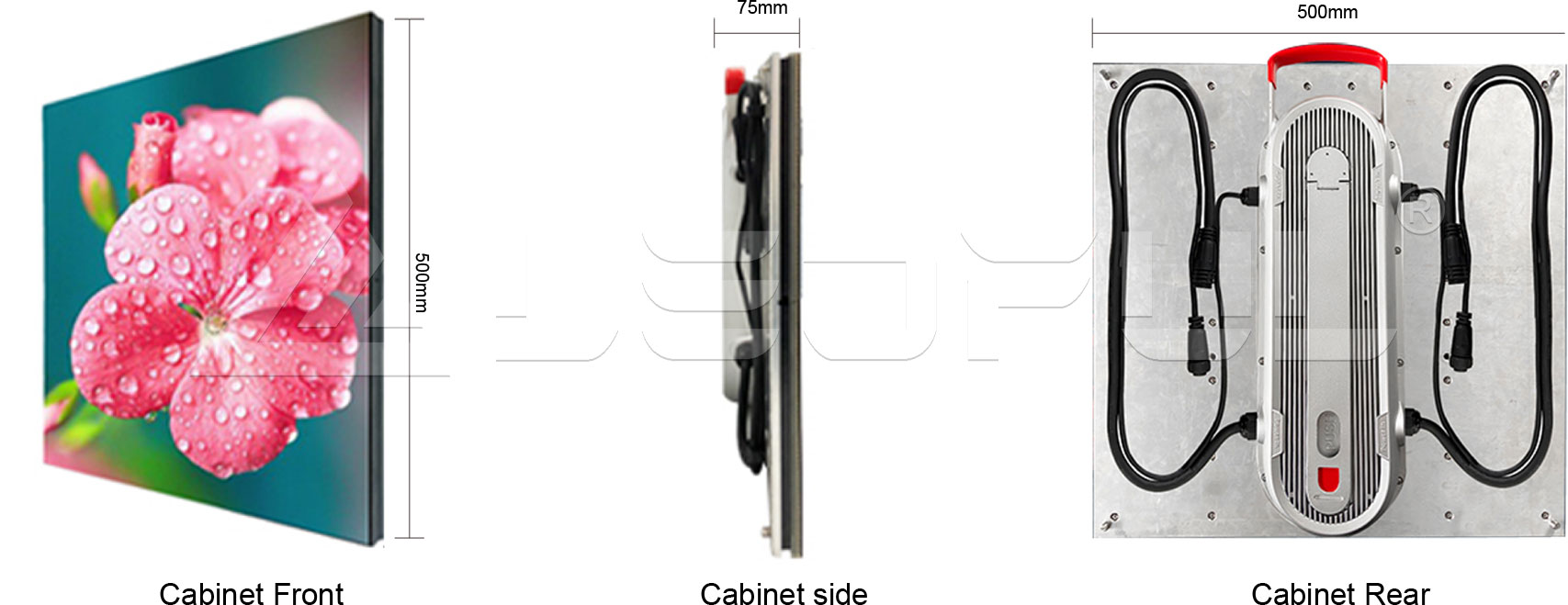

Cabinet Dimension 500x500mm / 1.64x1.64ft 500x500mm / 1.64x1.64ft 500x500mm / 1.64x1.64ft 500x500mm / 1.64x1.64ft 500x500mm / 1.64x1.64ft
Cabinet Resolution 168x336 128x256 104x208 96x192 80x160
Cabinet Weight 8kg / 17.6Ib
Power Con. (Max / Avg) 800 / 350 w/sq.m 800 / 350 w/sq.m 800 / 350 w/sq.m 800 / 350 w/sq.m 800 / 350 w/sq.m
Service Access Front
Refresh Rate (HZ) ≥1920
Grey Scale (bit) 14
Viewing Angle (H/V) 120 / 120
IP Rate IP65
Operation Temperature -20° ~ +50°
Input Voltage (AC) 110V/220V( 50-60Hz)

Model FO3.9R FO4.8R FO5.2R FO6.2R
Pixel Pitch(mm) 3.91 4.81 5.2 6.25
Pixel Matrix Per Sq.m 65536 43264 36864 16000
Pixel Configuration SMD1921 SMD1921 SMD1921 SMD1921
Brightness (nits) 3000 3000 3000 3000
Scan 1/16 1/16 1/6 1/10
Module Dimension 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft 250x250mm / 0.82x0.82ft
Cabinet Dimension 500x500mm / 1.64x1.64ft 500x500mm / 1.64x1.64ft 500x500mm / 1.64x1.64ft 500x500mm / 1.64x1.64ft
Cabinet Resolution 128x256 104x208 96x192 80x160
Cabinet Weight 8kg / 17.6Ib
Power Con. (Max / Avg) 800 / 350 w/sq.m 800 / 350 w/sq.m 800 / 350 w/sq.m 800 / 350 w/sq.m
Service Access Front
Refresh Rate (HZ) ≥1920
Grey Scale (bit) 14
Viewing Angle (H/V) 120 / 120
IP Rate IP67
Operation Temperature -20° ~ 50°
Input Voltage (AC) 110V/220V( 50-60Hz))

* Specifications and photos are subject to change without prior notice.

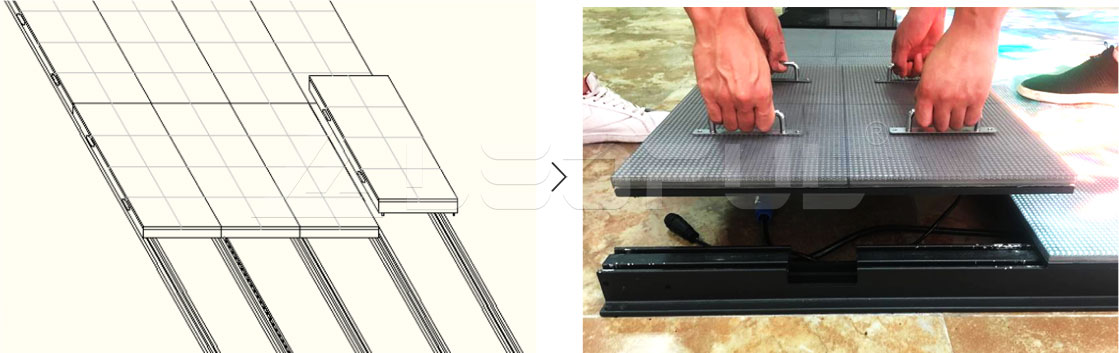

FLOOR LED Display Guide Rail Installation
FLOOR LED Display Guide Rail Installation
Nano Coating Technology
Nano Coating Technology

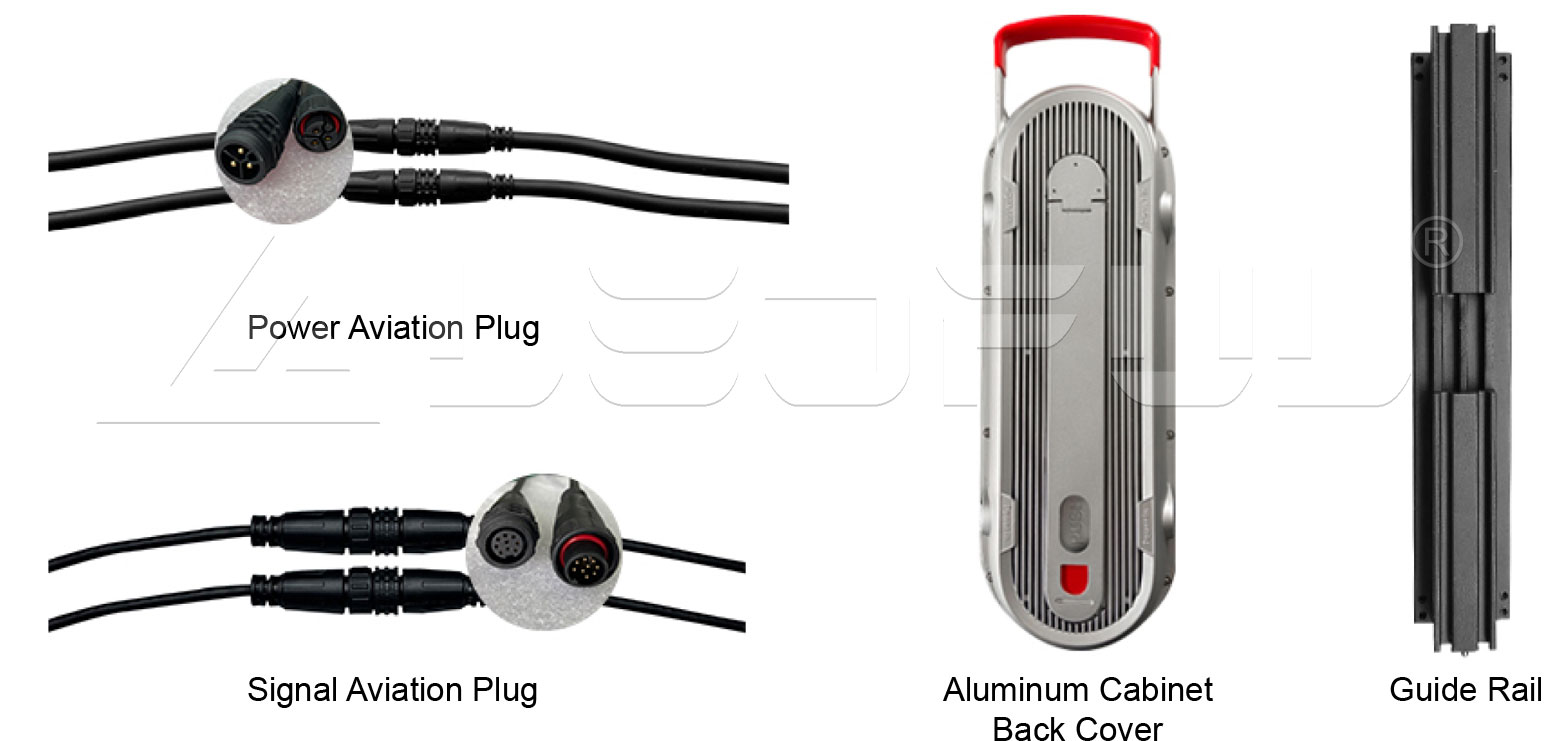

Basic Accessories
Basic Accessories

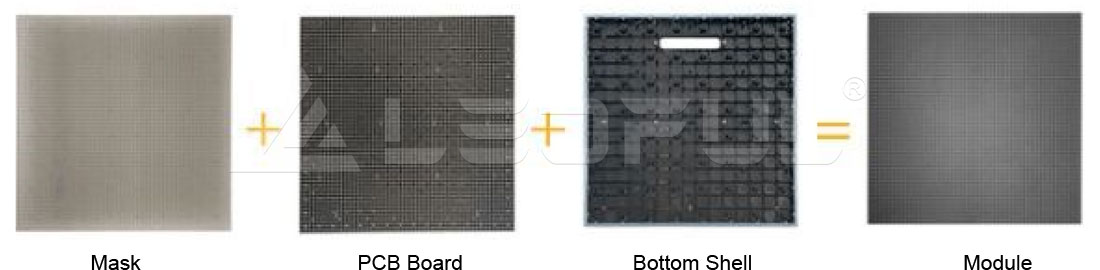

Module Structure
Module Structure

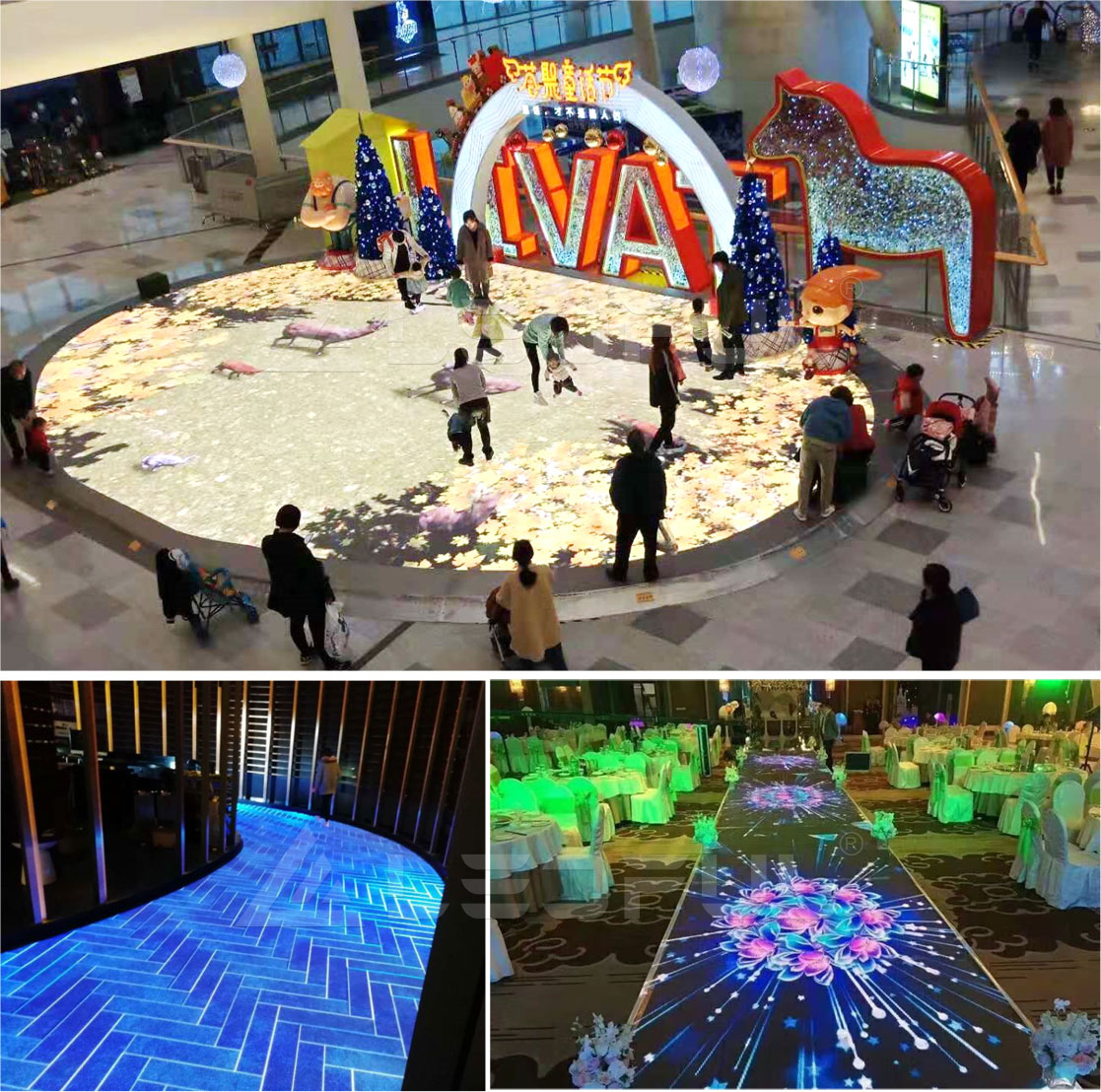

FLOOR Series Classic Cases
FLOOR Series Classic Cases

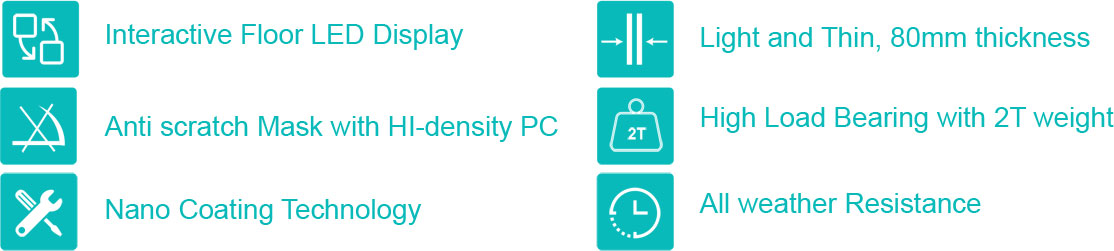

Features
Features
