U Pro Series

Ultra Slim HD LED Screen

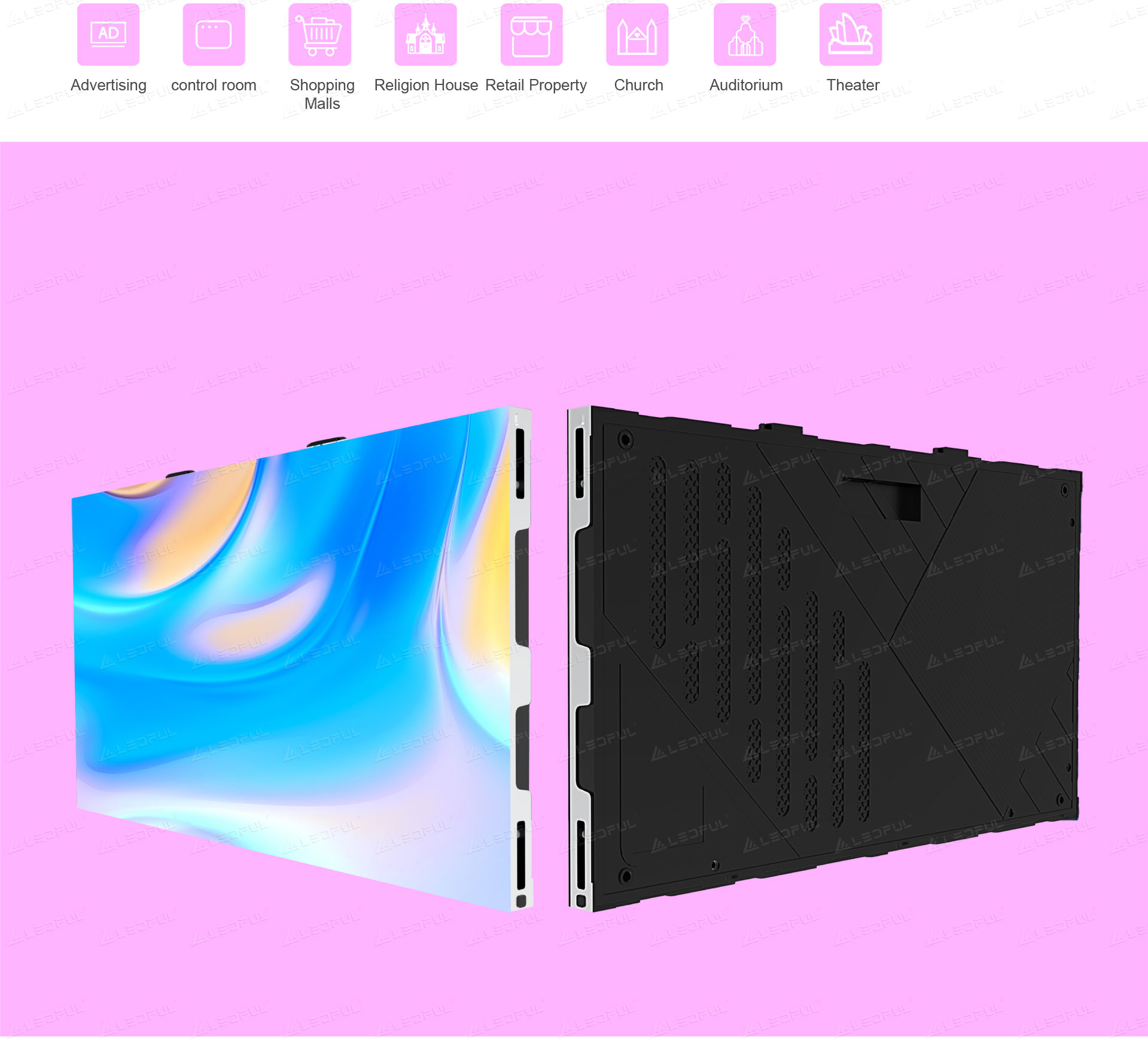

Applications
Applications
Specification
Model U0.9 Pro-Mini U0.9 Pro-COB U1.2 Pro U1.5 Pro U1.8 Pro U2.5Pro
Pixel Pitch(mm) 0.9375 0.9375 1.25 1.5625 1.875 2.5
Pixel Matrix Per Sq.m 1137778 1137778 640000 409600 250000 160000
Pixel Configuration MINI 4-in-1 COB Gold SMD1010 SMD1212 SMD1515 SMD1515
Brightness (nits) 500 500 500 600 600 800
Scan 1/60 1/60 1/45 1/54 1/45 1/30
Module Dimension 150x168.75mm
/ 0.49x0.55ft 		150x168.75mm
/ 0.49x0.55ft 		300x168.75mm
 / 0.98x0.55ft 		300x168.75mm
 / 0.98x0.55ft 		300x168.75mm
 / 0.98x0.55ft 		150x168.75mm
/ 0.49x0.55ft
Cabinet Dimension 600x337.5x27.5mm
 / 1.97x1.11x0.09ft 		600x337.5x27.5mm
 / 1.97x1.11x0.09ft 		600x337.5x27.5mm
 / 1.97x1.11x0.09ft 		600x337.5x27.5mm
 / 1.97x1.11x0.09ft 		600x337.5x27.5mm
 / 1.97x1.11x0.09ft 		600x337.5x27.5mm
 / 1.97x1.11x0.09ft
Cabinet Resolution 640x360 640x360 480x270 385x216 320x180 240x135
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Cabinet Weight 4.5KG 4.5KG 4.5KG 4.5KG 4.5KG 4.5KG
Power Con.(W/㎡) (Max / Avg) 550W/180W 550W/180W 550W/180W 550W/180W 550W/180W 550W/180W
Service Access Front Front Front Front Front Front
Refresh Rate (HZ) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Contrast Ratio 7000:01:00 7000:01:00 7000:01:00 5000:01:00 5000:01:00 5000:01:00
Grey Scale (bit) 16 16 16 16 16 16
Viewing Angle (H/V) 170°/170° 170°/170° 160°/160° 160°/160° 160°/160° 160°/160°
IP Rate IP43 Front IP65 / Rear IP43 IP43 IP43 IP43 IP43
Operation Temperature -20℃ ~ +60°℃ -20℃ ~ +60°℃ -20℃ ~ +60°℃ -20℃ ~ +60°℃ -20℃ ~ +60°℃ -20℃ ~ +60°℃
Input Voltage (AC) 110V / 220V 110V / 220V 110V / 220V 110V / 220V 110V / 220V 110V / 220V
* Specifications and photos are subject to change without prior notice.

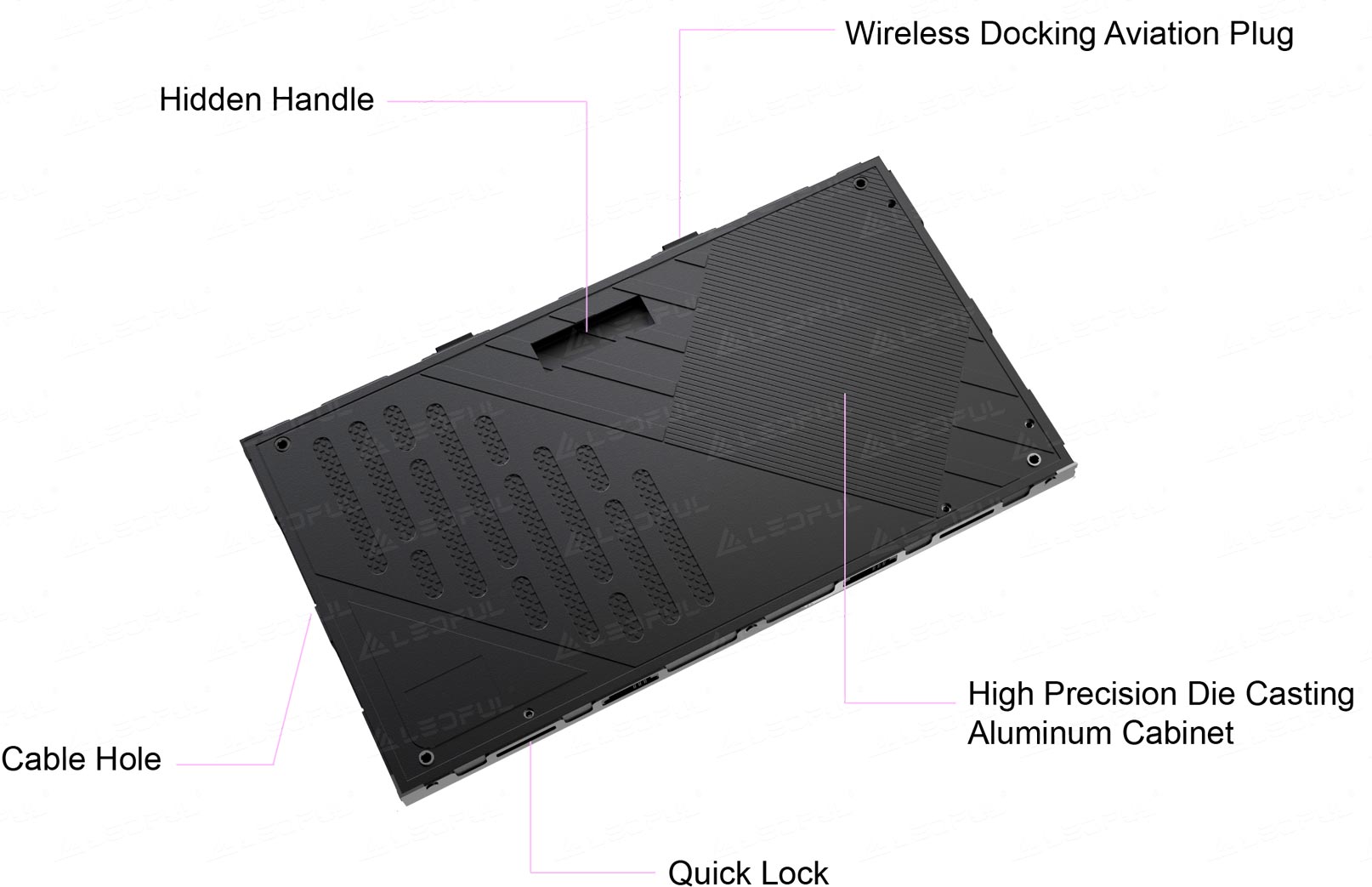

Cabinet Component
Cabinet Component

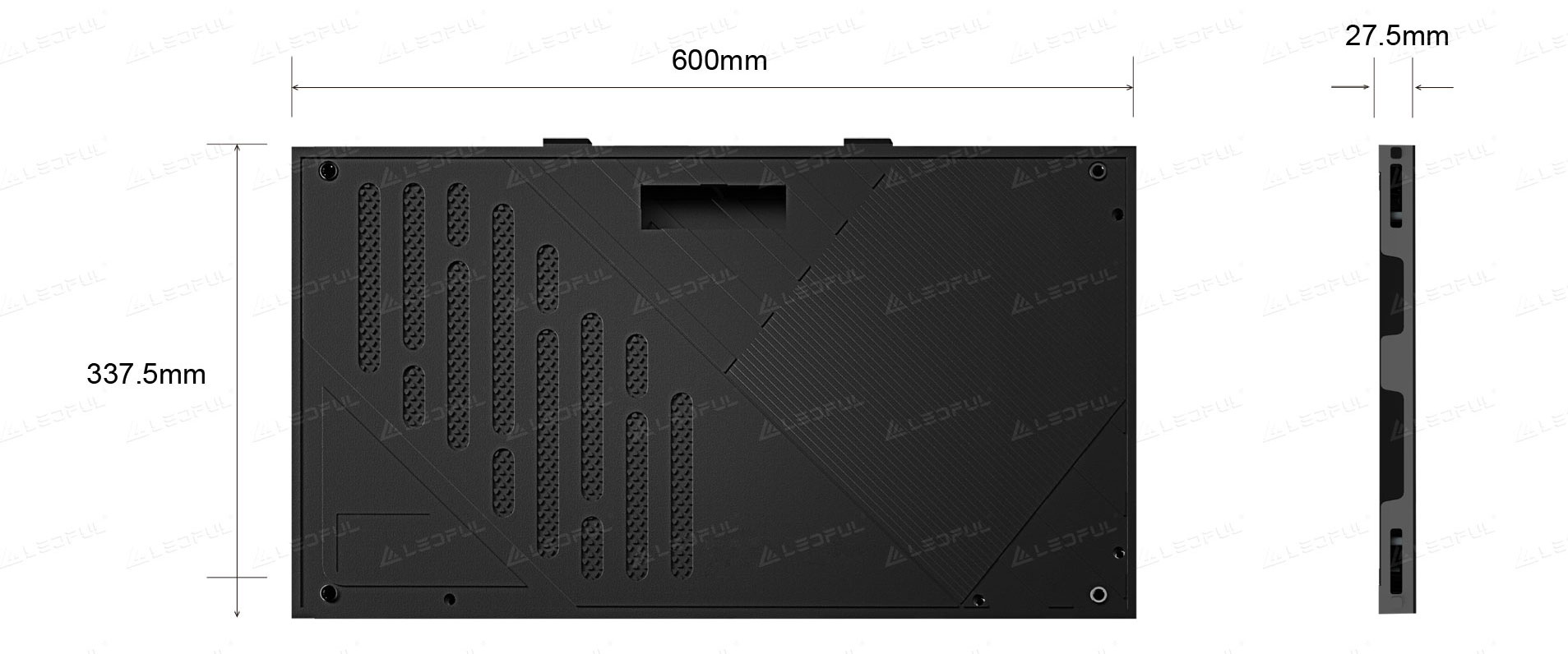

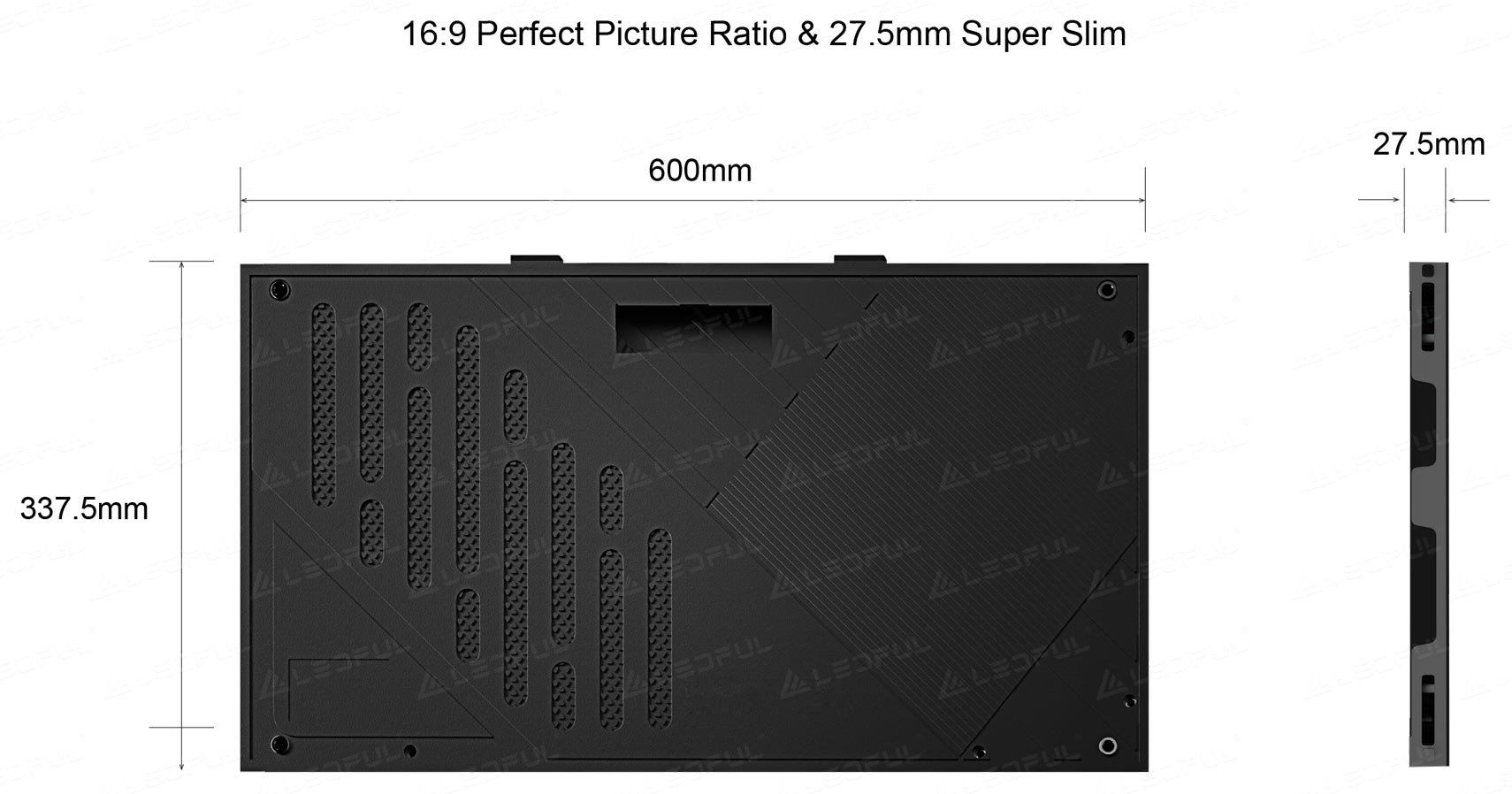

Cabinet Size
16:9 Perfect Picture Ratio & 27.5mm Super Slim
Cabinet Size

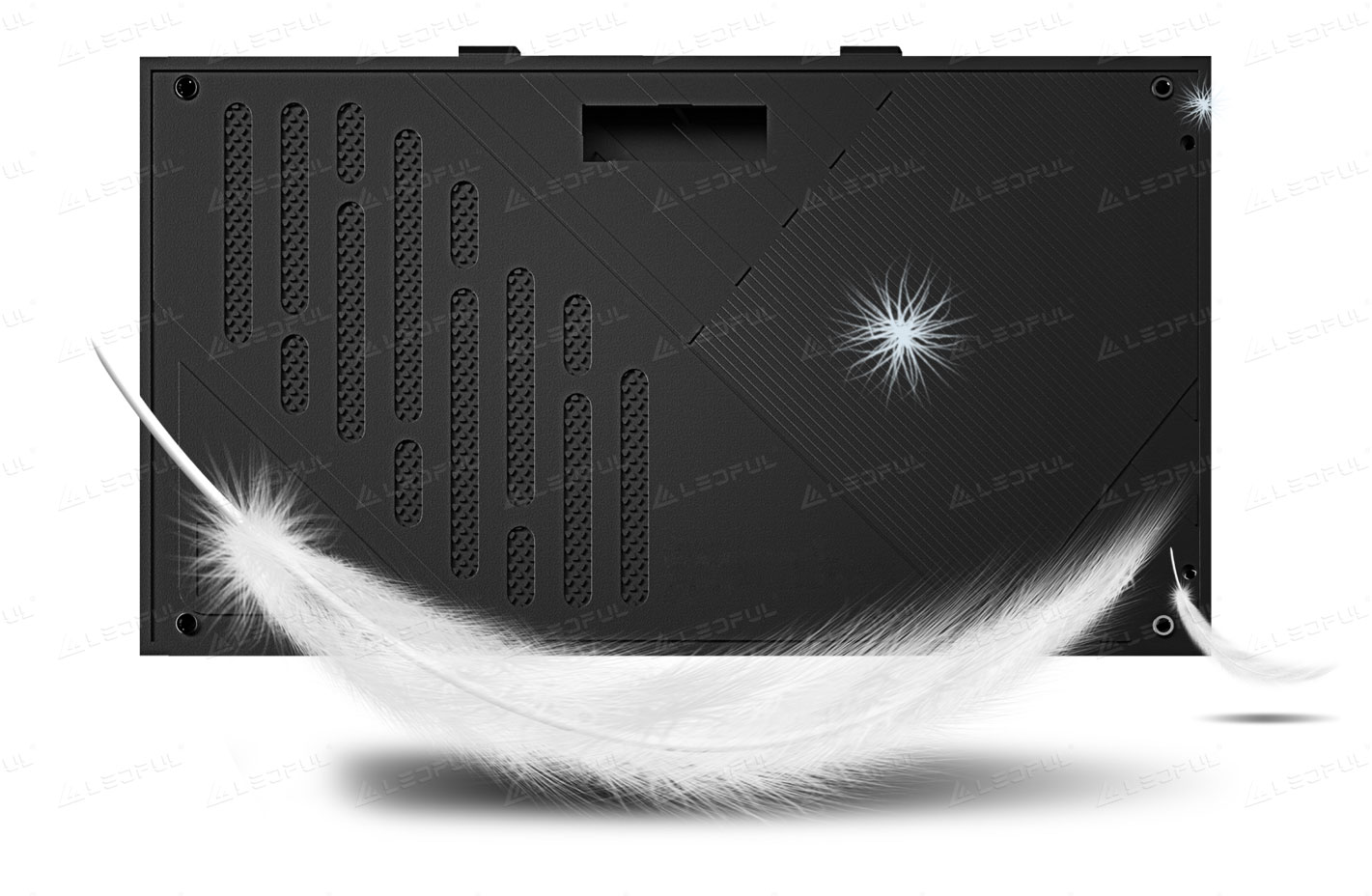

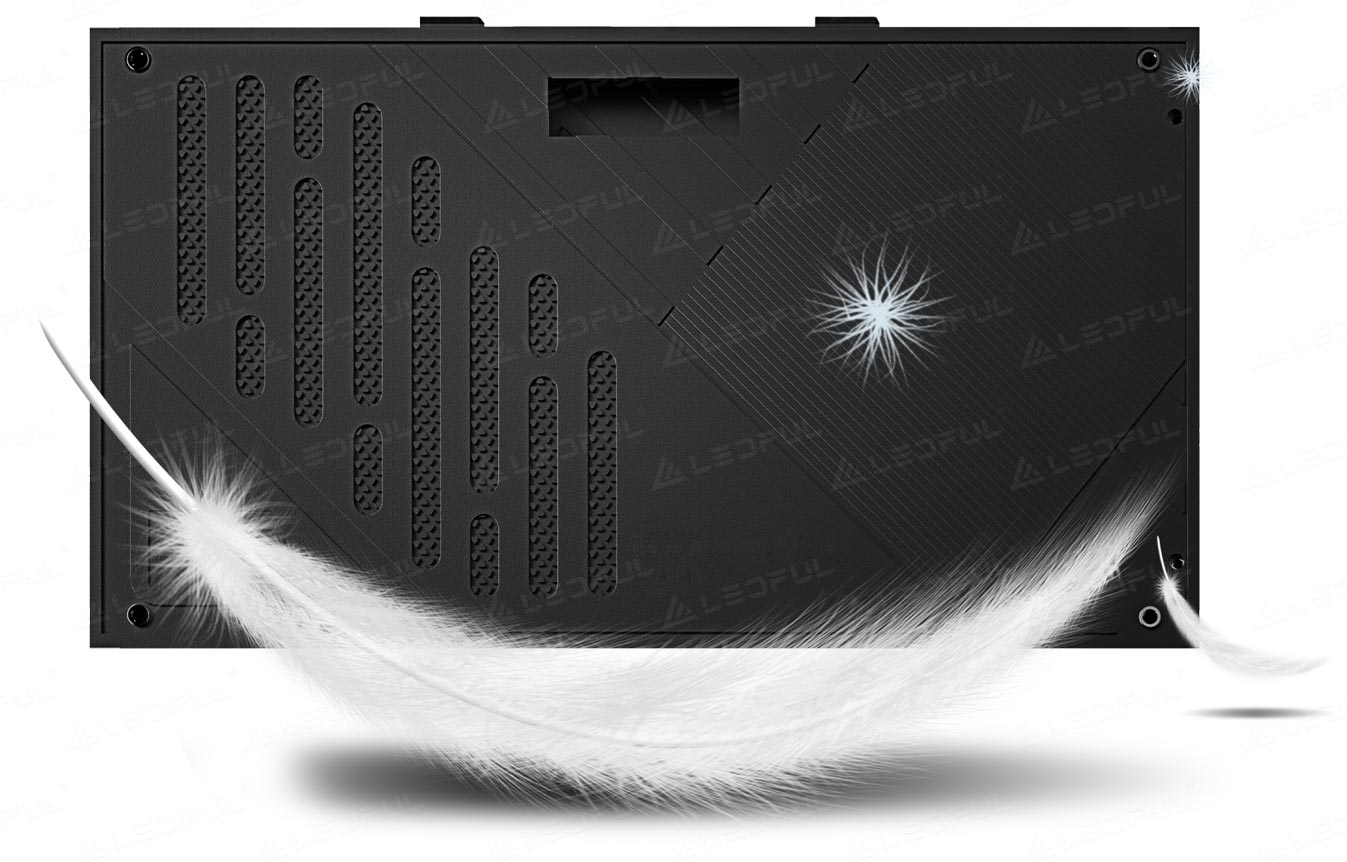

Weight | 4.5kg
Easier for installation, a more beautiful appearance, the last version cabinet design
Weight | 4.5kg

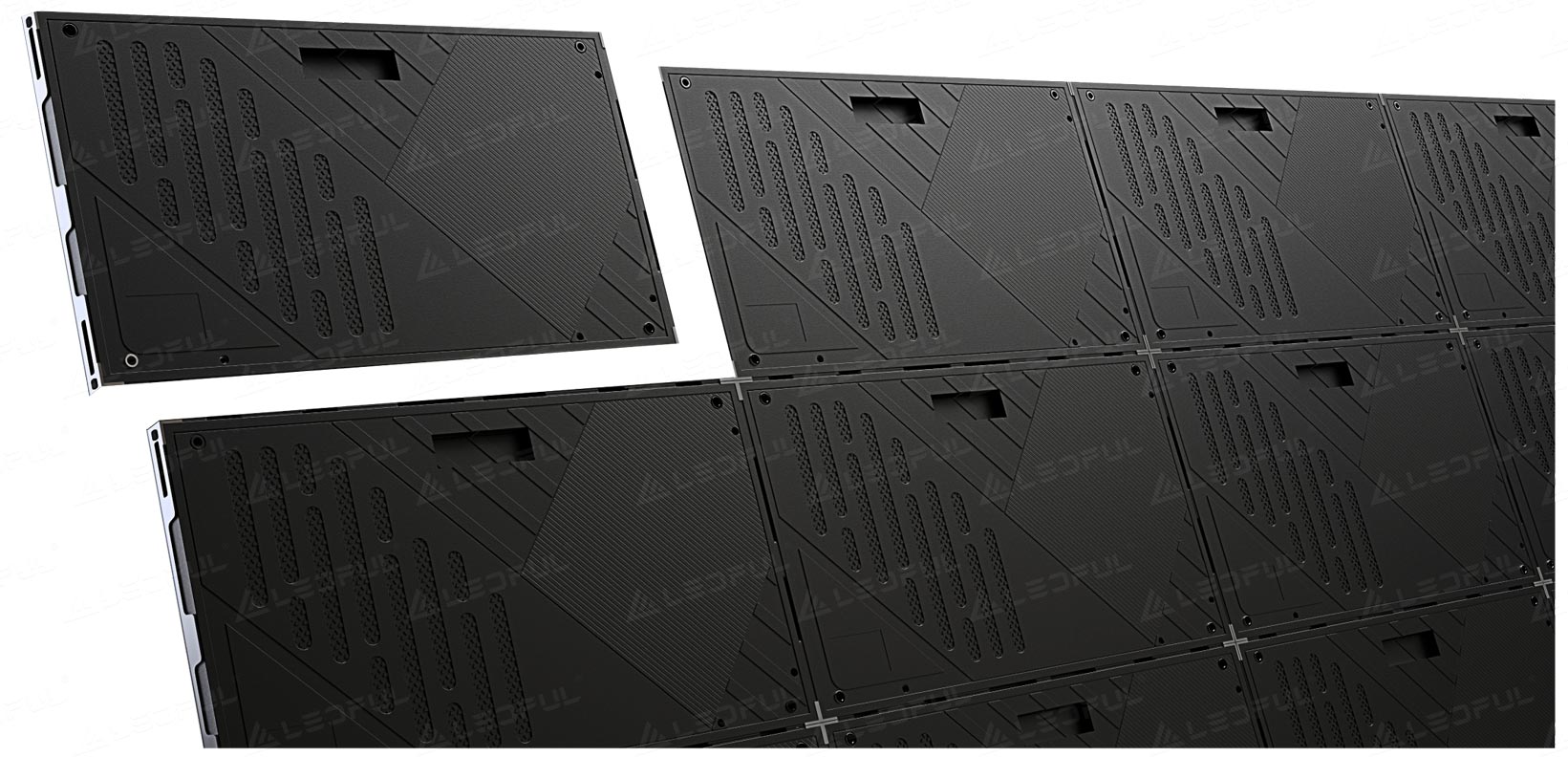

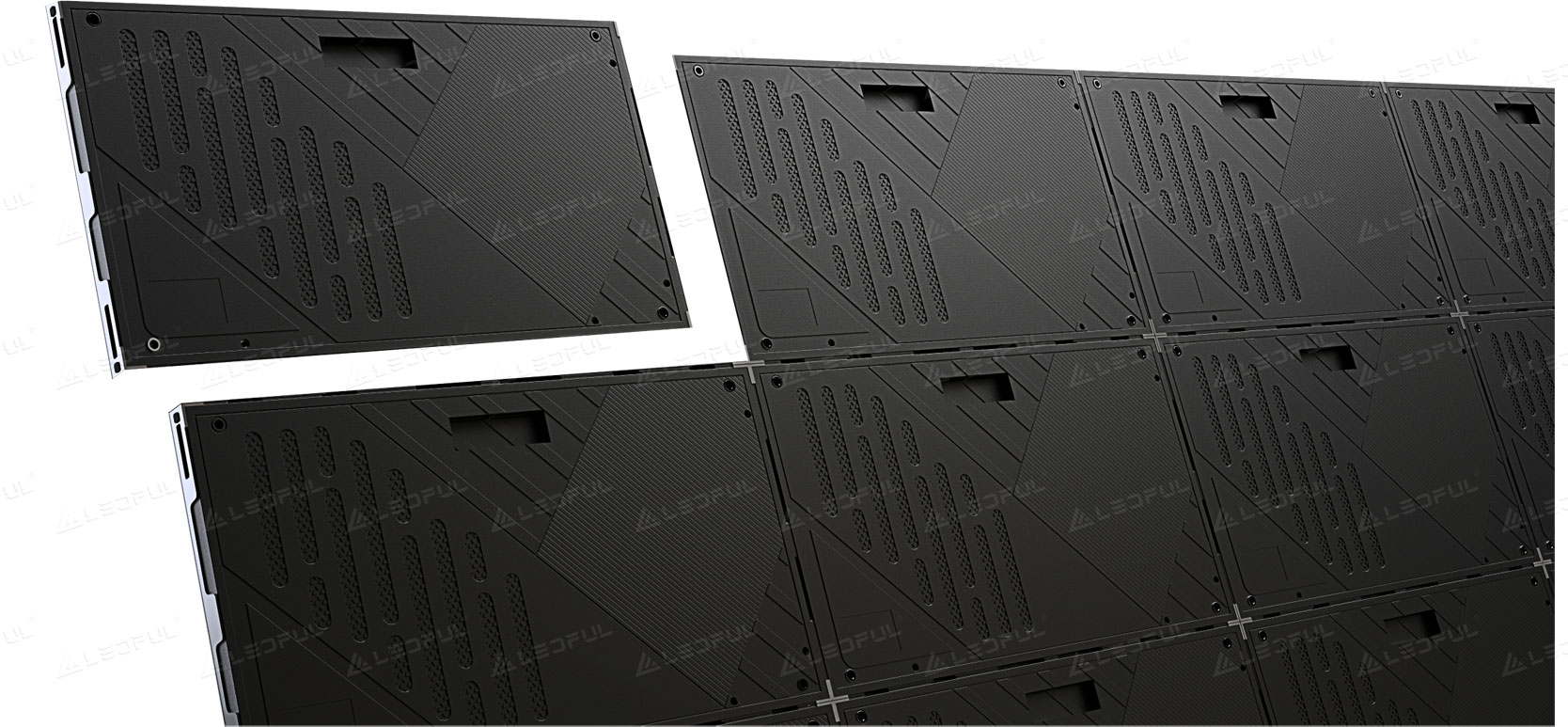

Seamless Splicing
Flat | High Precision Die Casting Aluminum Cabinet
Ultra-silence | Fanless design
Seamless Splicing
WCG + HDR
WCG | Wide Color Gamut, natural and vivid picture.
HDR | High Dynamic Range, exquisite and detailed display.
WCG + HDR

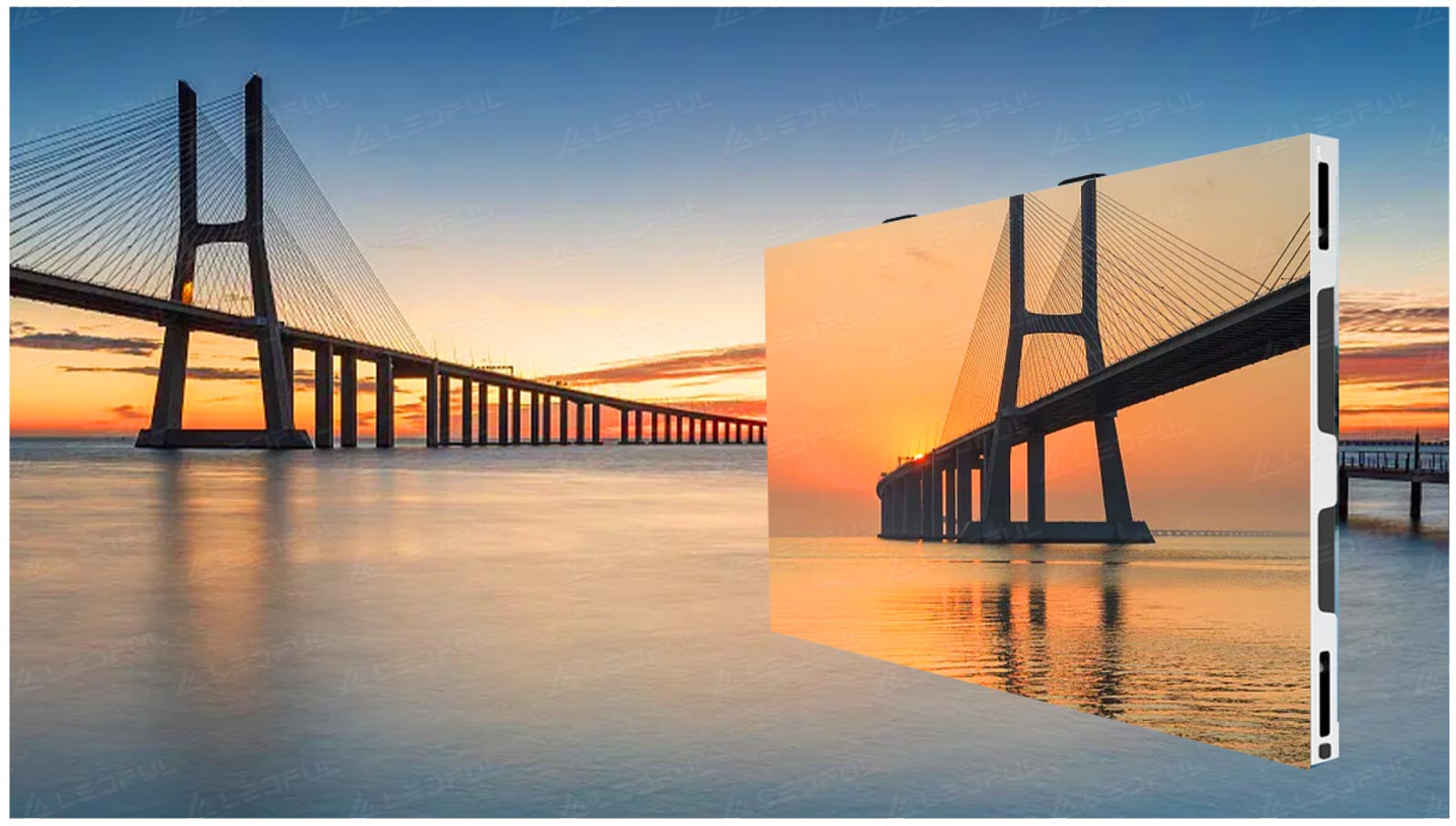

High Definition | 2K/4K/8K
Imagination Breakthrough, No limitation.
High Definition | 2K/4K/8K

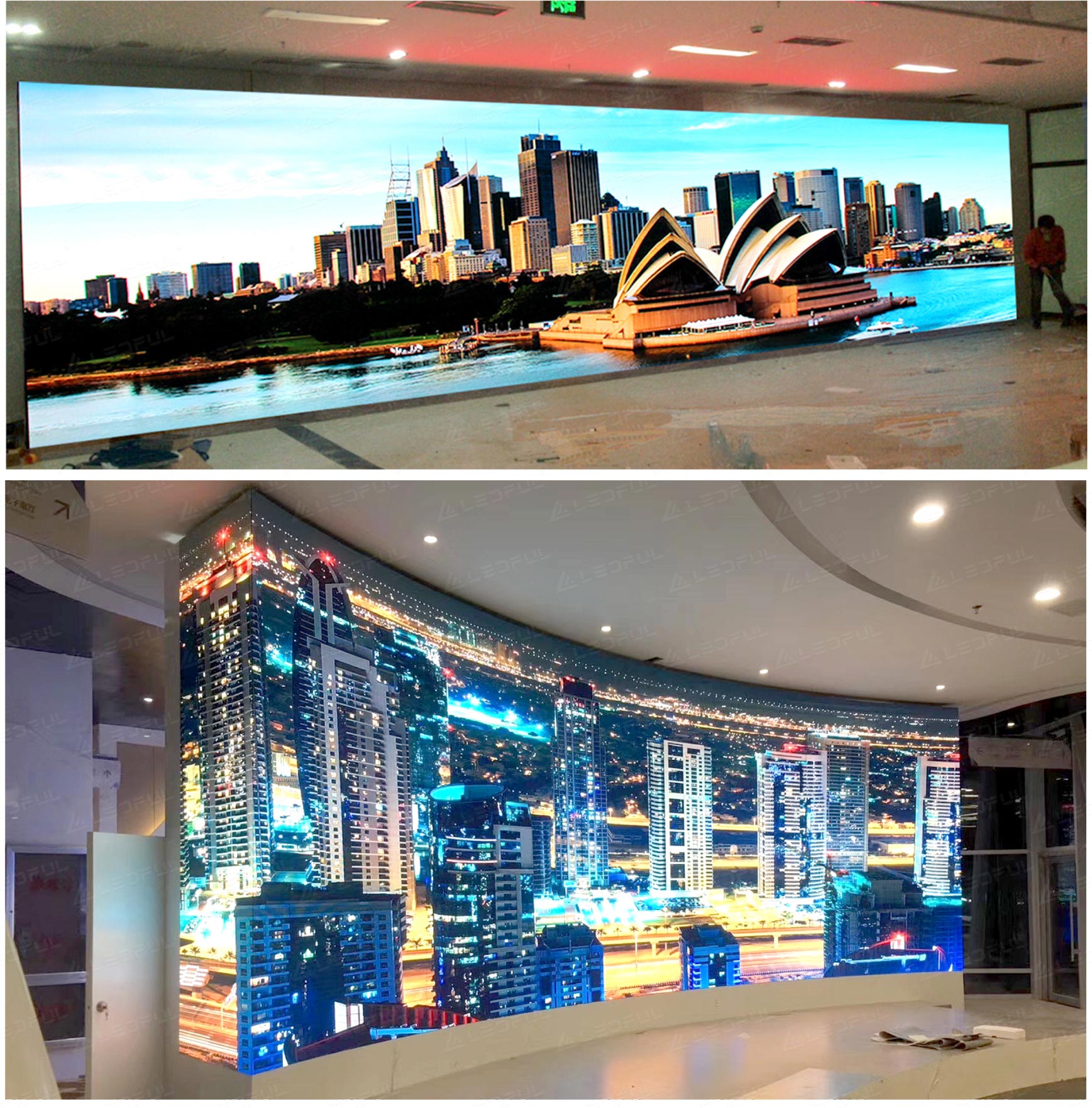

U Pro Beautiful Cases
U Pro Beautiful Cases
Features
Features
