SPoster Series

S-Shaped Flexible LED Poster

Features & Advantages
Features & Advantages

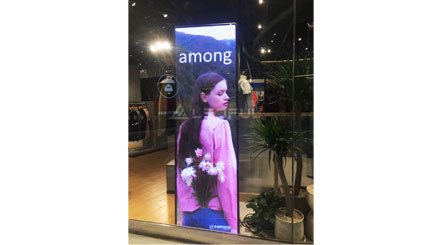

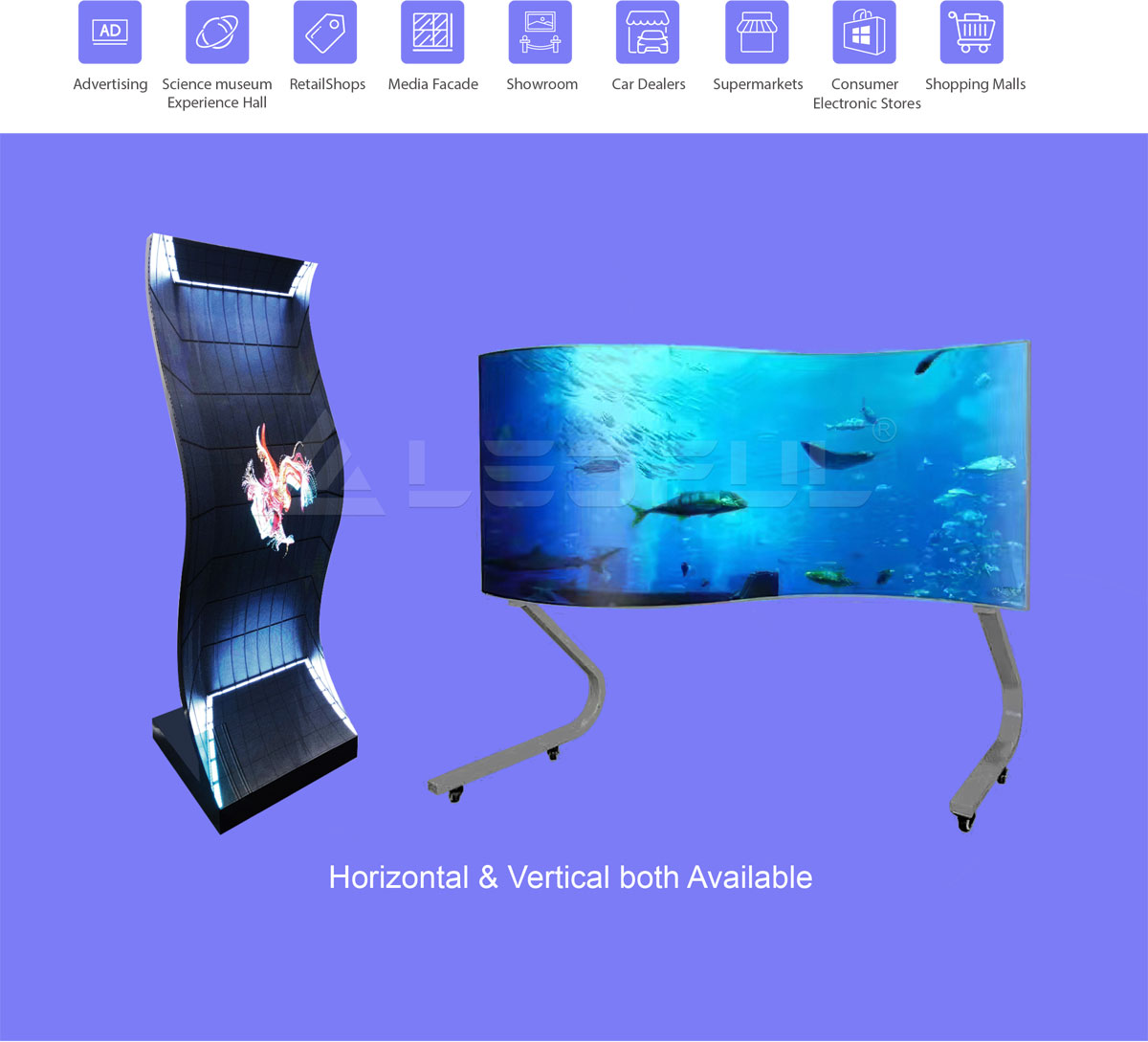

Applications
Applications
Specification
Model SPoster-1.2 SPoster-1.5 SPoster-1.6 SPoster-1.8 SPoster-2 SPoster-2.5
Pixel Pitch(mm) 1.25 1.579 1.667 1.875 2 2.5
Screen Size 600x1920mm or 1920x600mm (W x H)
Screen Resolution 480x1536 380x1215 360x1152 320x1024 300x960 240x768
Pixel Configuration SMD1010 SMD1010 / SMD1212 SMD1010 / SMD1212 SMD1212 / SMD1515 SMD1515 SMD1515
Brightness (nits) ≥600 ≥650 ≥700 ≥750 ≥750 ≥750
Scan 1/48 1/38 1/36 1/32 1/30 1/24
Module Dimension 240x120mm / 0.79x0.39ft
Module Material Silicon Rubber Soft Bracket
Power Con. (Max / Avg) 1000W / 340W 1000W / 340W 800W / 270W 800W / 270W 800W / 270W 800W / 270W
Service Access Front Front Front Front Front Front
Refresh Rate (HZ) 3840 3840 3840 ≥2880 ≥2880 ≥1920
Grey Scale (bit) 14 14 14 14 14 14
Viewing Angle (H/V) 140 / 140 140 / 140 140 / 140 140 / 140 140 / 140 140 / 140
IP Rate IP45 IP45 IP45 IP45 IP45 IP45
Operation Temperature -10° ~ 50° -10° ~ 50° -10° ~ 50° -10° ~ 50° -10° ~ 50° -10° ~ 50°
Input Voltage (AC) 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V

* Specifications and photos are subject to change without prior notice.

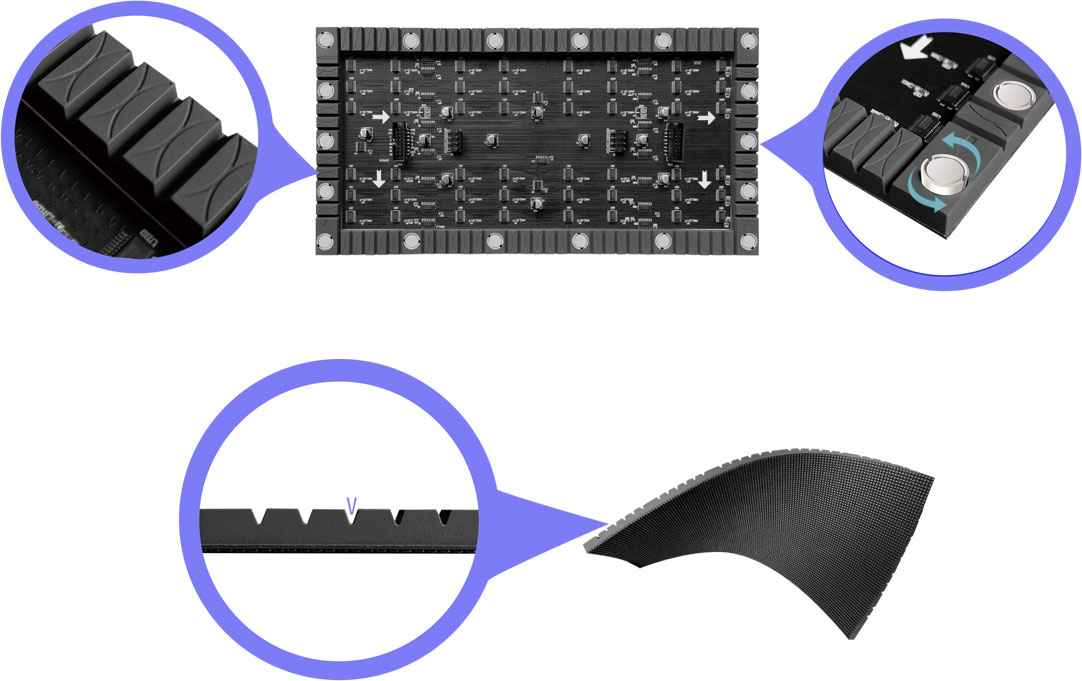

Flexible LED Modules
· X texture design enhances adhesion
· Magnet front service & Easy to maintain
· Deep V-shape design with better ability to bend
Flexible LED Modules

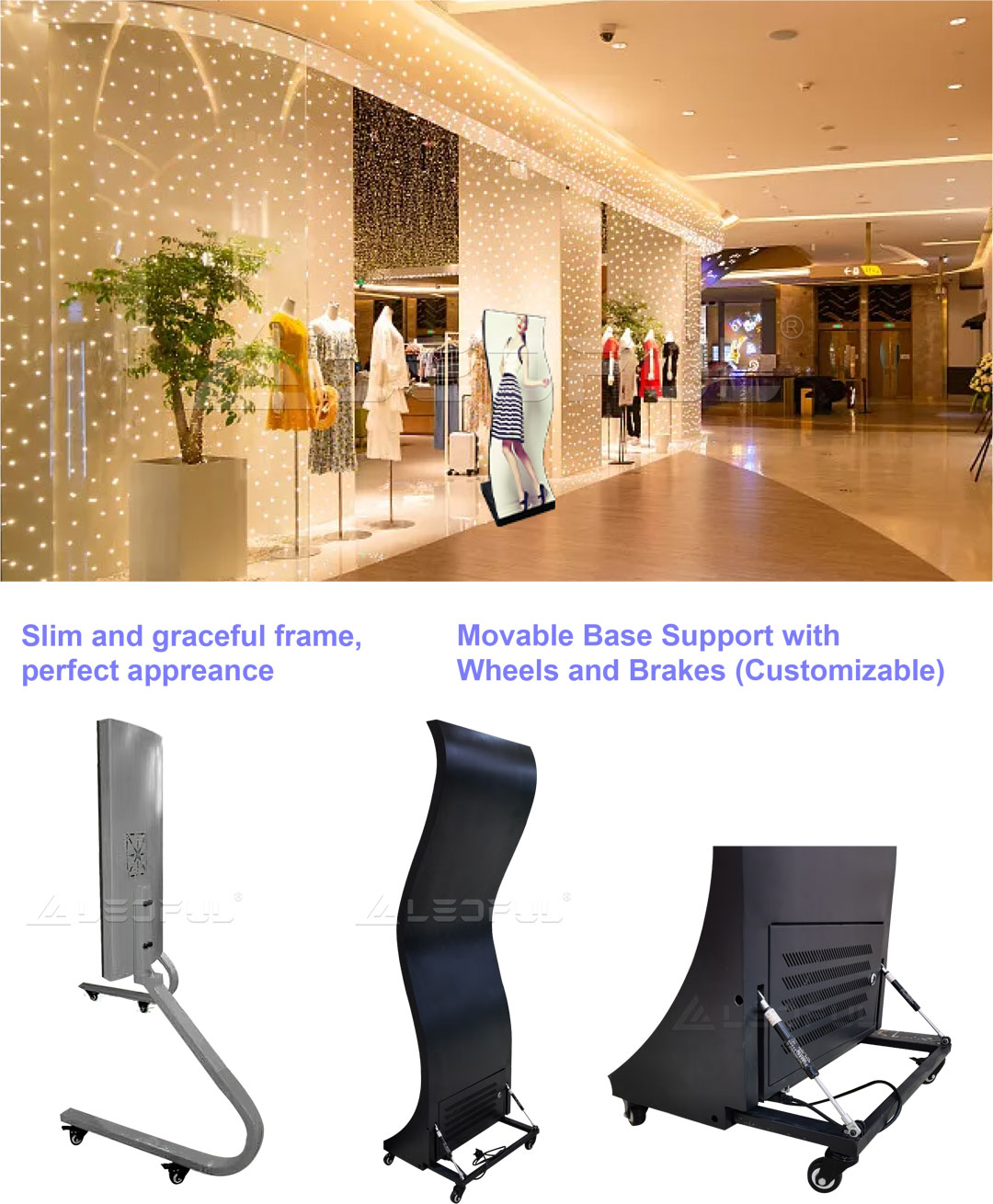

Plug and Plug, One-stop Solution
Plug and Plug, One-stop Solution

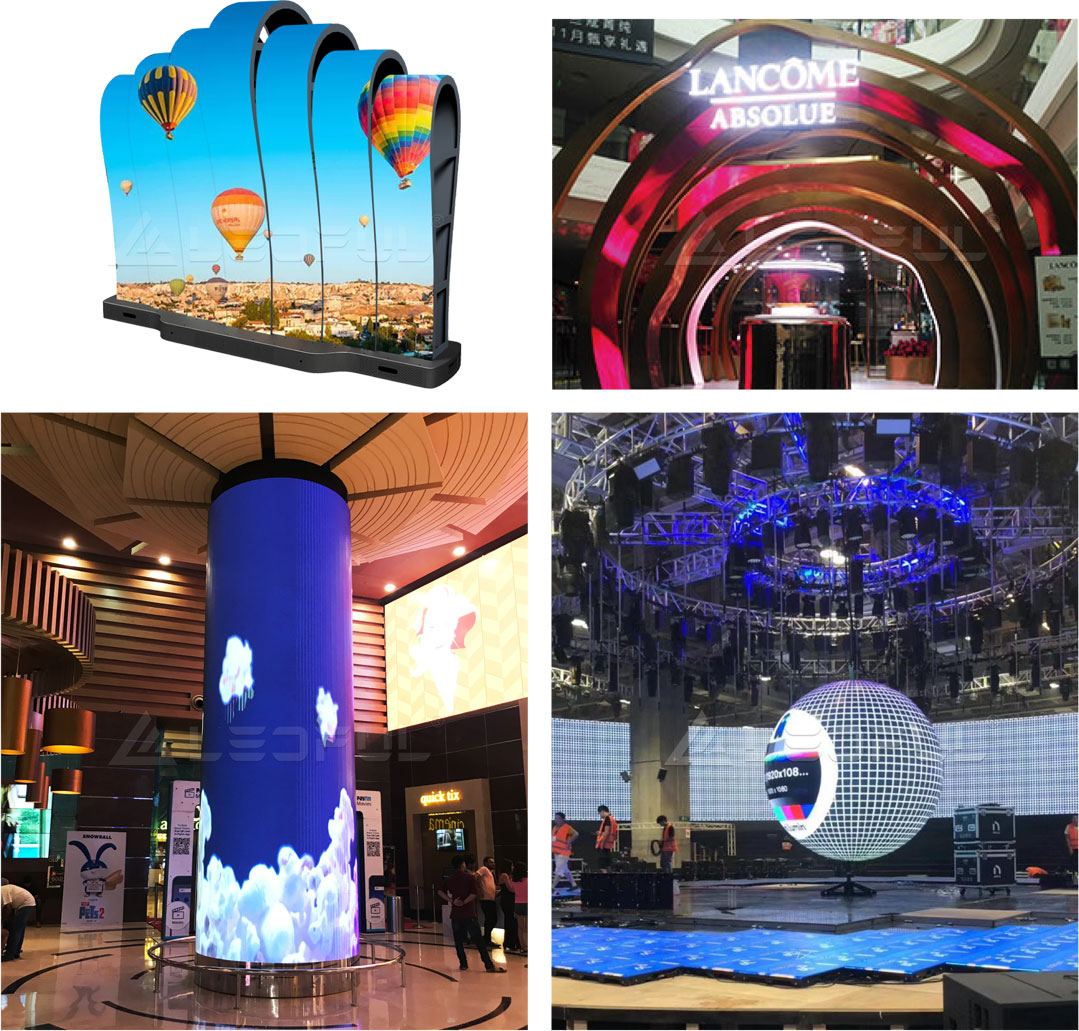

Other Designs
Other Designs
Features
Features
