M Series

The Newest Full Front Service for Rental

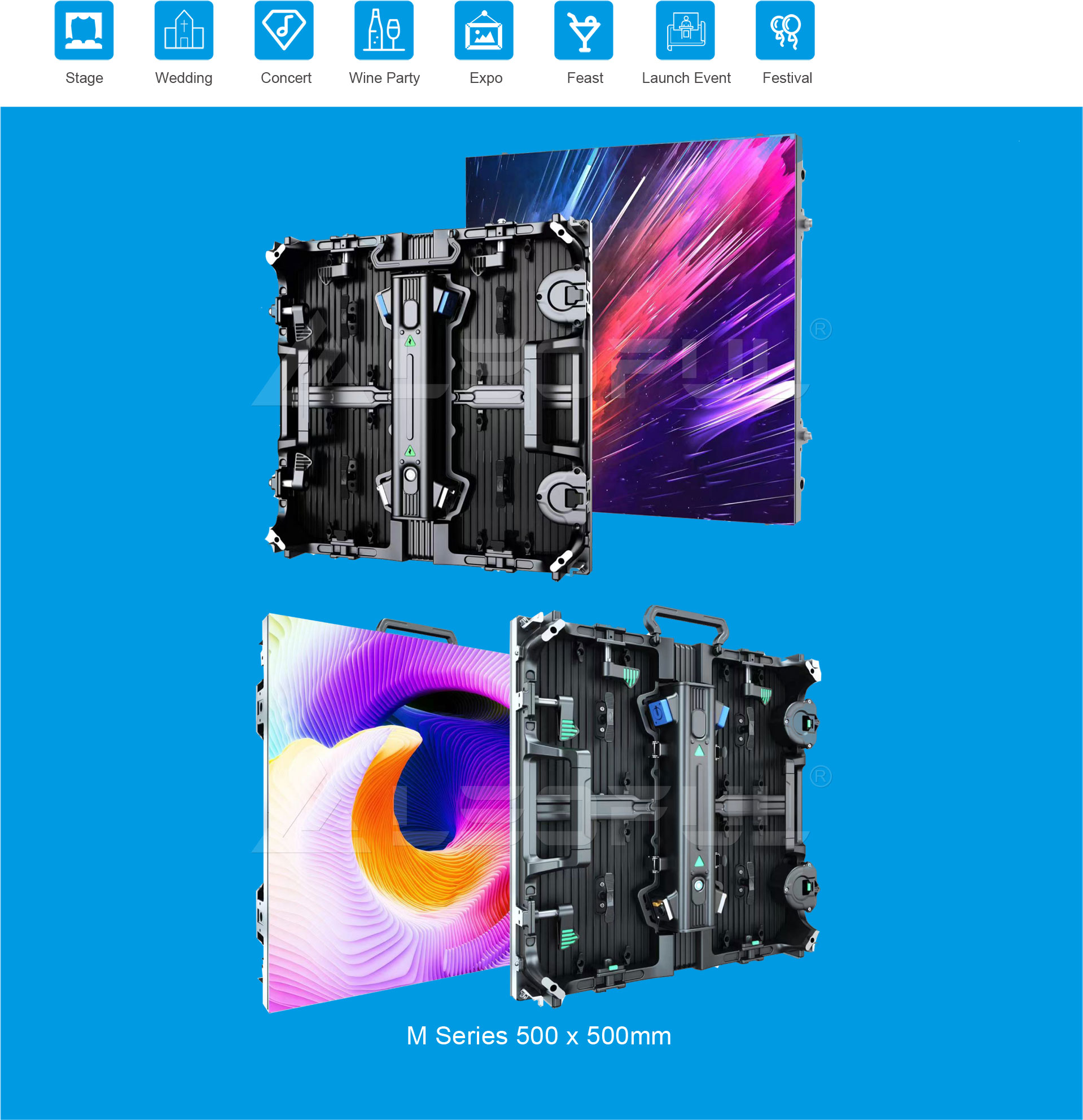

Applications
Applications
Specification
Model MI2.5 MI2.6 MI2.9 MI3.9
Pixel Pitch(mm) 2.5 2.6 2.9 2.9
Pixel Matrix Per Sq.m 160,000 147,456 112,896 112,896
Pixel Configuration SMD1515 SMD1515 SMD1515 SMD1515
Brightness (cd/㎡) 1000 1000 1000 1000
Scan 1/25 1/32 1/28 1/28
Module Dimension 250X250mm 250X250mm 250X250mm 250X250mm
Cabinet Dimension 500x500mm / 1.64x1.64ft 500x500mm / 1.64x1.64ft 500x500mm / 1.64x1.64ft 500x500mm / 1.64x1.64ft
Cabinet Material Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum
Cabinet Weight 7.5kg 7.5kg 7.5kg 7.5kg
Power Con.(W/㎡) (Max / Avg) 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W
Service Access Full Front / Rear Full Front / Rear Full Front / Rear Full Front / Rear
Refresh Rate (HZ) 3840 3840 3840 3840
Grey Scale (bit) ≥16 ≥16 ≥16 ≥16
Viewing Angle (H/V) 160°/160° 160°/160° 160°/160° 160°/160°
IP Rate IP43 IP43 IP43 IP43
Input Voltage (AC) 110V / 240V 110V / 240V 110V / 240V 110V / 240V
* Specifications and photos are subject to change without prior notice.

Model MO2.6 MO2.9 MO3.9 MO4.8
Pixel Pitch(mm) 2.6 2.9 3.9 4.8
Pixel Matrix Per Sq.m 147,456 112,896 65,536 43,264
Pixel Configuration SMD1415 SMD1415 SMD1921 SMD1921
Brightness (cd/m2) 4000 4000 4000 4000
Scan 1/32 1/21 1/16 1/13
Module Dimension 250X250mm 250X250mm 250X250mm 250X250mm
Cabinet Dimension 500x500mm / 1.64x1.64ft 500x500mm / 1.64x1.64ft 500x500mm / 1.64x1.64ft 500x500mm / 1.64x1.64ft
Cabinet Material Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum
Cabinet Weight 7.5kg 7.5kg 7.5kg 7.5kg
Power Con.(W/m2) (Max / Avg) 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W
Service Access Full Front / Rear Full Front / Rear Full Front / Rear Full Front / Rear
Refresh Rate (HZ) 3840 3840 3840 3840
Grey Scale (bit) ≥16 ≥16 ≥16 ≥16
Viewing Angle (H/V) 160°/160° 160°/160° 160°/160° 160°/160°
IP Rate IP65 IP65 IP65 IP65
Input Voltage (AC) 110V / 240V 110V / 240V 110V / 240V 110V / 240V
* Specifications and photos are subject to change without prior notice.

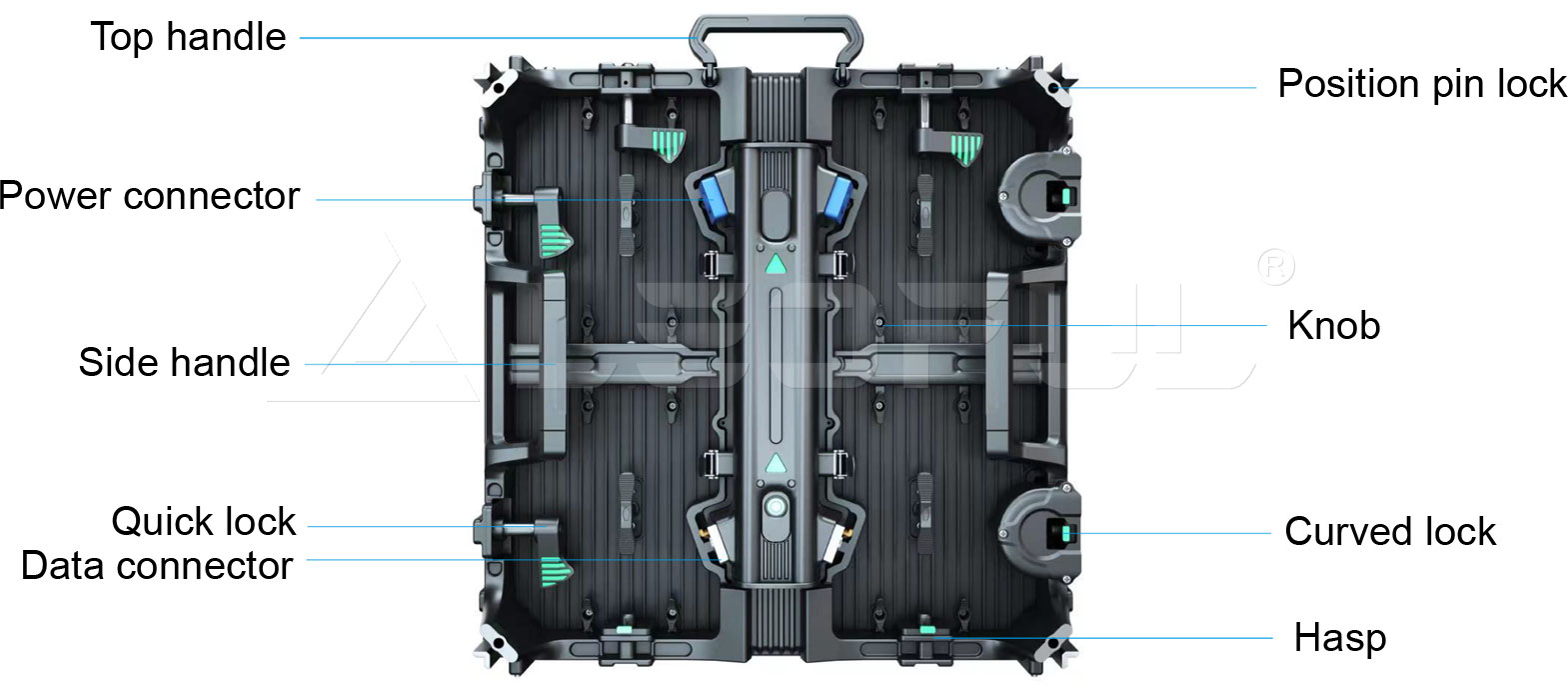

Specification

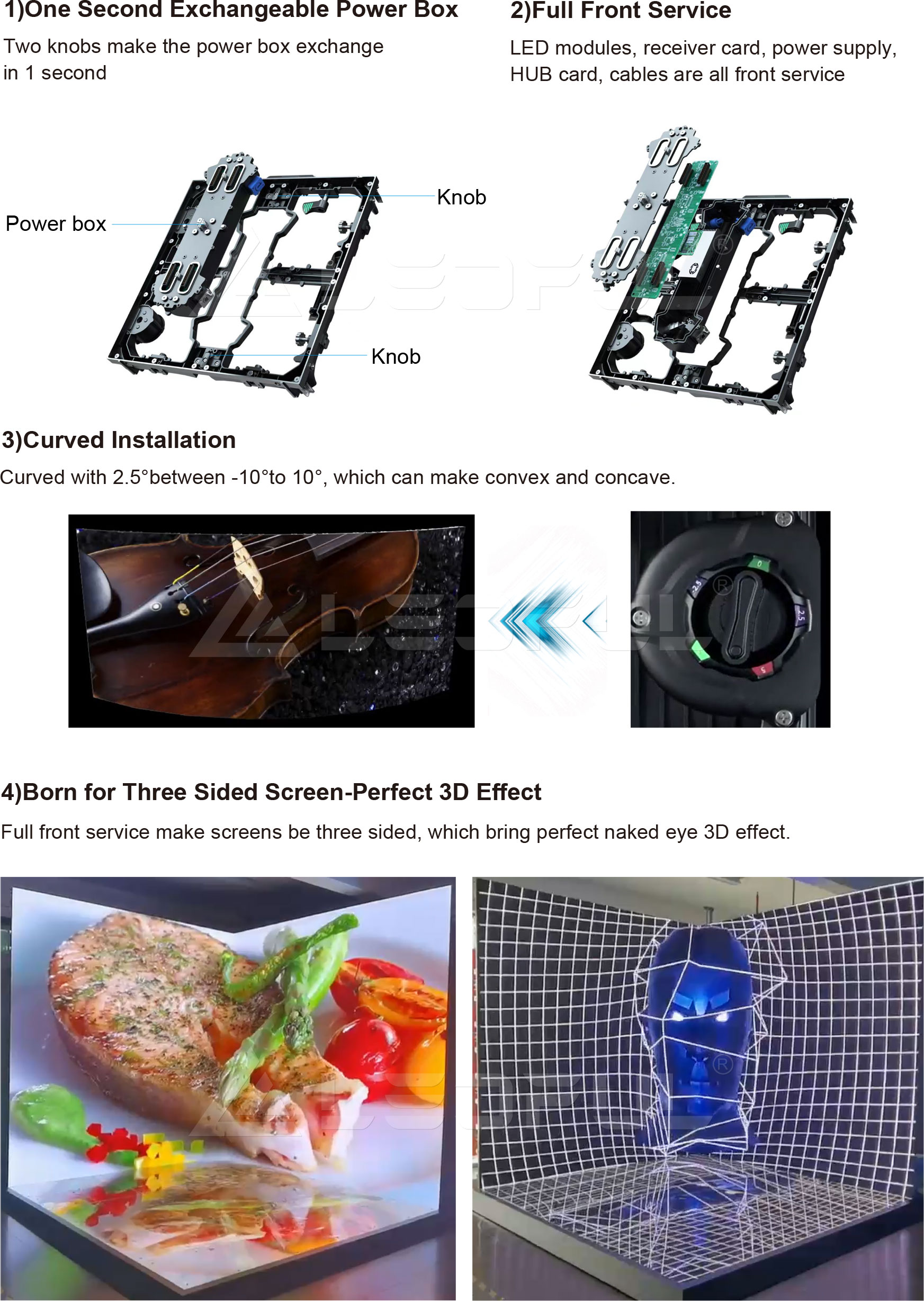

M Series Rental Cabinet Design
M Series Rental Cabinet Design

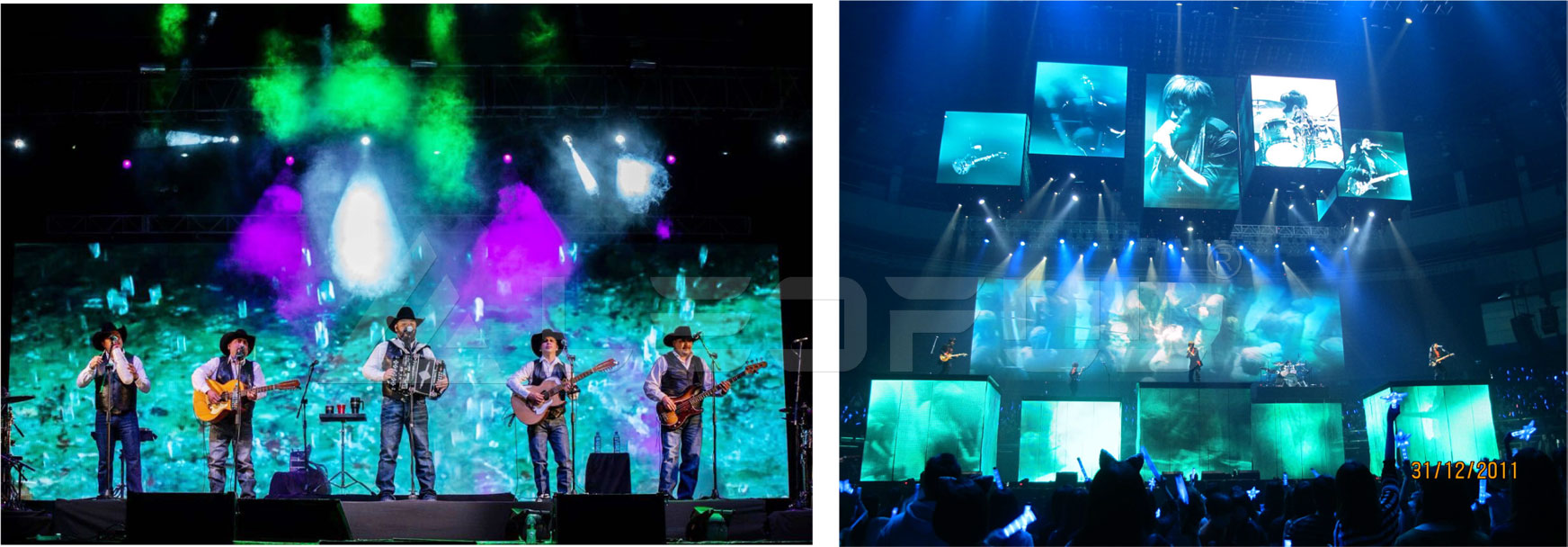

Typical Project Show
Typical Project Show
Features
Features
