LPoster Plus

A Wider Brighter Audio LED Poster

Application
Application
Parameter
LPoster Plus Value LPoster Plus 1.8 LPoster Plus 2 LPoster Plus 2.5
1000
LPoster Plus 2.5
2000
LPoster Plus 2.5
5000
Pixel Pitch(mm) 1.86 2 2.5 2.5 2.5
Pixel Matrix Per Sq.m 288,888 250,000 160,000 160,000 160,000
Pixel Configuration SMD1515 SMD1515 SMD1515 / SMD2121 SMD2121 Black
&High Brightness
SMD1921
Scan 1/43 1/40 1/32 1/32 1/32
Power Con.(Max/Avg) 1800 / 360 W 1800 / 360 W 1800 / 360 W 1800 / 380 W 1800 / 400 W
Resolution(997/657/1297) (516/344/688) x 1032 (480/320/640) x 960 (384/256/512) x 768 (384/256/512) x 768 (384/256/512) x 768
Receiver Card A9S A9S A7S A7S A7S
Brightness (nits) 1000 1000 1000 2000 (Shop window,
face outside but in the
shade) Contrast 8000:1
5000 (Shop window,
face sunlight directly)
Contrast 3000:1

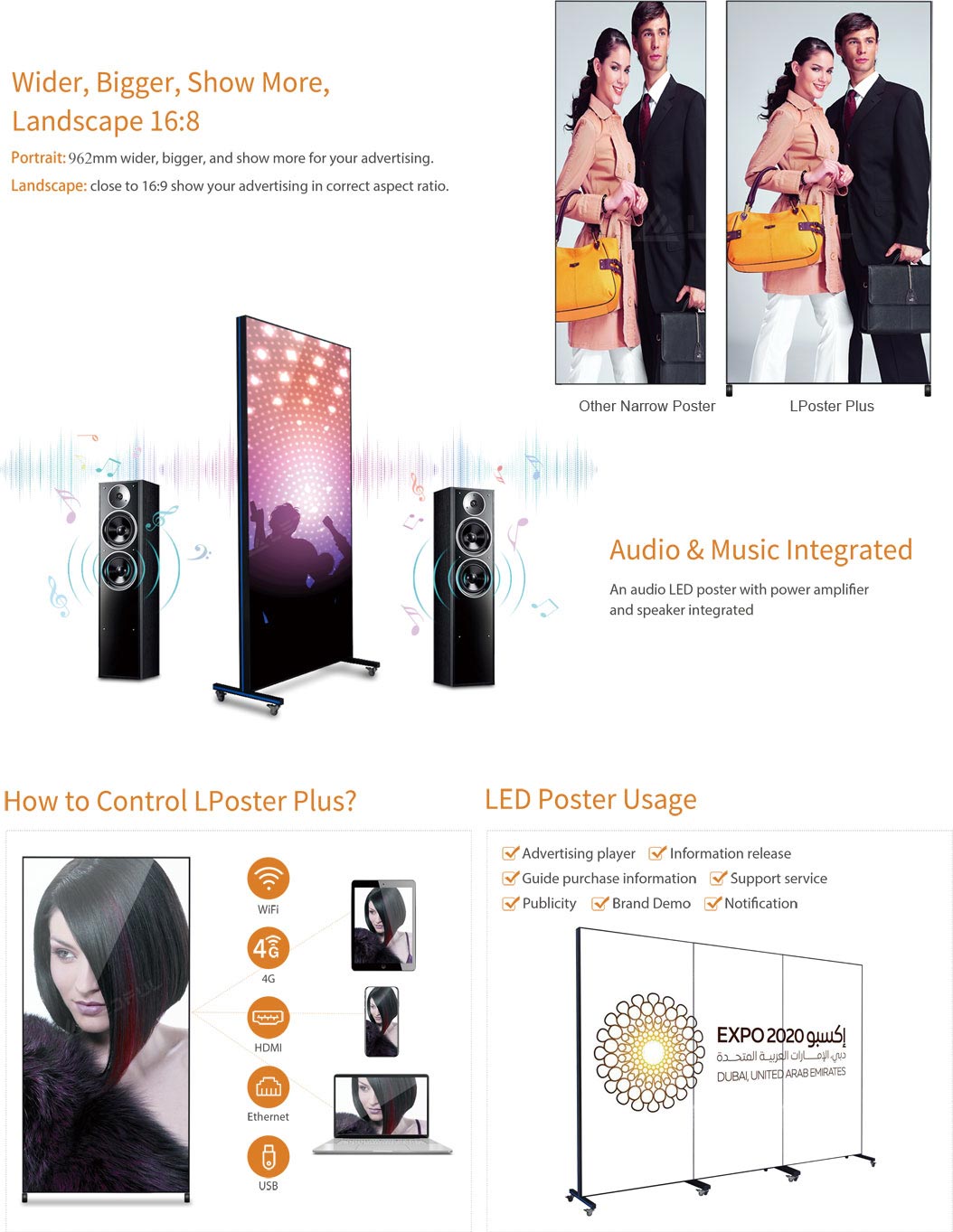

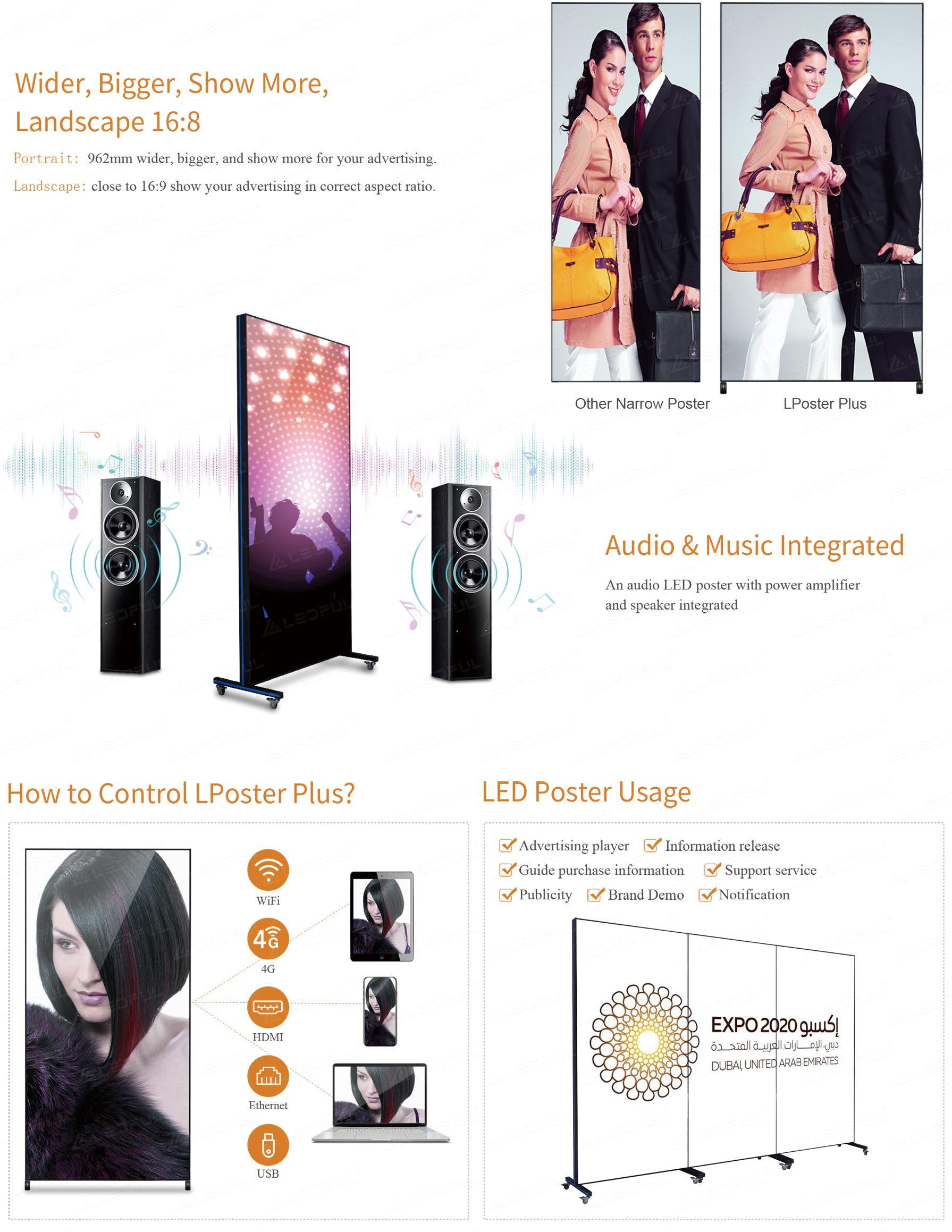

Born for Shop Window LPoste Plus 1.8/2/2.5mm with 977/657/1297mm wide & 1000/2000/5000 high brightness make Shop Window in infinite solutions.
Audio & Music Integrated Amplifer and Speaker Integrated (an Audio LED Poster)
Power Supply Meanwell
Material CNC Aluminum Profle with 0.01 mm tolerance
User Experience Plug & Play & Enduser Level
Default Installation Simplified & Stable Movable Standing Base Support

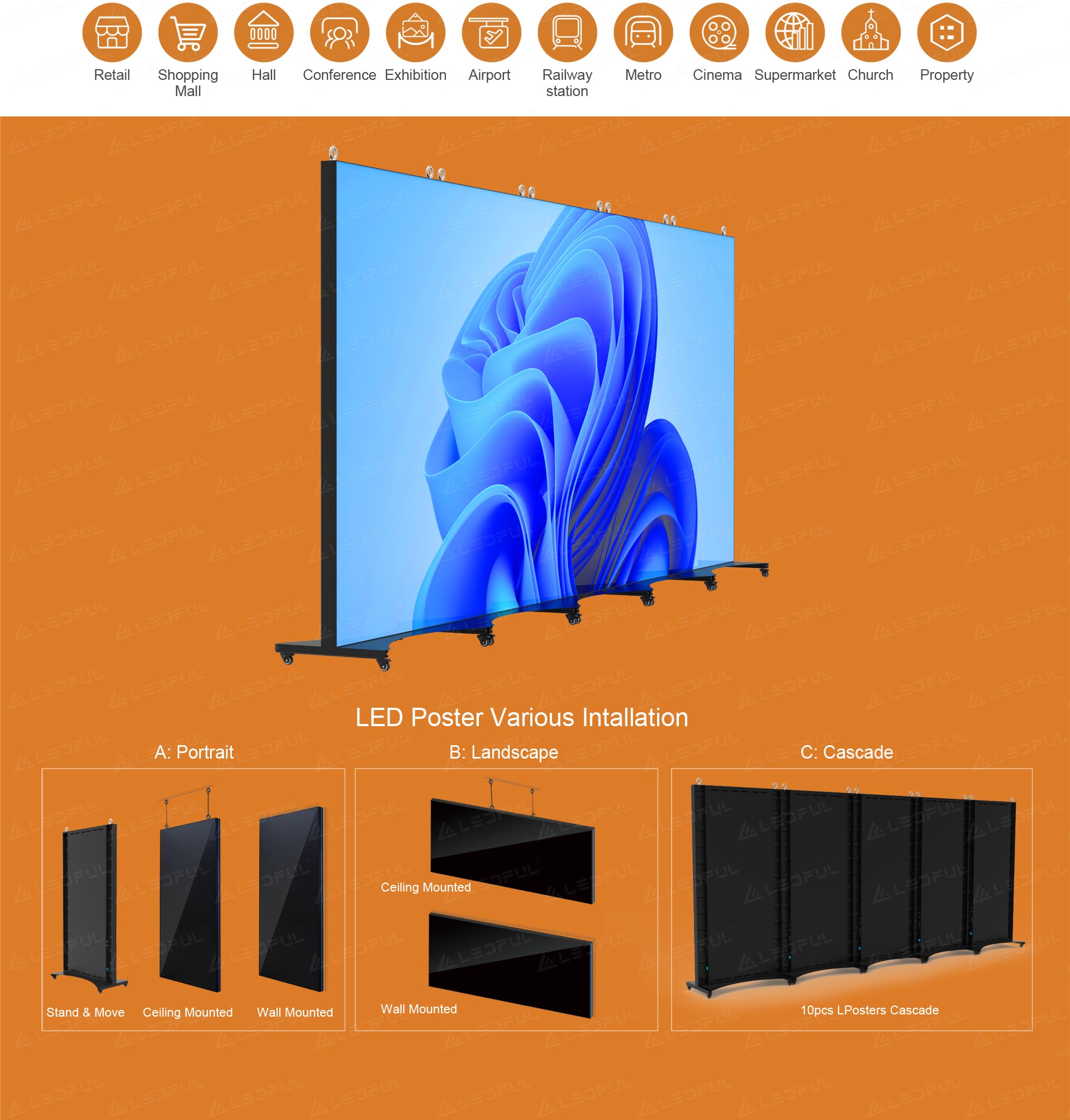

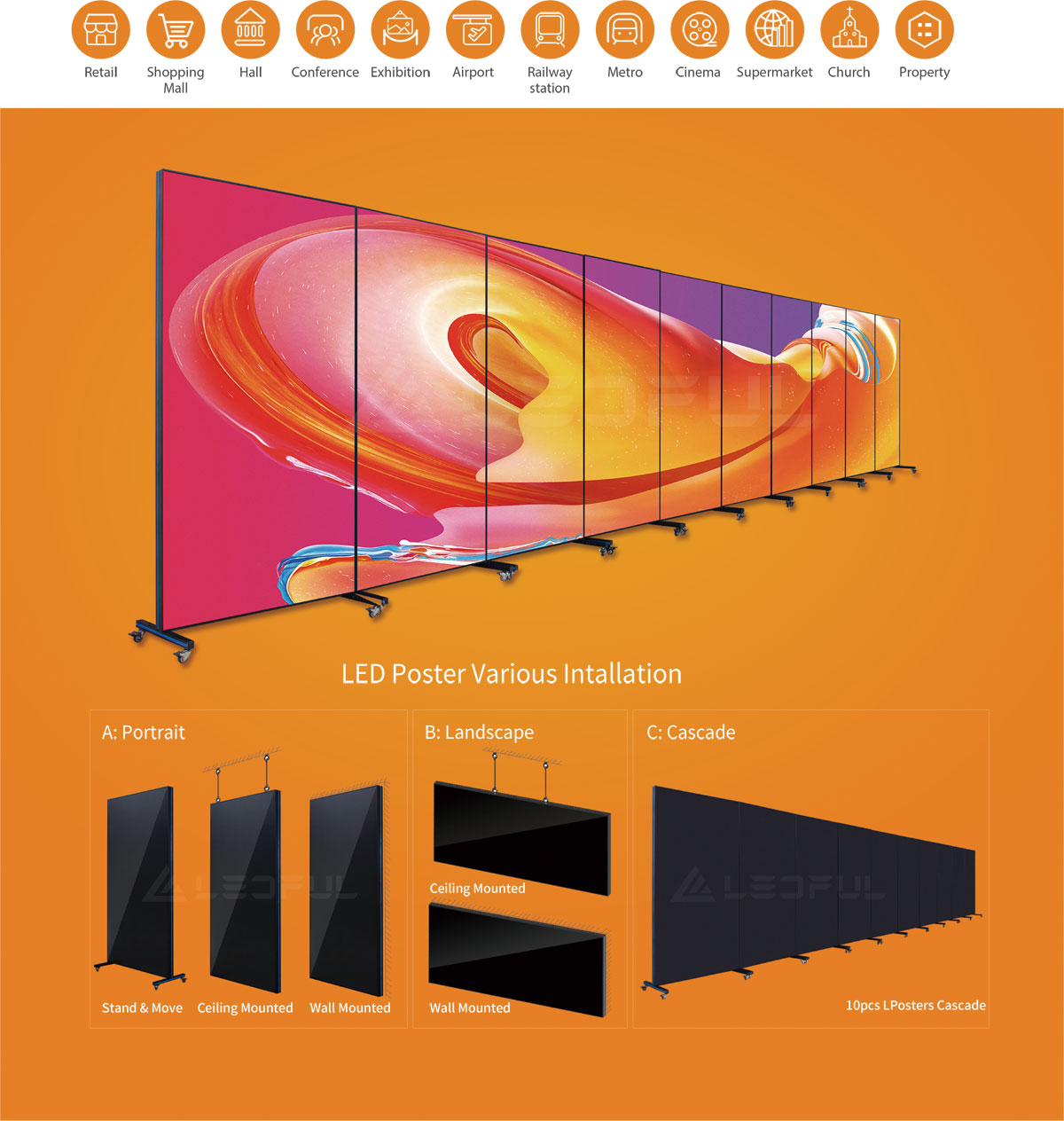

Various Installation Standing, Hanging, Wall Mounted, Rental, Cascade (All Optional)
Aspect Ratio (977 option) Portrait 1:2 or Landscape 2:1 (close to16:9)
Module Dimension 320x160mm / 1.05x0.52ft
Display Dimension 960/ 640/ 1280 x 1920mm OR3.15/2.1 /4.2x 6.3ft
LPoster Plus Dimension 977 / 657/ 1297 x1937x69mm OR 3.21 /2.16/ 4.26 x6.35x0.23ft (Wider, Bigger & Show More)
Weight (977/657/1297) 49/35/ 65 kg
Refresh Rate (HZ) 3840 (High-end Driving IC achieve REAL high refresh 3840hz)
Frame Color Red, Blue, Green, Yellow, White, Black
Appearance Design Elegant and Grand, Clean and Clear
Service Access Rear Service
Protective Package Flight Case 1-in-1, 2-in-1, 3-in-1, 4-in-1
Control System Media Player with 8G Capacity
LPoster PORT USB, Config, Ethernet, WiFi, WiFi-St*, 4G*, HDMI in, HDMI out* (*Optional)
Control Ways APP in i0S/Andriod or Software in Windows/MAC
PVC Cover Slide installation* (*Optional)
Grey Scale (bit) 16
Viewing Angle (H/V) 140/ 140
IP Rate P45
Input Voltage (AC) 110/ 220
LPoster Usage Advertising player, Information release, Guide purchase information, Support service, Publicity, Brand Demo, Notification
LPoster Application Retail, Shopping Mall, Hall, Conference, Exhibition, Airport, Railway station, Metro, Cinema, Church, Supermarket, Property

* Specifications and photos are subject to change without prior notice.
Parameter

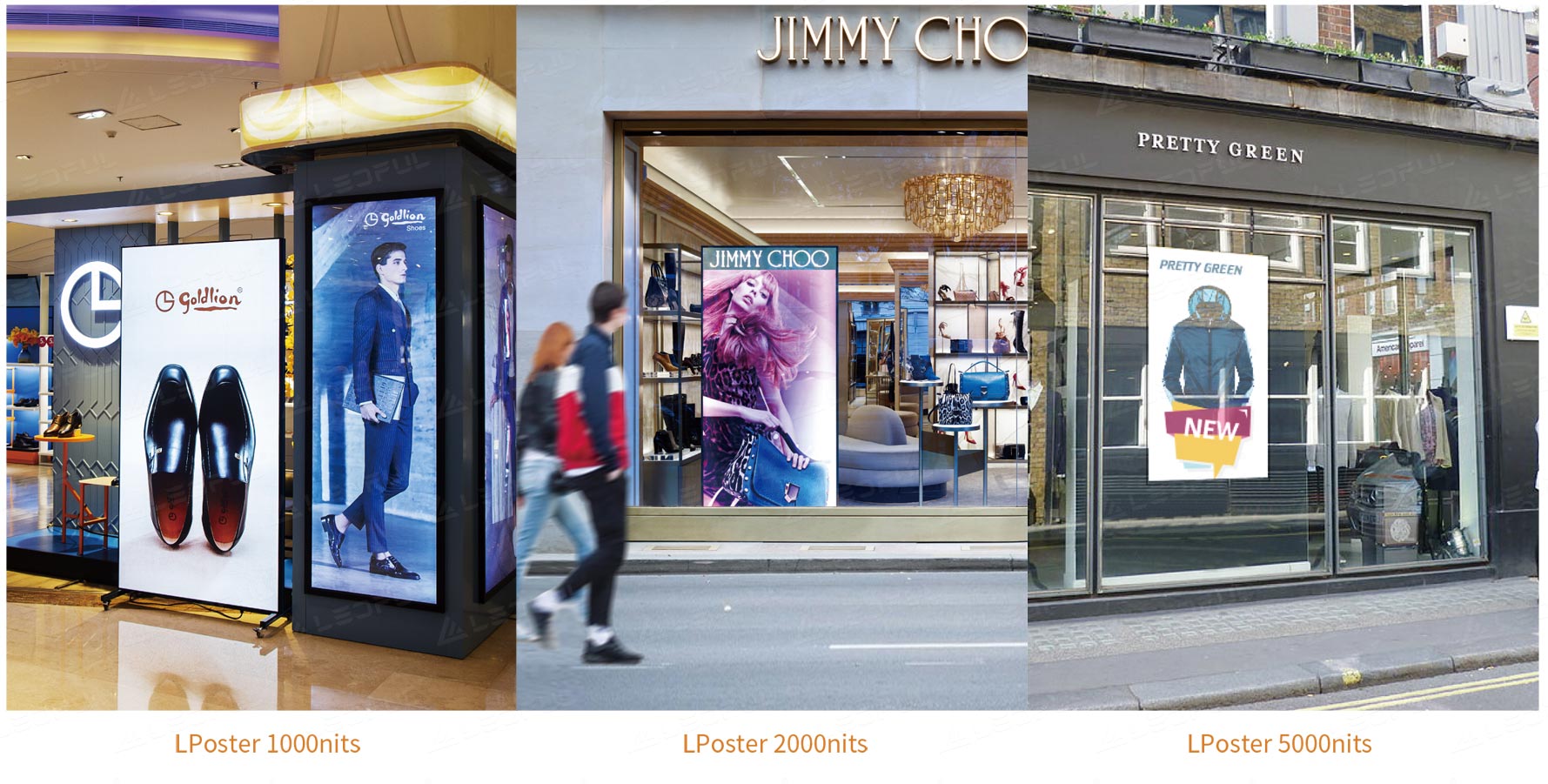

High Brightness 5000, 2000, 1000nits
( Born for Retail Shop Window )
1000nits for Indoor, 2000nits face outside but in the shade, 5000nits face sunlight directly.
High Brightness 5000, 2000, 1000nits

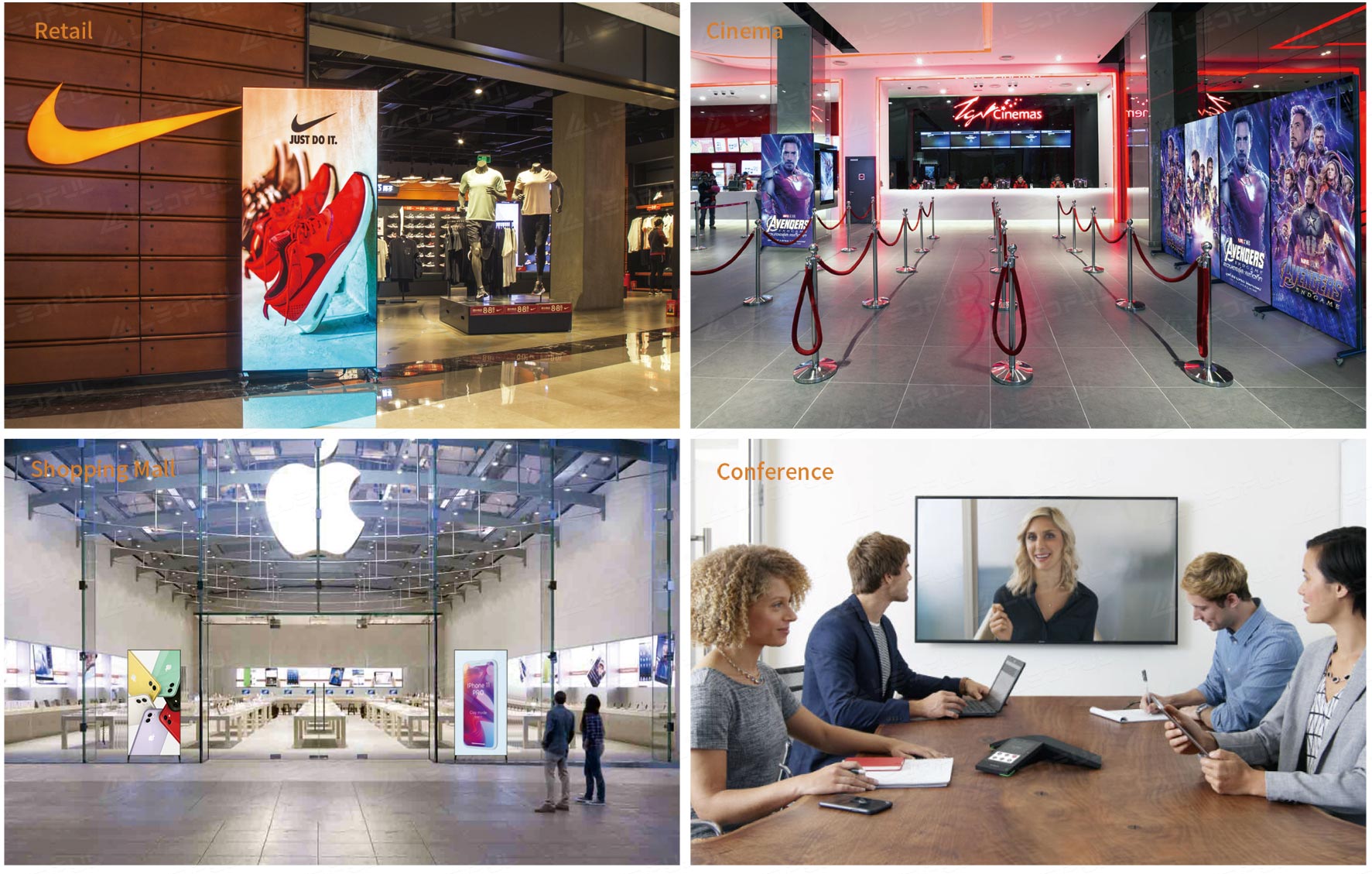

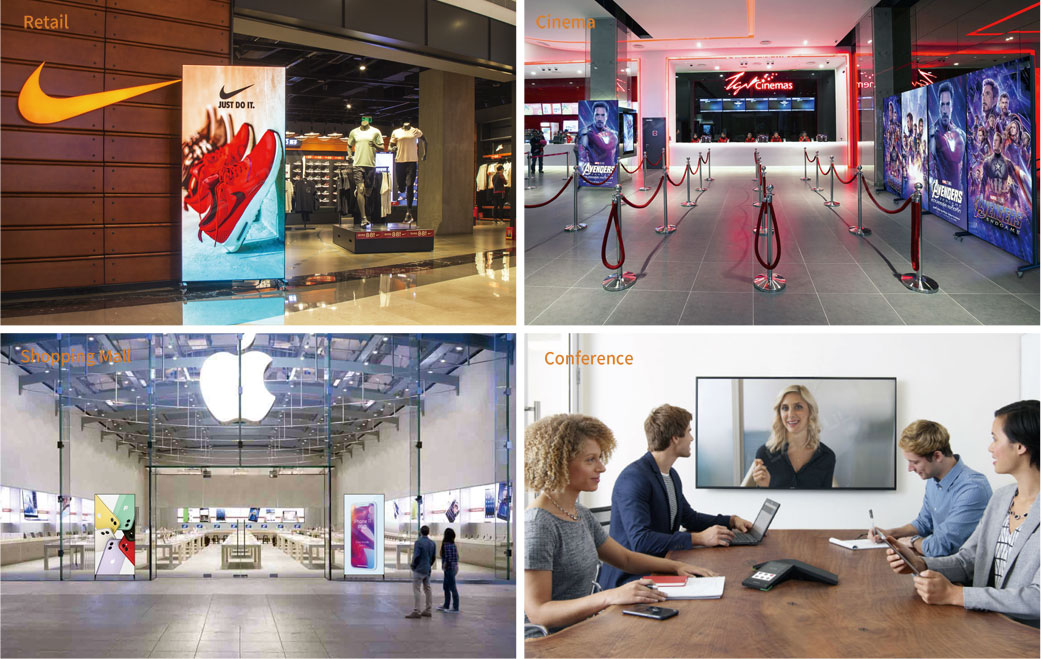

Project Case
Project Case
