QS Series
Video Wall·Wall Mounted·Front Installation·Full Front Service
QS1.8S | QS1.8 | QS2 | QS2.5 | QS3
-
Front Installation
-
Full Front Service
-
Black SMD LED
-
Die Casting Aluminum
-
Cabinet Ratio 8:9
-
Light and Thin
Parameter
Value
|
QS1.8S
|
QS1.8
|
QS2
|
QS2.5
|
QS3
|
Pixel Pitch(mm)
|
1.875
|
1.875
|
2
|
2.5
|
3
|
Pixel Matrix Per Sq.m
|
284,444
|
284,444
|
250,000
|
160,000
|
111,111
|
Pixel Configuration
|
SMD1515
|
SMD1515
|
SMD1515
|
SMD1515
|
SMD2121
|
Brightness (nits)
|
1300
|
1300
|
1300
|
1300
|
1300
|
Scan
|
1/32
|
1/32
|
1/30
|
1/24
|
1/30
|
Cabinet Resolution
|
256x256
|
256x288
|
240x270
|
192X216
|
160X180
|
Power Con. (Max / Avg)
|
500/150 w/sq.m
|
500/150 w/sq.m
|
Module Dimension
|
240x240mm
|
240x180mm / 0.79x0.59ft
|
Cabinet Weight
|
6kg
|
6.5kg / 14.33Ib ( Die-casting Aluminum)
|
Cabinet Dimension
|
480x480mm
|
480x540mm / 1.57x1.77ft
|
Service Access
|
Full Front
|
Full Front
|
Refresh Rate (HZ)
|
3840
|
1920 / 3840
|
Grey Scale (bit)
|
16
|
16
|
Viewing Angle (H/V)
|
160 / 160
|
160 / 160
|
IP Rate
|
IP43
|
IP43
|
Input Voltage (AC)
|
110V / 240V
|
110V / 240V
|
* Specifications and photos are subject to change without prior notice.

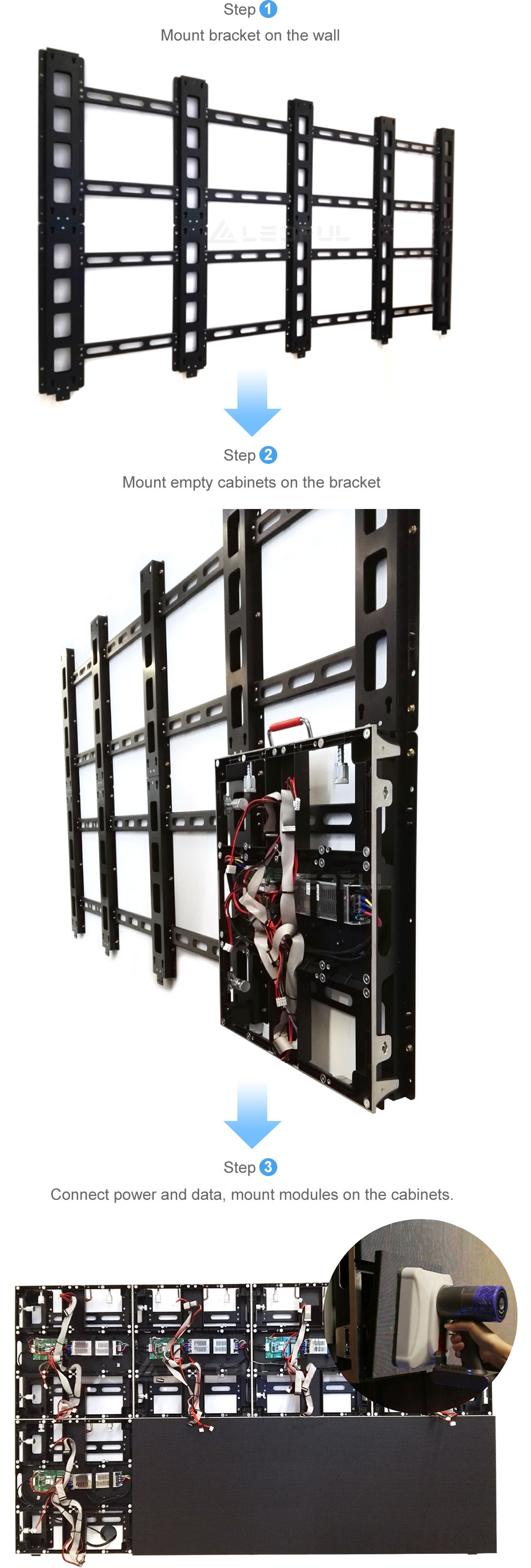

How to install LED cabinets in front side?

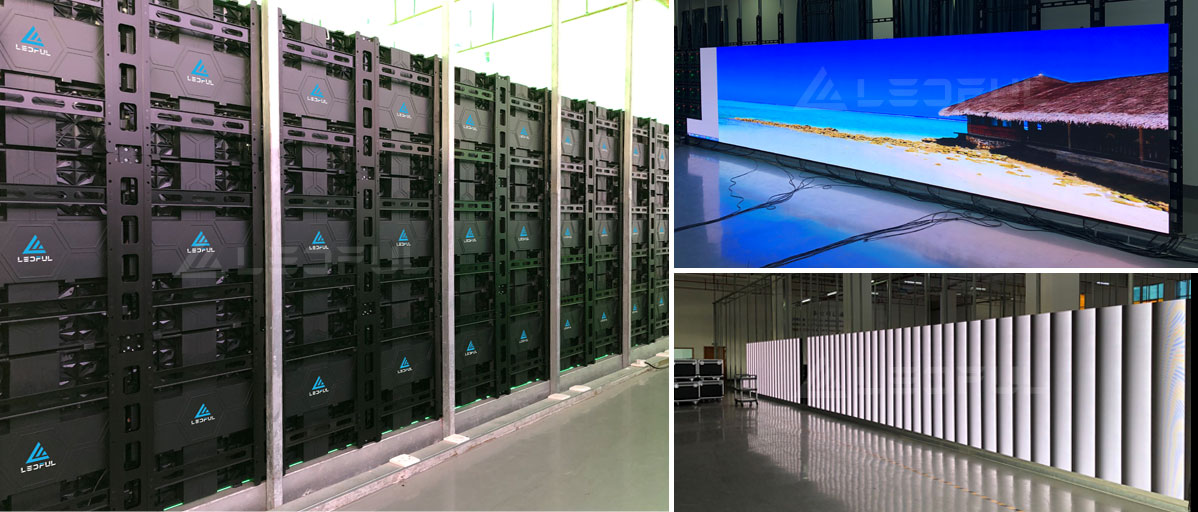

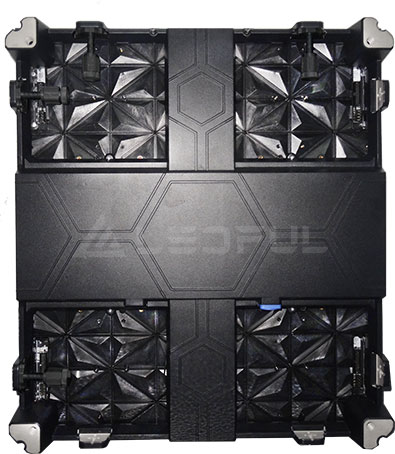

Back view with integrated structure frame and aging photos

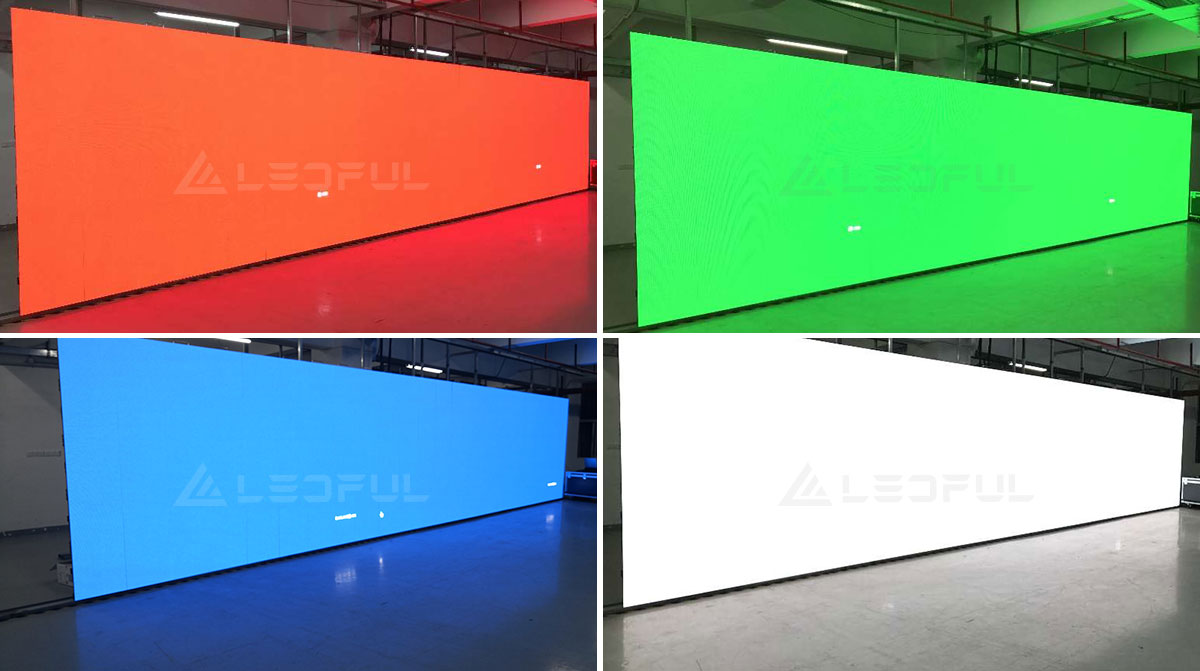

LED Display RGBW Color Aging Performance

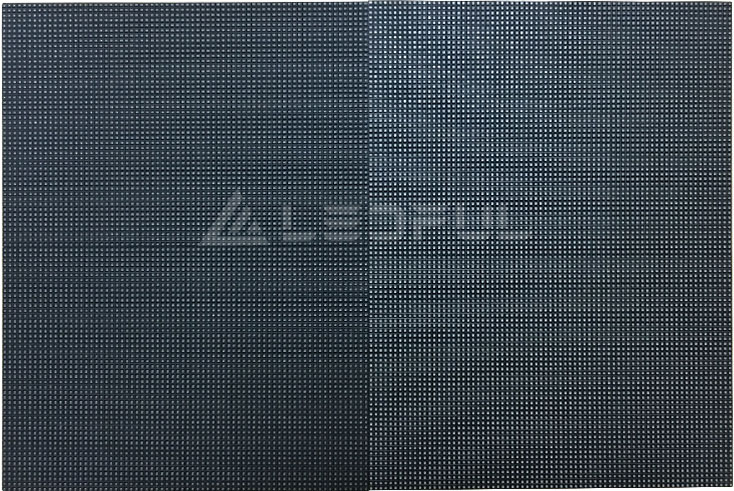

Black SMD LED
LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance.

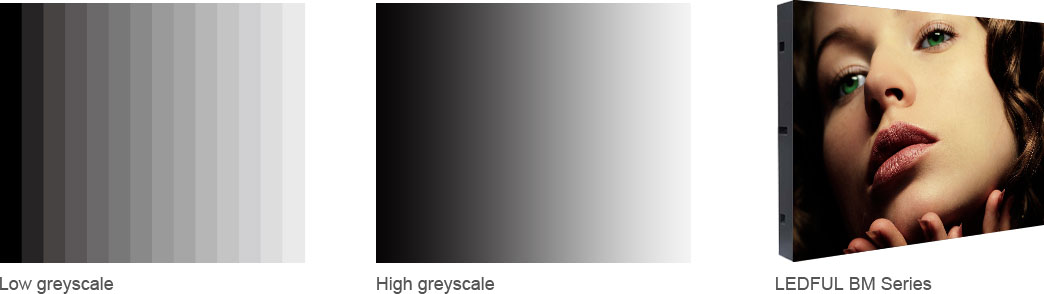

Low brightness with High grayscale
Low brightness with High grayscale to make the LED display in ultimate view performance
Ultra Wide Viewing Angle
Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.

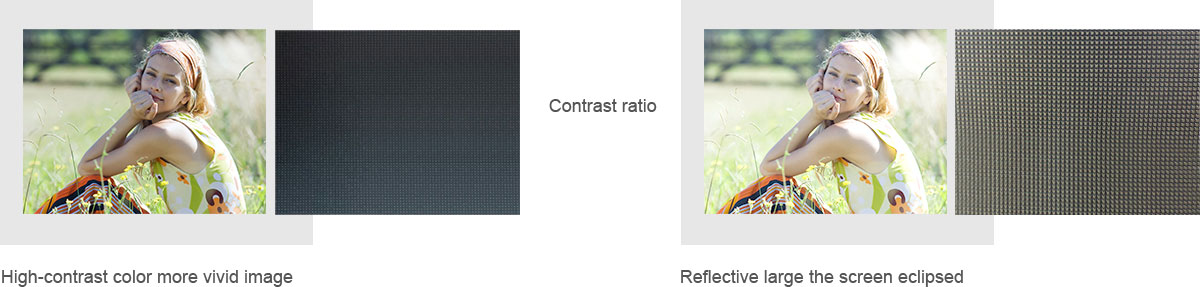

High Contrast Ratio
High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance
when works on the color and has very good contrast.

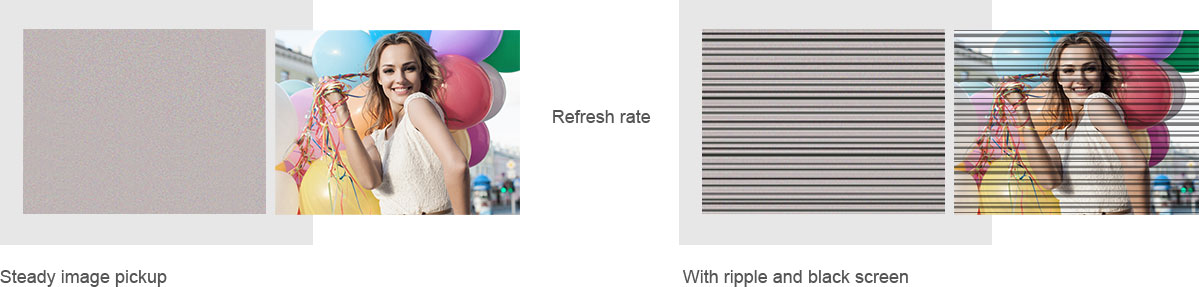

High Refresh Rate
It could be reach 3840HZ.
