IF Series

Indoor Fixed Advertising LED Display

IF Series
IF2.5 | IF3 | IF4 | IF5 | IF6
  • Black SMD LED makes perfect
  • Front maintenance & Front installation
  • Wifi, 4G, cloud, usb, remote control
  • Thin, light weight, easy installation
  • Low brightness with High grayscale operation

Parameter

Value IF2.5 IF2.5S IF3 IF4 IF5 IF6
Pixel Pitch(mm) 2.5 2.5 3 4 5 6
Pixel Matrix Per Sq.m 160000 160000 111111 62500 40000 27777
Pixel Configuration SMD2121 SMD1515 SMD2121 SMD2121 SMD2121 SMD3528
Brightness (nits) 1000 1000 1200 1200 1200 1200
Scan 1/32 1/32 1/32 1/16 1/16 1/16
Module Dimension 160x160mm / 0.53x0.53ft 320x160mm / 1.05x0.53ft 192x192mm / 0.63x0.63ft 256x128mm/ 0.84x0.42ft 320x160mm / 1.05x0.53ft 192x192mm / 0.63x0.63ft

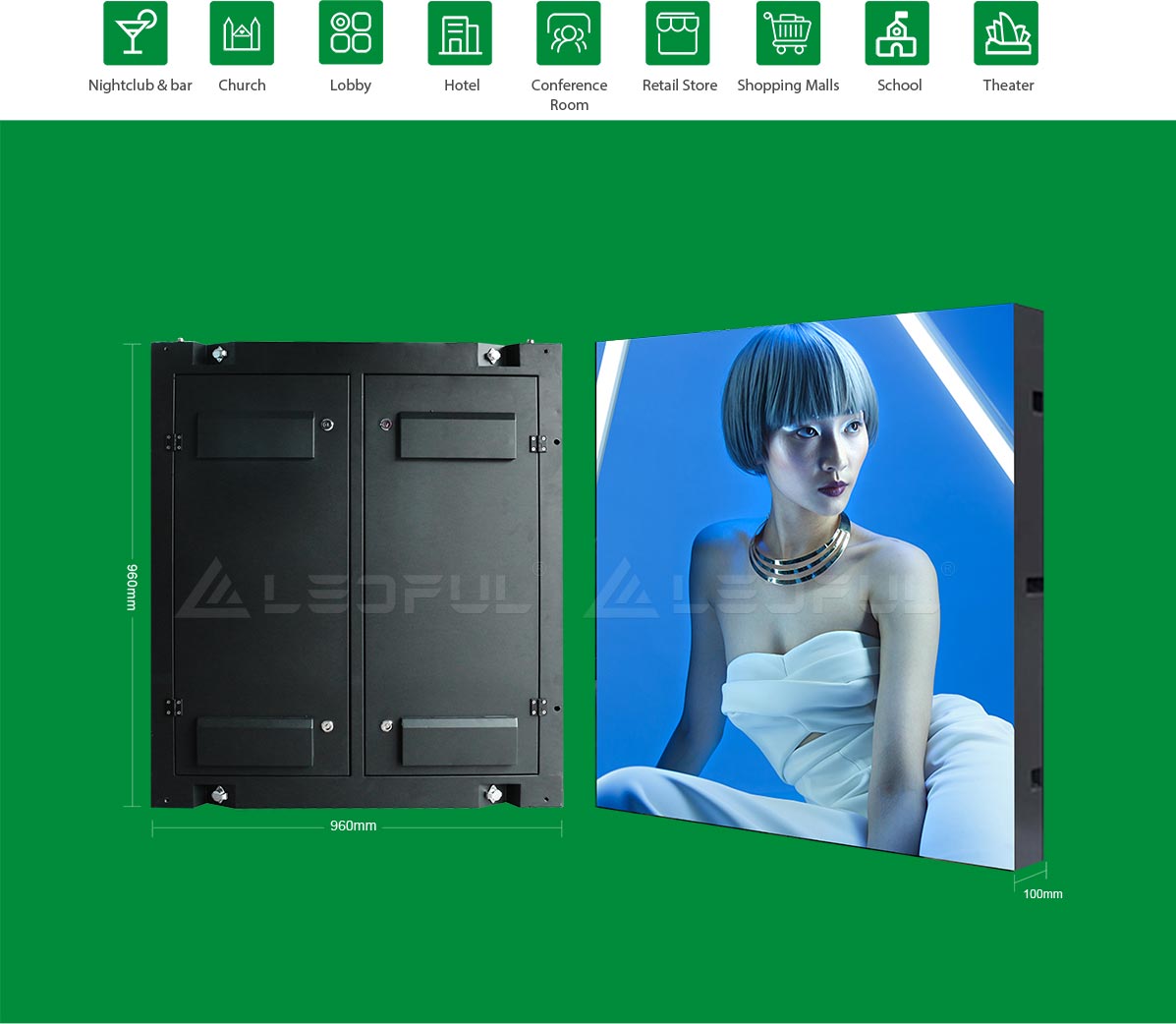

Cabinet Dimension 480x480mm / 1.57x1.57ft 640x640mm / 2.1x2.1ft 576x576mm / 1.89x1.89ft 768x768mm / 2.52x2.52ft 960x960mm / 3.15x3.15ft 960x960mm / 3.15x3.15ft
Cabinet Resolution 192x192 256x256 192x192 192x192 192x192 160x160
Cabinet Weight 7.6kg /17Ib ( Iron) 13kg / 30Ib (Iron) 11kg /24Ib (Iron) 19.5kg /43 Ib ( Iron) 29kg /64 Ib ( Iron) 28.8kg/63.5 Ib(Iron)
Power Con. (Max / Avg) 600 / 150 w/sq.m 600 / 150 w/sq.m 550 / 138 w/sq.m 600/ 150 w/sq.m 450/ 120 w/sq.m 350/ 100 w/sq.m
Refresh Rate (HZ) 3840 3840 3840 1920 1920 1920
Service Access Front / Rear
Grey Scale (bit) 16
Viewing Angle (H/V) 160 / 160
IP Rate IP31
Input Voltage (AC) 110V / 240V

* Specifications and photos are subject to change without prior notice.

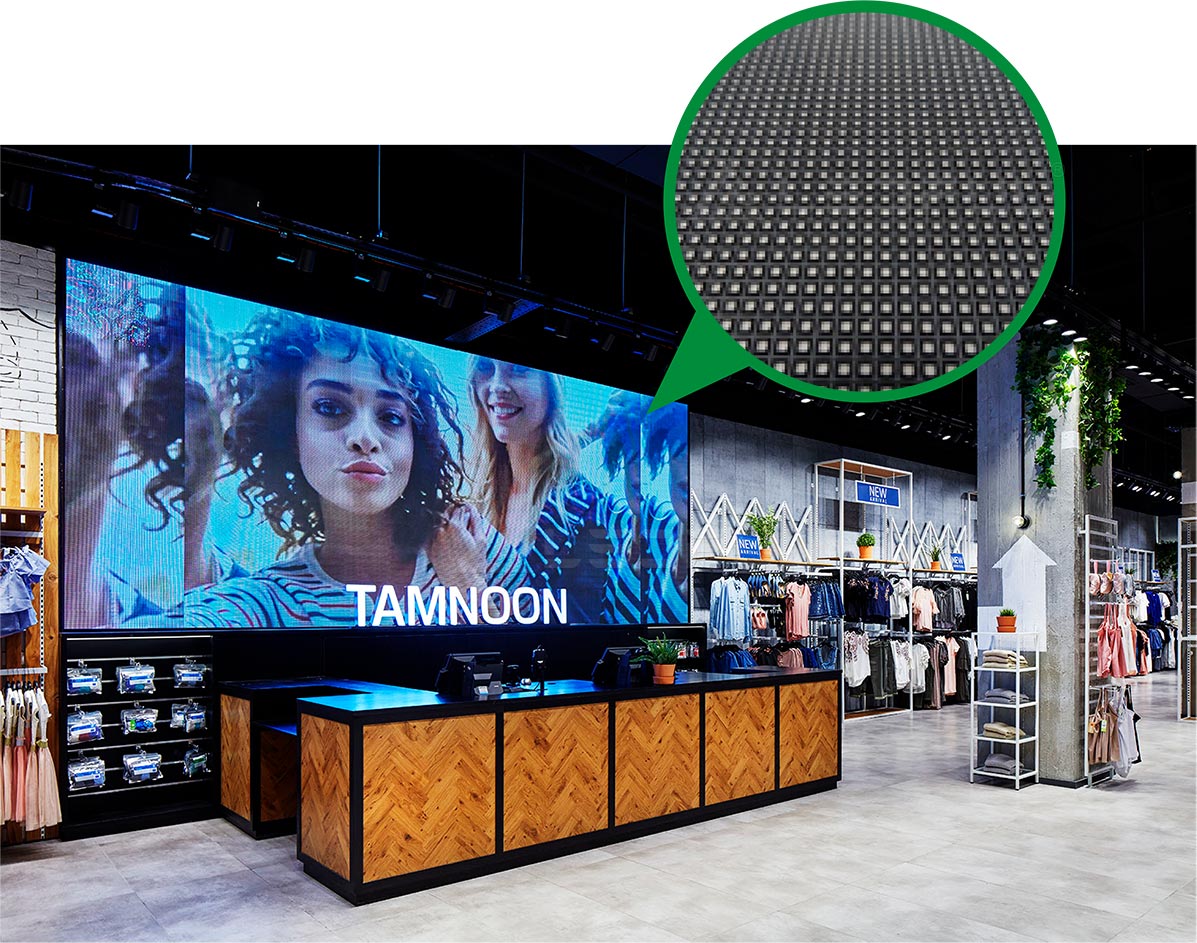

Black SMD LED

LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance
Black SMD LED

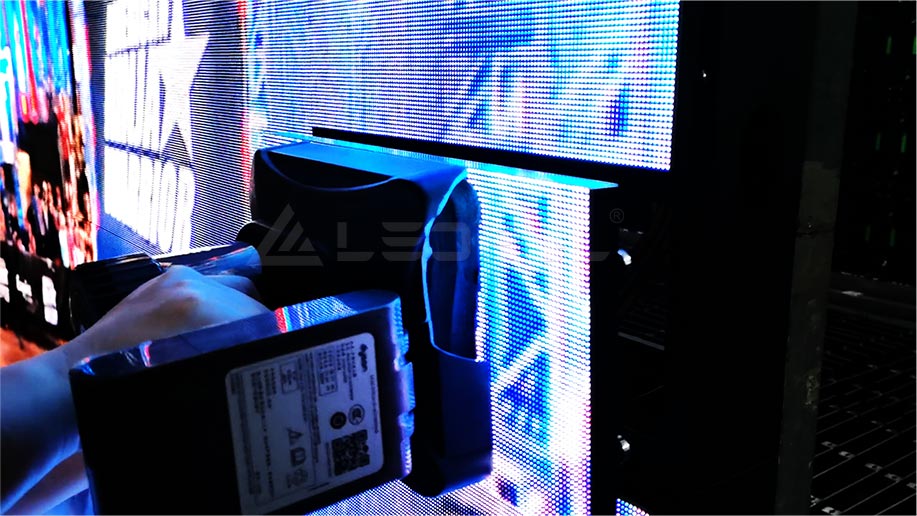

Front Maintenance Saving Space

No back space for LED display maintenance? Go with front. LED modules, power supply, receiver card, cables, etc can be taken out from front side.
Front Maintenance Saving Space

Front Installation Saving Structure

Not only front maintenance, but also front installation. LED display can be installed in front after removing 4 corners modules. Therefore the whole LED display thickness is the cabinet thickness.
Front Installation Saving Structure

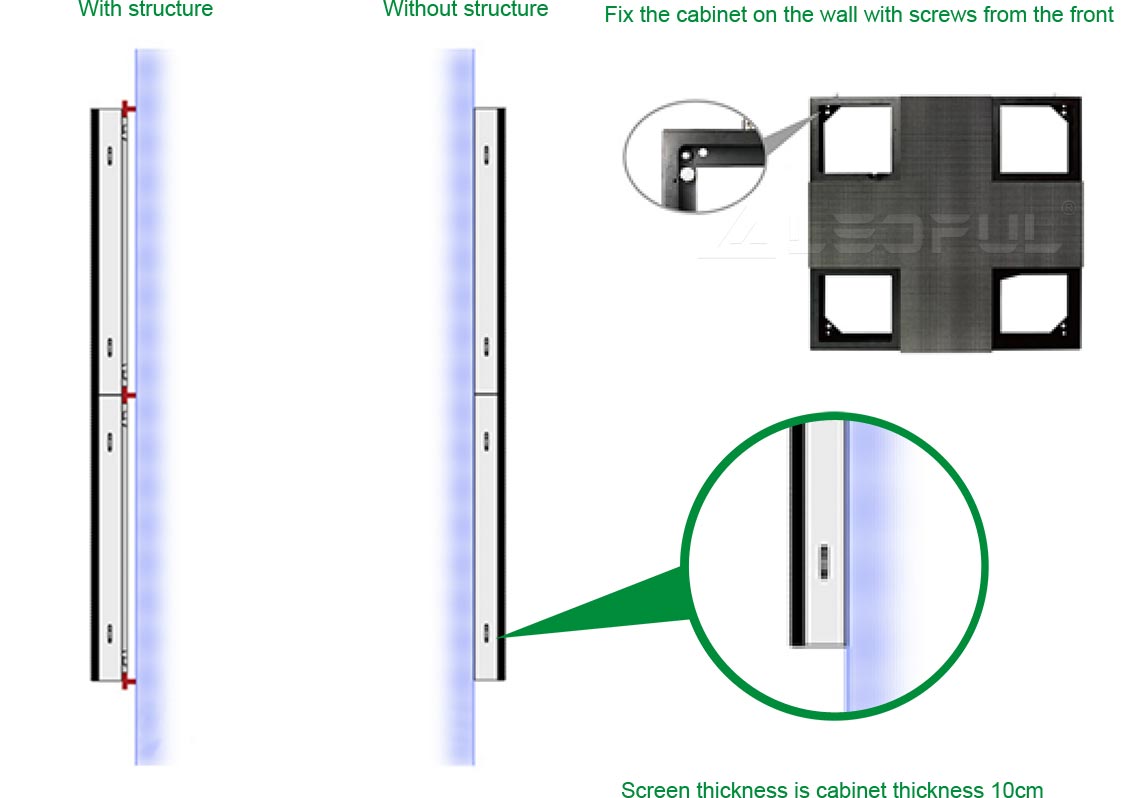

LED Display Wall Mounted Installation

Not only front maintenance, but also front installation. LED display can be installed in front after removing 4 corners modules. Therefore the whole LED display thickness is the cabinet thickness.
LED Display Wall Mounted Installation

Wide Viewing Angle

Wide viewing angle increasing its value by covering more viewing. Seeing from five directions,
it would be still the natural and clear image in an LED display.
Wide Viewing Angle

Low brightness with High grayscale

Low brightness with High grayscale to make the LED display in ultimate view performance
Low brightness with High grayscale

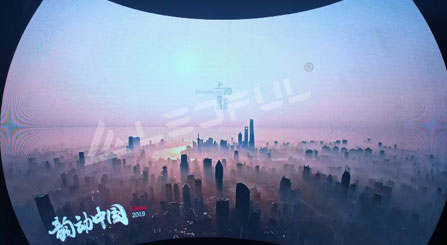

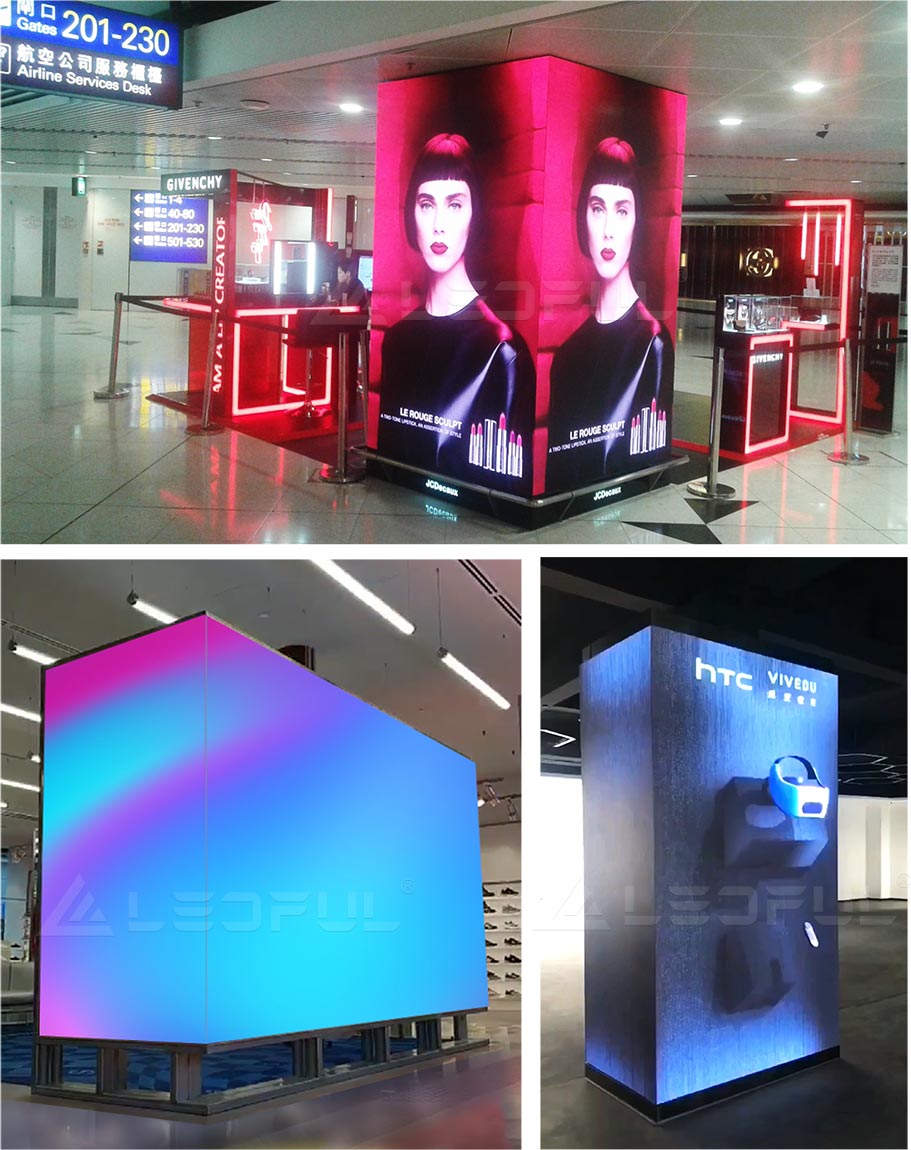

Various Shaped LED Display

Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc. LEDFUL supply more design and more solutions.
Various Shaped LED Display

IF Series More Features & More Advantages

  • Excellent heat dissipation and noiselessness
  • High-performance metal plate cabinet design
  • Macro molecular flexible mask with glare-less surface on LED modules
  • High definition and could be adjusted with various pixel pitch, so it can meet the request of the clients according different application environments.
  • Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light to make LED display great performance.
