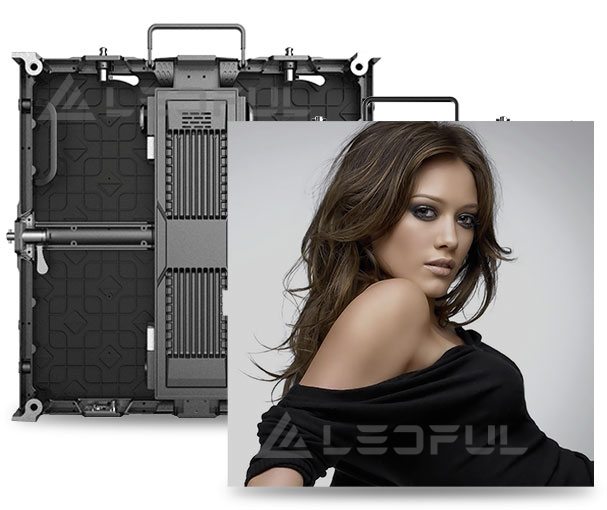

L Series

Rental Event Stage LED Display

L Series
LI2.6 | LI2.8 | LI2.9 | LI3.9 | LI4.8 | LI5.9 | LI6.2 LO3.9 | LO4.8 | LO5.9 | LO6.2
  • Front Maintenance
  • Curved Installation
  • No Light Leakage
  • Light and Thin

Parameter

L Series Outdoor LO 3.9 LO 4.8 LO 5.9 LO 6.2
Pixel Pitch(mm) 3.91mm 4.81mm 5.95mm 6.25mm
Pixel Matrix Per Sq.m 65536 43264 28224 25600
Pixel Configuration SMD1921 SMD2727 SMD3535 SMD3535
Brightness (nits) ≥4000 ≥4500 ≥4500 ≥4000
Scan 1/16 1/13 1/7 1/10
Cabinet Resolution 128×128 104×104 84×84 80×80
Power Con. (Max / Avg) 800/250w/sq.m 780/250w/sq.m 820/260w/sq.m 800/250w/sq.m
Module Dimension 250x250mm / 0.82x0.82feet
Cabinet Dimension 500x500x80mm / 1.64x1.64x0.26feet
Cabinet Weight 8kg / 17.6Ib ( Die-casting Aluminum)
Service Access Front / Rear
Rotation Angle -10° and +10°
Refresh Rate (HZ) 1920
Grey Scale (bit) 16
Viewing Angle (H/V) 160 / 160
IP Rate IP65
Input Voltage (AC) 110 / 240

L Series Indoor LI 2.6 LI 2.8 LI 2.9 LI 3.9 LI 4.8 LI 5.9 LI 6.2
Pixel Pitch(mm) 2.604mm 2.84mm 2.976mm 3.91mm 4.81mm 5.95mm 6.25mm
Pixel Matrix Per Sq.m 147456 123904 112896 65536 43264 28224 25600
Pixel Configuration SMD2121/SMD1515 SMD2121 SMD2121 SMD2121 SMD2121 SMD3528 SMD3528
Scan 1/32 1/22 1/28 1/16 1/13 1/7 1/10
Cabinet Resolution 192×192 176×176 168×168 128×128 104×104 84×84 80×80
Power Con. (Max/Avg) 800/250w/sq.m 780/240w/sq.m 760/220w/sq.m 700/200w/sq.m 720/200w/sq.m 740/220w/sq.m 700/200w/sq.m
Module Dimension 250x250mm / 0.82x0.82feet
Cabinet Dimension 500x500x80mm / 1.64x1.64x0.26feet
Cabinet Weight 8kg / 17.6Ib (( Die-casting Aluminum)
Service Access Front / Rear
Rotation Angle -10° and +10°
Brightness (nits) ≥1000
Refresh Rate (HZ) 3840
Grey Scale (bit) 16
Viewing Angle (H/V) 160 / 160
IP Rate IP31
Input Voltage (AC) 110 / 240
* Specifications and photos are subject to change without prior notice.

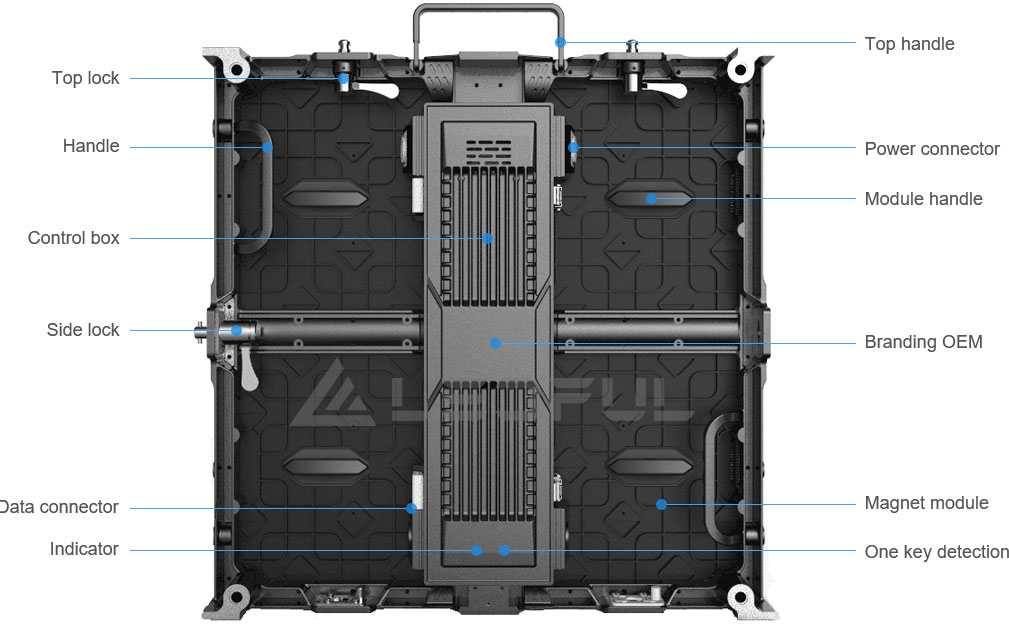

Parameter

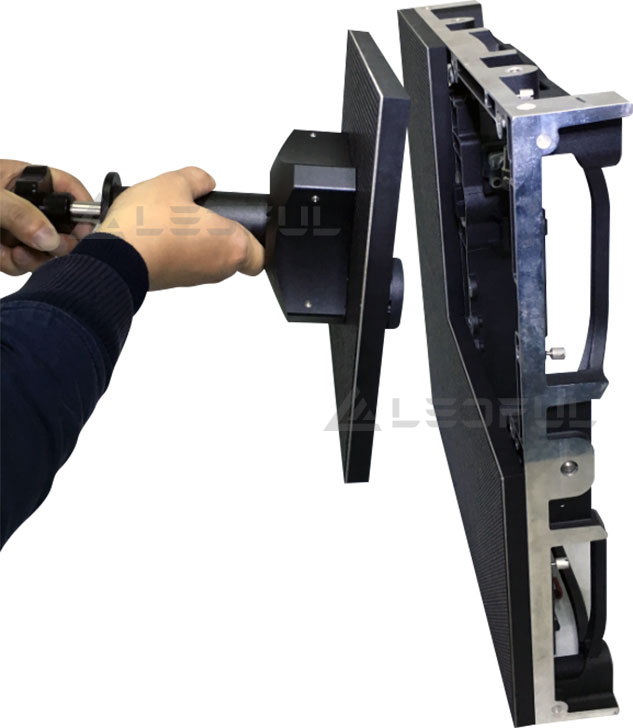

Front Maintenance

The magnet LED modules can be dismantled by tools on front side.
Front Maintenance

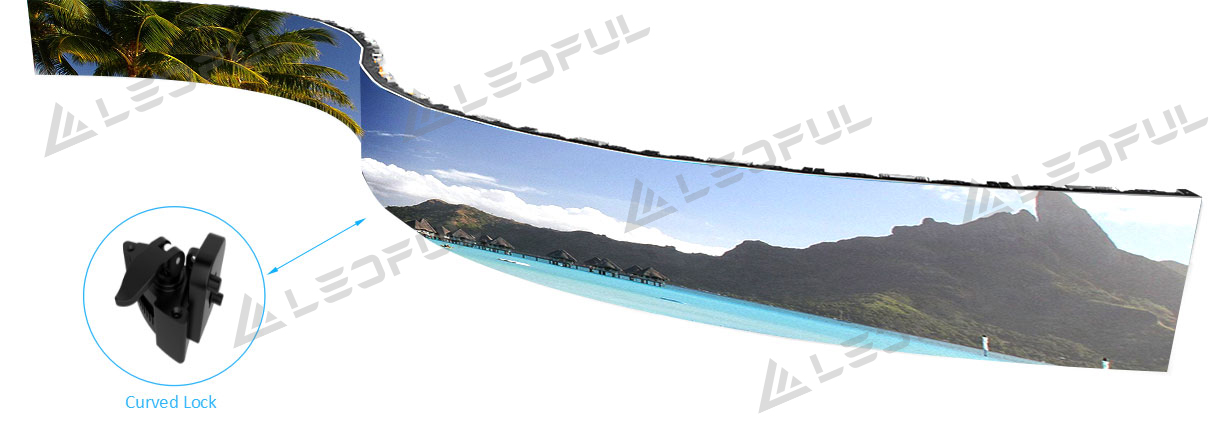

Curved Installation

Curved with every 2.5° between -10°and 10°, which can make convex and concave.
Curved Installation

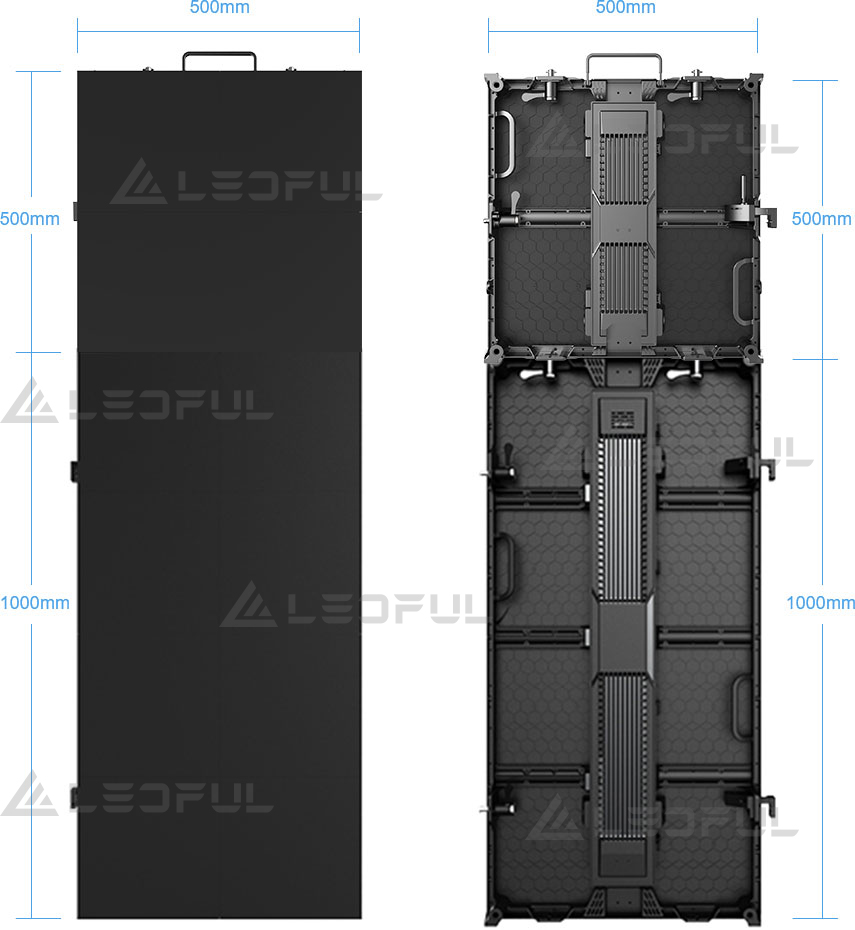

Work with E Series

L series and E series can be installed together for various installation.
Work with E Series

Ultra Fast Response

The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
 it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.
Ultra Fast Response

No light leakage trouble

No light leakage design with specific strips on side of cabinet and behind neighbour module.
No light leakage trouble

Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Wide Viewing Angle

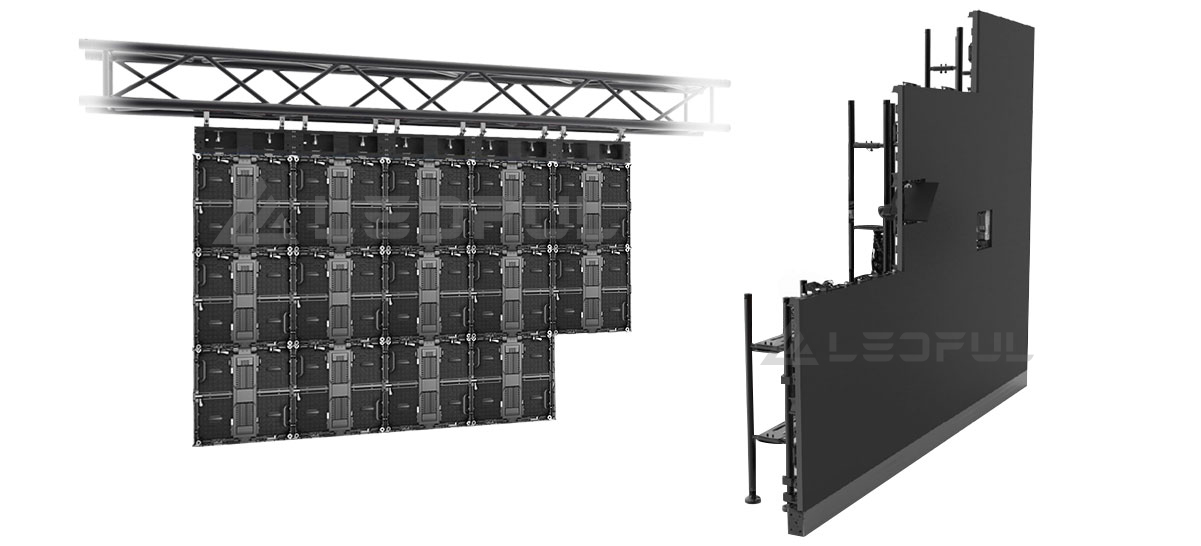

Faster & Easier Installation

Hanging or stacking, L series with light and thin features makes installation faster and easier.
Faster & Easier Installation

Accessories



Related & Recommended LED Display Series
Related & Recommended Projects
*
*
*
*
