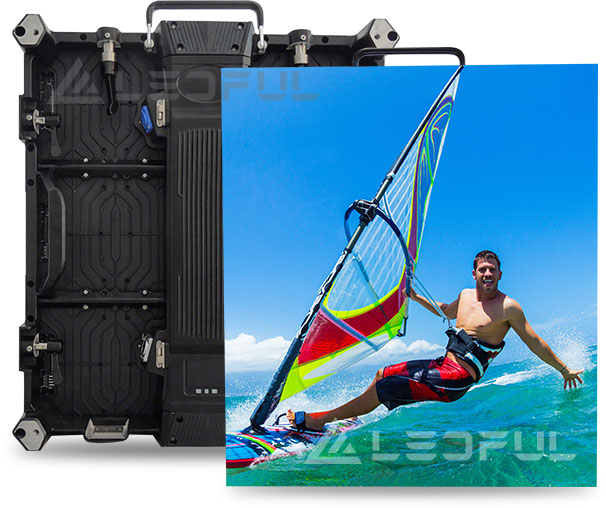

Q Series

Fine Pitch LED Display For Fixed and Rental

Q Series
Q1.8 | Q1.9 | Q2.0 | Q2.4 | Q2.5
  • Fine Pitch for Fixed & Rental
  • Front Maintenance
  • Black SMD LED
  • Front Installation
  • High Grayscale
  • High Refresh
  • Light and Thin

Parameter

Value Q1.8 Q1.9 Q2.0 Q2.4 Q2.5
Pixel Pitch(mm) 1.875 1.935 2 2.4 2.5
Pixel Matrix Per Sq.m 284444 267077 250000 173611 160000
Pixel Configuration SMD1515 SMD1515 SMD1515 SMD1515 SMD1515
Brightness (nits) 1000 1000 1000 1000 1000
Scan 1/32 1/31 1/30 1/25 1/24
Cabinet Resolution 256x288 248x279 240x270 200X225 192X216
Power Con. (Max / Avg) 700/200 w/sq.m
Module Dimension 240x180mm / 0.79x0.59ft
Cabinet Weight 8.5kg / 18.7Ib ( Die-casting Aluminum)
Cabinet Dimension 480x540x90mm / 1.57x1.77x0.3ft
Service Access Front / Rear
Refresh Rate (HZ) ≥3840
Grey Scale (bit) 16
Viewing Angle (H/V) 160 / 160
IP Rate IP41
Input Voltage (AC) 110V / 240V

* Specifications and photos are subject to change without prior notice.

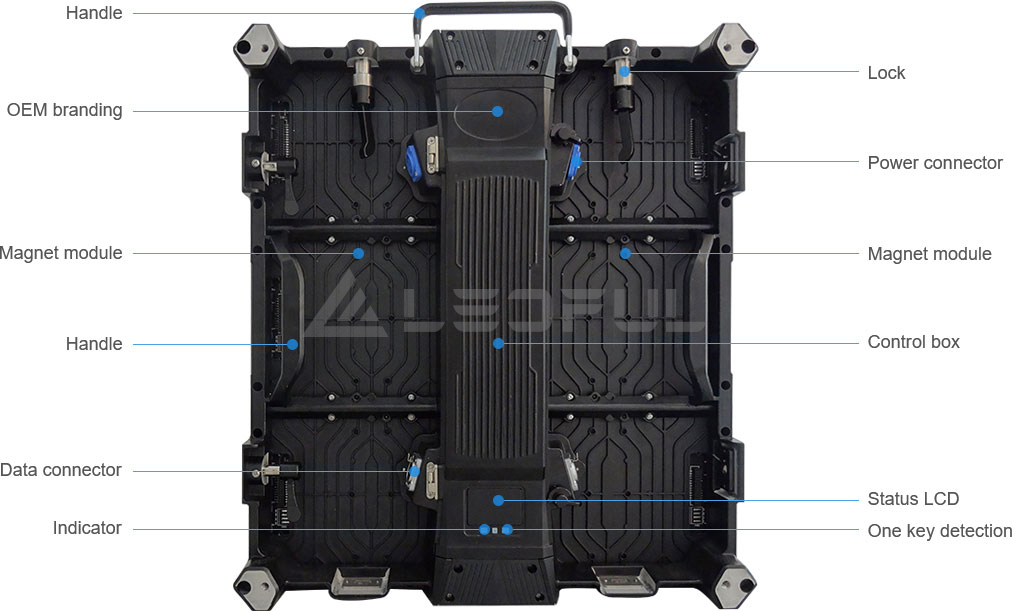

Parameter

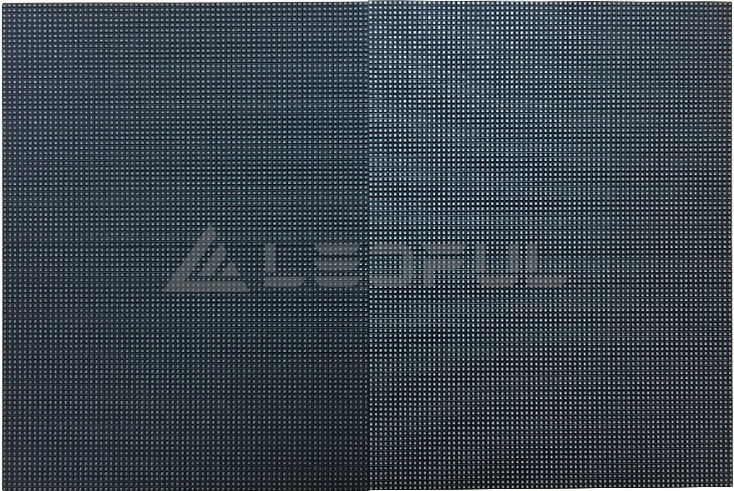

Black SMD LED

LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance.
Black SMD LED

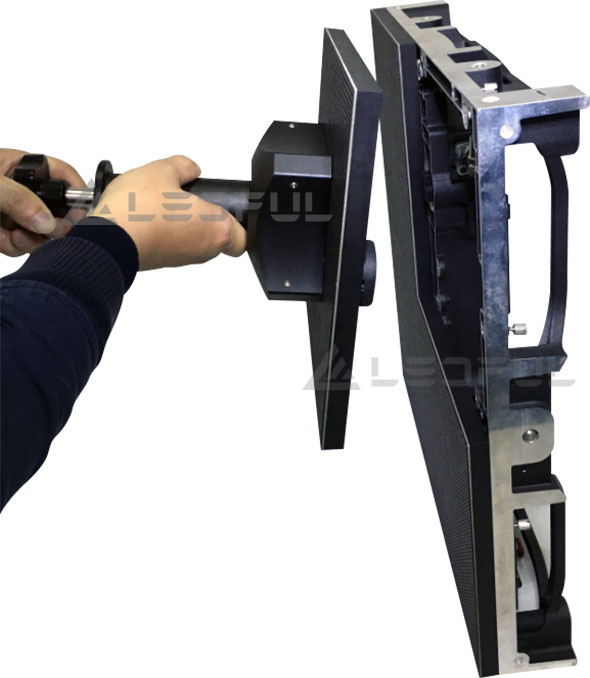

Full Front / Rear Maintenance

Not only module front service, but also power supply, receiver card, hub, etc.
Full Front / Rear Maintenance

Front Installation

Each corner of cabinet have a screw hole, screw M8 bolts to fix bare cabinet on the wall.
Assembly modules onto the cabinet.

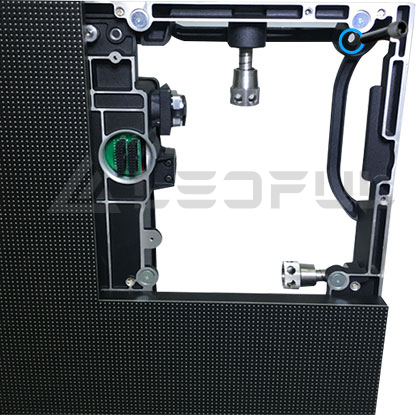

  • Each corner of cabinet has a screw hole,  screw the M8 bolts to fix bare cabinets on the wall.
    Each corner of cabinet has a screw hole, screw the M8 bolts to fix bare cabinets on the wall.

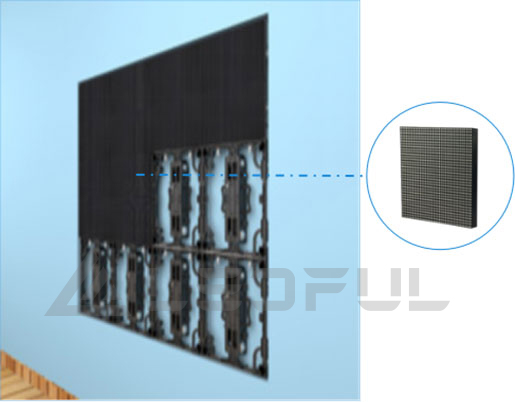

  • Assemble modules onto the cabinet in order
    Assemble modules onto the cabinet in order

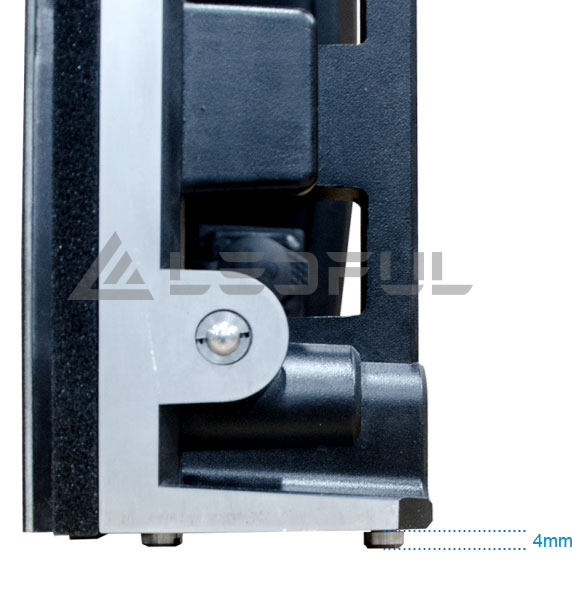

Edge-care Design

4mm stands at the bottom of cabinet, prevent edge pixels damage when put cabinet upright on the ground.
Edge-care Design

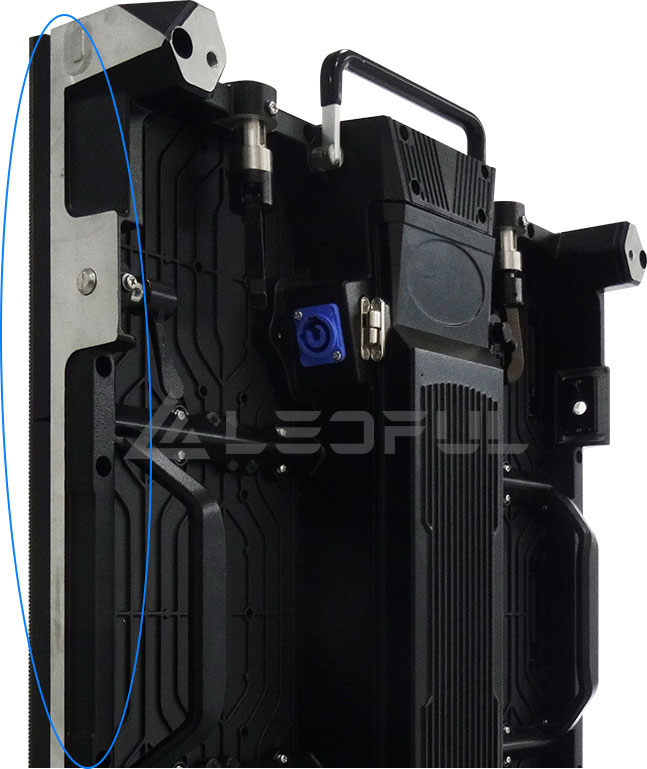

No Light Leakage Trouble

No light leakage design with specific strips on side of cabinet and behind neighbour module.
No Light Leakage Trouble

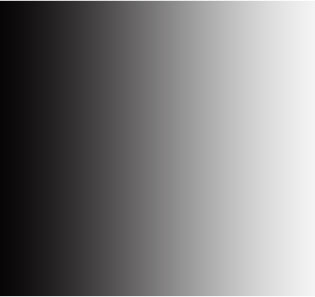

Low brightness with High grayscale

Low brightness with High grayscale to make the LED display in ultimate view performance
  • Low greyscale
    Low greyscale
  • High greyscale
    High greyscale
  • LEDFUL Q Series
    LEDFUL Q Series

Ultra Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Ultra Wide Viewing Angle

Ultra High Definition

It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.
Ultra High Definition

Ultra Fast Response

The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
 it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.
Ultra Fast Response

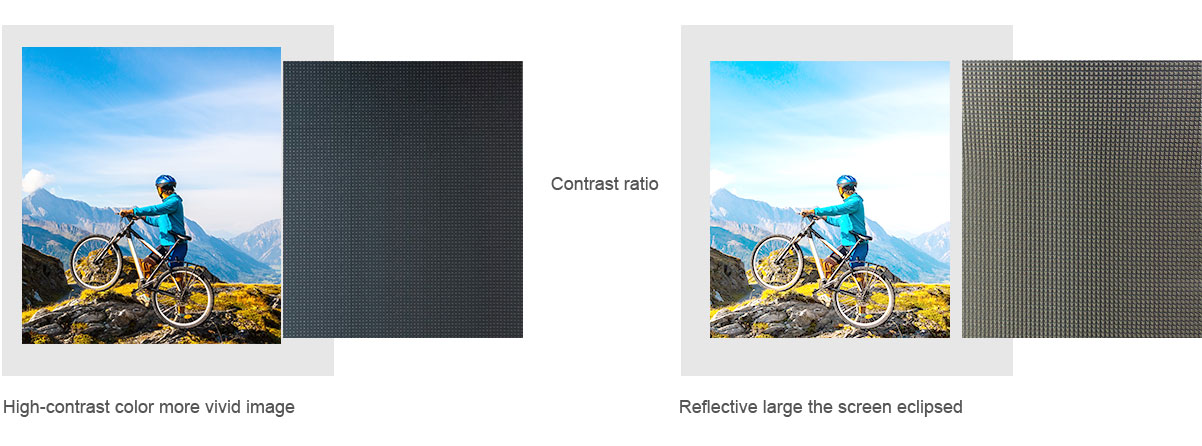

High Contrast Ratio

High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance
when works on the color and has very good contrast.
High Contrast Ratio

High Refresh Rate

It could be reach 3840HZ.
High Refresh Rate

16 bit Grey Scale

It has almost the perfect gray scale and gives true color of the images,
there will have no data loss and you could see every details clearly.
  • LEDFUL
    LEDFUL
  • OTHER'S
    OTHER'S
Related & Recommended LED Display Series

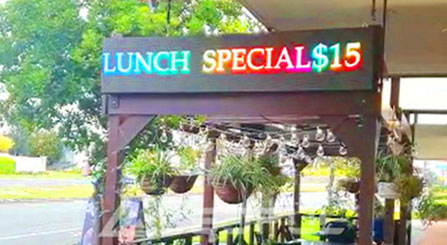

Related & Recommended Projects
