E Series

Indoor & Outdoor Rental LED Display

E Series
EI2.6 | EI2.8 | EI2.9 | EI3.9 | EI4.8 | EI5.9 | EI6.2 EO3.9 | EO4.8 | EO5.9 | EO6.2
  • Front Maintenance
  • Curved Installation
  • No Light Leakage
  • Light and Thin
  • Cost Effective

Parameter

E Series Outdoor EO 3.9 EO 4.8 EO 5.9 EO 6.2
Pixel Pitch(mm) 3.91mm 4.81mm 5.95mm 6.25mm
Pixel Matrix Per Sq.m 65536 43264 28224 25600
Pixel Configuration SMD1921 SMD2727/1921 SMD3535 SMD3535
Brightness (nits) ≥4000 ≥4500 ≥4500 ≥4000
Scan 1/16 1/13 1/7 1/10
Cabinet Resolution 128×256 104×208 84×168 80×160
Power Con. (Max / Avg) 750/ 230 w/sq.m 700 / 220 w/sq.m 700 / 220 w/sq.m 710/ 210 w/sq.m
Module Dimension 250x250mm / 0.82x0.82ft
Cabinet Dimension 500x1000x80mm / 1.64x3.28x0.26ft
Cabinet Weight 13kg / 28.66Ib (( Die-casting Aluminum)
Service Access Front / Rear
Rotation Angle -10° and +10°
Refresh Rate (HZ) 1920
Grey Scale (bit) 16
Viewing Angle (H/V) 160 / 160
IP Rate IP65
Input Voltage (AC) 110 / 240


E Series Indoor EI 2.8 EI 2.9 EI 3.9 EI 4.8 EI 5.9 EI 6.2
Pixel Pitch(mm) 2.84mm 2.976mm 3.91mm 4.81mm 5.95mm 6.25mm
Pixel Matrix Per Sq.m 123904 112896 65536 43264 28224 25600
Pixel Configuration SMD2121 SMD2121 SMD2121 SMD2121 SMD3528 SMD3528
Scan 1/22 1/28 1/16 1/13 1/7 1/10
Cabinet Resolution 176×352 168×336 128×256 104×208 84×168 80×160
Power Con. (Max / Avg) 800 / 250w/sq.m 780 / 240w/sq.m 700 / 220w/sq.m 680 / 200w/sq.m 680 / 200w/sq.m 700 / 210w/sq.m
Module Dimension 250x250mm / 0.82x0.82ft
Cabinet Dimension 500x1000x80mm / 1.64x3.28x0.26ft
Cabinet Weight 13kg / 28.66Ib (( Die-casting Aluminum)
Service Access Front / Rear
Rotation Angle -10° and +10°
Brightness (nits) ≥1000
Refresh Rate (HZ) 3840
Grey Scale (bit) 16
Viewing Angle (H/V) 160 / 160
IP Rate IP31
Input Voltage (AC) 110 / 240
* Specifications and photos are subject to change without prior notice.

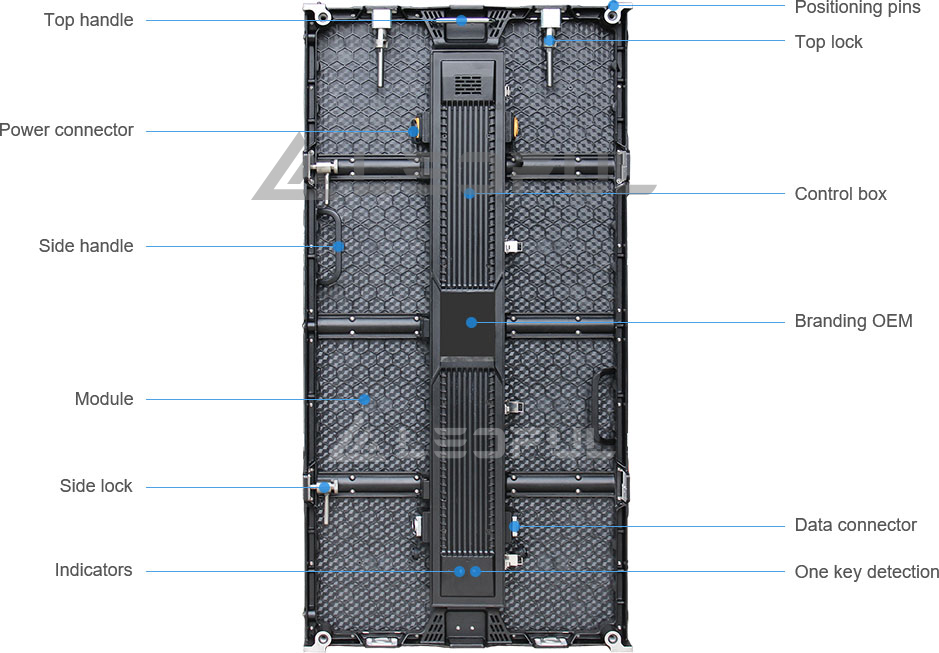

Parameter

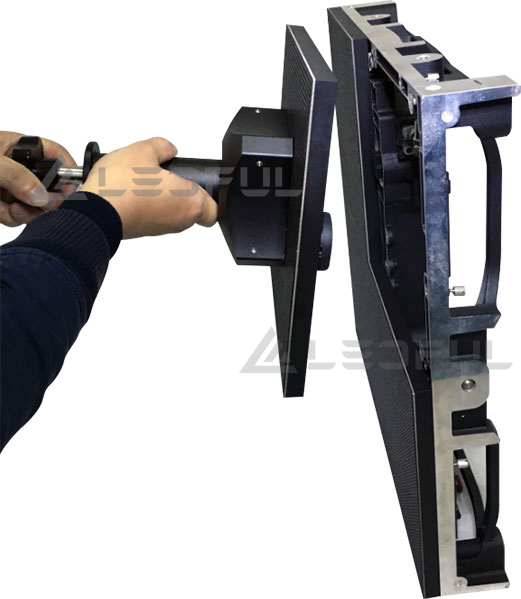

Front Maintenance

The magnet LED modules can be removed by tools on front side.
Front Maintenance

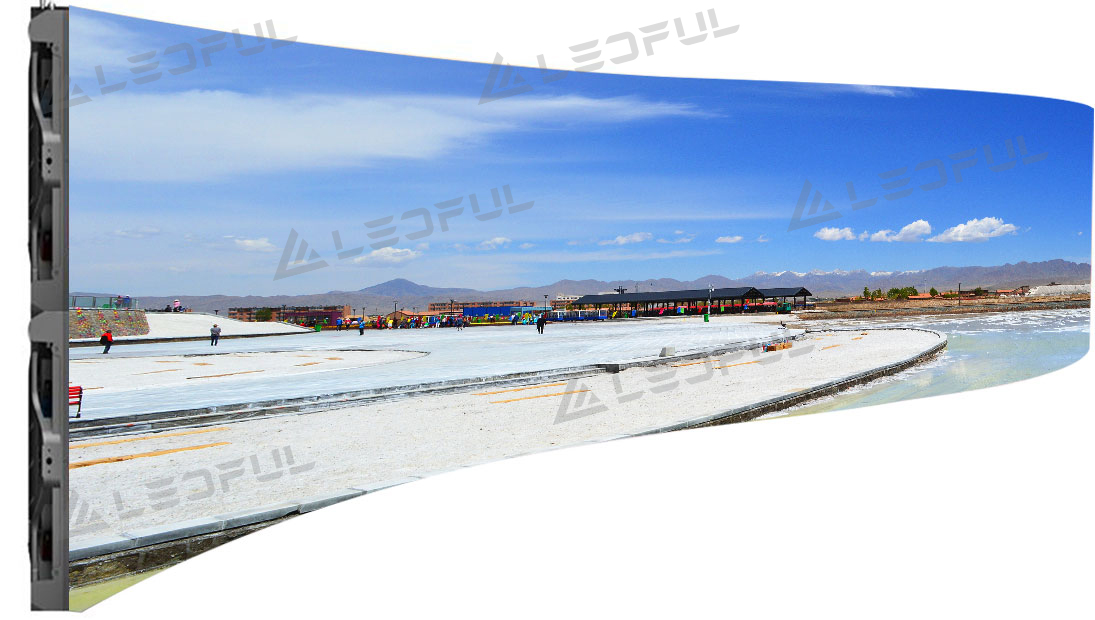

Curved Installation

Curved with every 2.5° between -10°and 10°, which can make convex and concave.
Curved Installation

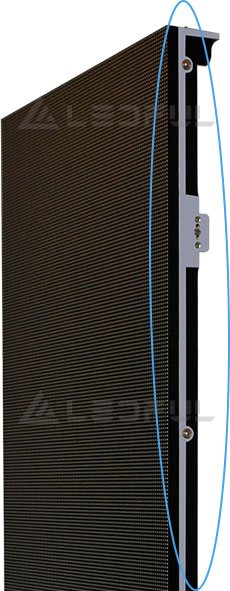

No light leakage trouble

No light leakage design with specific strips on side of cabinet and behind neighbour module.
No light leakage trouble

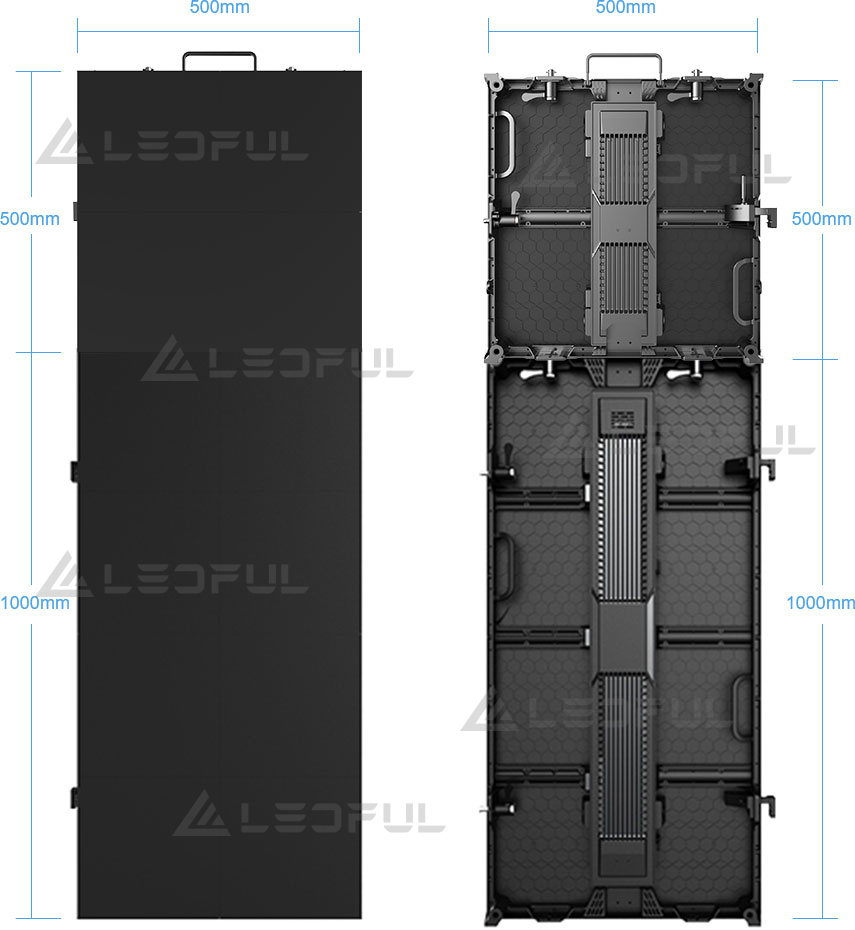

Cost Effective Option

E series is "double L series" which will save cost and time during installation.
L series and E series can be installed together for various installation.
Cost Effective Option

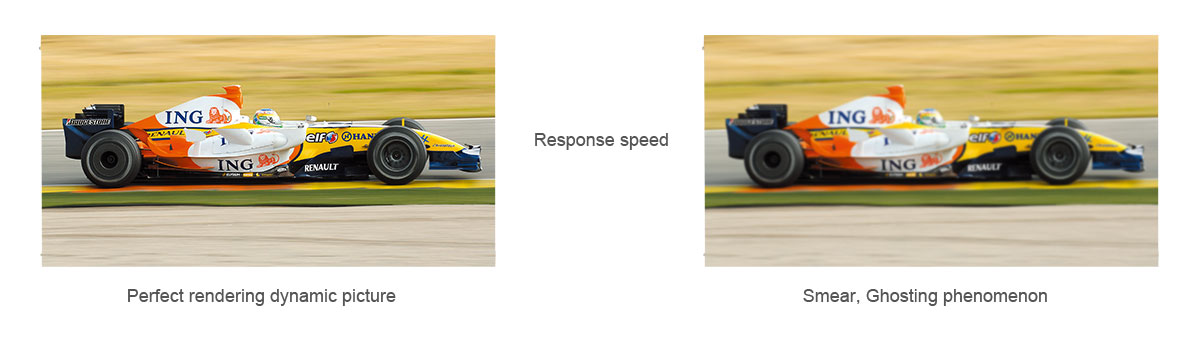

Ultra Fast Response

The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.
Ultra Fast Response

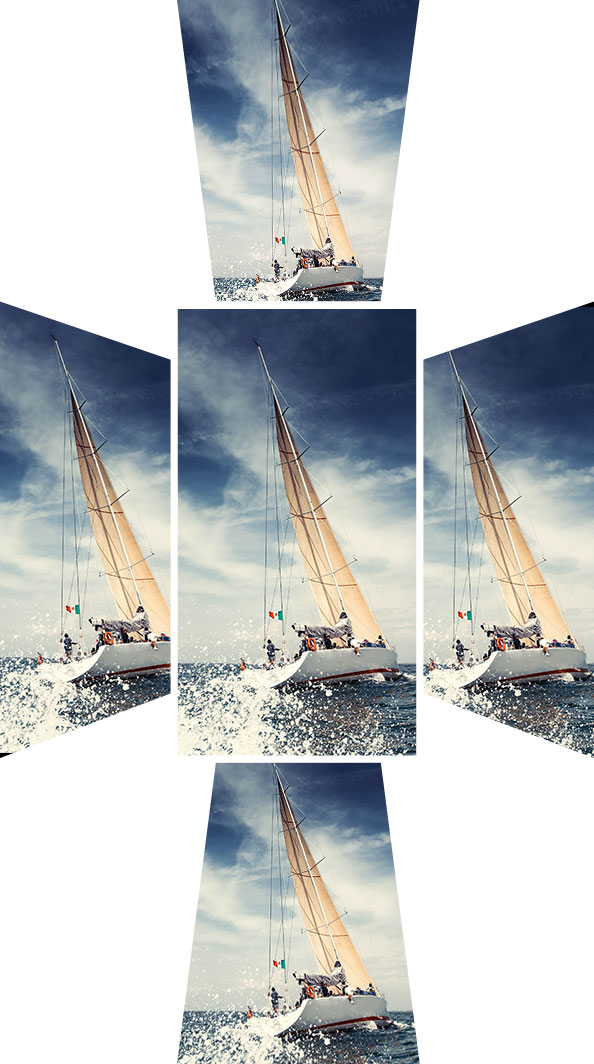

Ultra Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Ultra Wide Viewing Angle

Accessories

  • Power Cable
    Power Cable
  • Data Cable
    Data Cable
  • Main Power Cable
    Main Power Cable
  • Main Data Cable
    Main Data Cable
  • Controller &Processor
    Controller &Processor
  • Front Maintenance Tool
    Front Maintenance Tool
  • Curved Lock
    Curved Lock
  • Hanging Bar
    Hanging Bar
