PM PRO Series


PM PRO Series

High-end Perimeter LED Screen Solution

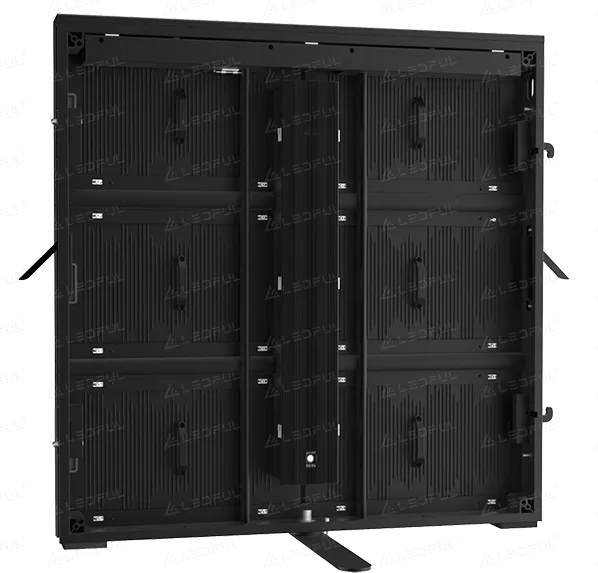

Die Casting Aluminum Material

Adopt aluminium material, with good heat dissipation. Die-casting aluminium material with small tolerance. Hidden wire and unplugged design, more beautiful and neat. Cabinet size 960x960mm, light and thin, thickness 96mm, weight 28kg/pcs.

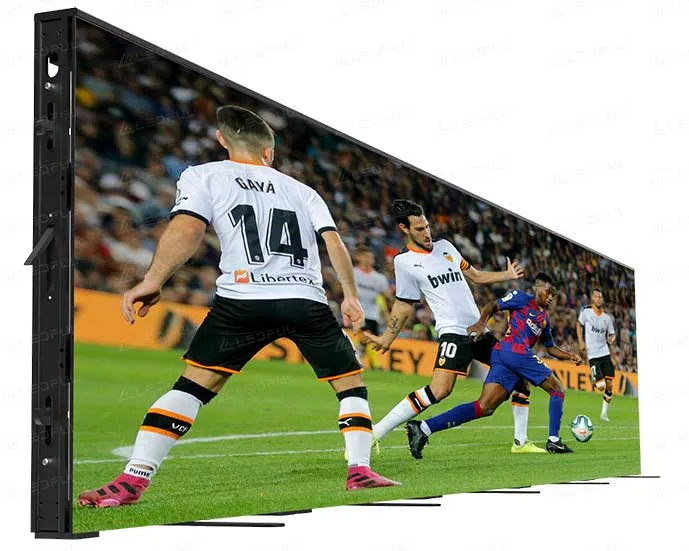

Perfect Visual Effect

Using the first-line brand NationStar lamp beads, equipped with high refresh, high brightness 6000~7000nits, stable performance, lower damage rate, longer lifetime.

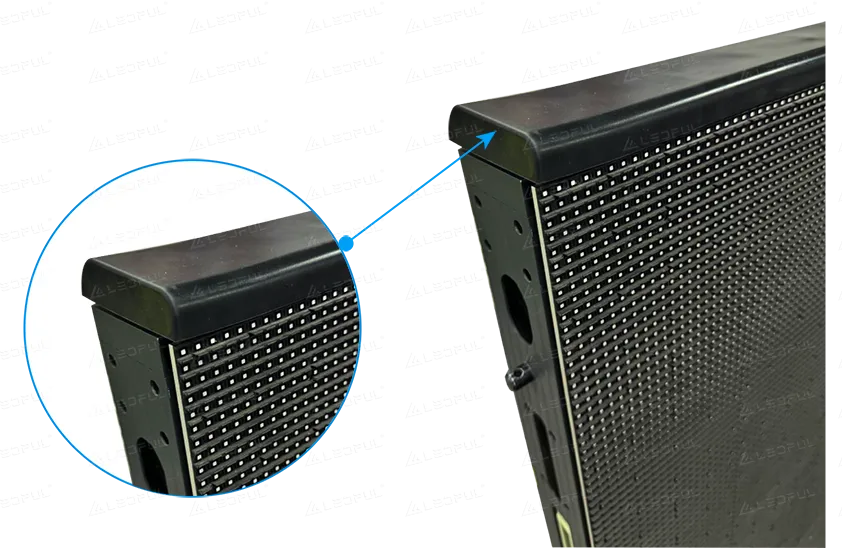

Great Protection Ability

There is soft top cover on the top of each LED panel. And meantime the mask on the surface of LED display changed to soft rubber mask, those will protect the athletes from injury and also protect the screen well. It will be no problem if the screen are hit by the balls or other things by accidentally.

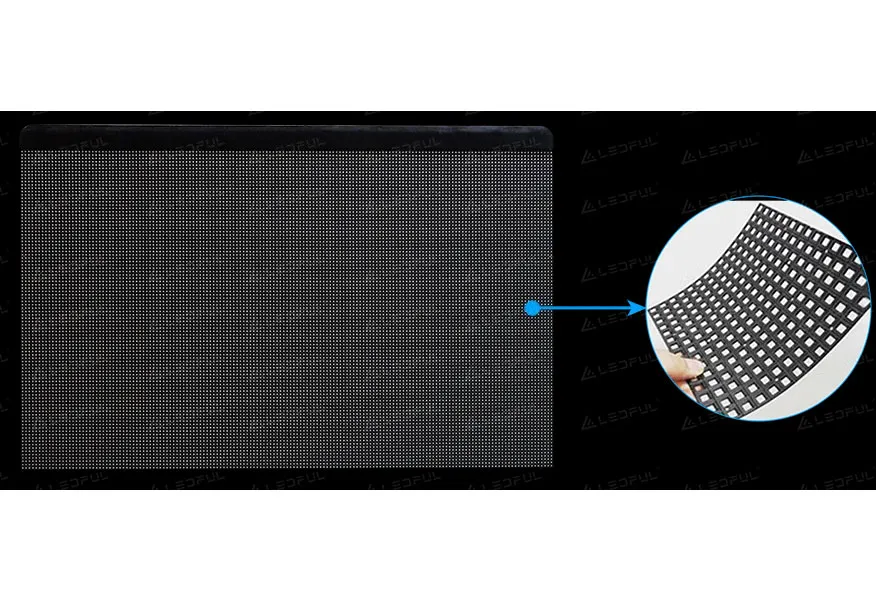

Soft Rubber Mask on Surface

Soft rubber mask can protect the athletes from injury when hit by accidentally, enhance the contrast of LED display, a better performance, protect LED lamps and waterproof function.

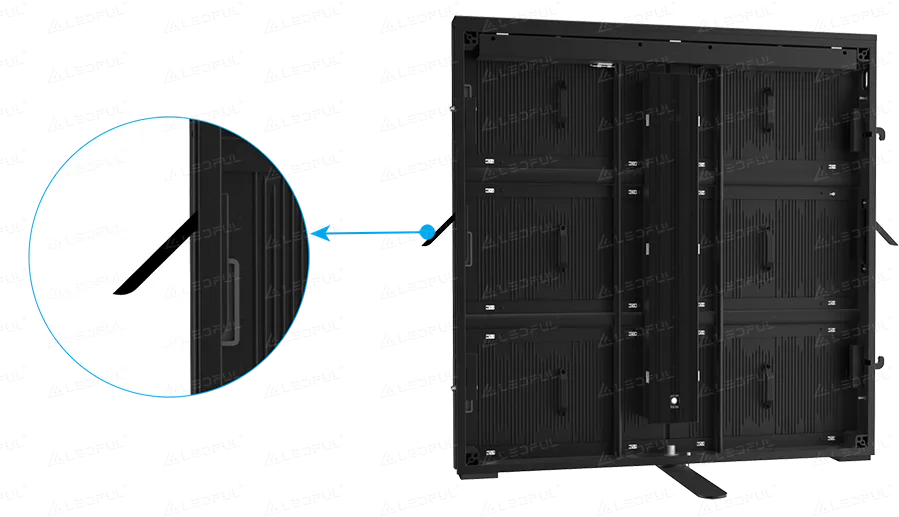

Safety Handle for Easy Moving

Anti-slip safety handle let the installation and movement be easy and convenient.

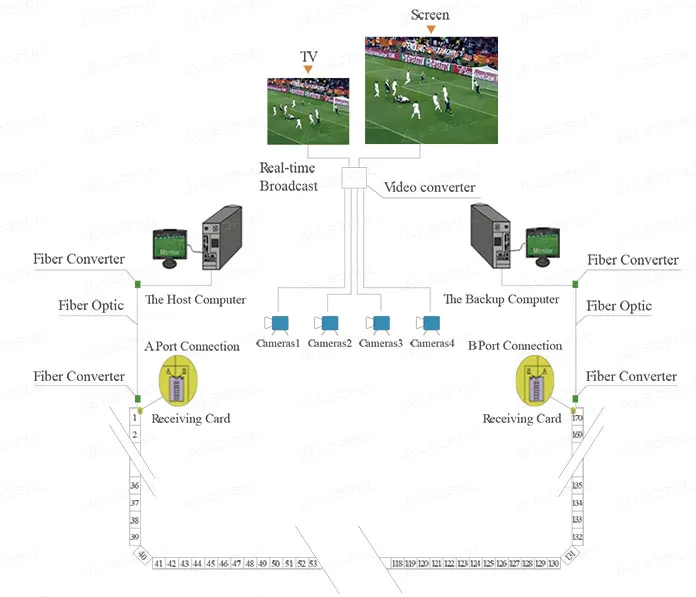

Dual Signal & Power Backup

PM PRO series can do signal and power backup solution, if there is any damaged of power supply, receiver card or LAN cables, the backup receiver card or power supply will connect and work normally, so the perimeter LED screen is still working normally without any problems, which is an important feature for some large sport events.

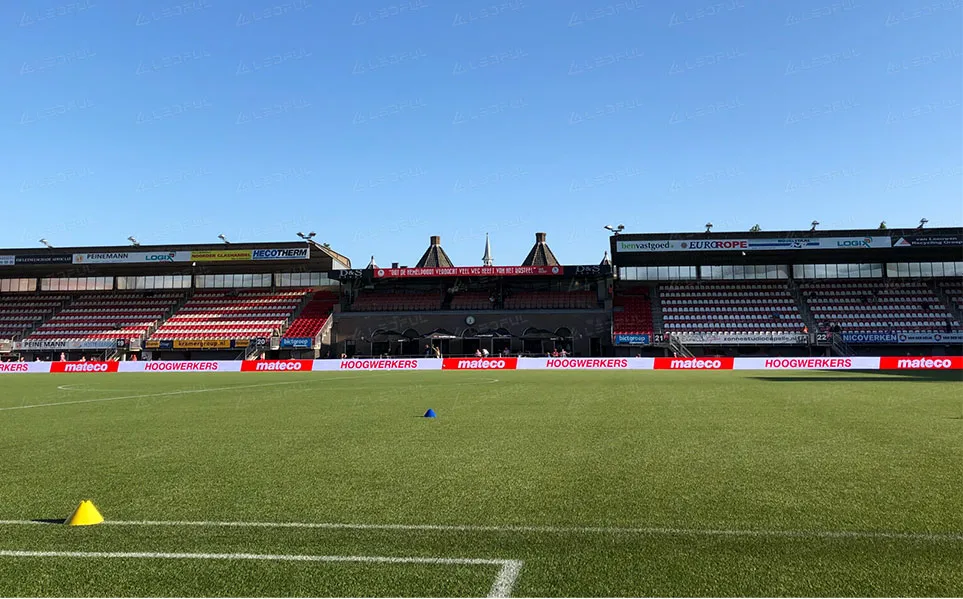

Case - I

Top-5 Football Club in the Netherlands

--- 250m Outdoor

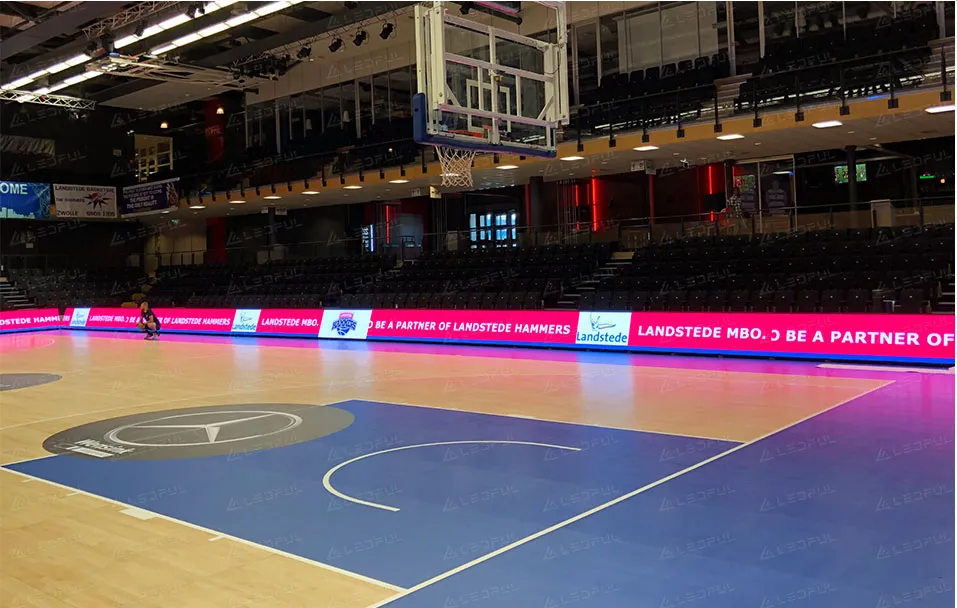

Case-II

European Union Competitions in Czech Republic

--- 160sqm Indoor

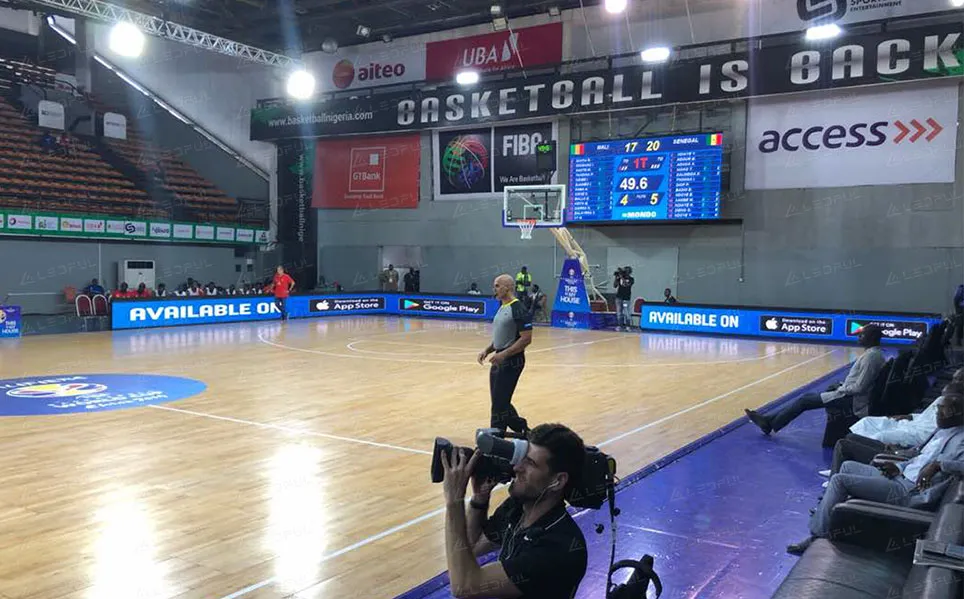

Case-III

Nigeria National Basketball Arena

--- 120sqm Indoor


Parameters


ModelPM6-PROPM8-PROPM10-PRO
Pixel Pitch(mm)6.67810
Pixel Matrix Per Sqm22,47715,62510,000
Pixel ConfigurationSMD2727SMD2727SMD2727
Brightness (nits)600060006000
Scan1/61/51/2
IP RateIP66IP66IP66
Module Dimension480×320mm / 1.57×1.05ft
Cabinet Dimension960x960mm / 3.15x3.15ft
Cabinet MaterialDie Casting Aluminum
Cabinet Weight28KG
Power Con. (W/sqm.)Max. 650W Avg.100~200W
Service AccessRear & Front
Refresh Rate (HZ)≥3840
Grey Scale (bit)16
Contrast Ratio8000:01:00
Viewing Angle (H / V)140° / 140°
Operation Temperature﹣20℃ ~ +60℃
Input Voltage (AC)AC110/240V, 50/60Hz

* Specifications and photos are subject to change without prior notice.
